AMS AMS.32.08.0001-1 Turbo Inlet Tubes for 17-20 Ford F-150/Raptor 3.5L EcoBoost

Vehicle Fitment

• 2017-2020 Ford F-150 (XLT, Lariat, Limited, Platinum, King Ranch, Raptor; 3.5 L EcoBoost V6; 2WD/4WD)
• 2017-2020 Ford Raptor (3.5 L EcoBoost V6; 2WD/4WD)

Fitment Notes

• Replaces factory turbo inlet tubes--direct bolt-on with retained OEM connections
• Compatible with stock or most aftermarket intake systems and turbos
• CARB approval in progress; not available for purchase in California
• Includes all necessary clamps and couplers for easy installation

Features

• 222% larger cross-sectional area at turbo inlet to reduce restriction
• Engineered to retain OEM appearance without check-engine lights
• Balanced airflow eliminates left/right turbo pressure disparity
• Durable molded ABS construction with OEM-style finish
• Flow gains contribute to nearly +20 hp on stock tune, more with upgrades
• Supports future turbo upgrades like Garrett PowerMax (with couplers)
• Over-pressure drop reduction for enhanced turbo efficiency
• Includes detailed instructions and hardware pack

Specifications

• Part Number: AMS.32.08.0001-1
• Material: Molded ABS plastic, textured OEM look
• Weight: ~8 lb; Length: ~29"
• Flow Increase: ~222% area expansion
• Power Gain: ~+20 hp (dyno confirmed with tune)
• CARB Status: Compliance pending; not currently CARB-legal

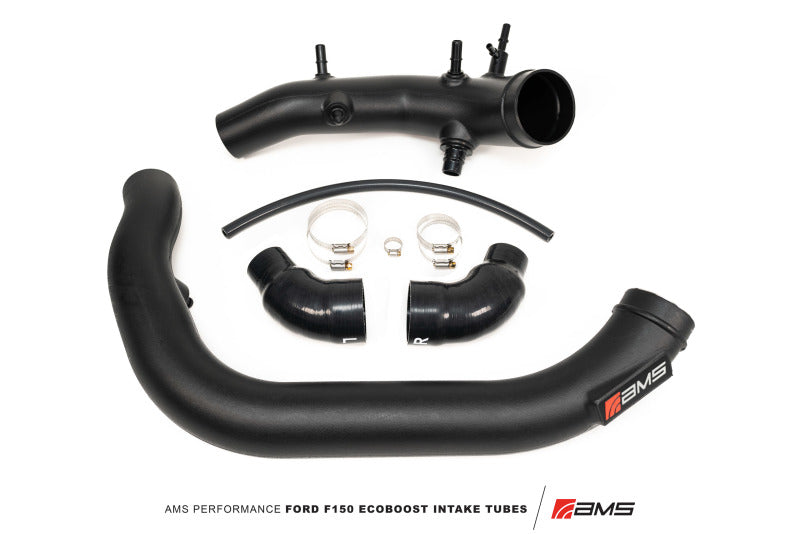

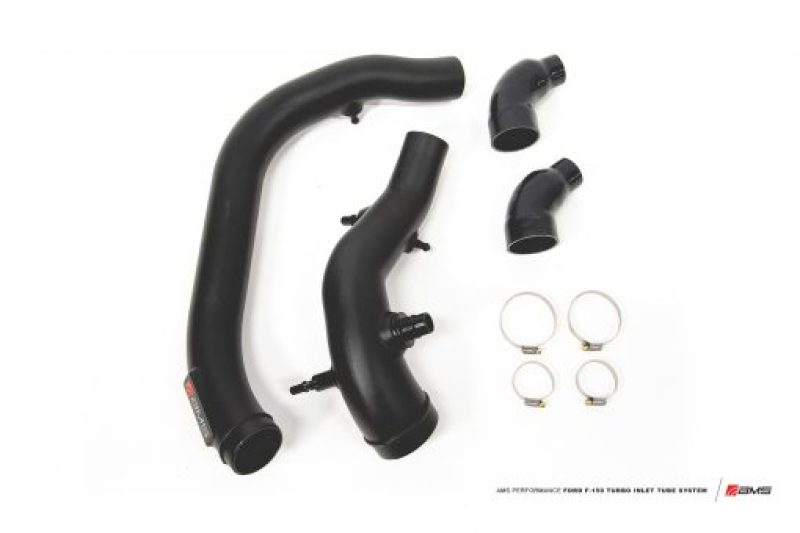

Included Components

• 2x Turbo inlet tubes (left & right)
• All required couplers, clamps, and hoses
• Installation manual with diagrams

Product Description

The AMS AMS.32.08.0001-1 Turbo Inlet Tubes are a direct bolt-on enhancement for 2017-2020 Ford F-150 and Raptor models with the 3.5 L EcoBoost V6 engine. Featuring a 222% increase in cross-sectional area at the turbo inlets, these tubes drastically reduce pre-turbo pressure drop, delivering flow gains that translate to roughly +20 hp on a stock tune and even more when paired with other turbo upgrades.

Constructed from molded ABS for durability and OEM aesthetic, the inlet tubes retain all factory fittings for a seamless installation without triggering error codes. They balance intake pressure across both turbos and support future bolt-on upgrades like Garrett PowerMax with optional couplers. The kit includes clamps, couplers, and hardware, backed by AMS engineering and comprehensive installation guidance.
