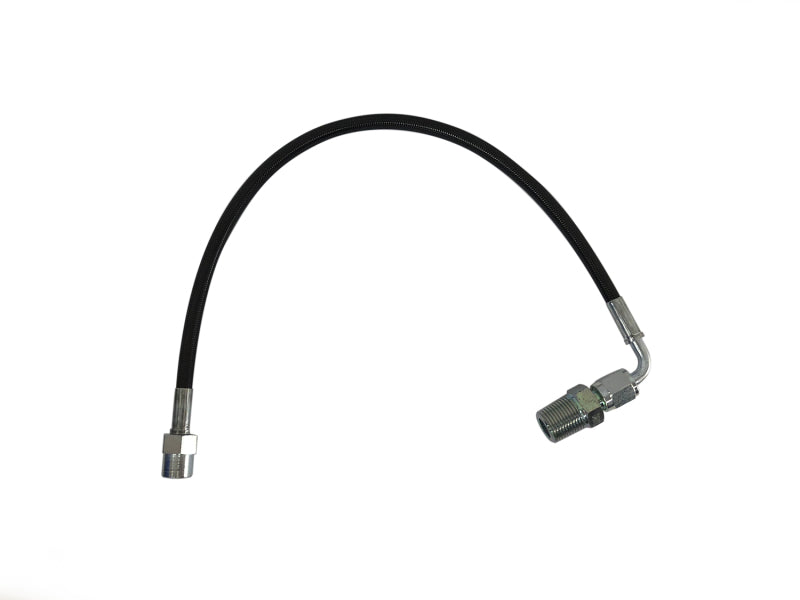

AMS Performance AMS.01.04.0104-1 Remote Oil Pressure Sending Unit Line 4G63 4B11

Vehicle Fitment

• 1991-1993 Mitsubishi Galant VR4 - 4G63 2.0L Turbocharged
• 1990-1994 Plymouth Laser RS - 4G63 2.0L Turbocharged
• 1990-1998 Eagle Talon TSi - 4G63 2.0L Turbocharged
• 1990-1999 Mitsubishi Eclipse GST / GSX - 4G63 2.0L Turbocharged
• 1992-2006 Mitsubishi Lancer Evolution I through IX - 4G63 2.0L Turbocharged
• 2008-2015 Mitsubishi Lancer Evolution X - 4B11 2.0L Turbocharged (GSR, MR, MR Touring, RS, SE, Final Edition)

Fitment Notes

• Compatible with all Mitsubishi 4G63 and 4B11 turbocharged 2.0L engine applications listed above - fits any vehicle in this family where an aftermarket oil pressure sending unit is being installed
• This line connects using 1/8 in. NPT female threads at both ends - verify that the aftermarket oil pressure sending unit being used has a 1/8 in. NPT male fitting before ordering
• This is a replacement/service part - it is non-returnable and non-refundable unless it arrives defective

Features

• Mounts the aftermarket oil pressure sending unit remotely away from the oil filter housing - isolates the sensor from the high-frequency engine vibration that is the primary cause of sending unit failure and oil leaks on 4G63 and 4B11 platforms, particularly at high RPM
• Eliminates the most dangerous failure mode of a direct-mount sending unit: if a sending unit breaks off at the oil filter housing, the resulting uncontrolled oil leak can quickly deplete oil pressure, destroy rod and main bearings, and cause catastrophic engine failure - the remote mount line prevents this scenario entirely
• -3AN stainless steel braided construction provides maximum resistance to abrasion, corrosion, oil exposure, and heat degradation in the engine bay environment - significantly outlasts rubber hose alternatives
• 12-inch length provides practical routing flexibility between the oil filter housing and a remotely mounted sending unit location, accommodating most common gauge/sensor mounting positions without excess slack
• 1/8 in. NPT female thread connections at both ends are the standard thread specification for the majority of aftermarket oil pressure sending units and oil pressure gauge senders - compatible with AEM, Autometer, Defi, GReddy, and most other aftermarket gauge systems using 1/8 NPT sensors
• Stainless steel fittings resist corrosion and provide secure, leak-free connections at operating oil pressure

Specifications

• Line Type: -3AN stainless steel braided hose
• Length: 12 inches (1 foot)
• Hose End 1: 1/8 in. NPT female threads
• Hose End 2: 1/8 in. NPT female threads
• Fitting Material: Steel
• Hose Color: Natural stainless
• Compatible Engines: Mitsubishi 4G63 (2.0L Turbo) and 4B11 (2.0L Turbo)
• UPC: 00810097472433
• Return Policy: Non-returnable / non-refundable unless defective

Included Components

• 1x -3AN stainless steel braided oil pressure sending unit line (12 inches)
• Appropriate 1/8 in. NPT fittings at each end
• Note: Aftermarket oil pressure sending unit/gauge sender is NOT included and must be purchased separately

Product Description

The AMS Performance AMS.01.04.0104-1 is a -3AN stainless steel braided remote oil pressure sending unit line for Mitsubishi 4G63 and 4B11 turbocharged engines, covering the full range of DSM and Lancer Evolution platforms from 1990 through 2015. It is a required companion piece when installing any aftermarket oil pressure gauge or sending unit on these platforms if long-term reliability is a concern.

The standard practice of threading an aftermarket oil pressure sending unit directly into the oil filter housing is convenient but carries a well-documented risk: the sustained high-frequency vibration generated by a 4G63 or 4B11 at elevated RPM gradually fatigues the sensor's mounting threads and body. A broken or cracked sender at the oil filter housing results in an immediate, uncontrolled oil discharge - one that can drain the sump in seconds, collapse oil pressure across the engine, and cause catastrophic bearing failure before the driver has time to react. The AMS remote mount line resolves this by relocating the sending unit to a low-vibration mounting location, with a short 12-inch braided line bridging the gap from the oil filter housing port to the sensor. The stainless steel braid protects against abrasion and corrosion, and the steel 1/8 in. NPT fittings at each end provide secure, leak-free connections compatible with virtually all aftermarket oil pressure senders on the market.

This line is sold as a complete kit with appropriate fittings. The aftermarket oil pressure sending unit or gauge sender is not included and must be purchased separately. This is a replacement/service part and is non-returnable and non-refundable unless it arrives defective.
