AMP Research 75141-01A PowerStep Electric Running Boards for 09-14 Ford F-150

Vehicle Fitment

• 2009-2014 Ford F-150 Regular Cab
• 2009-2014 Ford F-150 SuperCab (Extended Cab)
• 2009-2014 Ford F-150 SuperCrew (Crew Cab)
• Fits all trims and bed lengths

Fitment Notes

• Sold as a complete kit (driver and passenger side pair)
• Mounts to vehicle body using vehicle-specific brackets
• Some drilling required for power motor and LED light installation
• Controller module mounts under hood and wires directly to battery
• Professional installation recommended (2-3 hours typical)
• For Plug-N-Play OBD-II version, see P/N 76141-01A

Features

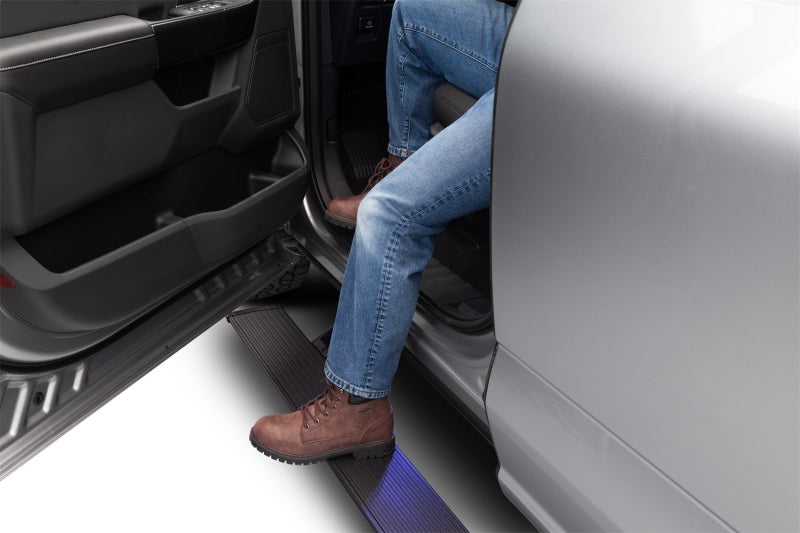

• Automatic electric-powered deployment -- extends when door opens, retracts when door closes
• Extends and retracts in approximately 1 second
• Retracts flush under cab for full ground clearance while driving
• 6" wide extruded aluminum step board with full-length non-slip textured surface
• 600 lb load capacity per side
• Integrated low-profile LED courtesy lights illuminate step and ground
• Pinch-proof safety sensor reverses direction if resistance is detected
• Maintenance-free self-lubricating sealed bushings for all-weather performance
• Weatherproof OEM-quality electric motors with sealed connectors
• Designed, engineered, and built in the USA

Specifications

• Part Number: 75141-01A
• Type: PowerStep automatic electric running boards
• Step Width: 6"
• Load Capacity: 600 lbs per side
• Linkage Material: Die-cast aluminum alloy
• Linkage Finish: Black anodized with PTFE (military-spec) coating
• Step Finish: Textured black powder coat
• Pivot Pins: Precision stainless steel
• Quantity: Pair (driver and passenger side)
• Warranty: 5-year / 60,000-mile limited
• UPC: 815410010361

Included Components

• 2x PowerStep running board assemblies (driver and passenger)
• 2x Weatherproof electric motors
• 2x Pairs of integrated LED courtesy lights
• Vehicle-specific mounting brackets and hardware
• Electronic controller module with wiring harness
• Vehicle-specific installation instructions

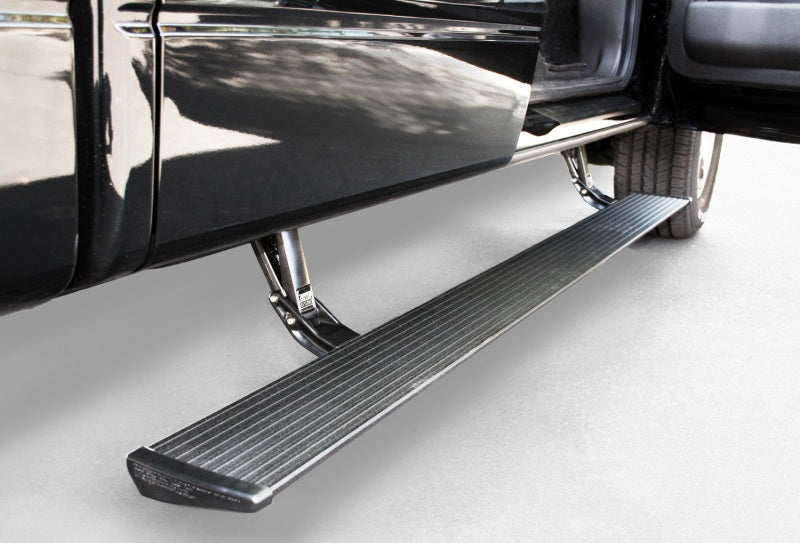

Product Description

The AMP Research 75141-01A PowerStep is the original automatic electric-powered running board engineered for the 2009-2014 Ford F-150 in all cab configurations. The PowerStep instantly deploys when any door opens and retracts flush under the cab three seconds after the door closes, maintaining full ground clearance, aerodynamics, and a clean appearance while driving. The 6" wide extruded aluminum step board provides a full-length non-slip surface large enough for any footwear, with integrated LED courtesy lights for safe entry in low-visibility conditions. Each side supports 600 lbs and features AMP's pinch-proof safety sensor technology that reverses direction if resistance is detected. Die-cast aluminum alloy linkage arms are black anodized with PTFE military-spec coating for corrosion resistance, and precision stainless steel pivot pins deliver rock-solid stability. Maintenance-free sealed bushings ensure reliable all-weather operation in snow, ice, mud, dust, and dirt. Backed by a 5-year / 60,000-mile limited warranty. Designed, engineered, and built in the USA.
