AlphaRex 653040 LUXX-Series LED Tail Lights for 21-23 Ford F-150 w/ BLIS Black

Vehicle Fitment

• 2021-2023 Ford F-150 (All Trims, All Engines) - Models equipped with factory LED BLIS (Blind Spot Information System) tail lights only
• 2021-2023 Ford F-150 Raptor (All Engines) - Models equipped with factory LED BLIS tail lights only

Fitment Notes

• Designed exclusively for F-150 models equipped with factory BLIS (Blind Spot Information System) sensors - for non-BLIS models, use AlphaRex P/N 653010
• Direct plug-and-play for models with factory red turn signals - no adapter needed
• Models with factory amber turn signals require the AlphaRex adapter harness P/N 653041 (sold separately)
• Does NOT fit models with factory halogen tail lights
• Original blind spot sensor must be reinstalled into the new housing during installation
• Does NOT fit 2024-2026 Ford F-150 - those model years use separate AlphaRex SKUs

Features

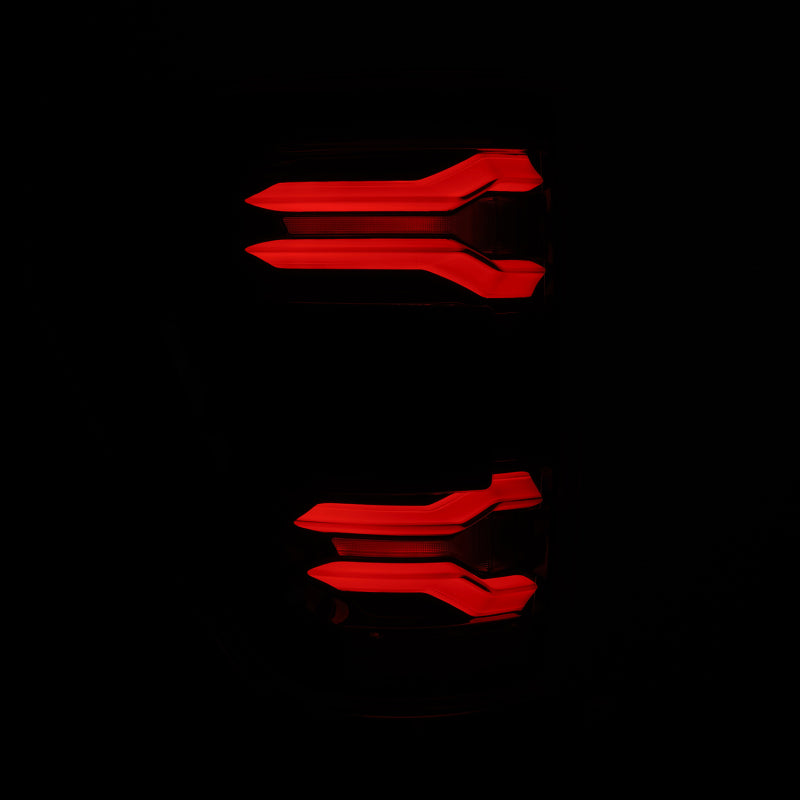

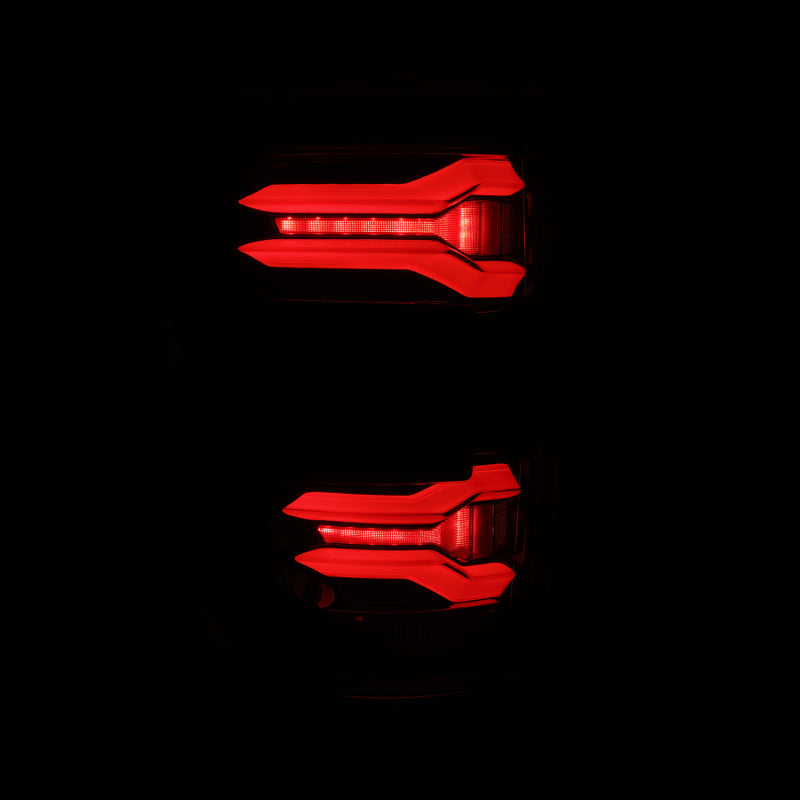

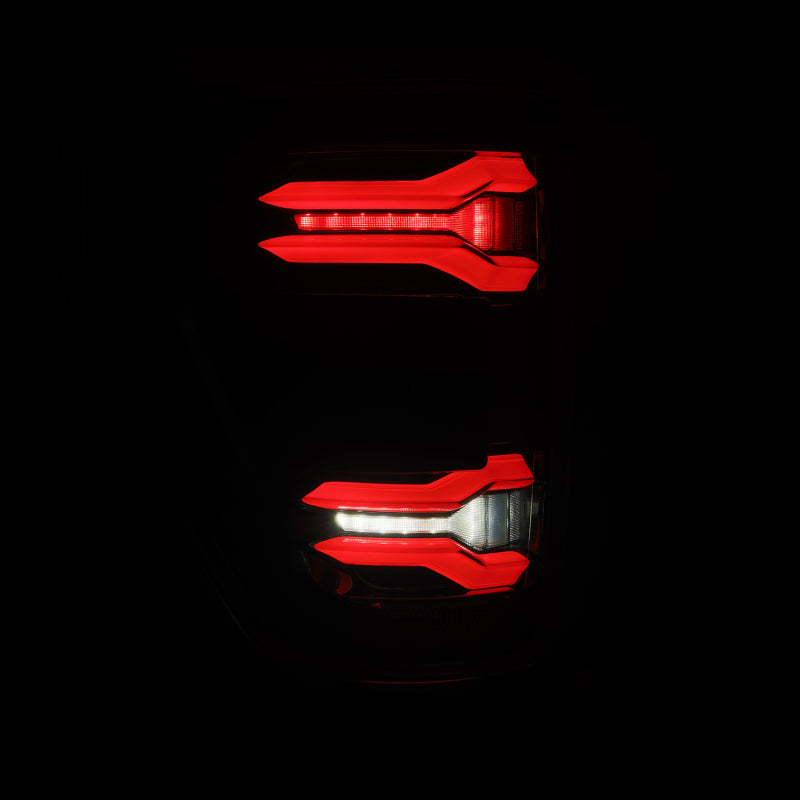

• Two pairs of full LED tubes for parking, brake, and turn signal functions
• Sequential turn signal function for a dynamic, flowing signal animation

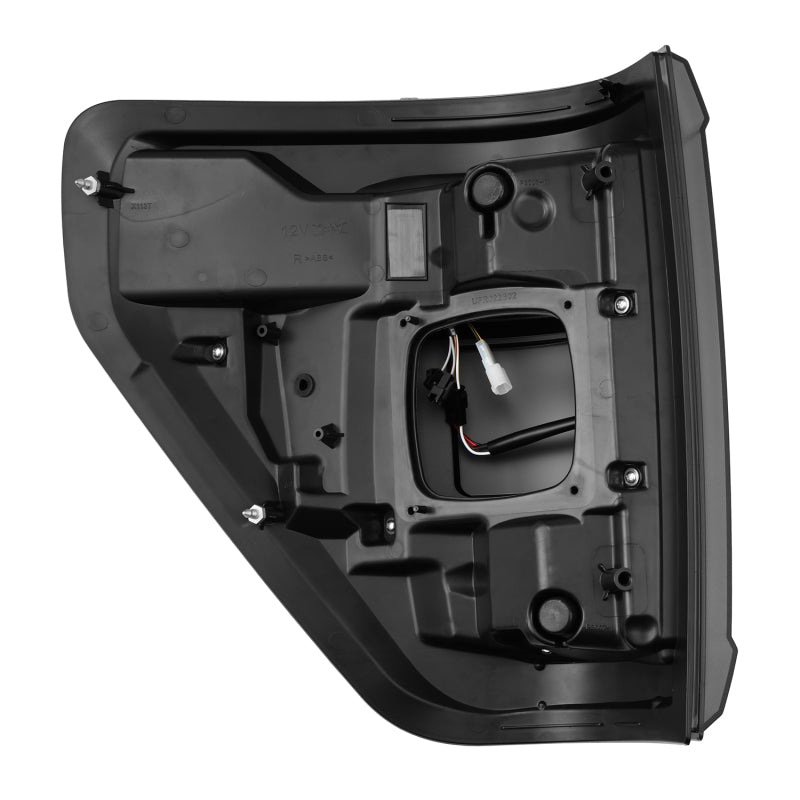

• Dedicated center section designed to accept and retain the factory BLIS sensor
• Black cover replaces the factory red sensor cover for a cleaner, blacked-out look
• Diffuser lenses between LED tubes for improved brake and turn signal visibility
• Signature activation light sequence triggers on parking light activation
• SAE-approved and DOT FMVSS108-certified for full road legality
• Manufactured under ISO 9001 and ISO/TS 16949 quality standards

Specifications

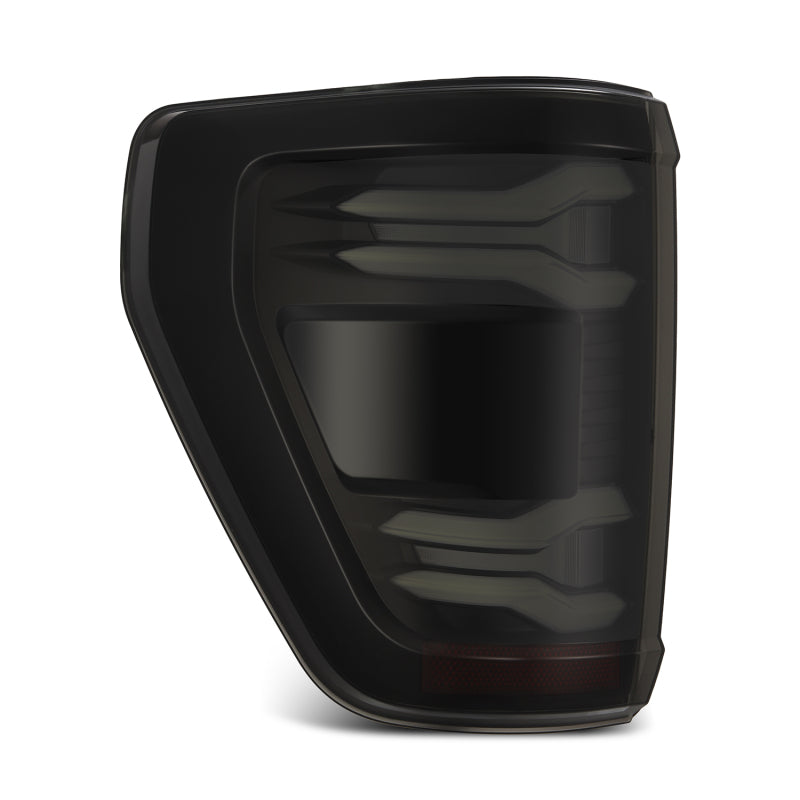

• Housing Color: Black
• Lens Color: Clear
• Lens Material: Polycarbonate (PC) with anti-yellowing coating
• Housing Material: Polypropylene (PP)
• Light Type: Full LED
• Parking/Brake Light Color: Red
• Turn Signal Color: Red (Sequential)

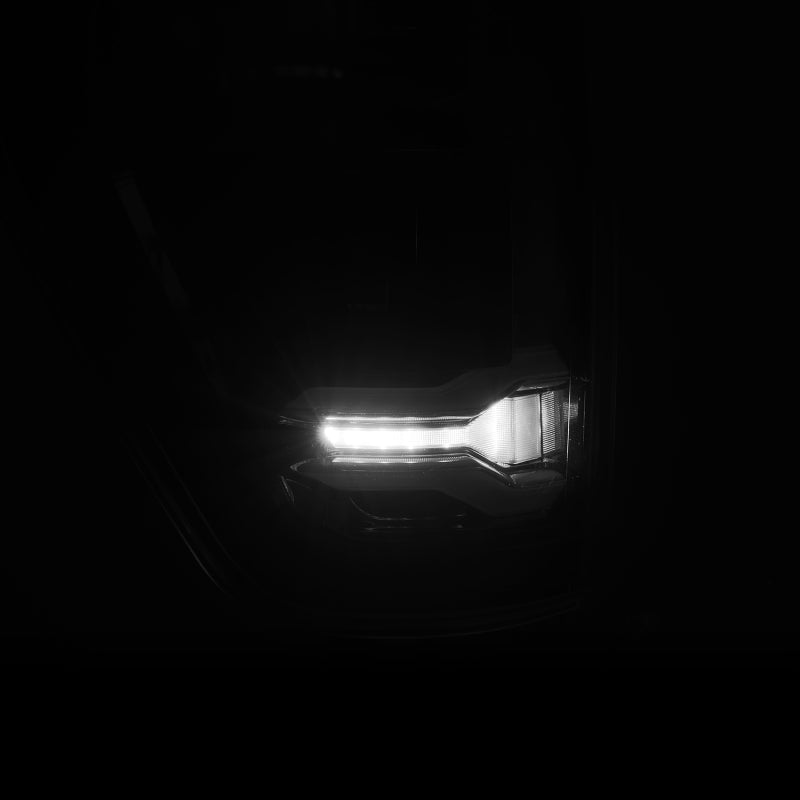

• Reverse Light Color: White
• Position: Driver Side and Passenger Side (Rear)
• Certification: SAE / DOT FMVSS108 Compliant
• Warranty: 2-Year Manufacturer's Limited Warranty

Included Components

• 2x LUXX-Series LED Tail Lights (Driver and Passenger Side)

Product Description

The AlphaRex 653040 LUXX-Series LED Tail Lights are purpose-built for 2021-2023 Ford F-150 and Raptor trucks equipped with the factory BLIS (Blind Spot Information System). The housing includes a dedicated center section that retains the original blind spot sensor, replacing the factory red cover with a sleek black panel for a cleaner, more aggressive rear profile. Two pairs of LED tubes deliver bright red output for parking and brake functions, with sequential turn signals for a modern, dynamic look.

Installation is plug-and-play for trucks with factory red turn signals. Owners with factory amber turn signals will need the AlphaRex adapter harness (P/N 653041, sold separately). These lights are not compatible with halogen-equipped F-150s or 2024-2026 model years, which use separate AlphaRex SKUs. SAE and DOT FMVSS108 certified, these tail lights meet all U.S. road safety standards right out of the box.
