Air Lift 78701 Rear Suspension Air Bag Kit for 17-23 Tesla Model 3/20-25 Model Y

Vehicle Fitment

• 2017-2023 Tesla Model 3 (RWD)
• 2017-2023 Tesla Model 3 (AWD)
• 2020-2025 Tesla Model Y (AWD)

Fitment Notes

• Rear axle kit only -- does not include front suspension
• No modifications required -- direct bolt-on replacement
• Does NOT fit 2024+ Tesla Model 3 (Highland generation -- different chassis)
• Companion front kit for Model 3 RWD: Air Lift 78101
• Companion front kit for Model 3 AWD / Model Y: Air Lift 78102

Features

• Double-bellow air springs -- 145mm (5.7") drop from stock at rear
• 30-level damping adjustment -- super soft to race-stiff range

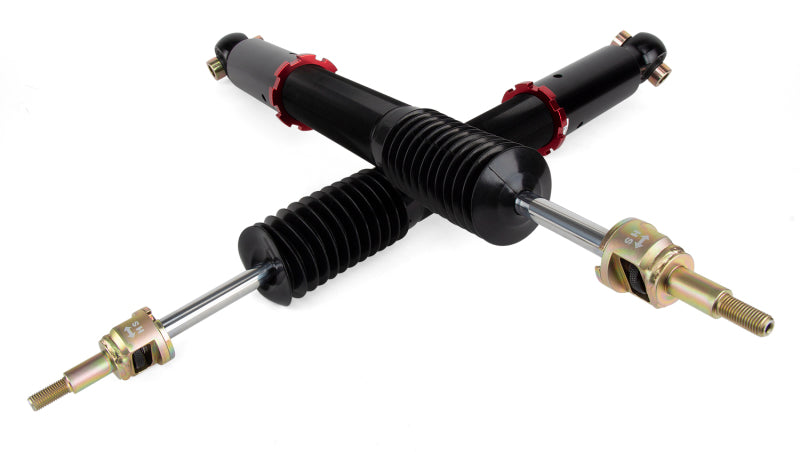

• Monotube dampers -- faster heat dissipation and more consistent damping than twin-tube
• All dampers dyno-tested and matched in pairs before shipping
• Adjustable lower perches -- set ride height independently of air pressure
• Maintains factory rear stabilizer bar
• Air suspension lighter than OEM coil suspension -- reduces unsprung mass
• Rig-tested to 1 million cycles
• 1-year unlimited-mileage warranty

Specifications

• Application: Rear kit
• Spring type: Double-bellow air springs
• Damper type: Monotube
• Drop: 145mm (5.7") from stock
• Damping adjustment: 30 levels
• Fittings: 1/4" PTC
• Weight: 33.4 lbs
• Warranty: 1 year, unlimited mileage

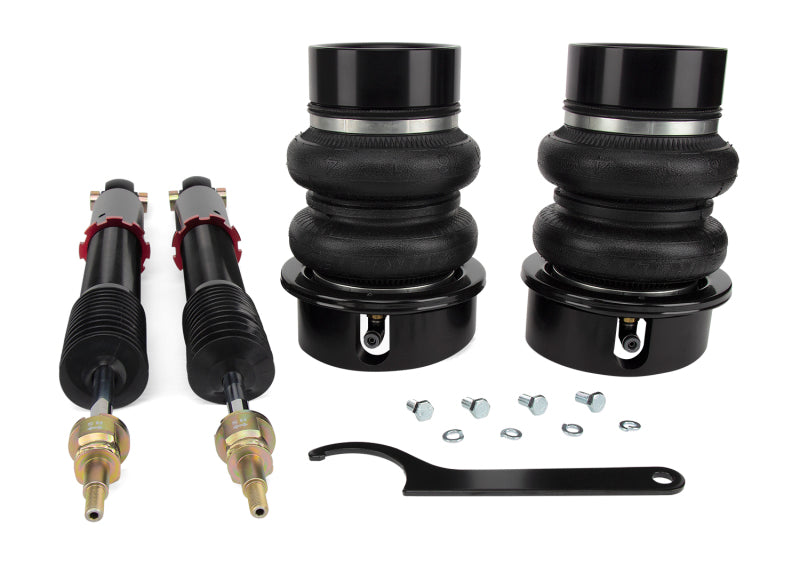

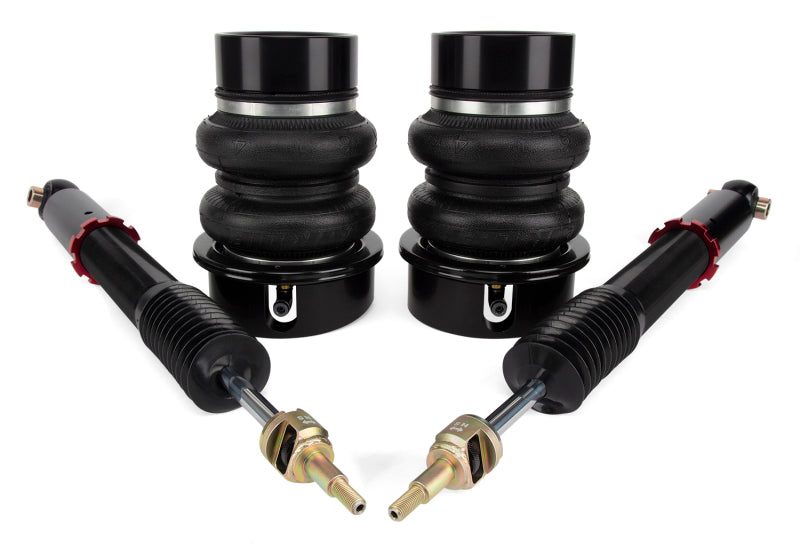

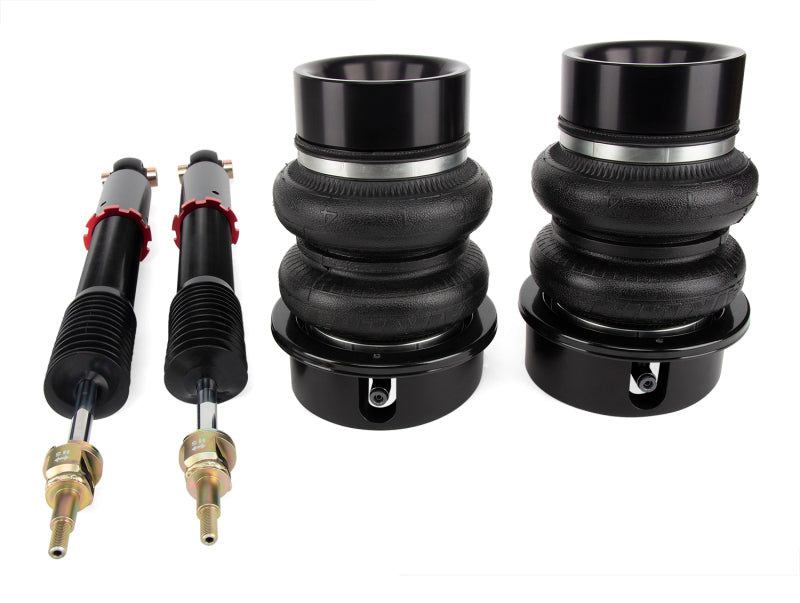

Included Components

• 2x air-over shocks with double-bellow air springs and 30-level damping adjustment
• 1/4" PTC fittings
• All mounting hardware
• Installation manual

Product Description

The Air Lift 78701 is a bolt-on rear air suspension kit for the 2017-2023 Tesla Model 3 (RWD and AWD) and 2020-2025 Tesla Model Y (AWD). The kit replaces the factory rear coil suspension with double-bellow air springs over monotube dampers, delivering 145mm (5.7") of drop from stock ride height while retaining full daily drivability. Air pressure adjustments allow the rear to be raised for speed bumps and driveways or slammed to the ground for shows -- all without tools.

The monotube dampers feature 30 levels of compression adjustment, spanning a range wide enough for comfortable street use at one end and track-ready stiffness at the other. Adjustable lower perches allow ride height to be set independently of bag pressure, enabling precise wheel-gap tuning without changing the handling balance. All dampers are dyno-matched in pairs before shipping. No modifications are required for installation on any compatible Model 3 or Model Y variant. The factory rear stabilizer bar is retained. Pair with Air Lift 78101 (Model 3 RWD) or 78102 (Model 3 AWD / Model Y) front kit for a complete air suspension setup.
