Air Lift 57596 LoadLifter 7500XL Ultimate Rear Air Spring Kit for 2011-2016 Ford

Vehicle Fitment

• 2011-2016 Ford F-250 Super Duty (4WD, SRW & DRW)
• 2011-2016 Ford F-350 Super Duty (4WD, SRW & DRW)

Features

• Air Lift LoadLifter 7500XL Ultimate rear air spring kit for maximum load support
• Up to approximately 7,500 lb load-leveling capacity for heavy towing and hauling
• Massive 7" double-bellow air springs for increased air volume and strength
• Internal jounce bumpers provide cushioning and protect bellows when deflated
• Air pressure adjustable from ~5 to ~100 PSI for custom ride control
• Upper and lower roll plates protect air springs and increase load capacity
• Compatible with most fifth wheel, gooseneck, and in-bed hitch applications
• Includes complete installation hardware and manual valves for ease of setup

Specifications

• Part Number: 57596
• Series: LoadLifter 7500XL Ultimate Rear Air Spring Kit
• Maximum Load Support: ~7,500 lb (within vehicle GVWR)
• Air Pressure Range: ~5-100 PSI
• Air Spring Type: Reinforced 7" double-bellow with internal jounce bumper
• Installation Position: Rear leaf spring suspension
• Drive Compatibility: 4WD only (single & dual rear wheel)
• Mounting Hardware: Included

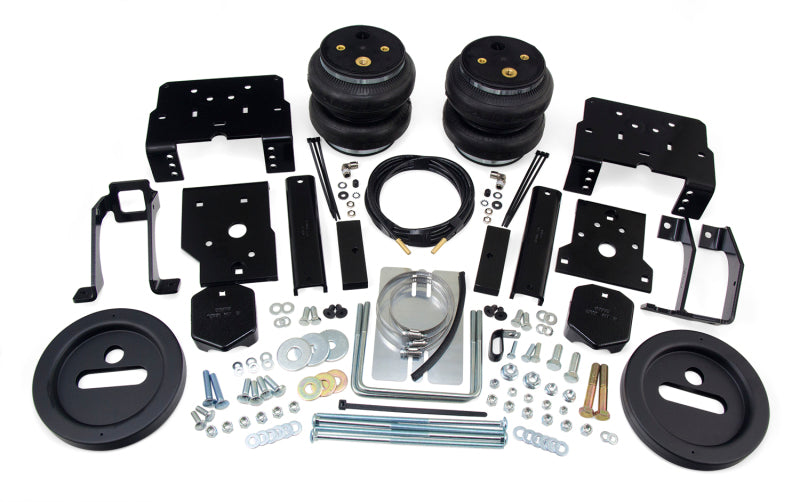

Included Components

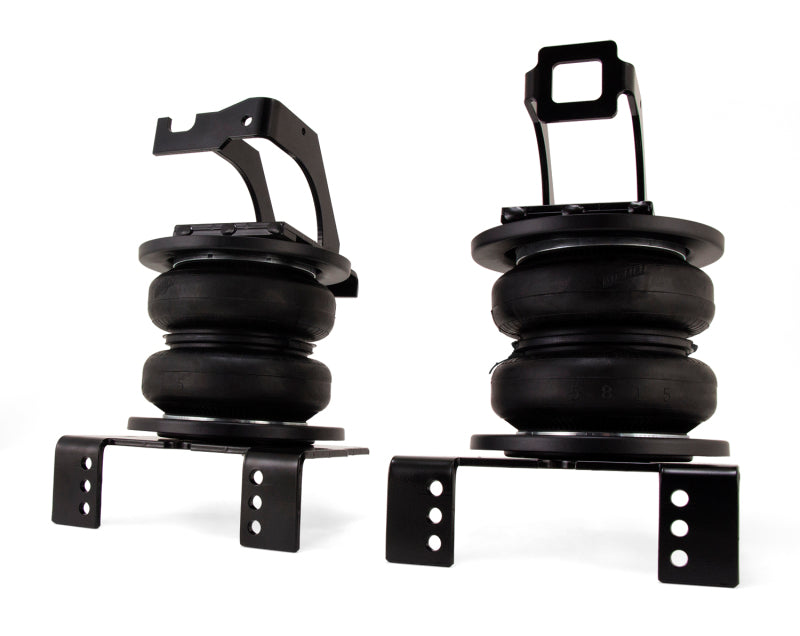

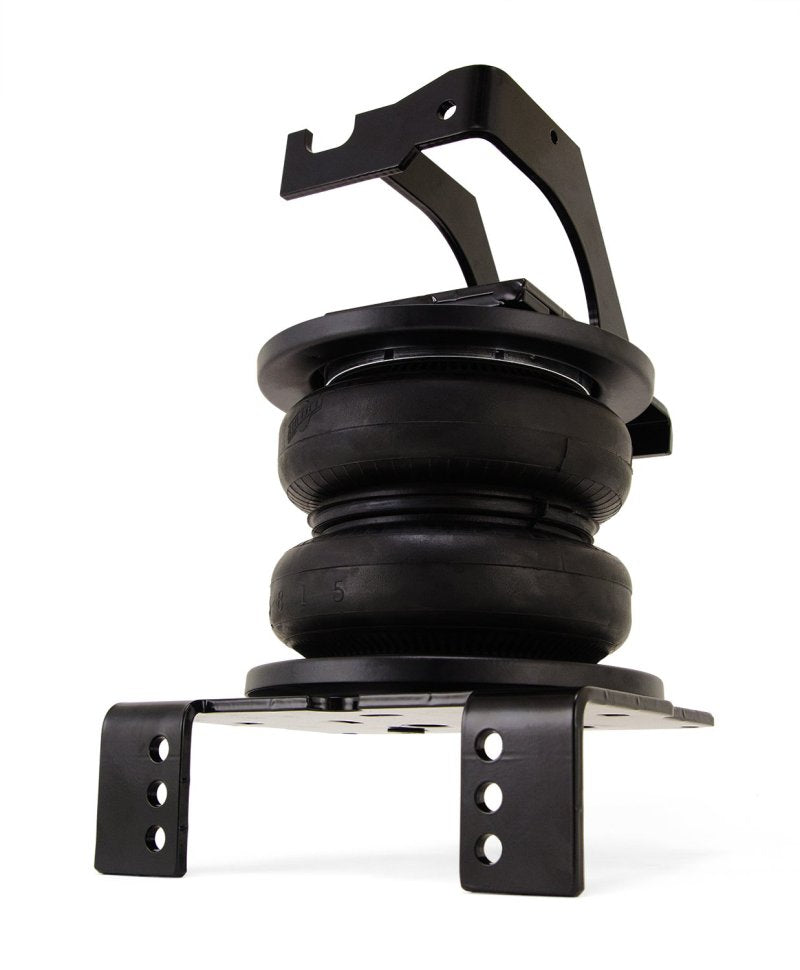

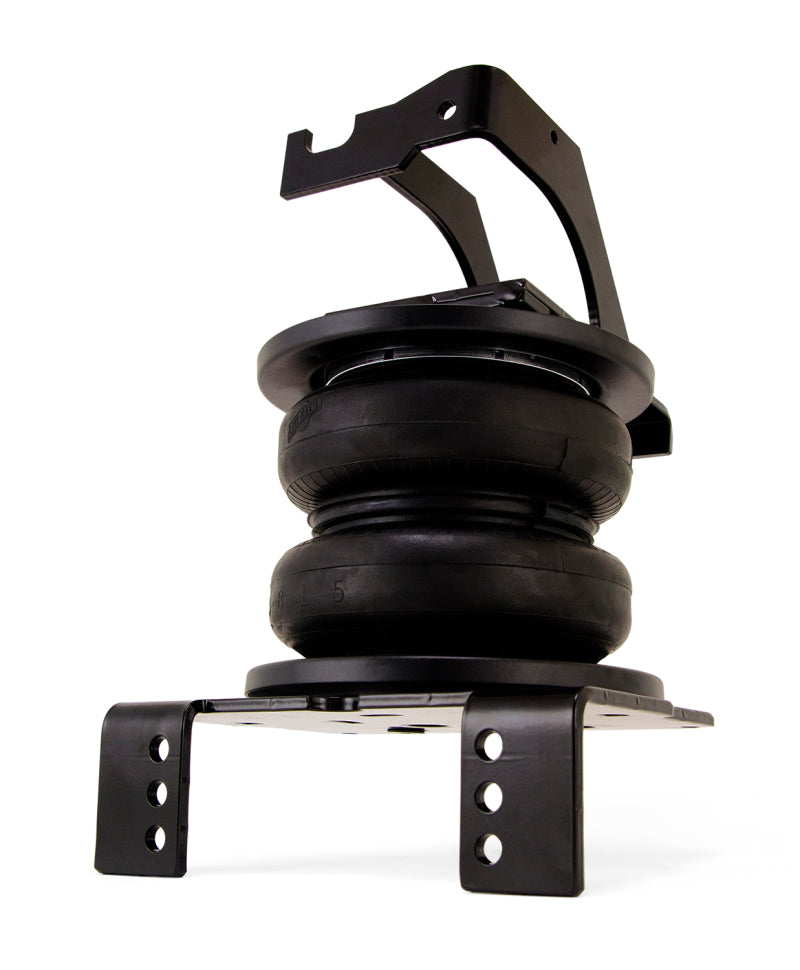

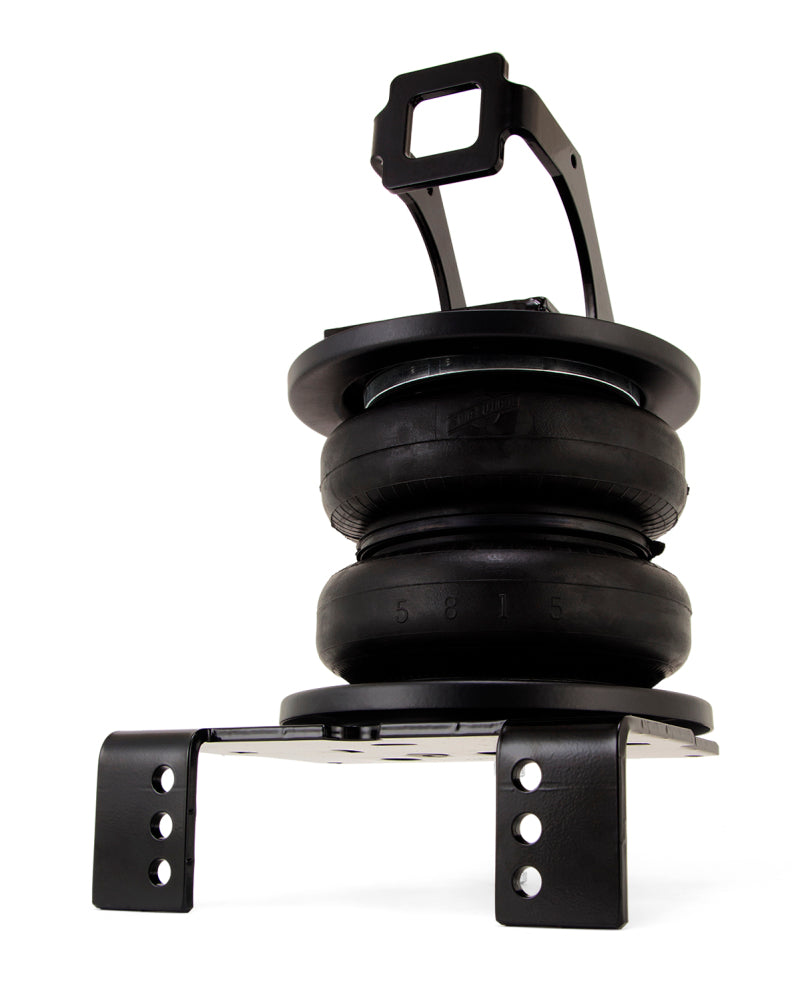

• 2x Rear double-bellow air springs
• Air line and quick-connect fittings
• Upper and lower roll plates
• Manual inflation valves

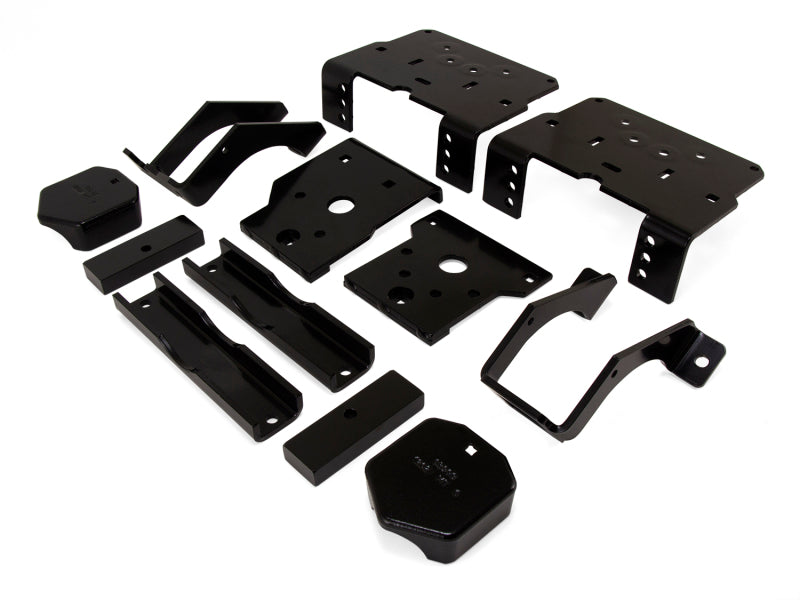

• Mounting brackets and hardware
• Installation instructions

Product Description

The Air Lift 57596 LoadLifter 7500XL Ultimate Rear Air Spring Kit is engineered for **2011-2016 Ford F-250 and F-350 Super Duty** trucks equipped with four-wheel drive and rear leaf spring suspension. This heavy-duty helper spring system delivers up to approximately 7,500 lb of adjustable load-leveling capacity to help maintain proper ride height and stability when towing or hauling the heaviest loads. The massive 7" double-bellow design provides increased air volume and strength, resulting in improved ride quality and support under demanding conditions.

Featuring internal jounce bumpers that cushion the air springs even at zero PSI, the LoadLifter 7500XL Ultimate kit lets you tailor ride firmness from around 5 to 100 PSI based on load and driving conditions. Upper and lower roll plates protect the air springs from abrasion and help increase load capacity, while included air lines, manual valves, and mounting hardware make installation straightforward. Compatible with most fifth wheel and gooseneck hitch applications, this kit enhances braking, steering, and overall towing control for Super Duty owners facing heavy hauling tasks.
