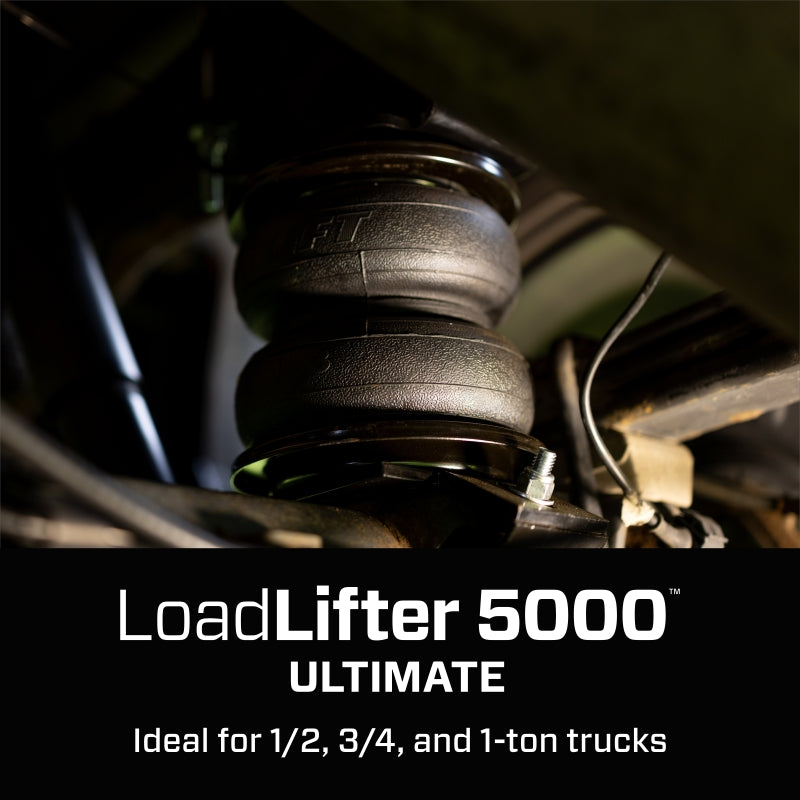

Air Lift 88289 LoadLifter 5000 Ultimate Air Spring Kit 2014-2025 RAM 2500 Rear

Vehicle Fitment

• 2014-2025 RAM 2500 (All Trims including Power Wagon, 2WD and 4WD, All Engines - Rear Leaf Spring)

Fitment Notes

• Rear axle installation only - works with the vehicle's existing rear leaf spring suspension.
• Fits all RAM 2500 trim levels including Power Wagon.
• Compatible with factory in-bed hitch systems and most side-mount fifth wheel hitches.
• Does NOT fit RAM 2500 vehicles equipped with factory air suspension.
• Drilling is required for installation - some frame drilling necessary to mount brackets.
• An on-board air compressor system is available and sold separately for push-button inflation/deflation from inside or outside the vehicle.
• Replacement air spring P/N: 84293 (sold separately).

Features

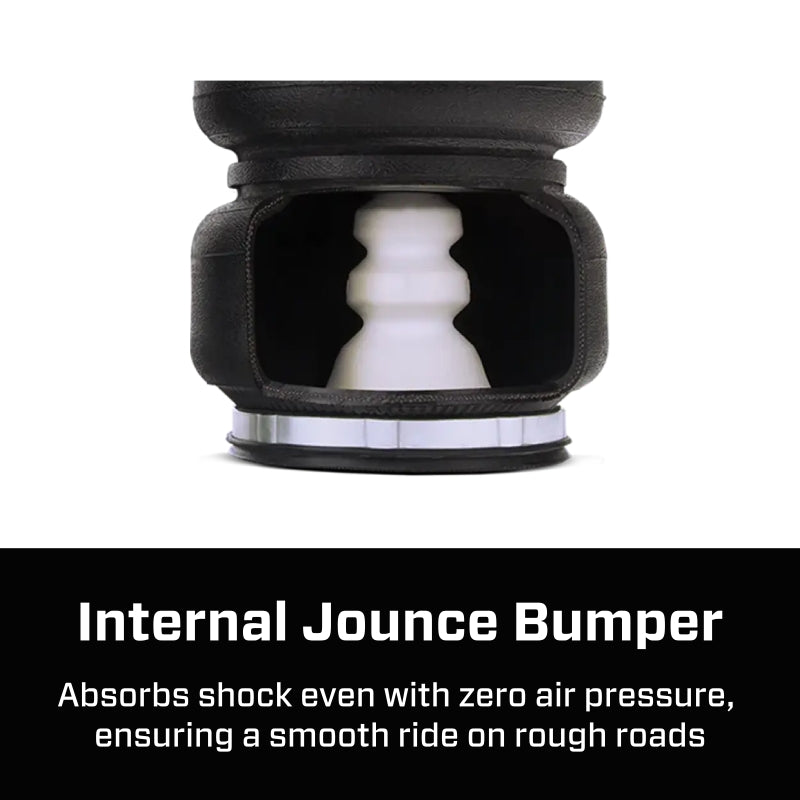

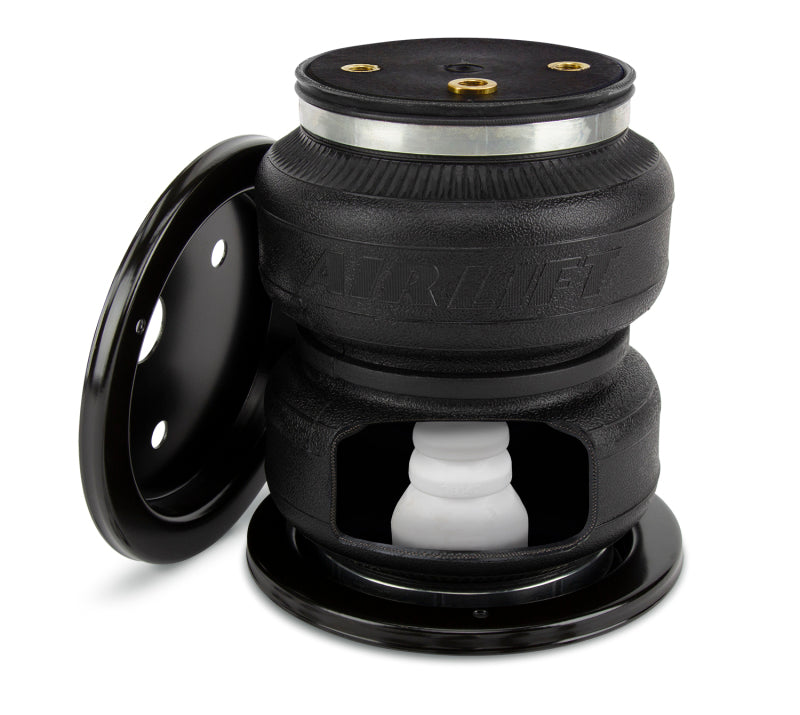

• Exclusive internal closed-cell urethane foam jounce bumper inside each air spring absorbs shock and eliminates harsh jarring on rough roads
• Safely run with zero air pressure - the internal jounce bumper acts as a safety cushion and replaces the factory jounce bumper often removed when adding aftermarket air springs

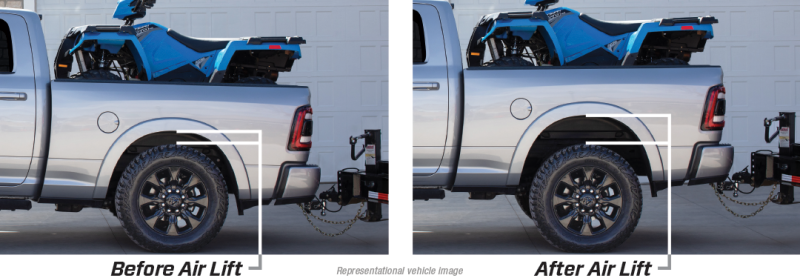

• Up to 5,000 lbs of rear load-leveling capacity - keeps the vehicle level and stable whether loaded or unloaded
• Fully adjustable from 5 to 100 PSI for precise ride height and load management
• 2-ply fabric-reinforced air springs built like a tire for maximum strength and long service life
• Exclusive upper and lower roll plates protect springs from sharp edges on brackets and frame
• Roll plates increase load capacity by up to 10%
• Installs in approximately 2 hours with common hand tools
• Covered by Air Lift's industry-leading Lifetime Limited Warranty - includes all kit contents with no mileage restriction
• 60-Day No Questions Asked Money-Back Guarantee

Specifications

• Application: Rear Leaf Spring Suspension
• Load Leveling Capacity: Up to 5,000 lbs
• Air Pressure Range: 5-100 PSI
• Air Spring Construction: 2-Ply Fabric-Reinforced Rubber
• Internal Jounce Bumper: Closed-Cell Urethane Foam (Exclusive)
• Roll Plates: Upper and Lower - Included
• Drilling Required: Yes
• Estimated Install Time: 2 Hours or Less
• Replacement Air Spring P/N: 84293
• Warranty: Lifetime Limited (No Mileage Restriction)
• Shipping Weight: ~25.9 lbs
• UPC: 729199882890

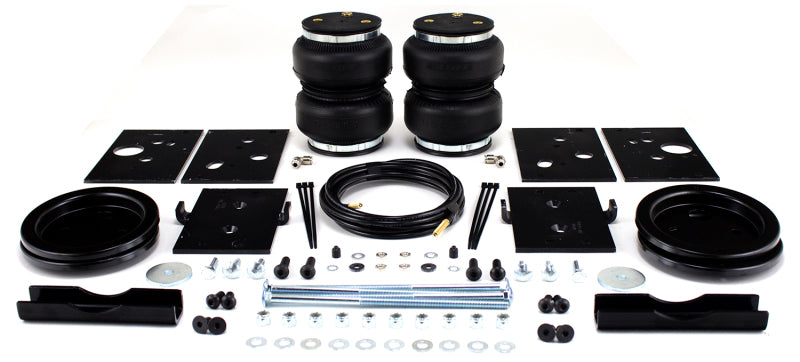

Included Components

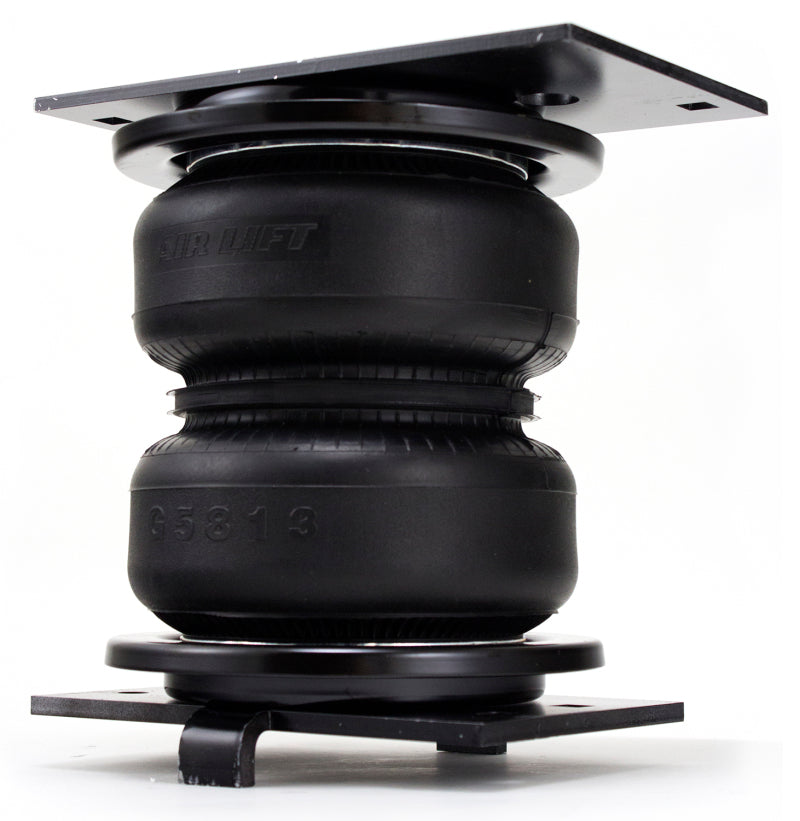

• 2x LoadLifter 5000 Ultimate Air Springs with Internal Jounce Bumpers
• 2x Upper Roll Plates (Black)
• 2x Lower Roll Plates (Black)

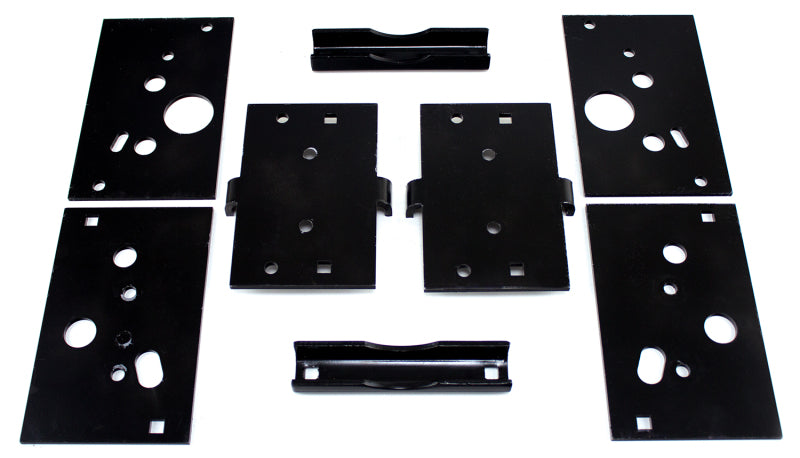

• 2x Vehicle-Specific Mounting Brackets
• 16 ft Nylon Air Lines
• 2x Schrader Valves
• 1x Complete Hardware Kit
• 1x Illustrated Installation Manual

Product Description

The Air Lift 88289 LoadLifter 5000 Ultimate is the company's top-rated load support air spring kit for the 2014-2025 RAM 2500, covering all trim levels including Power Wagon across both 2WD and 4WD configurations. It installs alongside the factory rear leaf springs and provides up to 5,000 lbs of adjustable rear load-leveling capacity - keeping the truck level, stable, and comfortable whether hauling heavy payloads, towing gooseneck trailers, fifth wheel campers, or equipment trailers.

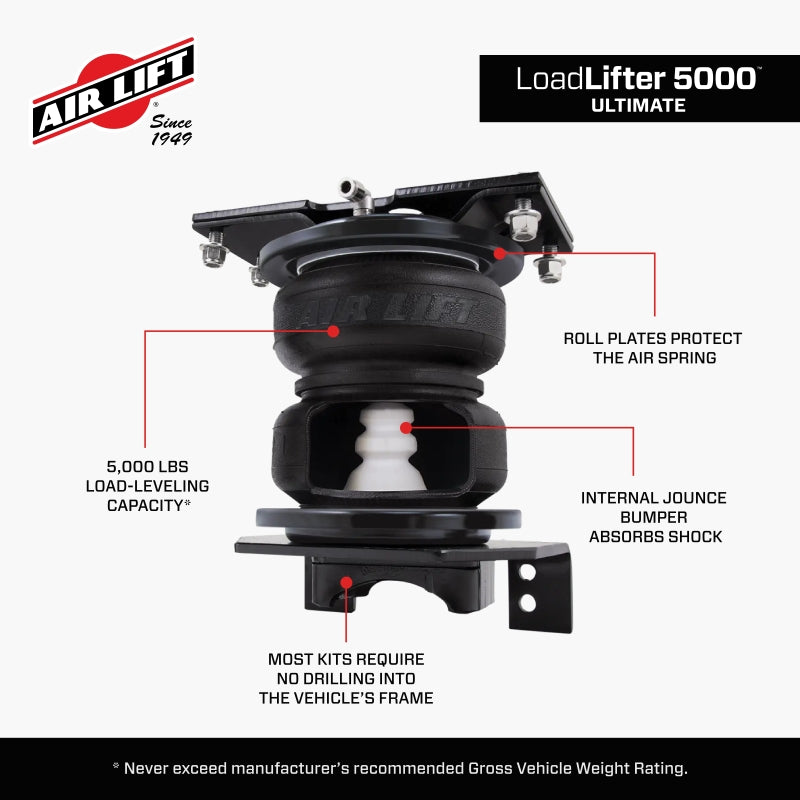

What sets the Ultimate apart from the standard LoadLifter 5000 is the exclusive internal closed-cell urethane foam jounce bumper built directly inside each air spring. This three-stage cushion absorbs road shock, prevents bottoming out under heavy loads, and allows the springs to be safely run at zero PSI - a critical safety feature when switching between loaded and unloaded driving. The 2-ply fabric-reinforced springs are adjustable from 5 to 100 PSI, and the included upper and lower roll plates protect the springs from frame and bracket edges while boosting load capacity by up to 10%. Covered by Air Lift's Lifetime Limited Warranty with no mileage restrictions and their 60-Day Money-Back Guarantee. An on-board air compressor system (sold separately) allows push-button inflation and deflation from inside the cab.
