Air Lift 88365 LoadLifter 5000 Ultimate Air Spring Kit 2009-2024 RAM 1500 Rear

Vehicle Fitment

• 2009-2010 Dodge Ram 1500 (All Trims, 2WD and 4WD - Rear Leaf Spring)
• 2011-2018 RAM 1500 (All Trims, 2WD and 4WD - Rear Leaf Spring)
• 2019-2023 RAM 1500 Classic (All Trims, 2WD and 4WD - Rear Leaf Spring)
• 2021-2024 RAM 1500 (All Trims, 2WD and 4WD - Rear Leaf Spring)

Fitment Notes

• Rear axle installation only - works with the vehicle's existing rear leaf spring suspension.
• Does NOT fit RAM 1500 vehicles equipped with factory air suspension.
• Compatible with EcoDiesel models as long as factory air suspension is not equipped.
• Designed for stock ride height trucks. Air bag spacers (sold separately) are available for lifted applications.
• No drilling into frame required - bolt-on installation using vehicle-specific brackets.
• An on-board air compressor system is available and sold separately for push-button inflation/deflation.
• RAM 1500 Classic (2019-2023) is the continuation of the prior-generation RAM 1500 sold alongside the redesigned model - this kit fits both generations.

Features

• Exclusive internal closed-cell urethane foam jounce bumper inside each air spring for three-stage ride comfort and zero-PSI safety
• Safely run with zero air pressure - the internal jounce bumper prevents bottoming out even when air pressure is fully released

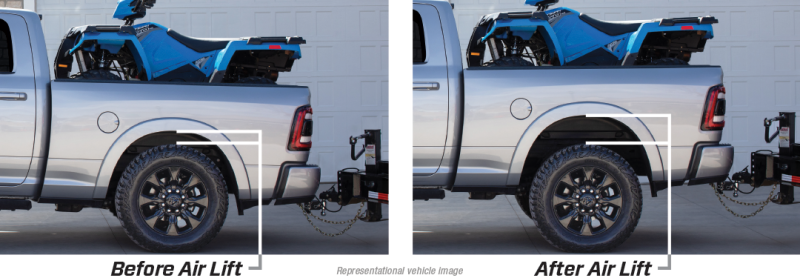

• Up to 5,000 lbs of rear load-leveling capacity - eliminates sag, trailer sway, body roll, and bottoming out when towing or hauling
• Fully adjustable from 5 to 100 PSI for precise ride height and load management
• 2-ply fabric-reinforced air springs with high-strength rust-proof composite end caps reinforced with a steel girdle ring
• Exclusive upper and lower roll plates protect springs from sharp frame and bracket edges and increase load capacity up to 10%
• No-drill installation - bolt-on with vehicle-specific mounting brackets
• Components tested to 1 million cycles on hydraulic test rig simulating ~100,000 miles of real-world use
• Covered by Air Lift's industry-leading Lifetime Limited Warranty - all kit contents, no mileage restriction
• 60-Day No Questions Asked Money-Back Guarantee

Specifications

• Application: Rear Leaf Spring Suspension
• Load Leveling Capacity: Up to 5,000 lbs
• Air Pressure Range: 5-100 PSI
• Air Spring Construction: 2-Ply Fabric-Reinforced Rubber
• End Caps: High-Strength Rust-Proof Composite with Steel Girdle Ring
• Internal Jounce Bumper: Closed-Cell Urethane Foam (Exclusive)
• Roll Plates: Upper and Lower - Included
• Drilling Required: No
• Estimated Install Time: Approximately 2-4 Hours
• Warranty: Lifetime Limited (No Mileage Restriction)
• Shipping Weight: ~25 lbs
• UPC: 729199883651

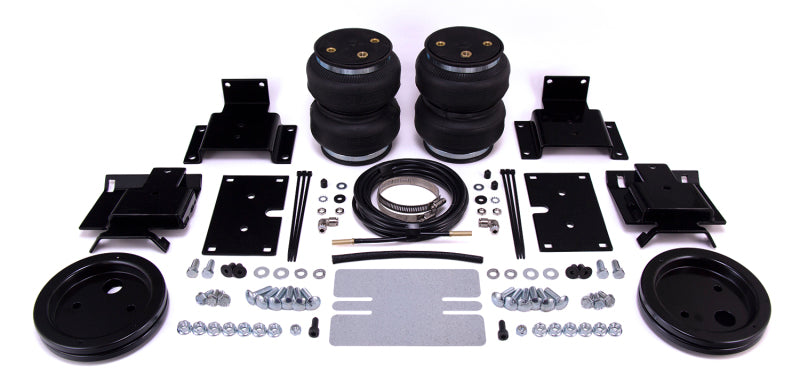

Included Components

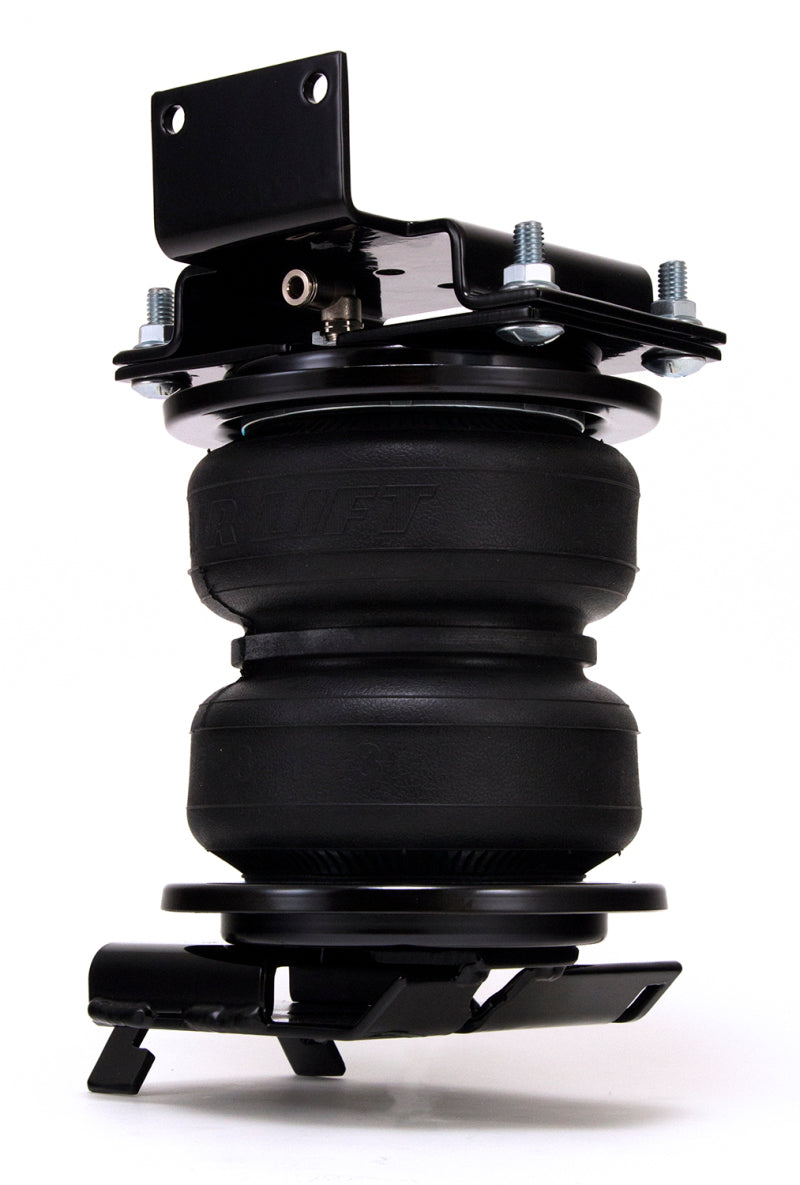

• 2x LoadLifter 5000 Ultimate Air Springs with Internal Jounce Bumpers
• 2x Upper Roll Plates
• 2x Lower Roll Plates

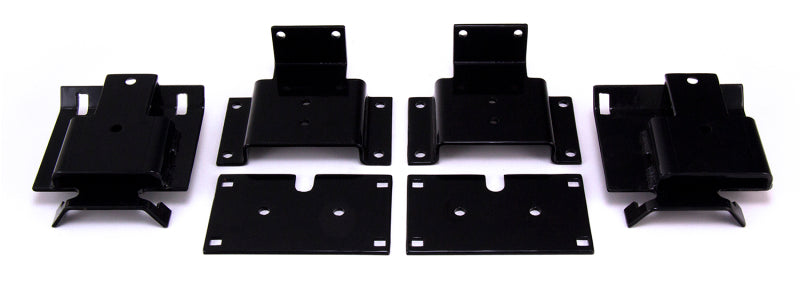

• 2x Vehicle-Specific Mounting Brackets
• Air Lines and PTC Fittings
• 2x Schrader Valves
• 1x Complete Hardware Kit
• 1x Illustrated Installation Manual

Product Description

The Air Lift 88365 LoadLifter 5000 Ultimate is Air Lift's premium rear load support air spring kit for the RAM 1500, covering both the 2009-2018 Ram/Dodge 1500, the 2019-2023 RAM 1500 Classic, and the 2021-2024 redesigned RAM 1500. It installs alongside the factory rear leaf springs and provides up to 5,000 lbs of adjustable rear load-leveling capacity - keeping the truck level and stable when towing campers, cargo trailers, equipment, or carrying heavy bed loads.

The internal closed-cell urethane foam jounce bumper sets the Ultimate apart from the standard LoadLifter 5000 - it absorbs shock even at zero PSI, prevents bottoming out, replaces the factory jounce bumper, and provides a safety cushion when transitioning between loaded and unloaded driving. The springs are adjustable from 5 to 100 PSI, fully bolt-on with no frame drilling, and have been tested to 1 million hydraulic cycles. The Lifetime Limited Warranty covers all kit contents with no mileage restriction, and Air Lift's 60-Day Money-Back Guarantee removes any purchase risk. Compatible on-board air compressor systems are available separately for in-cab push-button control.
