Air Lift 57289 LoadLifter 5000 Rear Air Spring Kit for 14-26 Ram 2500 2WD/4WD

Vehicle Fitment

• 2014-2026 Ram 2500 (All trims including Power Wagon, 2WD / 4WD, 5.7L HEMI V8 / 6.4L HEMI V8 / 6.7L Cummins I6 Diesel)

Fitment Notes

• Rear axle application only
• Fits factory in-bed hitch system
• Compatible with most side-mount fifth wheel hitches
• Does not fit vehicles equipped with factory air suspension
• No drilling required for installation
• Maximum air pressure: 100 PSI
• Minimum air pressure: 5 PSI
• Do not exceed manufacturer's GVWR
• Roll plates included for added load capacity

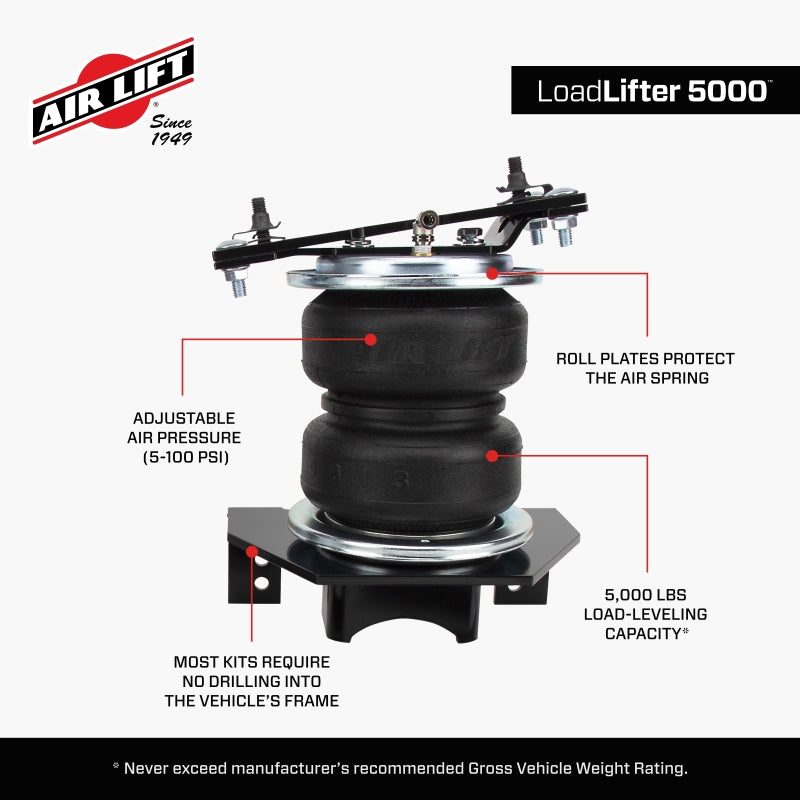

Features

• Up to 5,000 lbs load-leveling capacity
• Adjustable air pressure 5-100 PSI
• 2-ply fabric-reinforced commercial-grade bellows
• Convoluted bellows construction
• Ultra high-strength Zytel nylon end caps
• Shur-Grip crimp construction
• Eliminates squat, sway, and bottoming out
• Reduces porpoising and lurching
• Reduces trailer sway
• Improves steering, handling, and braking
• Improves headlight aim under load
• Promotes even tire wear
• Reinforced roll plates add 10% load capacity
• Schrader valve inflation

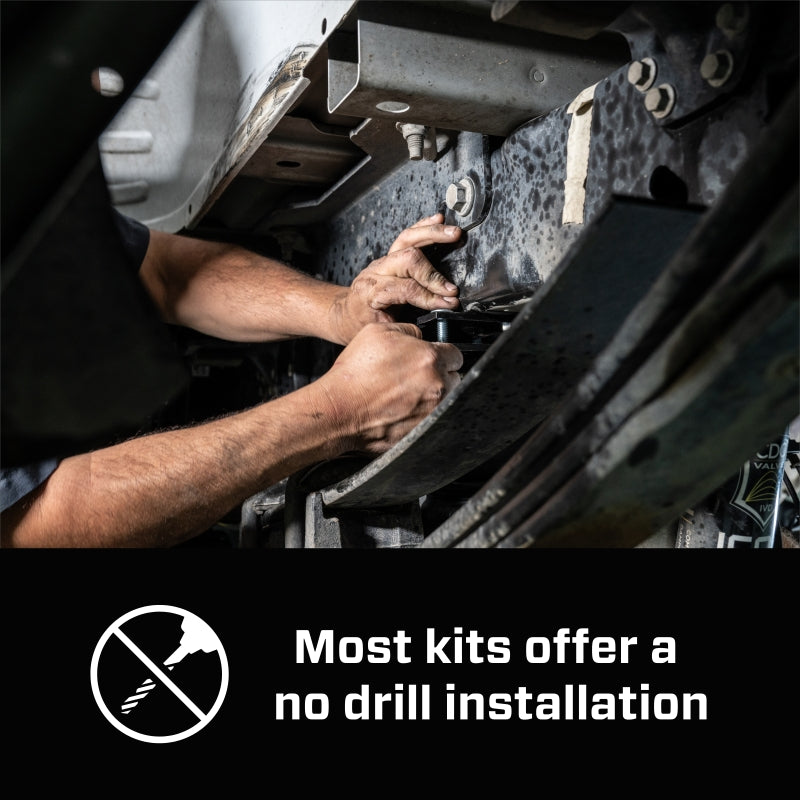

• No-drill bolt-on installation
• 2-hour install time
• Limited lifetime warranty
• Made in USA

Specifications

• Series: LoadLifter 5000
• Position: Rear
• Application: Leaf spring leveling kit
• Max load capacity: 5,000 lbs
• Pressure range: 5-100 PSI
• Bellows: 2-ply fabric-reinforced commercial-grade
• End cap material: Zytel nylon
• Kit weight: 28 lbs
• Kit dimensions: 16.5" x 14" x 11"
• Drilling required: No
• Install time: ~2 hours
• UPC: 729199572890
• Warranty: Limited lifetime

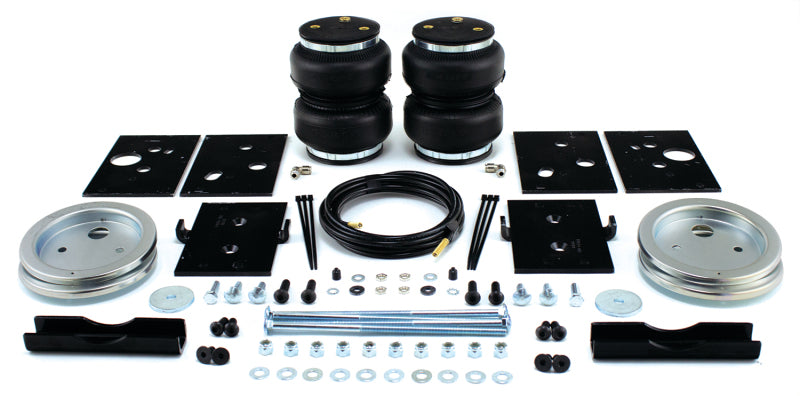

Included Components

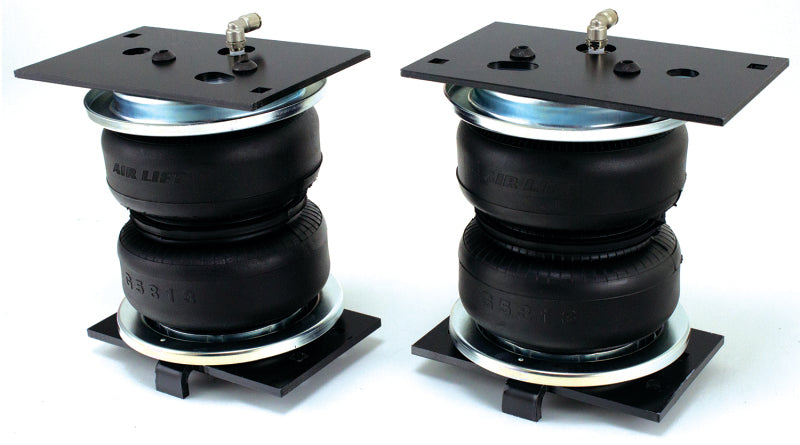

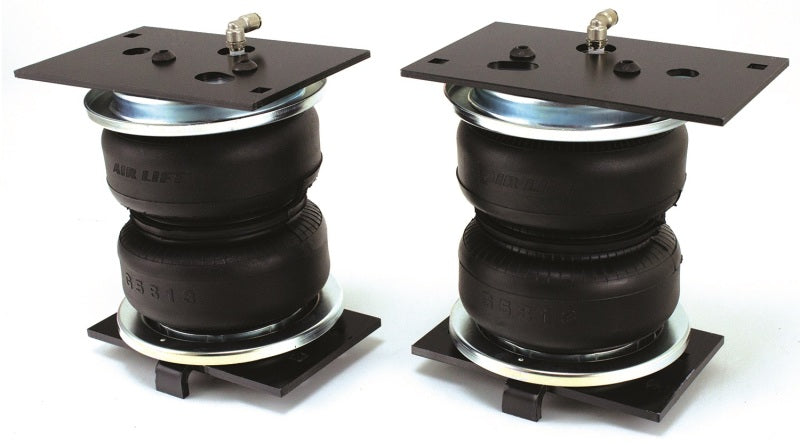

• 2x LoadLifter 5000 air springs
• 2x Roll plates

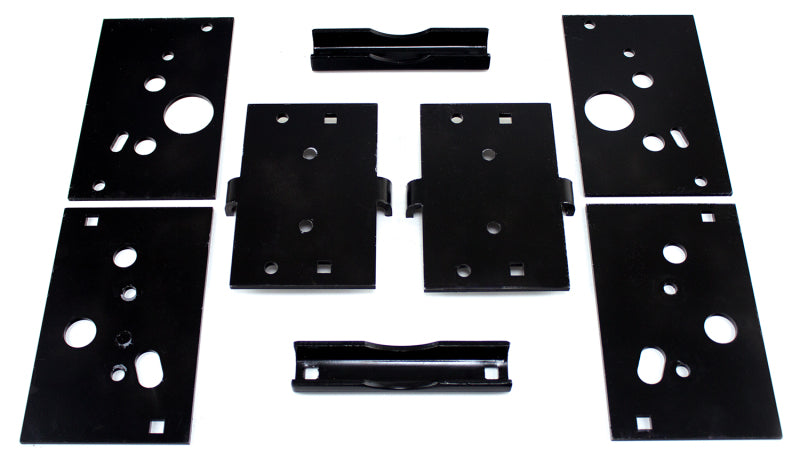

• 1x Mounting bracket set
• 1x Air line kit
• 1x Schrader inflation valves
• 1x Mounting hardware
• 1x Illustrated installation manual

Product Description

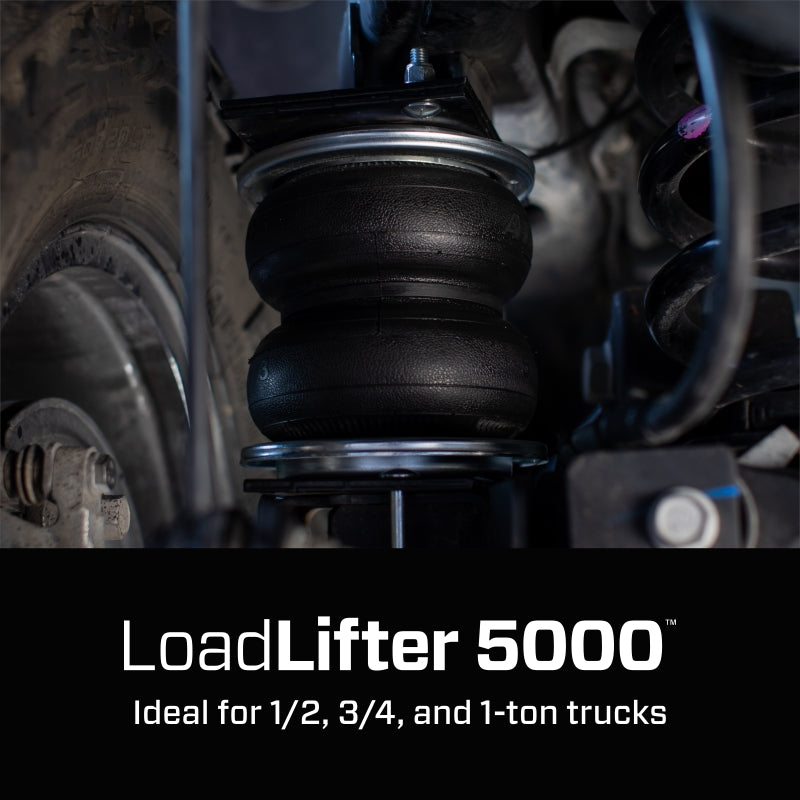

The Air Lift 57289 LoadLifter 5000 is the heaviest-rated rear air spring kit engineered specifically for the 2014-2026 Ram 2500, including all trims, Power Wagon, and both 2WD and 4WD configurations across 5.7L HEMI, 6.4L HEMI, and 6.7L Cummins diesel powertrains. The kit adds up to 5,000 lbs of adjustable load-leveling capacity to eliminate rear sag when towing heavy trailers, hauling slide-in campers, or carrying maximum payload. Air pressure adjusts from 5 to 100 PSI through Schrader valves, allowing the truck to ride soft empty and firm up under load.

Each 2-ply fabric-reinforced commercial-grade bellow is built like a tire with reinforced cords that control growth under high pressure, capped with ultra high-strength Zytel nylon and Shur-Grip crimps for lasting durability. Roll plates included in the kit protect the bellows and add an additional 10% load capacity. Bolt-on no-drill installation takes about 2 hours with common hand tools, and the kit clears the factory in-bed hitch system and most side-mount fifth wheel hitches. Does not fit vehicles equipped with factory air suspension. Backed by Air Lift's limited lifetime warranty, made in the USA.
