Air Lift 60743 -1000 Rear Coil Helper Spring Kit for 96-02 Toyota 4Runner/Hilux

Vehicle Fitment

• 1996-2002 Toyota 4Runner (N180, All trims, 2WD / 4WD, Gas)
• 1996-2002 Toyota Hilux Surf (N180, All trims, 2WD / 4WD, Gas)

Fitment Notes

• Rear axle application only
• For use inside factory rear coil springs
• No drilling required
• Hilux Surf is the JDM/global equivalent of the N180 4Runner
• Not intended for racing, off-road, or commercial use
• Maximum air pressure: 35 PSI
• Minimum air pressure: 5 PSI
• Do not exceed vehicle's GVWR

Features

• Up to 1,000 lbs load-leveling capacity
• Adjustable air pressure 5-35 PSI
• Reduces squat, sway, and bottoming out
• Durable polyurethane construction
• Molded-in air fitting
• Schrader valve inflation
• Progressive spring rate
• Installs inside factory coil springs
• Bolt-on, no-drill installation
• 1-hour install time
• Limited lifetime warranty
• 60-day ride satisfaction guarantee
• Made in USA

Specifications

• Series: Air Lift 1000
• Position: Rear
• Application: Coil spring helper
• Max load capacity: 1,000 lbs
• Pressure range: 5-35 PSI
• Material: Polyurethane
• Air spring diameter: 4.5"
• Air spring height: 9"
• Kit weight: 4.9 lbs
• Kit width: 10.3"
• Kit depth: 12.5"
• Kit height: 6"
• Drilling required: No
• Install time: ~1 hour
• UPC: 729199607431
• Warranty: Limited lifetime

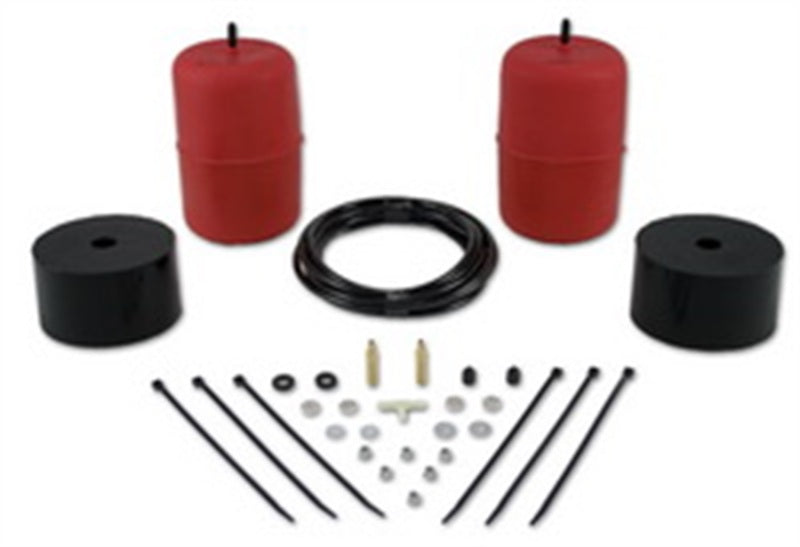

Included Components

• 2x Polyurethane air springs
• 1x Mounting bracket set
• 1x Air line and fitting kit
• 1x Schrader inflation valves
• 1x Mounting hardware
• 1x Illustrated installation guide

Product Description

The Air Lift 60743 is an Air Lift 1000 rear coil spring helper kit engineered for the 1996-2002 Toyota 4Runner and its global equivalent, the Toyota Hilux Surf, both built on the N180 chassis in 2WD and 4WD gas configurations. Each polyurethane air spring installs inside the factory rear coil springs with no drilling required, adding up to 1,000 lbs of adjustable load-leveling capacity to eliminate rear sag when towing, hauling, or running fully loaded. Air pressure adjusts from 5 to 35 PSI through Schrader valves to dial in ride comfort whether the truck is empty or loaded.

The progressive spring rate absorbs bumps while keeping the chassis level, reducing body roll, sway, and bottoming out. Installation takes about an hour with common hand tools and reuses all factory components. Kit includes both air springs, mounting brackets, air lines, fittings, Schrader valves, hardware, and an illustrated installation guide. Backed by Air Lift's limited lifetime warranty and 60-day ride satisfaction guarantee, made in the USA in Lansing, Michigan.
