Air Lift 60815 Air Lift 1000 Rear Air Springs for 05-17 Honda Odyssey/Pilot/MDX

Vehicle Fitment

• 2005-2017 Honda Odyssey (All Trims, 2WD/4WD)
• 2005-2009 Honda Pilot (LX/EX/EX-L/Touring)
• 2005-2013 Acura MDX

Fitment Notes

• Rear axle only -- installs inside existing rear coil springs
• No drilling required -- bolt-on installation in approximately 2 hours
• Do not exceed manufacturer's recommended Gross Vehicle Weight Rating (GVWR)
• Adjustable from 5-35 PSI for cars and SUVs
• Replacement air spring: Air Lift 60315

Features

• Air Lift 1000 series adjustable air helper spring kit
• Up to 1,000 lbs of load-leveling capacity
• Eliminates squat, trailer sway, bottoming out, and rough ride
• Improves braking, steering control, and even tire wear under load
• Fully adjustable -- add air when loaded, deflate for smooth unloaded ride
• Durable molded polyurethane air springs
• Quick-connect air fittings for easy inflation
• Compatible with on-board compressor systems (sold separately)
• Designed, engineered, and assembled in Lansing, Michigan
• Limited lifetime air spring warranty
• 60-day ride satisfaction guarantee

Specifications

• Series: Air Lift 1000
• Type: Coil Spring Air Helper Spring
• Position: Rear
• Air Spring Width: 4.0"
• Air Spring Height: 6.0"
• Air Spring Material: Molded Polyurethane
• Max Pressure: 35 PSI
• Load-Leveling Capacity: Up to 1,000 lbs
• Drilling Required: No
• Installation Time: ~2 Hours
• Kit Weight: 3 lbs
• Replacement Air Spring: 60315
• Warranty: Limited Lifetime

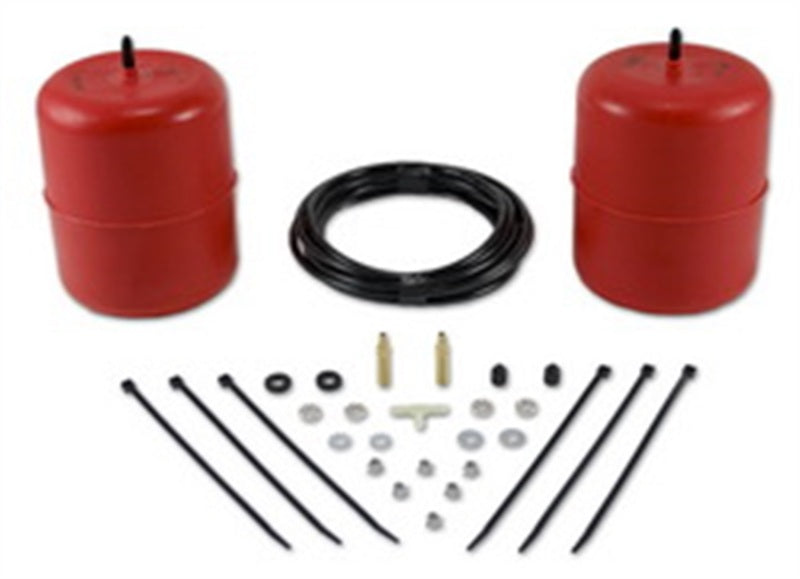

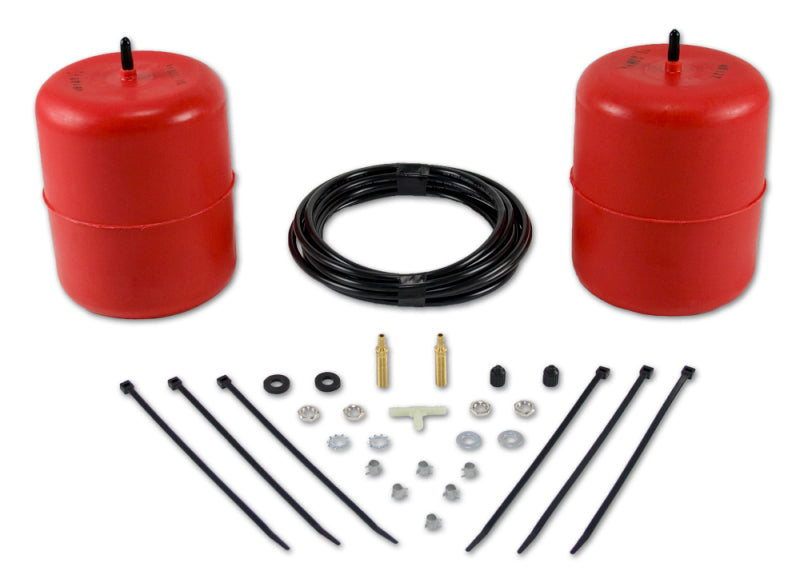

Included Components

• 2x Air Lift 1000 polyurethane air springs
• 1x Air line kit with quick-connect fittings
• 1x Schrader valve
• 1x Mounting hardware kit
• 1x Installation instructions

Product Description

The Air Lift 60815 Air Lift 1000 is a rear air helper spring kit designed for the 2005-2017 Honda Odyssey, 2005-2009 Honda Pilot, and 2005-2013 Acura MDX. The kit installs inside the vehicle's existing rear coil springs to provide up to 1,000 lbs of adjustable load-leveling capacity. When inflated, the polyurethane air springs increase the rear spring rate to eliminate squat, trailer sway, bottoming out, and uneven ride when towing or hauling heavy loads. When unloaded, simply deflate the air springs for a smooth, comfortable factory ride -- unlike stiff helper springs or air shocks that create a harsh ride at all times.

The air springs are adjustable from 5 to 35 PSI using the included Schrader valve and quick-connect air fittings, and are compatible with optional on-board compressor systems for on-the-go adjustment. Installation requires no drilling and can be completed in approximately 2 hours with common hand tools. The kit includes everything needed for a complete installation on both sides -- air springs, air lines, fittings, valve, and mounting hardware. Backed by Air Lift's limited lifetime air spring warranty and an exclusive 60-day ride satisfaction guarantee. Designed, engineered, and assembled by Air Lift Company in Lansing, Michigan.
