Air Lift 60809 1000 Rear Air Spring Kit for 2003-2014 Toyota 4Runner/FJ Cruiser

Vehicle Fitment

• 2003-2014 Toyota 4Runner, 4WD
• 2007-2014 Toyota FJ Cruiser

Fitment Notes

• Rear position, coil spring
• No drilling required
• Installation time 1 hour or less
• Air bag is shorter than the coil spring, upper jounce bumper is modified and reused to bridge the distance per installation instructions
• Not tested with aftermarket coil springs, factory coil springs recommended
• Do not exceed vehicle's Gross Vehicle Weight Rating (GVWR)

Features

• Air Lift 1000 series, rear air spring kit
• Up to 1,000 lbs of load-leveling capacity
• Fully adjustable air pressure, 5-35 PSI
• Eliminates sag, sway, and bottoming out
• Reduces roll and improves handling
• Custom tunable to individual load needs
• Installs inside existing coil spring
• Tough molded polyurethane construction
• Rugged, durable hardware included

Specifications

• Load capacity: Up to 1,000 lbs
• Adjustable pressure: 5-35 PSI
• Position: Rear
• Drilling required: No
• Installation time: 1 hour or less
• Weight: Approx. 4 lbs
• Warranty: Limited Lifetime

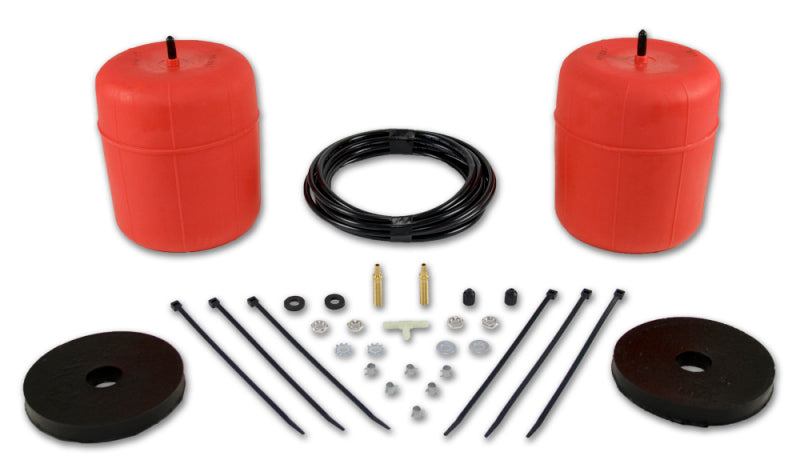

Included Components

• 2x Air Springs
• Mounting Hardware
• Installation Instructions

Product Description

Air Lift 1000 Rear Air Spring Kit. For dependable comfort and control when towing or hauling, delivers up to 1,000 lbs of load-leveling capacity. Designed for coil-spring vehicles, helps eliminate sag, sway, and bottoming out, keeping the ride level and confident no matter the load.

Air springs install inside the vehicle's existing coil springs using common mechanic's tools, custom tunable to reduce roll, sway, and bottoming out. Adjustable air pressure from 5-35 PSI keeps the ride comfortable when unloaded and supportive when carrying a heavy load.

Fits 2003-2014 Toyota 4Runner (4WD) and 2007-2014 Toyota FJ Cruiser. Rear position, no drilling required, installs in 1 hour or less. Backed by Air Lift's Limited Lifetime Warranty.
