Air Lift 60838 -1000 Rear Coil Spring Kit for 13-25 Nissan Pathfinder 2wd/4wd

Vehicle Fitment

• 2013-2020 Nissan Pathfinder (R52) -- 3.5L V6, 2WD/4WD
• 2022-2025 Nissan Pathfinder (R53) -- 3.5L V6, 2WD/4WD

Fitment Notes

• Rear coil spring insert ONLY -- fits inside existing rear coil springs
• Fits both 2WD and 4WD models
• Do NOT exceed manufacturer's Gross Vehicle Weight Rating (GVWR)
• No drilling required -- installs inside factory coil springs
• Replacement air spring: Air Lift 60338
• Optional upgrade: Air Lift WirelessAIR or SmartAIR II compressor system for on-the-fly adjustment

Features

• Up to 1,000 lbs of load-leveling capacity
• Fully adjustable from 5-35 PSI
• Eliminates rear squat, trailer sway, body roll, and bottoming out
• Improves headlight aim, braking, and steering control under load
• Add air when towing/hauling -- deflate when riding empty
• Durable polyurethane air spring construction
• Torture-tested to 1 million cycles on hydraulic test rig
• Installs inside open coil springs -- approximately 1-2 hours
• Maintains stock ride height

Specifications

• Part Number: 60838
• Product Line: Air Lift 1000
• Type: Rear coil spring air spring insert kit
• Position: Rear
• Load Capacity: 1,000 lbs
• Air Pressure Range: 5-35 PSI
• Material: Polyurethane
• Ride Height Effect: Stock (no lift or drop)
• Drilling Required: No
• Shipping Weight: 3 lbs
• UPC: 729199608384

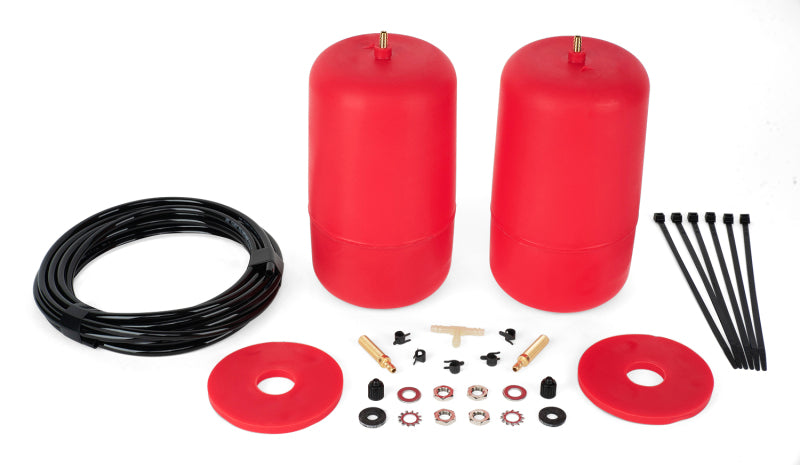

Included Components

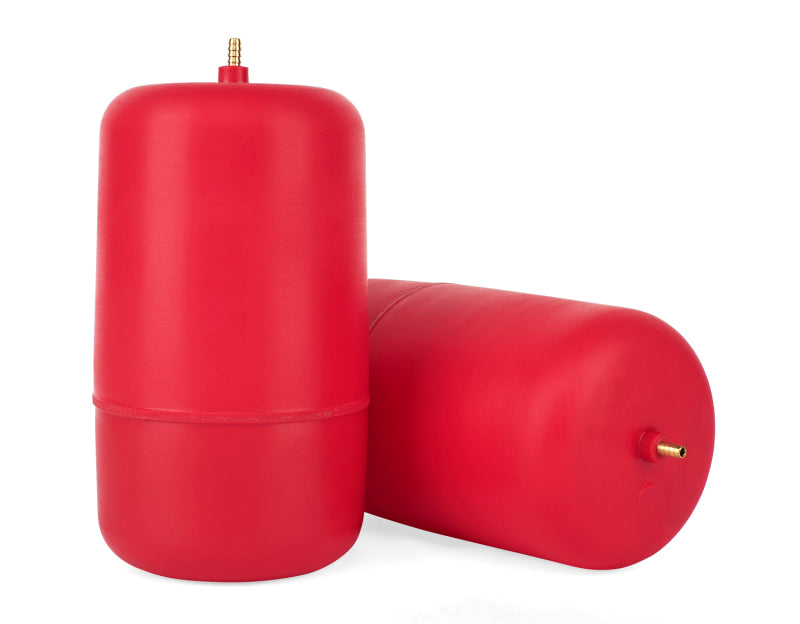

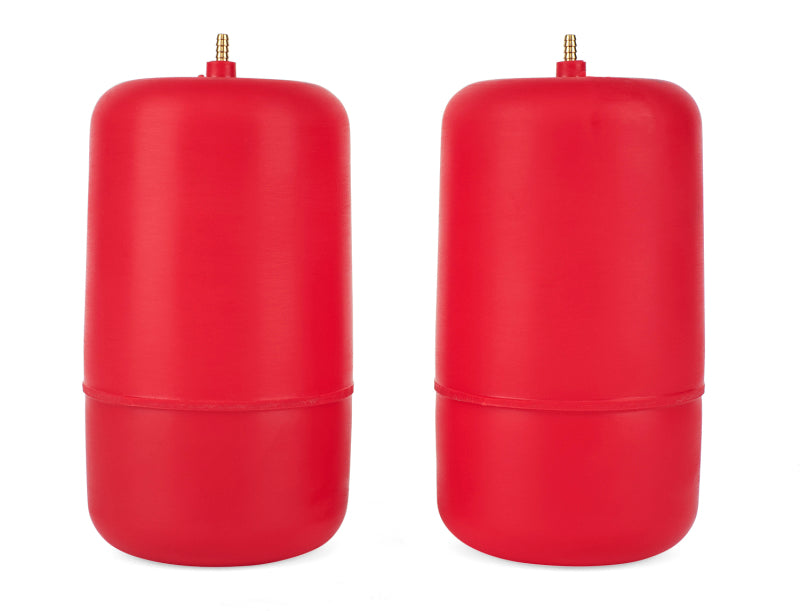

• 2x Polyurethane air spring inserts (left and right)
• Air lines
• Inflation valves
• Fittings and mounting hardware

Product Description

The Air Lift 60838 is an Air Lift 1000 rear coil spring air spring insert kit for the 2013-2020 (R52) and 2022-2025 (R53) Nissan Pathfinder in both 2WD and 4WD configurations. The inflatable polyurethane air cylinders fit inside the factory rear coil springs, adding up to 1,000 lbs of adjustable load-leveling capacity without modifying the vehicle's suspension or ride height. Adjustable from 5-35 PSI via the included inflation valves, the system lets you add air pressure when towing a trailer or hauling heavy cargo and deflate back down when riding empty for a comfortable unloaded ride.

The Air Lift 1000 eliminates common towing and hauling problems including rear squat, poor headlight aim, trailer sway, body roll, and bottoming out over bumps. With over 70 years of air suspension expertise, Air Lift has torture-tested these air springs to 1 million cycles to ensure long-term reliability. Installation requires no drilling and typically takes 1-2 hours using basic hand tools. The replacement air spring for this kit is Air Lift 60338. For hands-free on-the-fly pressure adjustment, pair with an Air Lift WirelessAIR or SmartAIR II compressor system (sold separately). Air Lift lifetime warranty with a 60-day ride satisfaction guarantee. Made in Lansing, Michigan, USA.
