Air Lift 60856 1000 Rear Air Spring Kit for 2018-2026 Chevy Equinox/GMC Terrain

Vehicle Fitment

• 2018-2026 Chevrolet Equinox, FWD / AWD -- Rear
• 2018-2026 GMC Terrain, FWD / AWD -- Rear
• 2017-2020 Buick Envision, FWD / AWD -- Rear

Fitment Notes

• Does NOT fit coil springs with internal jounce bumpers
• Rear axle only -- direct fit, no measuring required
• No frame drilling required
• Air compressor not included -- add Air Lift compressor kit for on-the-go adjustability
• Do not exceed manufacturer's gross vehicle weight rating
• Minimum pressure: 5 PSI (to avoid chafing and coil pinch) / Maximum: 35 PSI
• Sold as a kit (2 air springs + hardware)

Features

• Up to 1,000 lbs of adjustable load-leveling capacity
• Eliminates squat, sway, and bottoming out under heavy loads
• Improves braking, steering, and headlight aim when hauling
• Adjustable 5-35 PSI -- inflate for loads, deflate when empty
• Molded polyurethane air springs -- tested to 1 million cycles
• Installs in 2 hours or less with common hand tools
• 60-day money-back guarantee
• Limited lifetime warranty
• Designed, engineered, and assembled in Lansing, Michigan, USA

Specifications

• Part Number: 60856
• Series: Air Lift 1000
• Type: Direct-fit rear coil spring air bag kit
• Position: Rear
• Load capacity: Up to 1,000 lbs
• Pressure range: 5-35 PSI
• Air spring material: Molded polyurethane
• Drilling required: No
• Air compressor included: No
• Quantity: Kit (2 air springs)
• Warranty: Limited lifetime

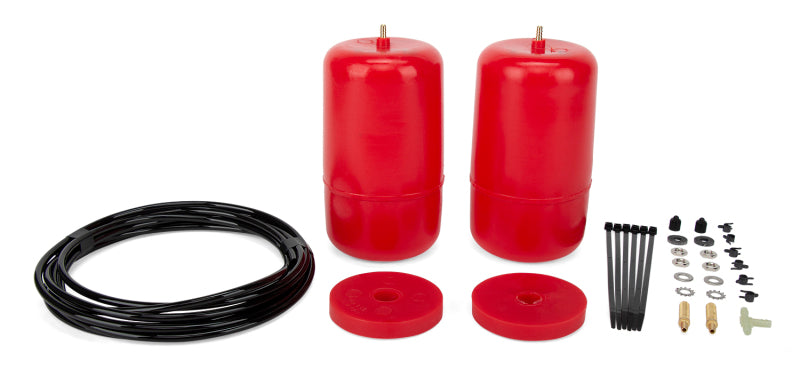

Included Components

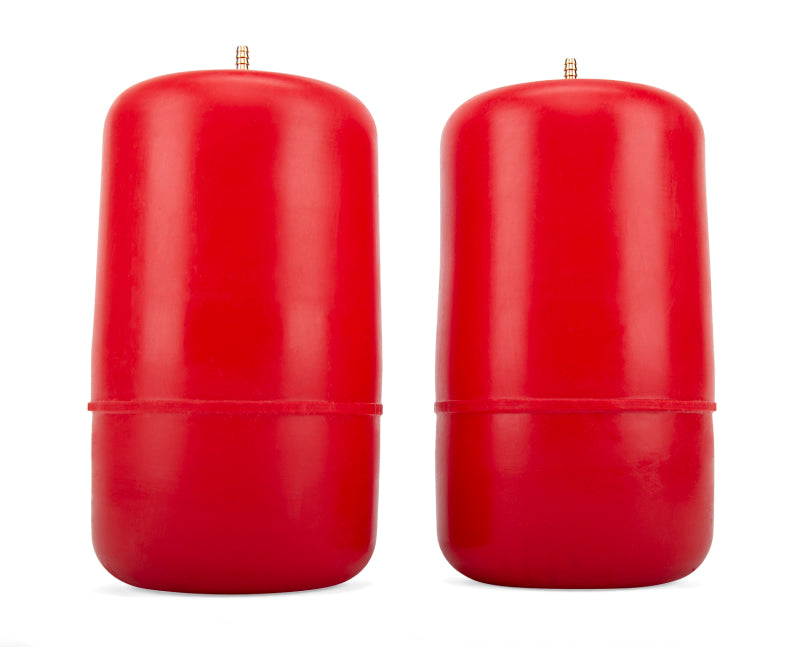

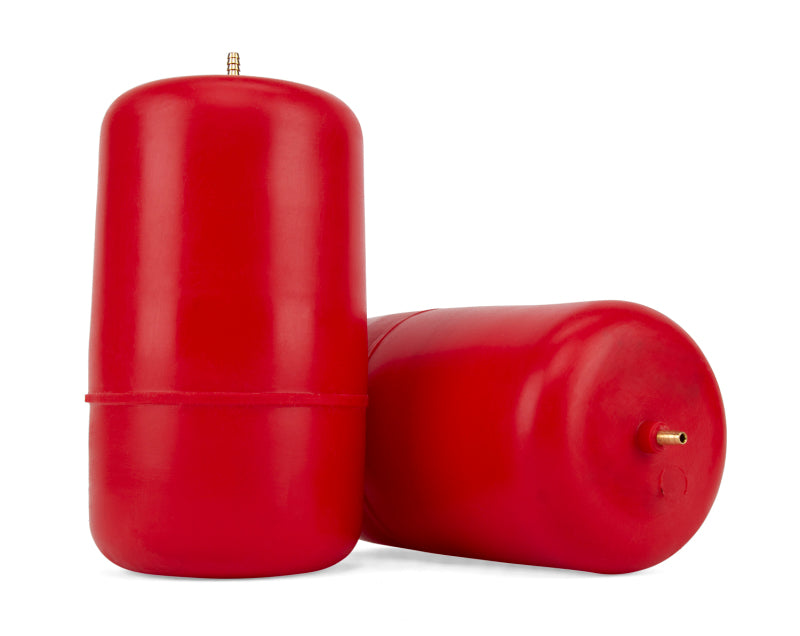

• 2x Air Lift 1000 molded polyurethane air springs
• Air line and tee fitting
• Schrader valves
• All brackets, clamps, zip ties, and mounting hardware
• Detailed installation guide

Product Description

The Air Lift 60856 is an Air Lift 1000 direct-fit rear air spring kit for the 2018-2026 Chevrolet Equinox, 2018-2026 GMC Terrain, and 2017-2020 Buick Envision in FWD and AWD configurations. Unlike the universal 60901, the 60856 is vehicle-specific -- no coil spring measuring required, and it does not fit coil springs with internal jounce bumpers. Installs in 2 hours or less with common hand tools and no frame drilling.

The molded polyurethane air springs fit inside the existing rear coil springs and provide up to 1,000 lbs of adjustable load-leveling support via external Schrader valves. Inflate to 35 PSI when hauling or towing to eliminate squat, sway, bottoming out, and poor headlight aim; deflate when running empty for normal ride comfort. Maintain a minimum of 5 PSI at all times to prevent chafing and coil pinch. An Air Lift compressor kit can be added separately for automatic on-the-go inflation and deflation. Air springs tested to 1 million cycles. 60-day money-back guarantee. Designed, engineered, and assembled in Lansing, Michigan. Backed by Air Lift's limited lifetime warranty.
