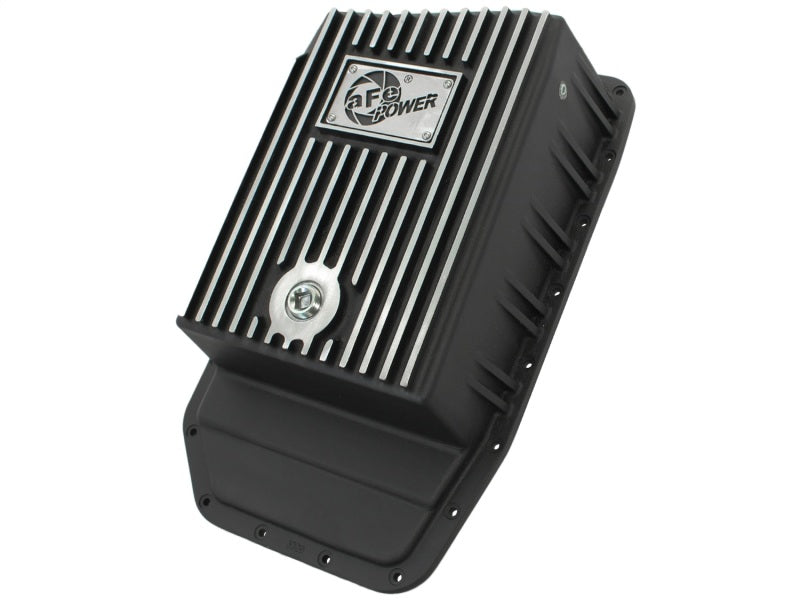

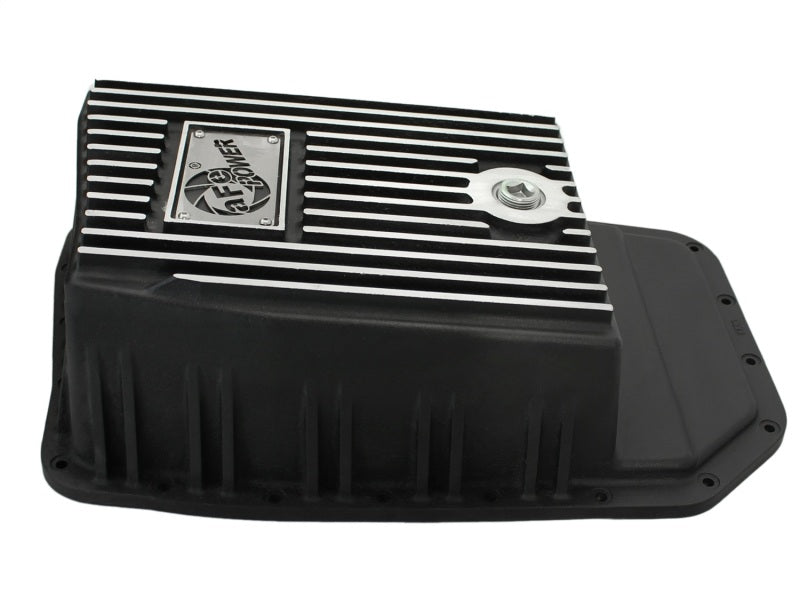

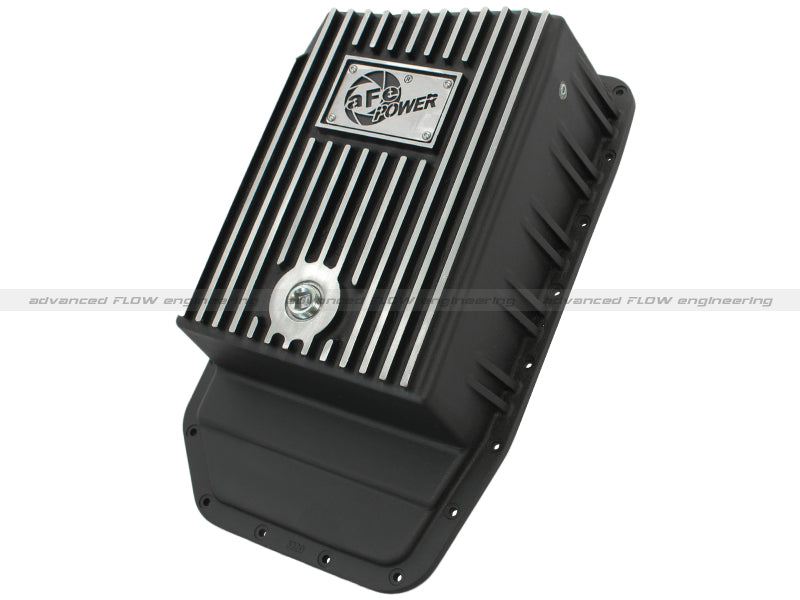

aFe 46-70172 Pro Series Transmission Pan for 2009-2020 Ford F-150 6R80

Vehicle Fitment

• 2009-2020 Ford F-150 (6R80 6-speed automatic transmission)

Features

• Pro Series deep transmission pan engineered for performance and cooling
• A380 die-cast aluminum construction with reinforced ribs for strength

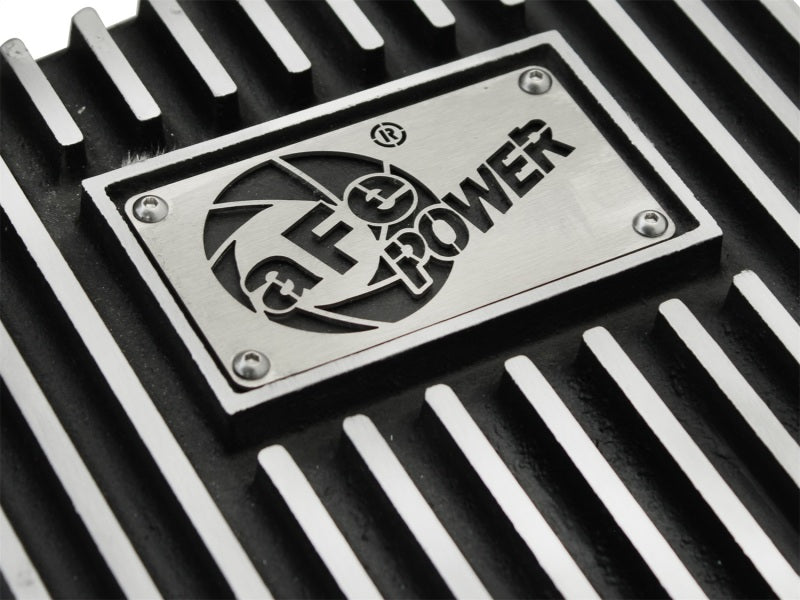

• Black powder-coat finish with machined cooling fins for durability and style
• Adds approximately 7 quarts more fluid capacity over stock pan

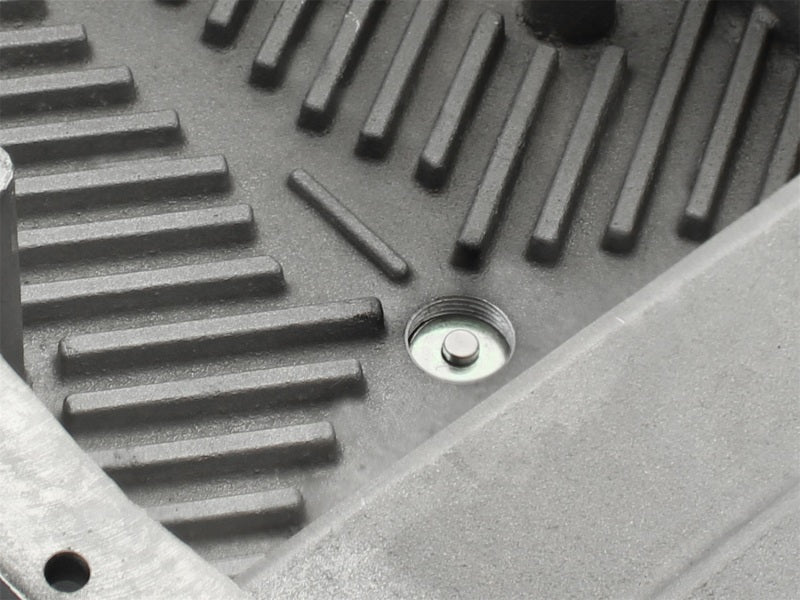

• Internal and external fins help dissipate transmission heat to ambient air

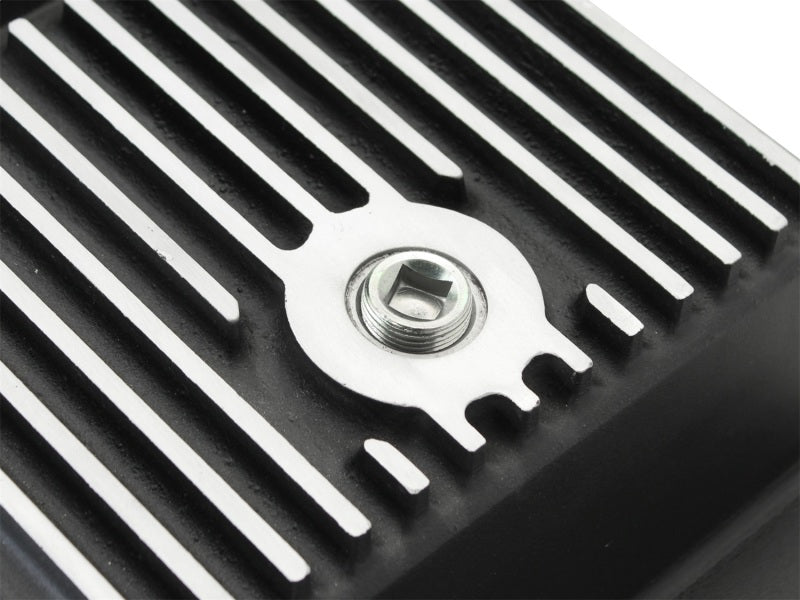

• Large neodymium magnetic drain plug captures metallic debris

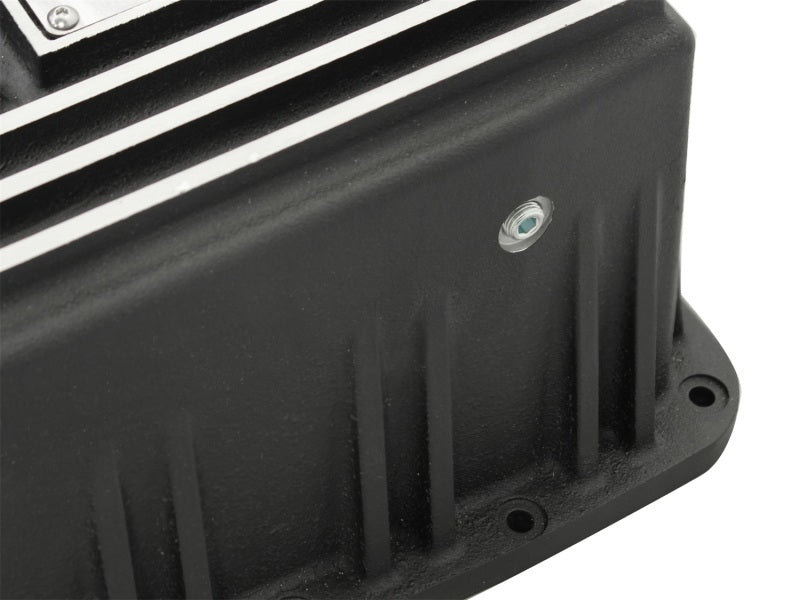

• Threaded 1/8" NPT port ready for installation of a transmission temperature sensor
• Compatible with stock filter and factory gasket for easy installation

Specifications

• Brand: aFe Power
• Part Number: 46-70172
• Product Type: Pro Series Transmission Pan
• Material: A380 die-cast aluminum
• Finish: Black powder coat with machined fins
• Transmission Compatibility: Ford 6R80 6-speed automatic
• Fluid Capacity Increase: ~7 quarts over stock pan
• Drain Plug: Magnetic drain plug included
• Sensor Port: 1/8" NPT for temperature sensor

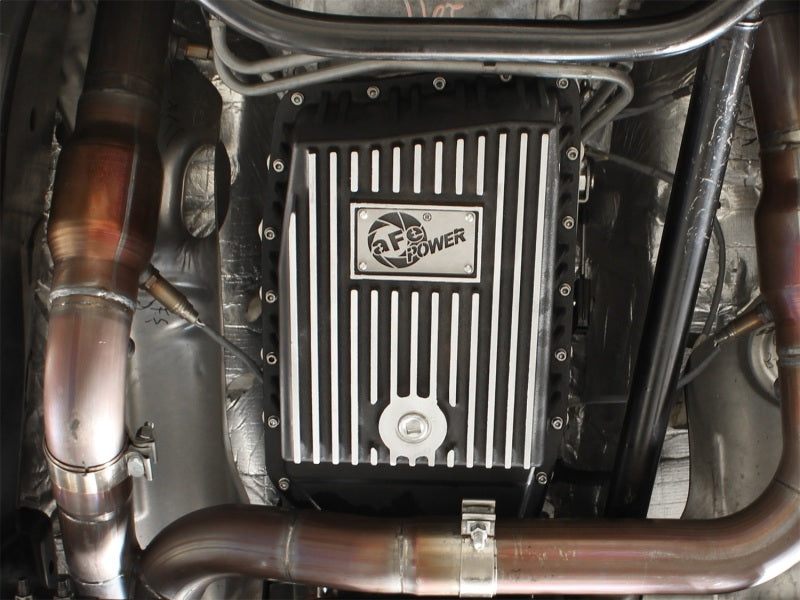

• Installation: Direct bolt-on - uses factory mounting locations
• Warranty: Manufacturer limited warranty

Included Components

• 1x Pro Series machined transmission pan (aluminum)
• 1x Large magnetic drain plug
• 1x Set of mounting hardware

Product Description

The aFe Power 46-70172 Pro Series Transmission Pan is a performance upgrade designed for Ford F-150 trucks equipped with the 6R80 six-speed automatic transmission from 2009 through 2020. Constructed from durable A380 die-cast aluminum with reinforced ribs and finished in a corrosion-resistant black powder coat featuring machined cooling fins, this deep transmission pan increases fluid capacity by approximately 7 quarts compared with the stock pan. The added fluid volume and cooling fins help maintain lower transmission operating temperatures during heavy use such as towing, hauling, or spirited driving.

Internal and external cooling fins transfer heat from the fluid to the surrounding air for improved heat rejection, while the large neodymium magnetic drain plug helps capture metallic debris to protect transmission internals. The threaded 1/8" NPT port allows for easy installation of a transmission temperature sensor for real-time monitoring. Designed for direct bolt-on replacement using factory mounting points, and compatible with the stock filter and gasket, this transmission pan offers enhanced thermal performance, protection, and maintenance convenience for F-150 owners.
