aFe 54-11112 MagnumFORCE Stage-2 Pro 5R Cold Air Intake for 2006-2009 VW GTI

Vehicle Fitment

• 2006-2009 Volkswagen GTI (MKV, Base / Fahrenheit), L4-2.0L (t) FSI (BPY / CBFA / CCTA), FWD
• 2006-2009 Volkswagen Jetta (MKV, 2.0T / GLI / SEL / Wolfsburg Edition), L4-2.0L (t) FSI (BPY / CBFA / CCTA), FWD
• 2006-2008 Volkswagen Passat (2.0T / Value Edition / Wolfsburg Edition / Komfort / Lux / Turbo), L4-2.0L (t) FSI (BPY), FWD
• 2007-2009 Volkswagen Eos (Base / 2.0T / Komfort / Lux / Turbo), L4-2.0L (t) FSI (BPY), FWD
• 2006-2008 Audi A3 (Base), L4-2.0L (t) FSI (BPY), FWD

Fitment Notes

• Fits transverse FSI (front-wheel drive) L4-2.0L (t) engine configurations only - does not fit longitudinal (quattro/AWD) engine configurations.
• Does not fit Audi A3 Quattro or any AWD variant of the A3; FWD Base trim only.
• Compatible with BPY, CBFA, and CCTA engine codes. Does not fit non-FSI, TDI, or naturally aspirated 2.0L engine variants.
• Does not fit models equipped with secondary air injection.
• Compatible with both 6-speed manual (02Q transaxle) and 6-speed DSG/automatic (02E and 09G/09M transaxle) equipped vehicles.
• CARB compliant under Executive Order D-550-30; legal for sale and use in all 50 states on applicable models.

Features

• Stage-2 design replaces both the factory airbox and OEM intake tube with a heat-insulating molded plastic intake tube, improving volumetric efficiency and directing a higher volume of cool, dense air to the turbocharger.
• One-piece 16-gauge powder-coated steel heat shield encloses the air filter and blocks radiated underhood heat from reaching the intake charge, maximizing charge air density.
• 360-degree radial-flow Pro 5R conical air filter features five layers of progressively finer pre-oiled cotton gauze media for maximum filtration capacity and airflow performance - ideal for street and track use.
• Heat-insulating molded plastic intake tube replaces the restrictive stock tract and is designed for improved airflow volume and velocity, delivering stronger throttle response and improved turbo spool characteristics.
• One-piece heat shield design requires minimal to no assembly, making installation faster and eliminating the need for extra hardware or adapter brackets.
• Pro 5R filter is constructed with a 100% polyurethane frame for long service life, resistance to cracking or shrinking, and compatibility with multiple wash and re-oil cleaning cycles.
• Washable and reusable filter media - rechargeable with aFe POWER Cleaner and blue air filter oil for continued performance over the life of the vehicle.
• 50-state legal under CARB E.O. D-550-30 - compliant for emissions-regulated states including California on qualifying model years and configurations.
• Engineered and manufactured at aFe POWER's Corona, California facility; designed specifically for the MKV-platform 2.0T FSI transverse engine layout.

Specifications

• Part Number: 54-11112
• System Type: MagnumFORCE Stage-2 Cold Air Intake - Replaces OEM Airbox and Intake Tube
• Filter Media: Pro 5R - Pre-Oiled, 5-Layer Cotton Gauze, 360-Degree Radial Flow
• Filter Shape: Conical
• Filter Frame: 100% Polyurethane
• Intake Tube Material: Heat-Insulating Molded Plastic
• Heat Shield Material: 16-Gauge Powder-Coated Steel (one-piece)
• Engine Compatibility: L4-2.0L (t) Transverse FSI - Engine Codes BPY, CBFA, CCTA
• Drivetrain: FWD only
• Transmission Compatibility: 6-Speed Manual (02Q), 6-Speed DSG (02E), 6-Speed Automatic (09G / 09M)
• CARB Status: 50-State Legal - E.O. D-550-30
• Designed & Engineered: Corona, California, USA

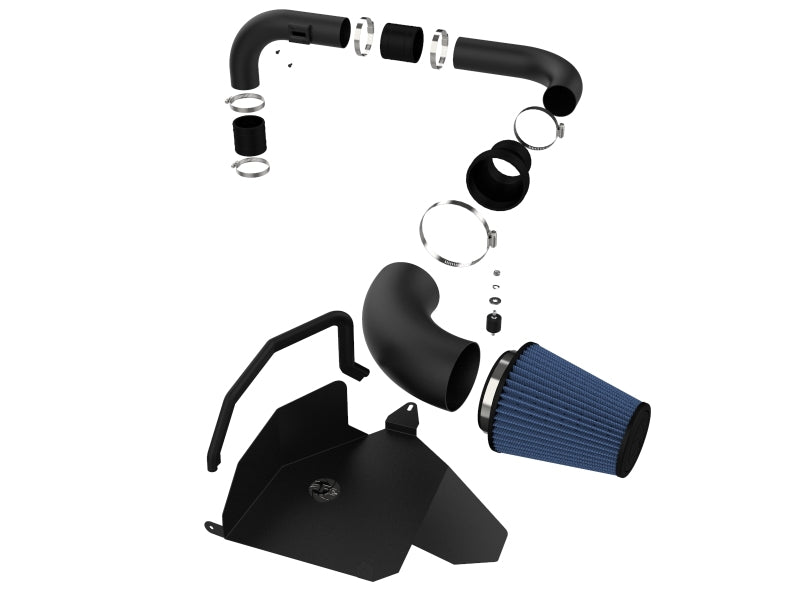

Included Components

• 1x Pro 5R Conical Air Filter (pre-oiled, 360-degree radial flow, polyurethane frame)
• 1x Heat-Insulating Molded Plastic Intake Tube
• 1x 16-Gauge Powder-Coated Steel Heat Shield (one-piece)
• 1x Complete hardware and mounting kit

Product Description

The aFe POWER 54-11112 MagnumFORCE Stage-2 Cold Air Intake System is engineered specifically for MKV-platform Volkswagen and Audi vehicles equipped with the transverse-mounted L4-2.0T FSI engine (BPY, CBFA, and CCTA engine codes). Unlike a Stage-1 system, this Stage-2 kit replaces both the factory airbox and the OEM intake tube with a custom heat-insulating molded plastic tube precision-designed for the MKV engine bay layout. This tube replacement eliminates the primary flow restriction of the factory intake tract, increasing airflow volume and velocity to the turbocharger for improved spool, stronger throttle response, and measurable power gains. The entire assembly is enclosed in a one-piece 16-gauge powder-coated steel heat shield that requires little to no assembly and bolts directly into factory mounting locations.

The Pro 5R conical air filter at the center of this system delivers 360-degree radial airflow through five progressively finer layers of pre-oiled cotton gauze media - aFe's highest-performance filter option, built for both street and track environments. The 100% polyurethane frame ensures the filter holds its shape and seals perfectly across its full service life. Like all aFe Pro 5R filters, it is fully washable and reusable, making long-term ownership economical. The molded plastic intake tube and steel heat shield work together to source the coolest available underhood air while keeping warm engine air away from the filter media, protecting intake charge density under sustained driving or track conditions.

Compatibility is limited to transverse FWD-configured 2.0T FSI engines only - this intake does not fit longitudinal (quattro/AWD) applications or any model equipped with secondary air injection. Fitment covers the 2006-2009 VW GTI MKV (Base, Fahrenheit), 2006-2009 Jetta (2.0T, GLI, SEL, Wolfsburg Edition), 2006-2008 Passat 2.0T (FWD trims), 2007-2009 Eos 2.0T, and 2006-2008 Audi A3 Base (FWD). This system is 50-state legal under CARB E.O. D-550-30, making it one of the few Stage-2 MKV 2.0T intakes legal for use in California on qualifying applications.
