aFe 54-11521 Magnum FORCE Stage-1 Cold Air Intake for 2006-2008 BMW Z4 M 3.2L

Vehicle Fitment

• 2006-2008 BMW Z4 M Roadster (E85) -- S54 3.2L I6
• 2006-2008 BMW Z4 M Coupe (E86) -- S54 3.2L I6

Fitment Notes

• Fits BMW Z4 M models with S54 3.2L inline-6 only
• Does NOT fit non-M Z4 models (2.5i, 3.0i, 3.0si)
• Replaces factory air filter and airbox assembly
• Uses factory mounting locations -- no drilling or cutting
• Direct bolt-on installation -- no tuning required
• CARB EO# D-550-38 -- 50-state legal
• Pro DRY S (oil-free) version available as part number 51-11521

Features

• Magnum FORCE Stage-1 cold air intake system
• Dyno-proven gains of up to +11 HP and +10 lb-ft of torque
• Out-flows the factory intake by 90%
• 5-1/2" conical Pro 5R air filter with inverted top for maximum flow
• 5-layer progressive oiled cotton gauze media for superior filtration and airflow

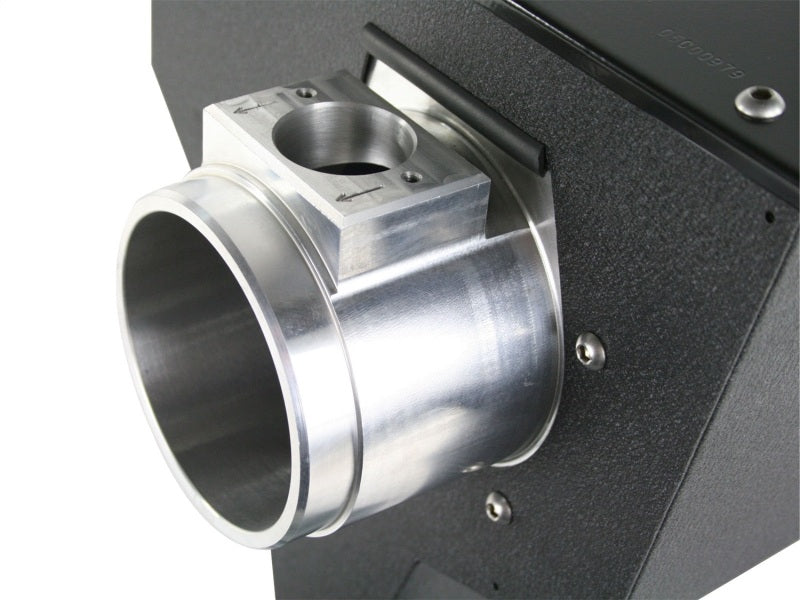

• Unique 3-angle billet aluminum adapter smooths airflow into intake tract
• One-piece 16-gauge black powder-coated steel heat shield blocks engine bay heat
• Black aluminum cover keeps temperatures down and provides easy filter access
• Washable and reusable filter for low-cost long-term maintenance
• Improved throttle response, acceleration, and induction sound

Specifications

• Part Number: 54-11521
• Series: Magnum FORCE Stage-1
• Intake Type: Cold air intake system
• Filter Media: Pro 5R -- 5-layer oiled cotton gauze
• Filter Shape: Conical with inverted top
• Filter Flange Inside Diameter: 5.5 in
• Heat Shield Material: 16-gauge steel, black powder-coated
• Cover Material: Aluminum, black finish
• Adapter: 3-angle billet aluminum
• Coupler Included: Yes
• Tuning Required: No
• CARB EO#: D-550-38 (50-state legal)
• Warranty: aFe Power Limited Lifetime Warranty
• UPC: 802959502747

Included Components

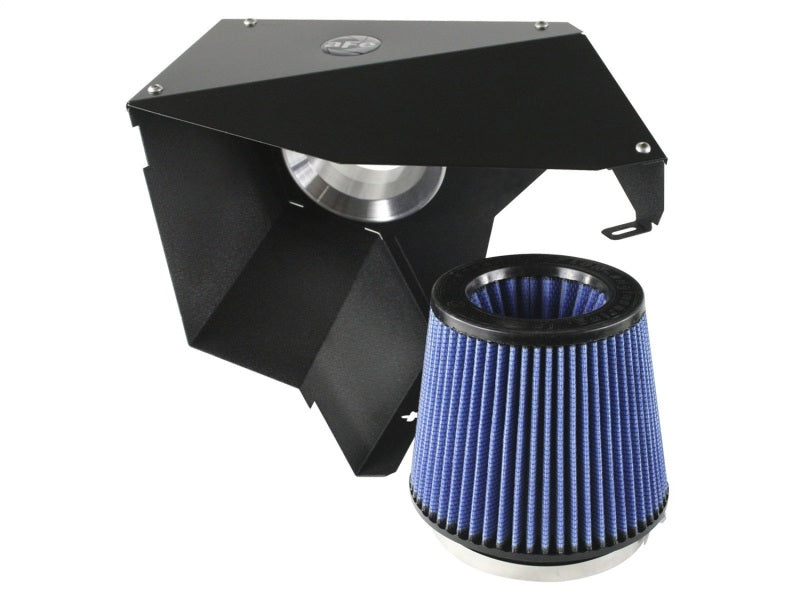

• 1x Pro 5R 5-layer oiled cotton gauze conical air filter with inverted top
• 1x One-piece 16-gauge black powder-coated steel heat shield
• 1x Black aluminum cover
• 1x 3-angle billet aluminum adapter
• Silicone coupler and clamps
• Mounting hardware
• Installation instructions

Product Description

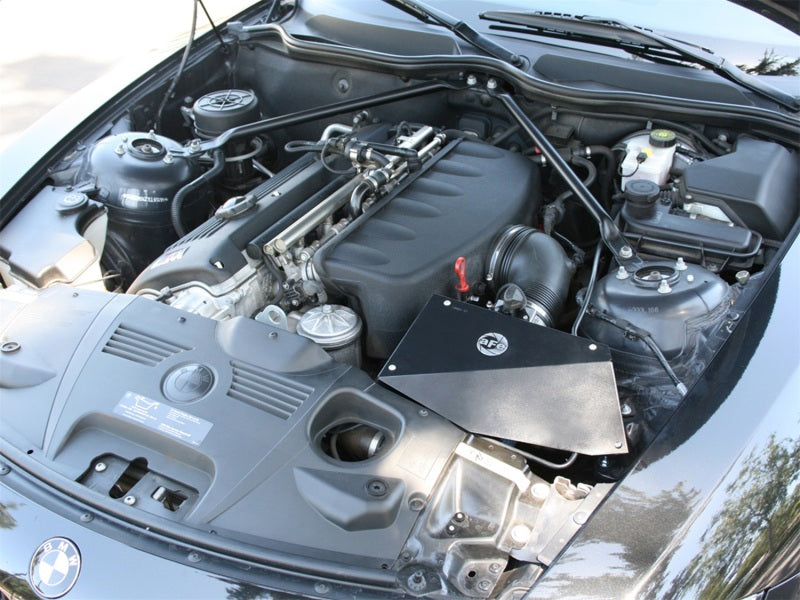

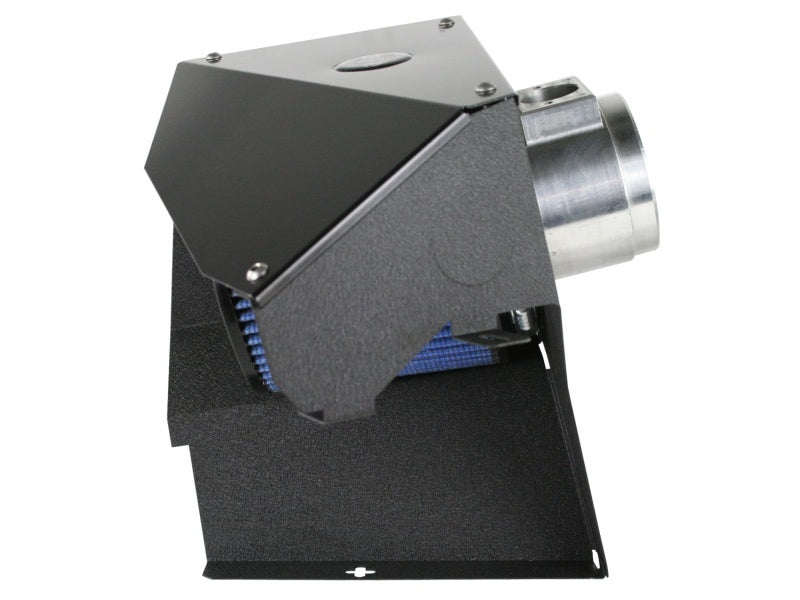

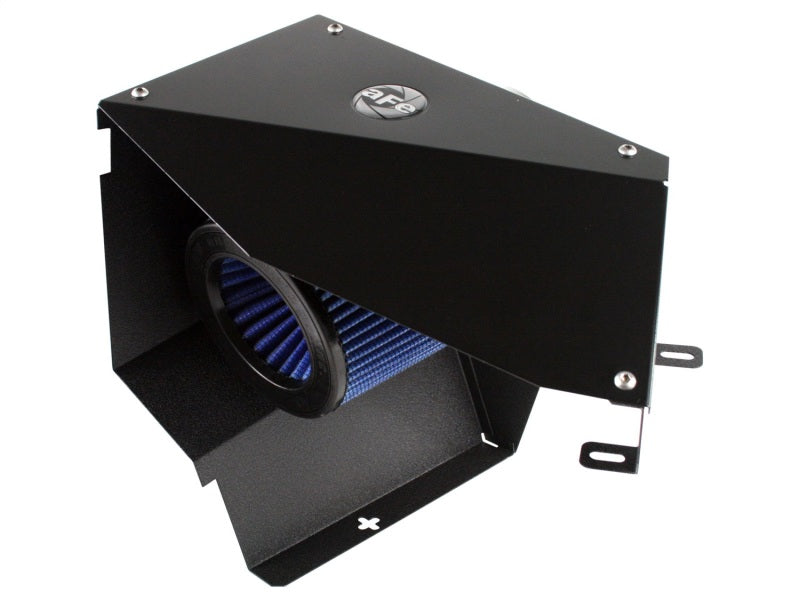

The aFe 54-11521 is a Magnum FORCE Stage-1 cold air intake system designed for the 2006-2008 BMW Z4 M Roadster (E85) and Z4 M Coupe (E86) equipped with the S54 3.2L inline-6 engine. This system replaces the restrictive factory airbox with a massive 5-1/2" conical Pro 5R air filter featuring an inverted top design that mounts directly to a unique 3-angle billet aluminum adapter engineered to smooth and accelerate airflow into the intake tract. A one-piece 16-gauge black powder-coated steel heat shield isolates the filter from engine bay heat, while a black aluminum cover provides additional thermal protection and easy access for filter servicing. In dyno testing, the system produced gains of up to 11 HP and 10 lb-ft of torque while out-flowing the factory intake by 90%. The Pro 5R filter features 5-layer progressive oiled cotton gauze media that is washable and reusable for long-term low-cost maintenance. CARB EO# D-550-38 certified for 50-state legal use. Installs using factory mounting locations with no drilling, cutting, or tuning required.
