aFe 54-22972-B Cold Air Intake Kit for 17-20 Ford F-150/Raptor 3.5L V6 EcoBoost

Vehicle Fitment

• 2017-2020 Ford F-150 (3.5L V6 EcoBoost)
• 2017-2020 Ford F-150 Raptor (3.5L V6 EcoBoost)
• 2018-2020 Ford Expedition (3.5L V6 EcoBoost)

Features

• Increases airflow by up to 71% over factory intake
• Dual 3" mandrel-bent aluminum intake tubes with H-pipe design for balanced pressure
• Pre-oiled, 7" tall radial flow Pro 5R air filters with 5-layer cotton media
• Wrinkle-black powder-coated aluminum heat shield utilizes stock mounting locations
• 900 CFM airflow rating at 7" H2O
• Direct bolt-on installation with no cutting or drilling required
• Washable and reusable air filters for long-term performance
• Improves throttle response and engine sound

Specifications

• Filter Type: Pro 5R oiled, 5-layer cotton gauze
• Intake Tube Material: Mandrel-bent aluminum
• Intake Tube Diameter: Dual 3"
• Heat Shield Material: Powder-coated aluminum
• Airflow Rating: 900 CFM @ 7" H2O
• Installation: Direct bolt-on, utilizes factory mounting points
• Emissions Status: Not CARB exempt; not legal for sale or use in California
• Warranty: 1-year limited warranty

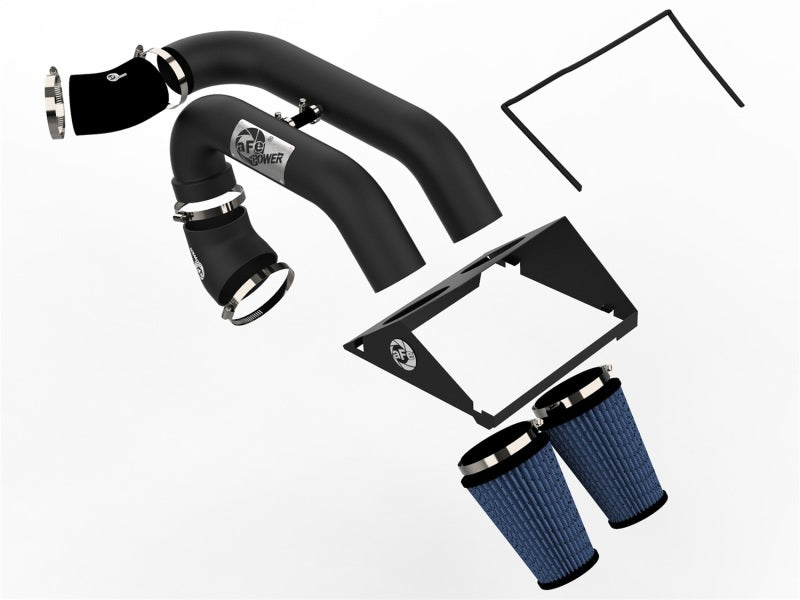

Included Components

• (2) 7" tall Pro 5R air filters
• (2) 3" mandrel-bent aluminum intake tubes with H-pipe
• Powder-coated aluminum heat shield
• Silicone couplers and clamps
• All necessary mounting hardware
• Installation instructions

Product Description

The aFe 54-22972-B Magnum FORCE Stage-2 ST Pro 5R Cold Air Intake System is engineered to enhance the performance of your 2017-2020 Ford F-150 or Raptor equipped with the 3.5L V6 EcoBoost engine. By replacing the restrictive factory intake, this system increases airflow by up to 71%, resulting in improved horsepower, torque, and throttle response.

Featuring dual 3" mandrel-bent aluminum intake tubes with an H-pipe design, the system ensures balanced pressure and maximum airflow. The included 7" tall Pro 5R air filters are constructed with 5 layers of progressively finer cotton gauze, providing excellent filtration and are washable and reusable for long-term use. The powder-coated aluminum heat shield utilizes factory mounting points, allowing for a straightforward, bolt-on installation with no cutting or drilling required.

Please note that this product is not CARB exempt and is not legal for sale or use in California or other states adopting California emission standards. Backed by a 1-year limited warranty, the aFe 54-22972-B intake system offers a reliable and efficient upgrade for your EcoBoost-powered F-150 or Raptor.
