aFe 420-401002-J CONTROL Johnny O'Connell Shock Set for 14-19 Chevrolet Corvette

Vehicle Fitment

• 2014-2019 Chevrolet Corvette Stingray (C7) - Coupe, Convertible - V8-6.2L
• 2016-2019 Chevrolet Corvette Grand Sport (C7) - Coupe, Convertible - V8-6.2L
• 2015-2019 Chevrolet Corvette Z06 (C7) - Coupe, Convertible - V8-6.2L (sc)

Fitment Notes

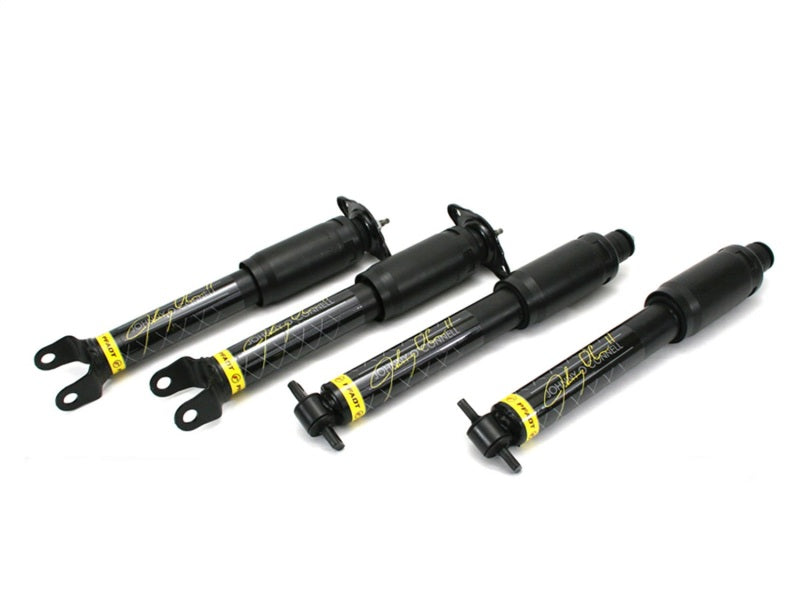

• This is a complete set of 4 shocks - 2 front and 2 rear - covering all four corners of the C7 Corvette.
• C7 Corvette models equipped with Magnetic Ride Control (MRC) electronic shock absorbers require an additional Electronic Shock Delete module before installing these shocks. Order PN: 436-401002-N separately. Without this module, a body control module check engine light will limit vehicle speed to 80 mph.
• C7 models without Magnetic Ride Control (base passive dampers) install directly with no additional components required.
• All OEM mounting points are retained - no suspension geometry modifications, extended control arms, or custom hardware are required. Installation can be performed with standard tools in a home garage.
• These shocks are precision-matched to the aFe CONTROL Johnny O'Connell signature sway bars (PN: 440-401001-J) for maximum system-level performance benefit, though they function as a standalone upgrade.
• Ride height is maintained at stock level - this is a performance shock replacement, not a lowering or lifting product.
• Does not apply to the C8 (2020+) Corvette - the C8 uses a completely different chassis and suspension architecture.

Features

• Tuned by Johnny O'Connell: Valved and calibrated to exact specifications by the four-time American Le Mans Series class champion and GM factory racing driver - the only aftermarket shock for the C7 tuned by a factory-level Corvette race program driver at this level of specification.
• Revised Damping Curve: The damping curve has been completely reworked versus the OEM passive dampers, eliminating harsh high-speed harshness while significantly increasing chassis "platform" - the ability of the car to stay planted and resist body roll during hard cornering, slalom inputs, and road course transitions.
• Monotube Construction with Internal Floating Piston: Monotube shock design separates gas and oil with a floating piston, delivering faster, more consistent damping response compared to twin-tube designs - particularly beneficial during sustained high-speed or track use where heat buildup can cause conventional shocks to fade.
• OE-Style Fitment: All factory mounting points and attachment hardware interfaces are retained exactly - the same bolt patterns, mounting geometries, and clearances as the stock shock package. No drilling, modification, or custom fabrication required.
• Direct Bolt-On Installation: Replaces the OEM dampers using the factory mounting points with standard hand tools. No alignment change, suspension geometry modification, or ride height adjustment is required.
• Improved Platform for Street and Track Use: The revised damping delivers a meaningful improvement in lateral support and cornering composure for spirited street driving, track days, and autocross events - while remaining compliant enough for everyday road use.
• Manufactured in the USA: Engineered and built at aFe CONTROL's Corona, California manufacturing facility.
• Does Not Require a CARB EO#: No emissions impact - 50-state legal.
• 2-Year aFe POWER Warranty: Covered against manufacturer defects for 2 years from the date of purchase under normal use and proper installation conditions.

Specifications

• Product Type: Performance Shock Absorber Set (Full Set of 4)
• Shock Construction: Monotube with Internal Floating Piston
• Ride Height: Stock (no lift or drop)
• Damping: Fixed-rate (non-adjustable) - factory-tuned by Johnny O'Connell
• Mounting: OE-style, direct-bolt-on using factory attachment points
• Manufactured: Corona, California, USA
• Mag Ride Delete Required: Yes, if vehicle has Magnetic Ride Control (order PN: 436-401002-N separately)
• Emissions: Does not require a CARB EO#

Included Components

• 2x Front Monotube Shock Absorbers - Johnny O'Connell Signature Tune
• 2x Rear Monotube Shock Absorbers - Johnny O'Connell Signature Tune
• All required OE-compatible mounting hardware

Product Description

The aFe CONTROL 420-401002-J is the Johnny O'Connell Signature Series complete shock set for the 2014-2019 Chevrolet Corvette C7 - a full set of four monotube shock absorbers developed, valved, and tuned in collaboration with Johnny O'Connell, the four-time American Le Mans Series GT class champion and longtime GM factory Corvette racing driver. These shocks were designed from the ground up to address the known limitations of the C7's OEM passive dampers: specifically, the harsh high-speed behavior that makes the factory setup feel punishing on rough pavement and less settled in sustained cornering transitions. The revised damping curve removes that harshness while adding meaningful chassis platform - keeping the car flatter and better planted through corners, slalom sequences, and road course inputs - without sacrificing the daily-drivability expected from a car that also serves as a grand tourer.

The monotube construction with internal floating piston is a key technical differentiator over typical replacement dampers. By separating the oil and gas charge with a floating piston, the design prevents cavitation and maintains consistent damping forces even under sustained thermal load - an important characteristic for track use and aggressive spirited driving where repeated hard braking and corner entry cycles can overheat and fade twin-tube shocks. All four shocks are direct bolt-on replacements, retaining every OEM mounting point and hardware interface on the C7 chassis. No alignment changes, suspension geometry modifications, or additional parts are required for vehicles without Magnetic Ride Control. C7s equipped with the optional MRC electronic damping system will need to add the Electronic Shock Delete module (PN: 436-401002-N) sold separately - without it, the body control module will trigger a check engine light and limit top speed to 80 mph.

Designed and manufactured at aFe CONTROL's facility in Corona, California, the 420-401002-J is the only shock package for the C7 Corvette tuned to the exact specification of a factory GM racing program driver. These shocks are particularly well-matched when run alongside the aFe CONTROL Johnny O'Connell sway bar system (PN: 440-401001-J), which was tuned as a companion product. This kit covers the full C7 lineup from 2014-2019 - Stingray, Grand Sport, and Z06 - and carries a 2-year aFe POWER warranty with no CARB EO# required.
