aFe 470-401002-B for PFADT Control Arm Bushing Set 06-13 Chevy Corvette Z06/ZR1

Vehicle Fitment

• 2006-2013 Chevrolet Corvette Z06 (C6), LS7
• 2009-2013 Chevrolet Corvette ZR1 (C6), LS9

Fitment Notes

• Z06/ZR1-specific
• Non-Z06/ZR1 C5/C6 uses part 470-401001-B
• No CARB EO# required
• Includes rear lower shock mounts

Features

• Poly Control Arm Bushing Kit
• Fits front upper control arms
• Fixes OE bushing deflection (~1° lost camber)
• Virtually eliminates deflection
• Quiet, comfortable street ride
• Hard anodized 6061-T6 aluminum sleeves
• Micro-porous surface, grease retention
• Graphite impregnated poly bushings
• Snap ring/plate system adds strength
• Eliminates bushing failure
• 2-piece design, easier install
• Includes rear lower shock mounts
• Made in Corona, California

Specifications

• Series: PFADT
• Type: Front upper control arm bushing set
• Sleeve: 6061-T6 hard anodized aluminum
• Bushing: Graphite impregnated polyurethane
• Design: 2-piece
• CARB EO#: Not required

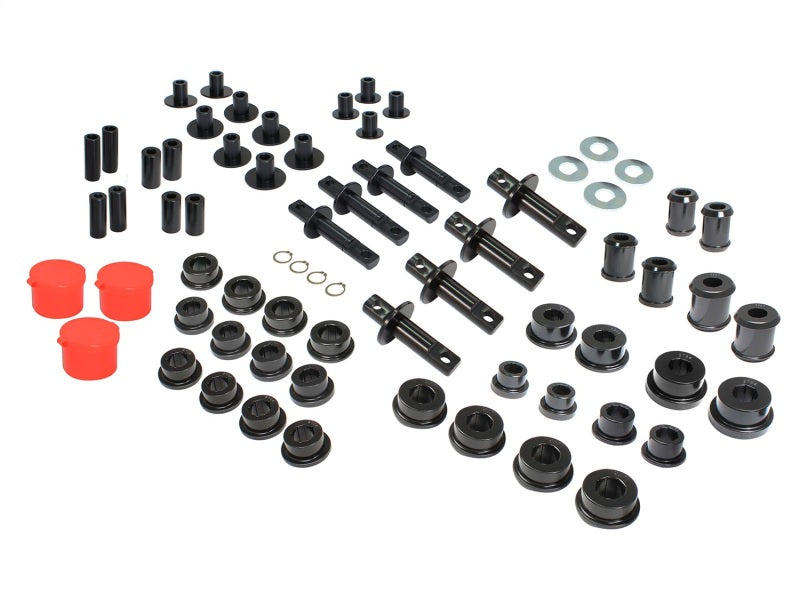

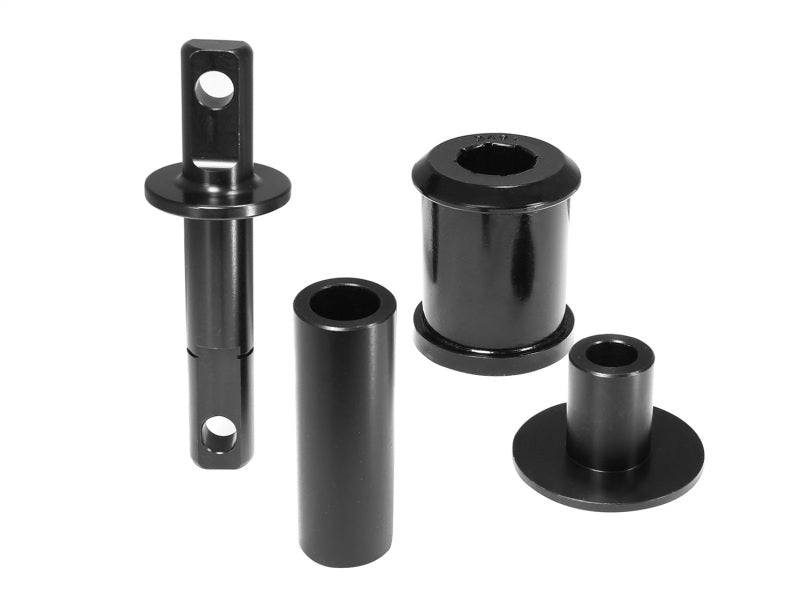

Included Components

• Hard Anodized Aluminum Sleeves
• Graphite Impregnated Poly Bushings
• Snap Rings
• Rear Lower Shock Mounts
• Installation Hardware

Product Description

The aFe Control PFADT Series Poly Control Arm Bushing Kit addresses a real, documented weak point on the C6 Z06/ZR1 Corvette: factory bushings deflect more than 1/4" in turns, costing nearly 1° of camber and predictable handling. This kit virtually eliminates that deflection on the front upper control arms while keeping a quiet, comfortable ride for street use.

Hard anodized 6061-T6 aluminum sleeves with a micro-porous surface hold grease well, wrapped around specially grooved, graphite impregnated polyurethane bushings that stay quiet under load. A snap ring and plate system adds real strength while eliminating common bushing failure. The 2-piece design makes for a noticeably easier install than competing 1-piece kits.

This kit even includes rear, lower shock mounts -- a genuine differentiator versus many competing sets. Made in-house at aFe's Corona, California facility. Note: does not require a CARB EO#.
