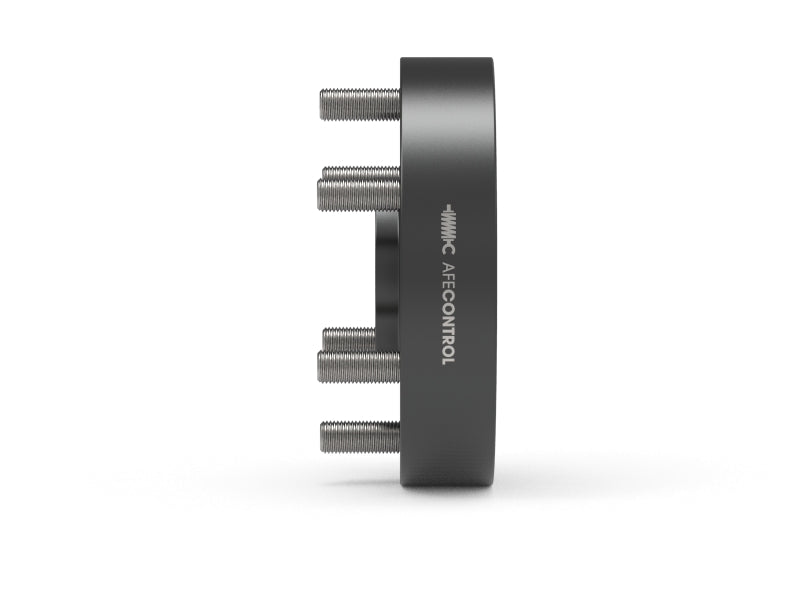

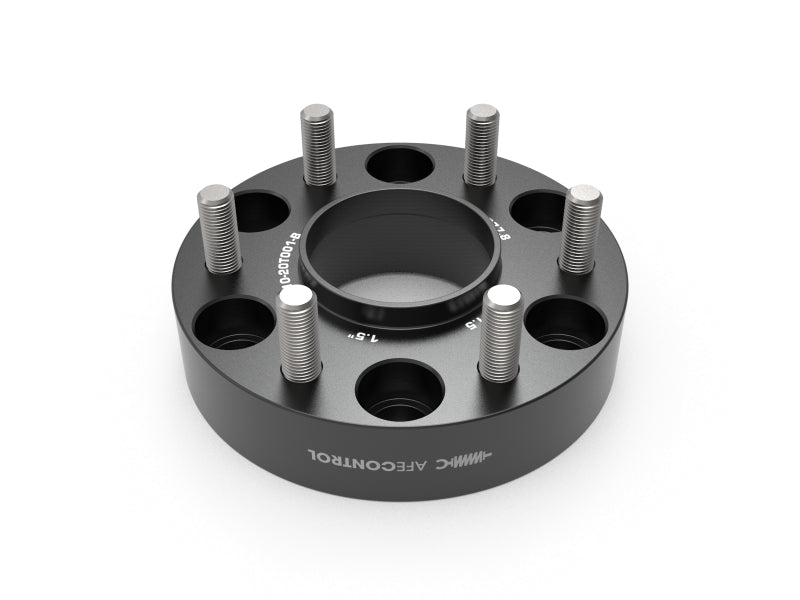

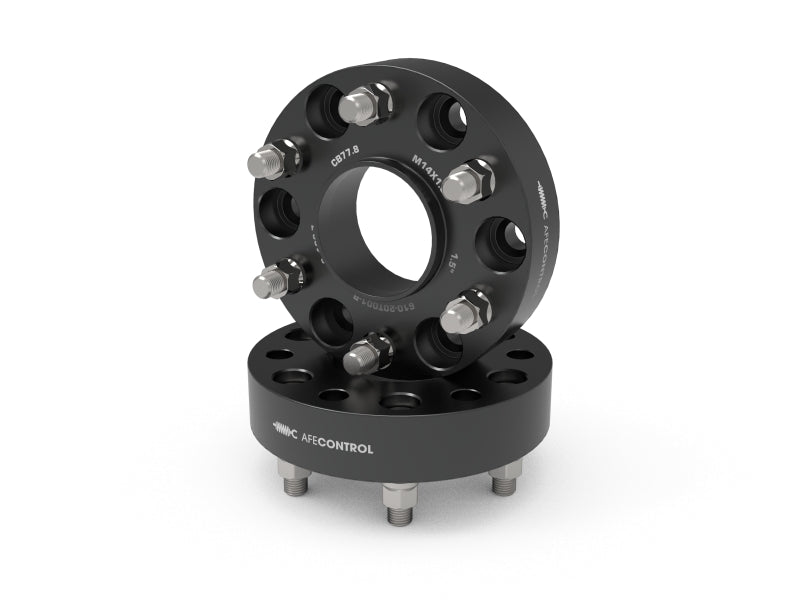

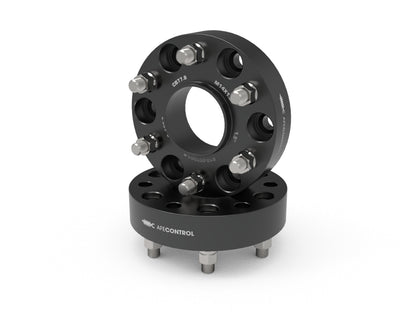

aFe 610-20T001-B CONTROL Forged Wheel Spacers 1.5in for 2019-2026 RAM 1500

Vehicle Fitment

• 2019-2026 RAM 1500 (DT platform)

Fitment Notes

• Fits vehicles with a 6x139.7mm (6x5.5") bolt pattern and 77.8mm center bore, consistent with the RAM 1500 DT platform

Features

• Forged and heat-treated 6061-T6 aluminum for superior strength versus cast alternatives
• Hub-centric design centers the wheel on the hub for even load transfer and reduced vibration
• Includes studs and lug nuts - no need to source separate hardware
• Black anodized finish resists corrosion and wear
• Laser-etched logo and sizing for easy identification
• Increases track width, improving handling and stability
• Provides additional clearance for larger brakes and suspension components
• CNC machined to strict tolerances for a precise, secure fit

Specifications

• Bolt Pattern: 6x139.7mm (6x5.5")
• Center Bore: 77.8mm (hub-centric)
• Thickness: 1.5 in
• Material: Forged, heat-treated 6061-T6 Aluminum
• Finish: Black anodized
• Sold as: Pair

Included Components

• 2x aFe CONTROL Forged Aluminum Wheel Spacers (1.5 in)
• Studs and Lug Nuts

Product Description

The aFe 610-20T001-B is a pair of forged aluminum wheel spacers purpose-built for the 2019-2026 RAM 1500 (DT), matching the truck's factory 6x139.7mm bolt pattern and 77.8mm center bore. At 1.5 inches thick, they provide a meaningful increase in track width and wheel offset - enough to notably improve stance and clear larger aftermarket brake kits, without requiring extreme wheel modifications.

Unlike cast spacers, these are forged and heat-treated from 6061-T6 aluminum, which gives them greater strength and fatigue resistance for a truck that may see towing, off-road use, or heavier wheel and tire combinations. The hub-centric design keeps the wheel properly centered on the hub rather than relying on lug bolts alone to carry the load, reducing vibration and wear over time. Studs and lug nuts are included, so there's no need to source separate hardware to complete the install.

This spacer suits RAM 1500 DT owners looking to widen their truck's stance, run wider aftermarket wheels with more aggressive offsets, or gain clearance for larger brake upgrades - all while keeping the factory-style bolt pattern and hub-centric fitment intact.
