aFe 416-72T009-R CONTROL 2.5" Front 1" Rear Leveling Kit for22-24 Tundra/Sequoia

Vehicle Fitment

• 2022-2024 Toyota Tundra TRD Pro - Hybrid V6-3.4L (tt) - All Cab Configurations
• 2023-2024 Toyota Sequoia TRD Pro - Hybrid V6-3.4L (tt)

Fitment Notes

• Specifically engineered for TRD Pro models equipped with 2.5-inch diameter internal bypass Fox shocks. This kit accommodates the larger shock body unique to the TRD Pro suspension system. Non-TRD Pro 2022-2024 Tundra owners should use PN: 416-72T005-R instead.
• Does NOT fit any 2022-2024 Tundra or 2023-2024 Sequoia models equipped with the Adaptive Variable Suspension (AVS) option. AVS is an electronically controlled damping system that is incompatible with strut spacer leveling kits.
• This kit provides up to 2.5 inches of front lift and 1 inch of rear lift. The dual-spacer design allows for three lift configurations: low (shim only), moderate (pre-load spacer only), or maximum (both spacers combined).
• Installing the pre-load spring spacer requires a spring compressor. Strut disassembly is required. This installation is beyond a basic bolt-on and requires proper tools and safety precautions - professional installation is recommended if a spring compressor is not available.
• The rear spacer installs without strut disassembly and does not require a spring compressor.
• Alignment is strongly recommended after installation to maintain proper tire wear and handling characteristics.

Features

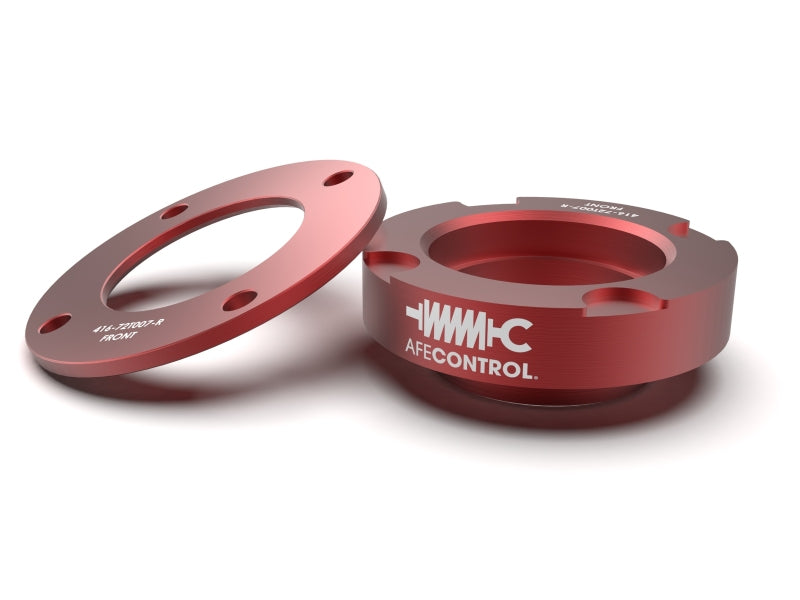

• Dual Spacer Design: Two CNC machined spacers are included for each front strut - a shim spacer and a pre-load spring spacer - allowing for three configurable lift heights (low, moderate, or maximum) without compromising OEM shock performance or efficiency.
• TRD Pro-Specific Engineering: Designed around the geometry and 2.5-inch diameter internal bypass Fox shock towers found exclusively on TRD Pro models. This is not a universal spacer - it is purpose-built for the TRD Pro strut assembly to ensure proper load distribution and fitment.

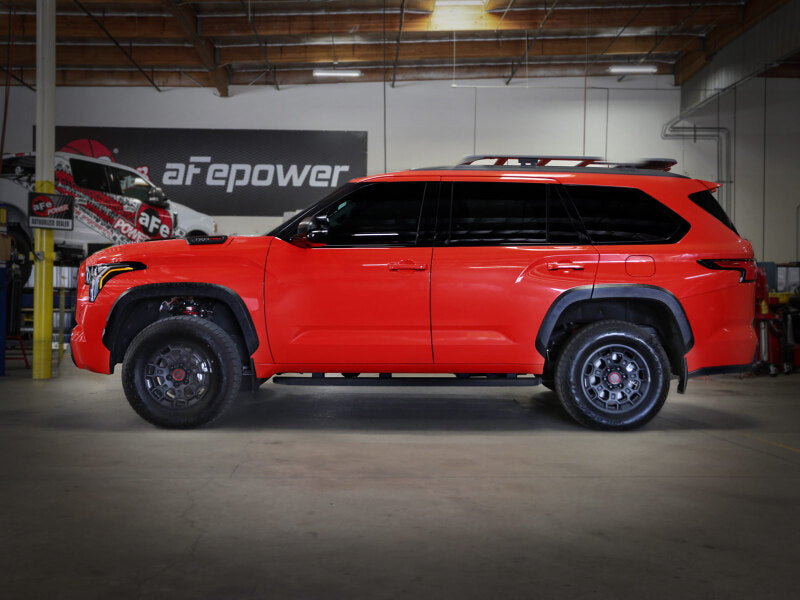

• Eliminates Factory Nose-Down Rake: Raises the front to match or exceed the rear stance height, creating a level or slightly forward-raked profile that improves both aesthetics and approach angle for off-road use.
• 2.5-Inch Front / 1-Inch Rear Lift: Provides meaningful ground clearance improvement at all four corners while maintaining factory ride quality - no shock replacement required.
• CNC Machined 6061 Billet Aluminum: Precision-machined from aircraft-grade 6061-T6 aluminum for maximum strength, dimensional accuracy, and long-term corrosion resistance in demanding off-road environments.
• Red Anodized Finish: Hard anodized in signature aFe CONTROL red for a premium appearance and an additional layer of corrosion and abrasion protection.
• High-Strength Hardware Included: All mounting hardware included in the kit is engineered for the load and vibration demands of truck suspension applications.
• Retains OEM Stock Shocks: Works with the factory TRD Pro Fox shocks - no shock replacements, extended upper control arms, or additional modifications required.
• Increases Front Ground Clearance: Improving clearance for larger tires and providing additional departure angle and obstacle clearance in off-road situations.
• Does Not Require a CARB EO#: This product has no emissions impact and requires no California Air Resources Board approval.

Specifications

• Product Type: Front and Rear Leveling Kit (Strut Spacer)
• Front Lift: 2.5 inches (maximum - using both shim and pre-load spring spacers)
• Rear Lift: 1 inch
• Material: CNC Machined 6061-T6 Billet Aluminum
• Finish: Red Anodized
• Spacer Design: Dual-spacer per strut (shim + pre-load spring spacer)
• Spring Compressor Required: Yes (for front pre-load spring spacer installation)
• Compatible Shock Diameter: 2.5-inch internal bypass (TRD Pro Fox shocks)
• Emissions: Does not require a CARB EO#

Included Components

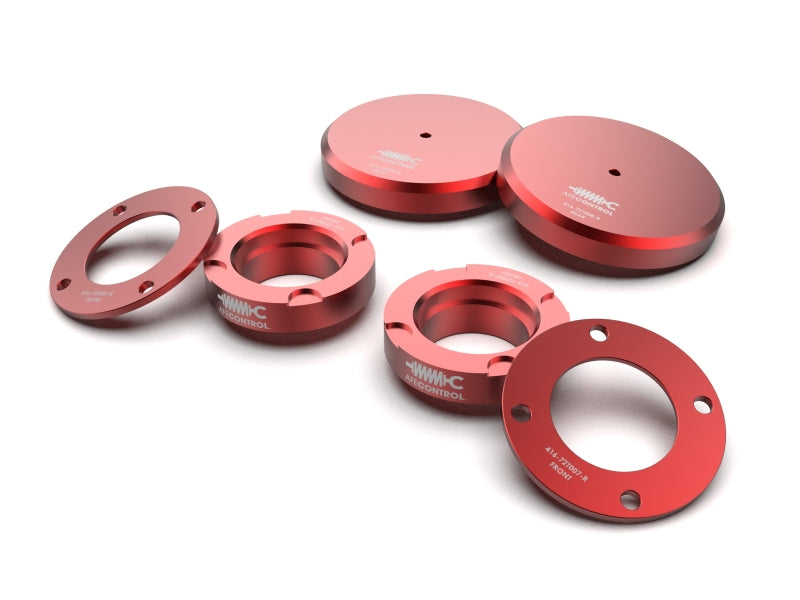

• 2x Front Shim Spacers (CNC Machined 6061 Billet Aluminum, Red Anodized)
• 2x Front Pre-Load Spring Spacers (CNC Machined 6061 Billet Aluminum, Red Anodized)

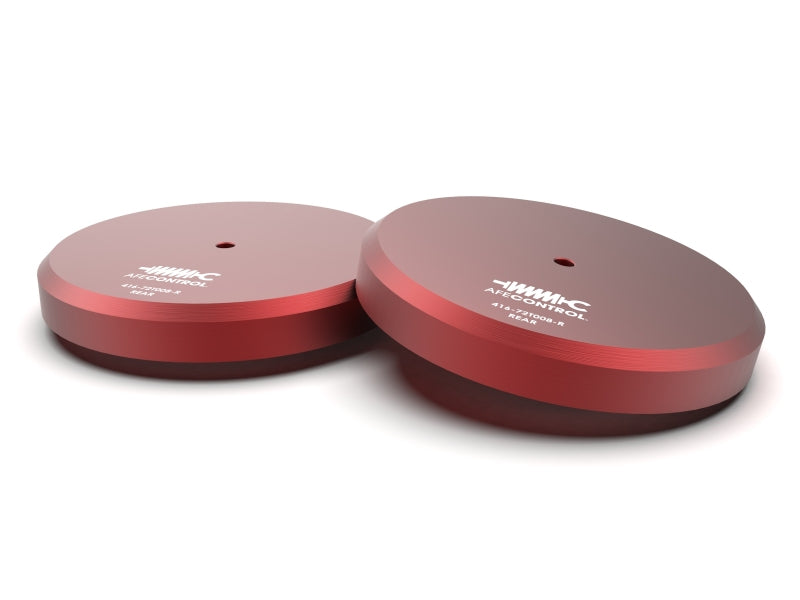

• 2x Rear Lift Spacers (1-inch, CNC Machined 6061 Billet Aluminum, Red Anodized)
• All required installation hardware

Product Description

The aFe CONTROL 416-72T009-R is a precision-engineered 2.5-inch front and 1-inch rear leveling kit designed exclusively for the 2022-2024 Toyota Tundra TRD Pro and 2023-2024 Toyota Sequoia TRD Pro. Built around the unique 2.5-inch diameter internal bypass Fox shock architecture found only on TRD Pro suspension, this kit cannot be substituted with generic Tundra leveling spacers - the geometry and shock body clearance are specific to the TRD Pro build. CNC machined from aircraft-grade 6061 billet aluminum and hard anodized in aFe CONTROL red, the spacers are engineered to deliver maximum structural integrity and dimensional accuracy, ensuring that load transfer, suspension travel, and shock performance remain consistent with the factory TRD Pro setup.

The dual-spacer design is a key differentiator: rather than a single fixed-height spacer, this kit includes both a shim spacer and a pre-load spring spacer for each front strut. Running either spacer alone yields a low or moderate front lift, while using both together achieves the full 2.5-inch maximum without overstressing or limiting the efficiency of the OEM Fox shocks. The 1-inch rear spacer completes the leveling setup, raising the rear to produce a balanced, flat stance across all four corners. This eliminates the stock Tundra and Sequoia nose-down rake that is common from the factory, improving forward approach angle and overall off-road presence.

Installation of the front pre-load spring spacer requires strut disassembly and a spring compressor - professional installation is recommended for those without this equipment. The rear spacer requires no spring compressor and can be installed with basic hand tools. All necessary hardware is included. Following installation, a wheel alignment is strongly recommended to ensure proper tire wear, steering geometry, and handling. This kit is not compatible with models equipped with the Adaptive Variable Suspension (AVS) system. It carries a 2-year aFe POWER warranty and requires no CARB EO#.
