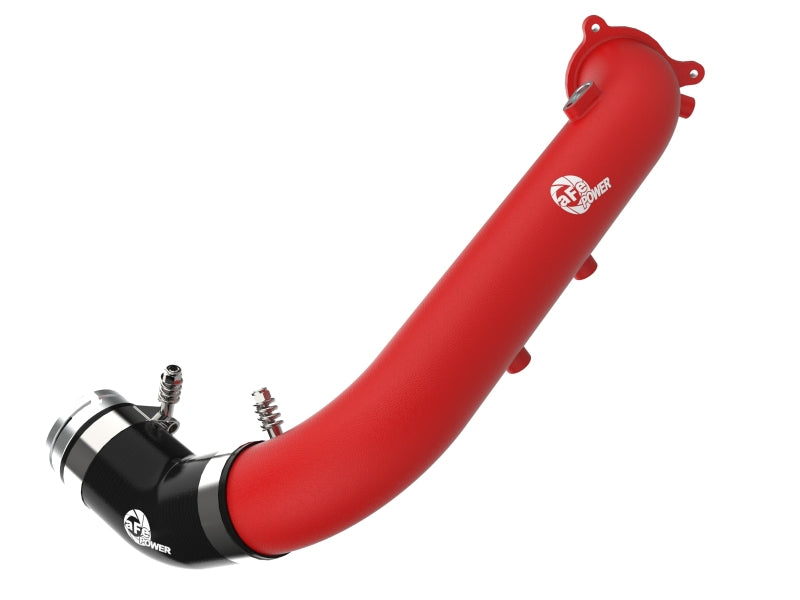

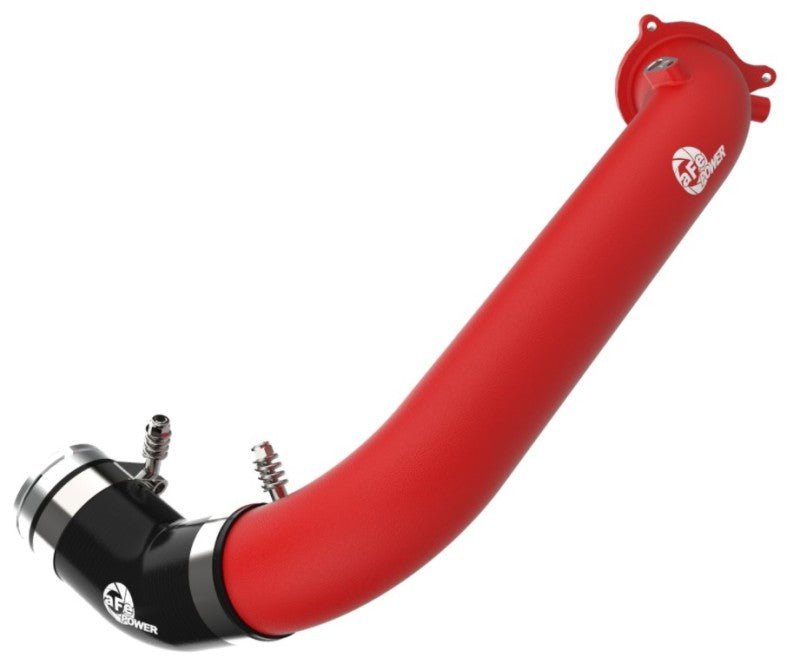

aFe 46-20488-R BladeRunner Red Aluminum Hot Charge Pipe 2021-2024 Supra 2.0L

Vehicle Fitment

• 2021-2024 Toyota GR Supra (A90, Base - 2.0L Turbo I4 B48, All Trims)

Fitment Notes

• Fits the 2.0L Turbo I4 B48 engine only - does not fit the 3.0L Turbo I6 B58 GR Supra. See separate aFe BladeRunner part numbers for the 3.0L application.
• Direct-fit hot side charge pipe replacement - no cutting, drilling, or modifications required.
• Factory style billet aluminum quick-connect adapter with o-ring seal fits the OEM intercooler and throttle body connections.
• Not CARB exempt - not legal for sale or use on vehicles registered with the California DMV.

Features

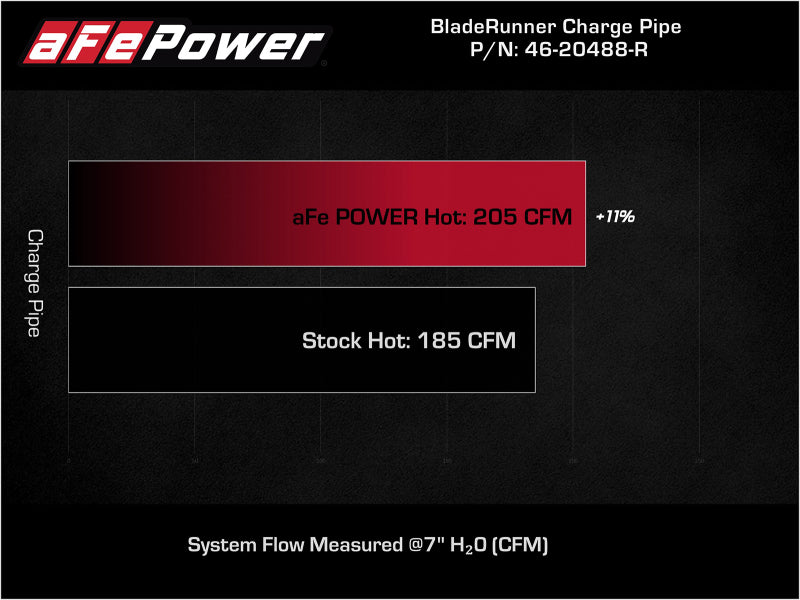

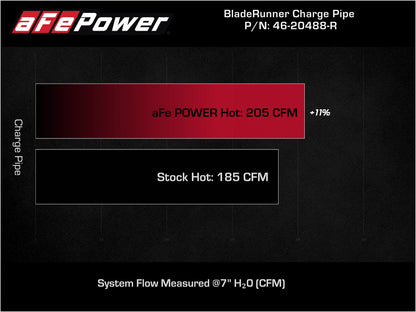

• Outflows the factory plastic charge pipe by up to +11% for improved turbo response and power output
• TIG-welded 2-3/4" mandrel-bent aluminum tubing eliminates turbulence and minimizes pressure loss through smooth transitions

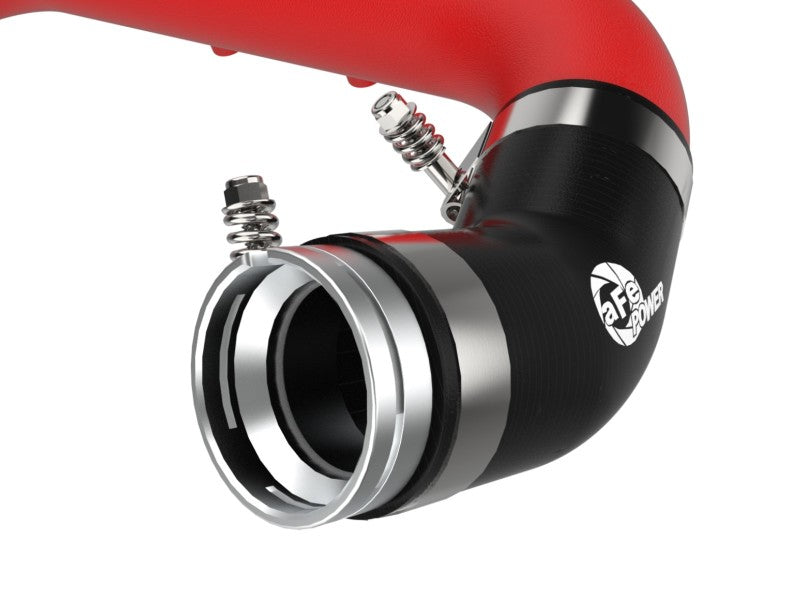

• Factory-style billet aluminum quick-connect adapter with o-ring seal for a leak-free, factory-equivalent connection
• Premium stainless-steel spring-loaded T-bolt clamps for a secure, vibration-resistant installation
• Heavy-duty 5-ply polyester reinforced silicone couplings handle elevated boost pressures and heat without cracking
• 1/8" NPT ports provided for connecting boost sensors, water/methanol injection, or boost gauges

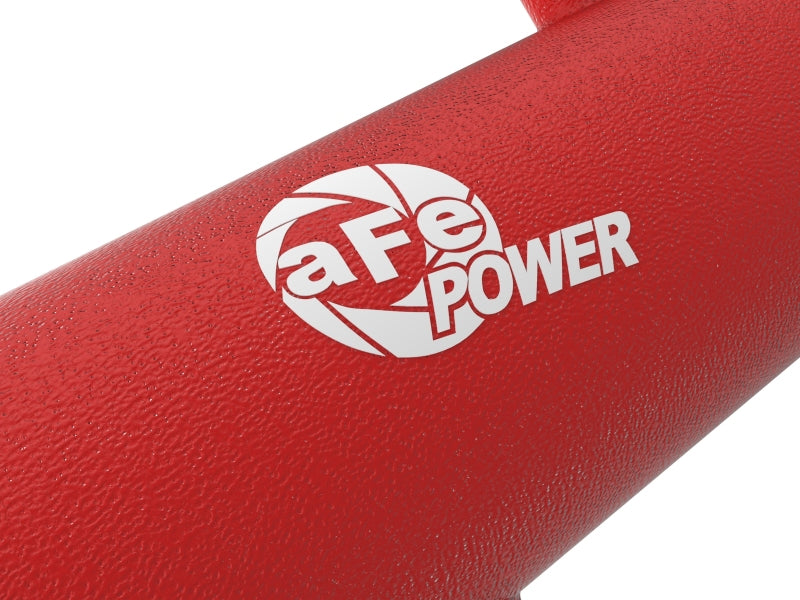

• Textured red powder coat finish with laser-etched aFe POWER logo for underhood appearance
• Direct-fit installation - no modifications required

Specifications

• Pipe Diameter: 2-3/4" (2.75")
• Pipe Material: TIG-Welded Mandrel-Bent Aluminum
• Finish: Textured Red Powder Coat
• NPT Port Size: 1/8" NPT (included)
• Clamps: Stainless-Steel Spring-Loaded T-Bolt
• Couplings: 5-Ply Polyester Reinforced Silicone
• Connection Type: Factory Quick-Connect with Billet Aluminum Adapter and O-Ring Seal
• Position: Hot Side (Turbo Outlet to Intercooler Inlet)
• Compatible Engine: 2.0L Turbo I4 B48
• Emissions: Not CARB Exempt - Not for Sale in California

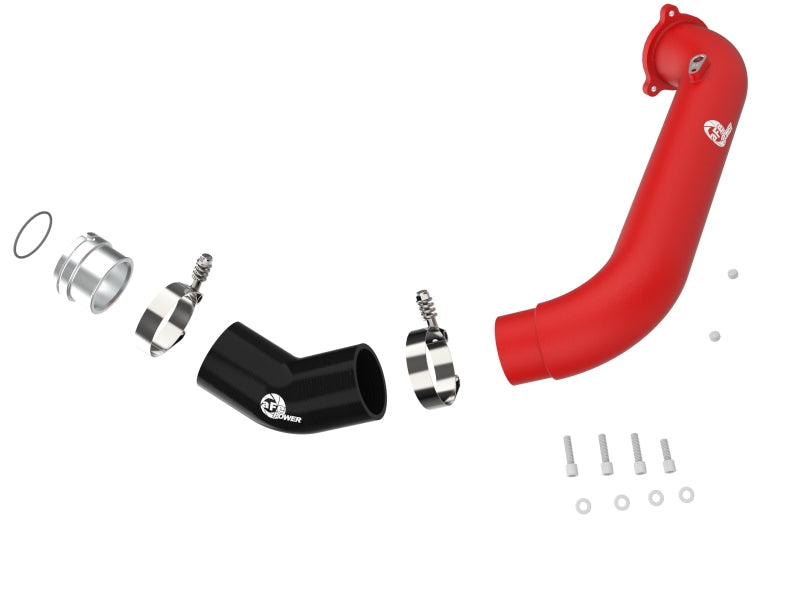

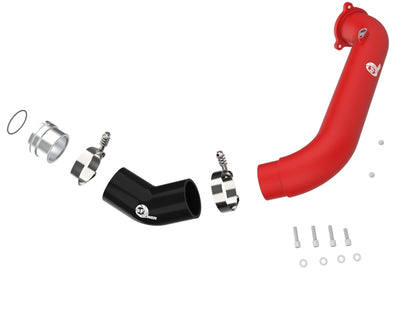

Included Components

• 1x aFe BladeRunner 2-3/4" Aluminum Hot Charge Pipe - Red (46-20488-R)
• 1x Billet Aluminum Quick-Connect Adapter with O-Ring
• 2x Stainless-Steel Spring-Loaded T-Bolt Clamps
• 2x 5-Ply Silicone Couplings
• 1x 1/8" NPT Port Plug

Product Description

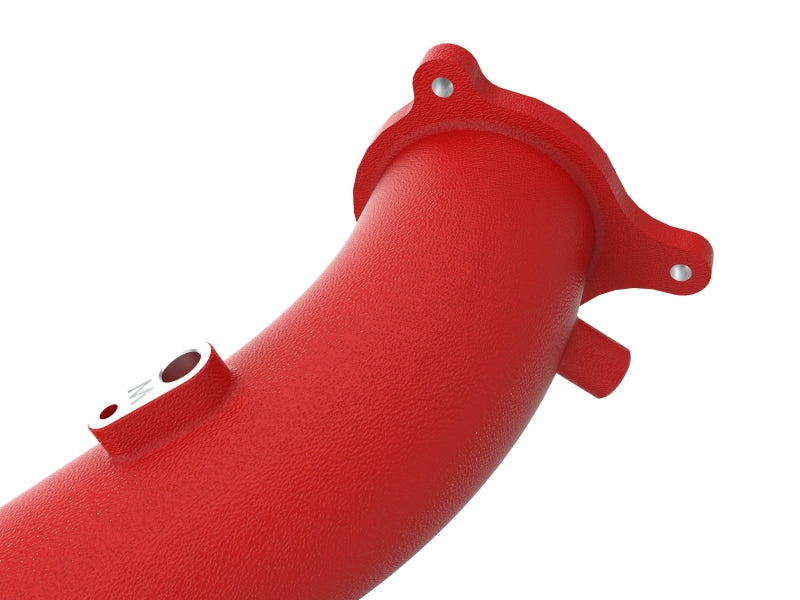

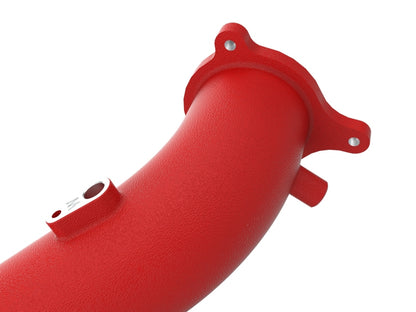

The aFe 46-20488-R BladeRunner Hot Charge Pipe is a direct-fit aluminum upgrade for the 2021-2024 Toyota GR Supra equipped with the 2.0L Turbo I4 B48 engine. The factory plastic charge pipe on the B48 Supra is a known restriction point - prone to heat soak, deformation under boost, and insufficient flow for tuned applications. The BladeRunner pipe replaces it with a TIG-welded 2-3/4" mandrel-bent aluminum tube that outflows the stock unit by up to 11%, reducing intake air temperatures and improving turbo response.

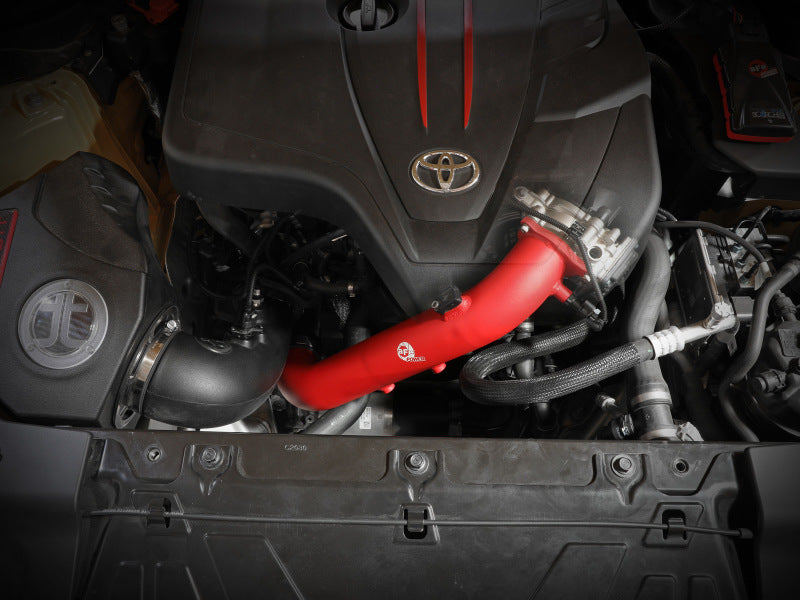

Installation is straightforward - the pipe uses a factory-style billet aluminum quick-connect adapter with an o-ring seal that mates directly to the OEM intercooler and intake connections without modification. Premium stainless-steel spring-loaded T-bolt clamps and 5-ply silicone couplings provide a boost-proof, leak-free seal at all connection points. The 1/8" NPT port allows for direct mounting of a boost sensor, boost gauge, or water/methanol injection line. Finished in textured red powder coat with a laser-etched aFe POWER logo. Note: this pipe fits the 2.0L B48 engine only - the 3.0L B58 Supra requires a separate part number.
