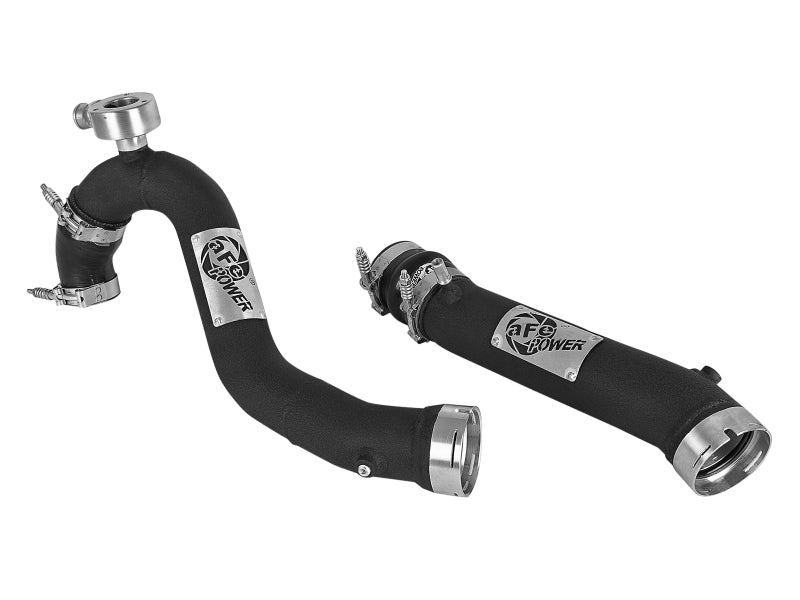

aFe 46-20384-B BladeRunner 3" Hot & Cold Charge Pipes for 19-23 Ford Ran

Vehicle Fitment

• 2019-2023 Ford Ranger (L4 2.3L EcoBoost)

Features

• BladeRunner 3" hot & cold side intercooler/charge pipe kit engineered for performance
• Mandrel-bent aluminum tubes (2.5" hot side, 3" cold side) for improved smooth airflow
• Powder-coated wrinkle-black finish for corrosion and heat resistance

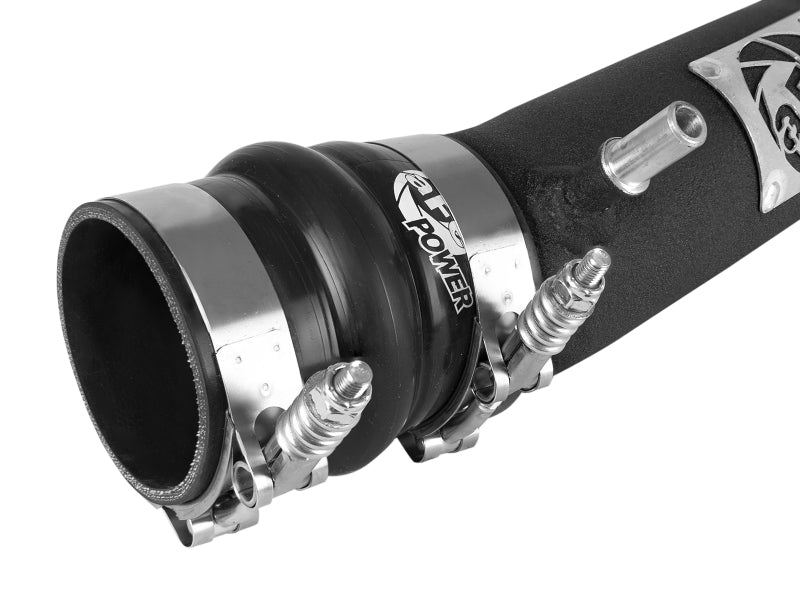

• Includes premium stainless-steel spring-loaded T-bolt clamps and 5-ply silicone couplings

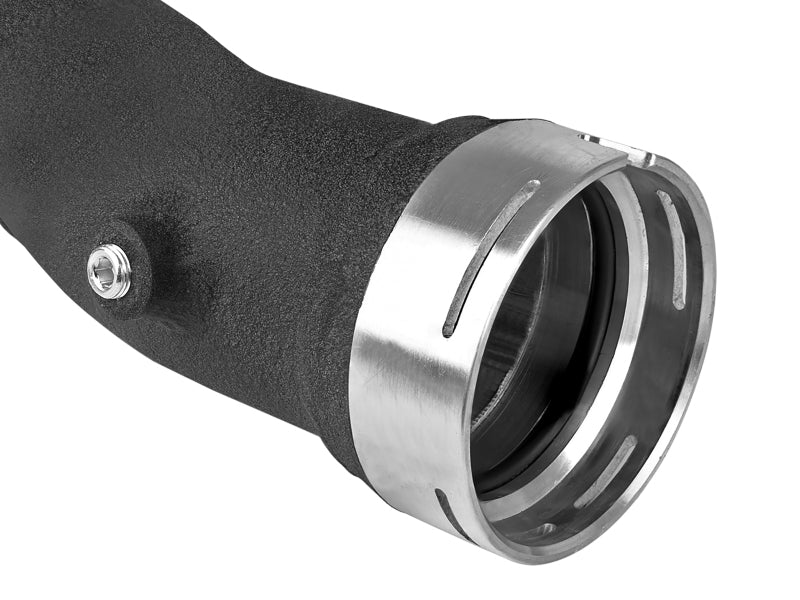

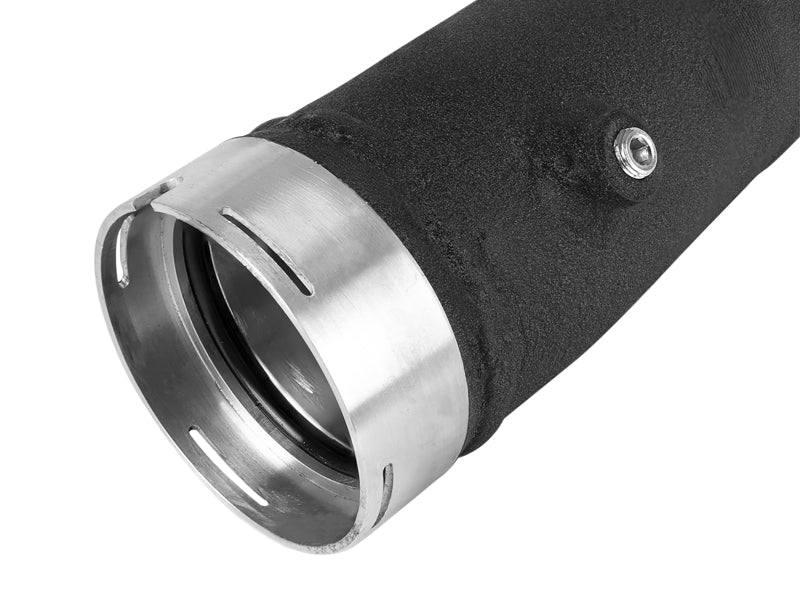

• Factory-style billet aluminum quick-connect adapters with O-ring seals for leak-free fit

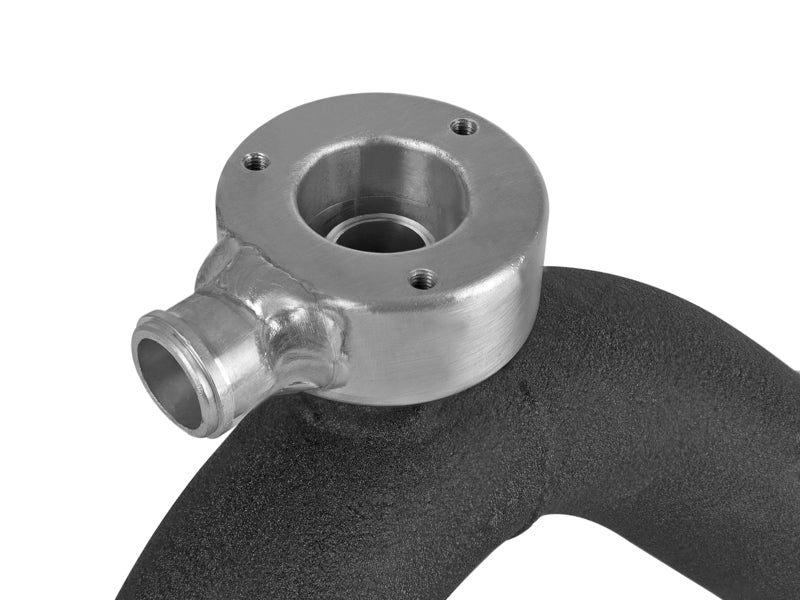

• Built-in CNC machined blow-off valve adapter for improved boost control
• 1/8" NPT ports for boost sensors or optional injection systems
• Direct bolt-on installation - no cutting or drilling required

Specifications

• Part Number: 46-20384-B
• Series: BladeRunner intercooler/charge pipe kit
• Hot-Side Diameter: ~2.5"
• Cold-Side Diameter: ~3"
• Material: Mandrel-bent aluminum
• Finish: Wrinkle black powder coat
• Fitment: Ford Ranger 2019-2023 2.3L EcoBoost
• Installation: Direct-fit using OEM mounting points

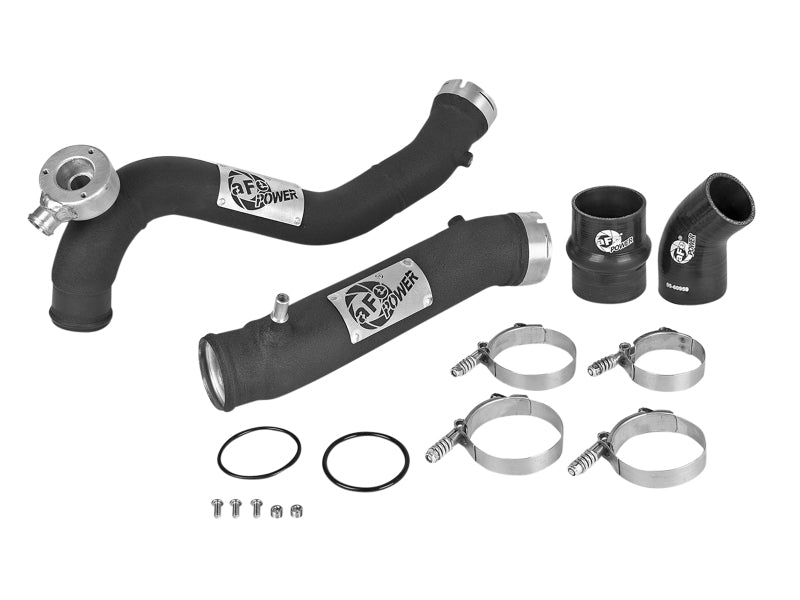

Included Components

• 1x Hot-side intercooler tube (~2.5")
• 1x Cold-side intercooler tube (~3")
• 2x High-temp 5-ply silicone couplings
• 4x Stainless-steel spring-loaded T-bolt clamps
• 2x Billet aluminum quick-connect adapters with O-rings
• Installation hardware

Product Description

The aFe **46-20384-B BladeRunner 3" Hot & Cold Charge Pipe Kit** is a high-flow performance upgrade designed specifically for the **2019-2023 Ford Ranger** equipped with the **2.3L EcoBoost engine**. This kit replaces the restrictive factory intercooler tubes with precision **mandrel-bent aluminum tubing** - featuring a 2.5" hot side and 3" cold side - to significantly reduce airflow turbulence and pressure loss. The result can be improved turbo efficiency, enhanced throttle response, and noticeable gains in horsepower and torque.

Finished in a durable **wrinkle-black powder coat** for heat and corrosion resistance, the BladeRunner tubes include **premium stainless-steel spring-loaded T-bolt clamps**, **5-ply silicone couplings**, and **factory-style quick-connect adapters with O-ring seals** for a secure, leak-free installation. Built-in **CNC machined blow-off valve adapters** and **1/8" NPT ports** allow optional sensor or injection system integration. Designed as a **direct bolt-on kit that uses OEM mounting points**, this intercooler upgrade delivers both performance and reliability for Ranger EcoBoost owners.
