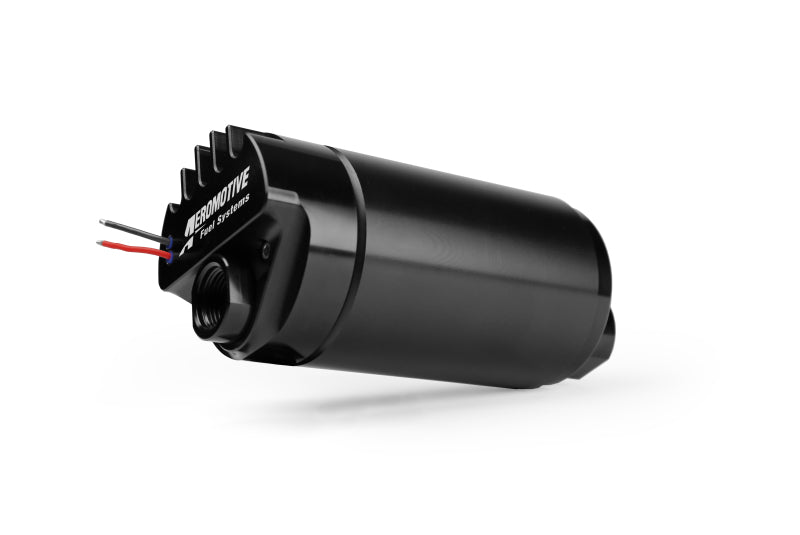

Aeromotive 11192 Brushless In-Line 5.0 Spur Gear Fuel Pump for Universal

Vehicle Fitment

• Universal fitment; not specific to any particular year, make, or model

Features

• Brushless spur gear pump design for enhanced reliability and efficiency
• True Variable Speed Controller (VSC) for precise fuel delivery
• Supports fuel injected gasoline engines up to 3400 FWHP naturally aspirated
• Supports carbureted gasoline engines up to 3600 FWHP naturally aspirated
• Compatible with E85; reduce max FWHP by 30% when using E85
• Integral spur-gear pumping mechanism for consistent fuel flow
• Maximum continuous operating pressure of 90 psi
• Maximum intermittent operating pressure of 125 psi

Specifications

• Flow rate: 5.0 gallons per minute (GPM)
• Fuel pressure: 60 psi nominal
• Voltage: 12 V DC
• Inlet size: -12 AN
• Not compatible with pulse modulated systems or fuel pump speed controllers

Included Components

• 1x Aeromotive 11192 Brushless In-Line 5.0 Spur Gear Fuel Pump
• 2x ORB-12 / AN-12 male adapter fittings

Product Description

The Aeromotive 11192 Brushless In-Line 5.0 Spur Gear Fuel Pump is engineered for high-performance applications requiring precise fuel delivery. Its brushless design ensures durability and efficiency, while the True Variable Speed Controller allows for fine-tuned fuel flow adjustments. This pump supports both fuel injected and carbureted gasoline engines, delivering up to 3400 FWHP naturally aspirated for fuel injected setups and up to 3600 FWHP for carbureted applications. When using E85, the maximum FWHP is reduced by 30%.

Designed with an integral spur-gear pumping mechanism, the 11192 offers consistent fuel flow and can handle a maximum continuous operating pressure of 90 psi, with intermittent peaks up to 125 psi. It operates on a 12 V DC system and features a -12 AN inlet size. Note that this pump is not compatible with pulse modulated systems or fuel pump speed controllers. The package includes the fuel pump and necessary adapter fittings for installation.
