Aeromotive 66171 ReturnX FourX PWM Controller for 3-4 Pump Systems

Vehicle Fitment

• Universal - not vehicle-specific. Designed for stand-alone fuel systems using three or four high-power brushed fuel pumps

Fitment Notes

• For forced-induction (turbocharged/supercharged) applications only; contact Aeromotive directly for naturally aspirated setups
• Optimized for in-cell installations where the primary output feeds a lift and pressure pump, and the secondary output controls the third and fourth pumps - but works with any two, three, or four pump configuration
• Requires a return-style fuel system: traditional regulators, filters, and return lines are used in conjunction with this controller

Features

• Stand-alone fuel pump speed control system for up to four high-power brushed pumps
• All pumps operate under PWM control for reduced heat and extended pump life
• Typical 45-75% reduction in power to the pumps during idle and cruise
• Includes a stand-alone MAP sensor for pump speed control
• Designed to minimize vapor lock risk in high-horsepower, high-heat pumping systems
• Compatible with all brushed-type fuel pumps
• Works with traditional return-style regulators, filters, and return lines

Specifications

• Pump Configuration: 2, 3, or 4 pump systems (optimized for 3-4 pump in-cell setups)
• Application Type: Forced induction only
• MAP Sensor: 2.5 bar (LSA/LS9 type), included
• Recommended Fuel Line Size: AN-8 minimum up to 1,200 HP; AN-10 for 1,200+ HP
• Recommended Idle Fuel Pressure (boosted): approximately 43 psi, manifold-referenced

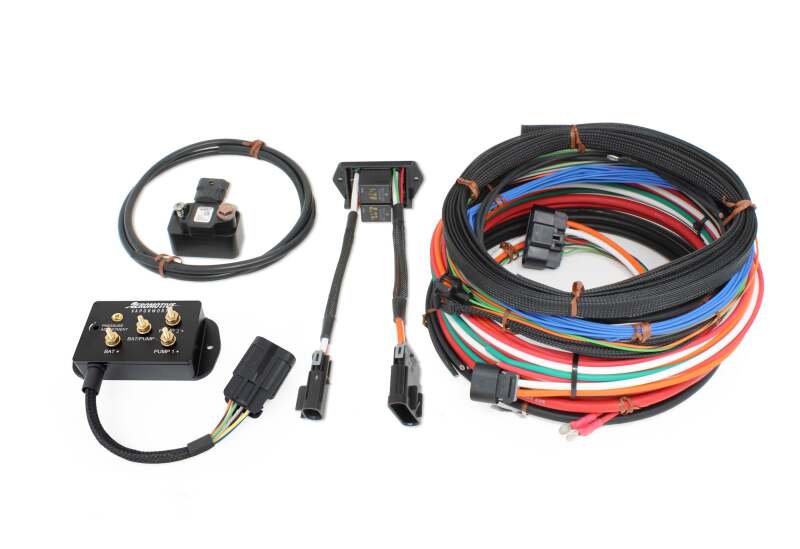

Included Components

• 1x FourX Return-Type PWM Controller
• 1x 2.5 Bar MAP Sensor and Mounting Hardware
• Wiring Harness with OEM-style Sealed Connectors

Product Description

The Aeromotive 66171 is a stand-alone ReturnX PWM controller purpose-built for extreme-horsepower fuel systems running three or four high-power brushed pumps. It's designed with in-cell, multi-pump setups in mind - the primary output drives a lift and pressure pump, while the secondary output manages the third and fourth pumps - though it will work with any two-, three-, or four-pump configuration.

As with Aeromotive's other ReturnX controllers, all connected pumps operate under PWM control, cutting power draw significantly during idle and cruise compared to running every pump at full duty cycle. This matters more as pump count and horsepower scale up, since high-power multi-pump systems generate substantial heat that can push fuel toward vapor lock, especially in return-style systems where hot engine bay fuel cycles back to the tank.

This controller is intended strictly for forced-induction applications and suits extreme-horsepower builds - typically 1,200+ HP territory - where a single or dual-pump controller can't keep pace with total fuel demand. Builders should size fuel lines accordingly (AN-10 recommended above 1,200 HP) and plan for a traditional return-style regulator and plumbing setup.
