Aeromotive 66164 ReturnX Return-Type PWM Controller Single Pump Supercharged

Vehicle Fitment

• Universal - not vehicle-specific. Designed for stand-alone ECM applications using a single brushed-type fuel pump in a forced-induction (supercharged/turbocharged) setup

Fitment Notes

• Compatible with OEM, Holley EFI, and other stand-alone ECU/ECM systems
• Requires a return/bypass-type fuel pressure regulator - this is a return-style system, not returnless
• Designed for supercharged/forced-induction applications; a separate naturally aspirated version (P/N 66162) is available for NA builds

Features

• Stand-alone, MAP-based fuel pump speed control system
• Compatible with all brushed-type fuel pumps
• No relays or Hobbs switches required
• Typical 45-75% reduction in power to the fuel pump during idle and cruise
• Compatible with both carbureted and EFI applications
• Reduces average fuel pump power draw, lowering fuel temperature and extending pump life
• Over-temperature shutdown with automatic reset
• Short-circuit output protection with automatic reset

Specifications

• Operating Voltage: 10-22V
• Continuous Power Rating: 40-80A minimum (compact controller package)
• Pump Configuration: Single pump
• Application Type: Supercharged / forced induction
• Connector Type: OEM Delphi/Aptiv-style
• Wiring: Cross-linked polyethylene, UL94-rated components

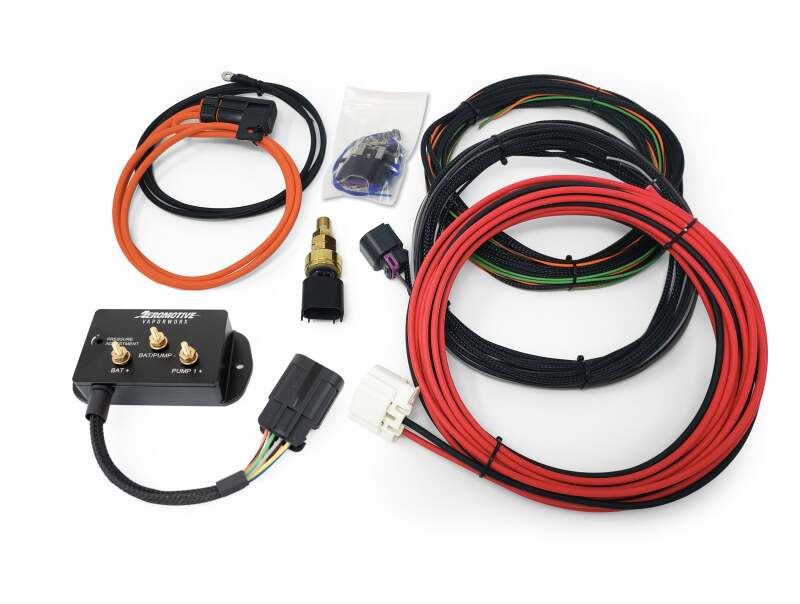

Included Components

• 1x ReturnX Return-Type PWM Controller
• 1x Stand-Alone MAP Sensor
• Wiring Harness with OEM-style Sealed Connectors

Product Description

The Aeromotive 66164 is a stand-alone ReturnX PWM controller built for single-pump, return-style fuel systems on supercharged or turbocharged applications. Rather than replacing your regulator and return line, it works alongside a traditional return/bypass-type fuel pressure regulator, using PWM to throttle pump speed based on demand instead of running the pump at full voltage at all times.

For boosted applications, Aeromotive recommends connecting the included stand-alone MAP sensor past the supercharger or turbocharger and dialing in at-idle controller adjustments - from there, the system automatically manages pump speed as boost and fuel demand change. This reduces average pump power draw significantly compared to running a pump at full duty cycle continuously, which lowers fuel temperature and extends pump service life.

This controller suits builders running a single brushed-type fuel pump on a boosted combination who want smarter, lower-heat pump control without switching to a full returnless system - compatible with OEM ECUs, Holley EFI, and other stand-alone engine management systems.
