Aeromotive 66166 ReturnX PWM Controller Dual Pump Naturally Aspirated

Vehicle Fitment

• Universal - not vehicle-specific. Designed for stand-alone ECM applications using dual brushed-type fuel pumps in a naturally aspirated setup

Fitment Notes

• Compatible with OEM, Holley EFI, and other stand-alone ECU/ECM systems
• Requires a return/bypass-type fuel pressure regulator - this is a return-style system, not returnless
• Not recommended for engines producing only 0-10 inHg of vacuum (roughly 65-100 kPa ABS), since low vacuum leaves insufficient range for the MAP sensor to operate effectively on a naturally aspirated combination
• A separate supercharged/forced-induction dual-pump version (P/N 66169) is available for boosted builds

Features

• Stand-alone, MAP-based fuel pump speed control system
• Primary and secondary pump outputs with leader/follower ramp-up - no relays or Hobbs switches needed
• Compatible with all brushed-type fuel pumps
• Typical 45-75% reduction in power to the pumps during idle and cruise
• Compatible with both carbureted and EFI applications
• Smooth, staged ramp-up in pump speed until both pumps reach full output
• Over-temperature shutdown with automatic reset
• Short-circuit output protection with automatic reset

Specifications

• Operating Voltage: 10-22V
• Continuous Power Rating: 40-80A minimum (compact controller package)
• Pump Configuration: Dual pump (primary/secondary staged output)
• Application Type: Naturally aspirated
• Connector Type: OEM Delphi/Aptiv-style
• Wiring: Cross-linked polyethylene, UL94-rated components

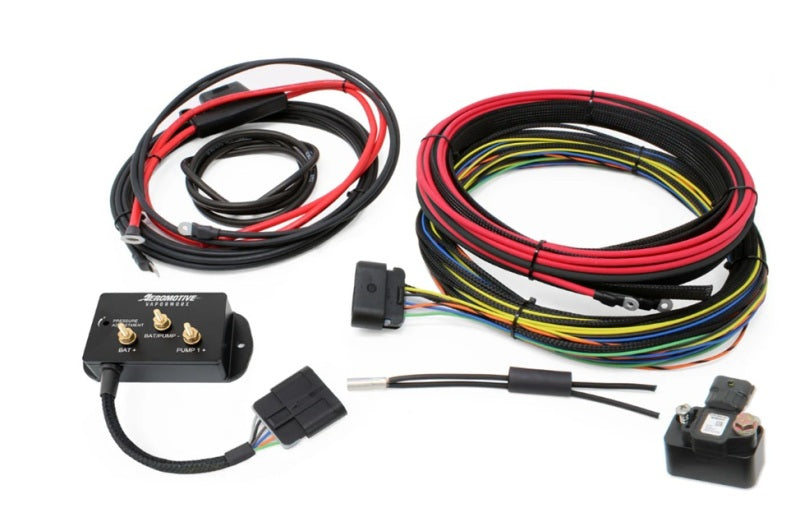

Included Components

• 1x ReturnX Return-Type PWM Controller
• 1x Stand-Alone MAP Sensor
• Wiring Harness with OEM-style Sealed Connectors

Product Description

The Aeromotive 66166 is a stand-alone ReturnX PWM controller built for dual-pump, return-style fuel systems on naturally aspirated engines. It works alongside a traditional return/bypass-type fuel pressure regulator, using MAP-based feedback to control pump speed rather than running both pumps at full voltage continuously.

The controller's primary output keeps enough pump speed available to maintain fuel pressure at idle and cruise, while the secondary pump follows at a lower duty cycle and ramps in smoothly as demand increases - no relays or Hobbs switches required. For carbureted and EFI setups, the included MAP sensor simply connects to a manifold vacuum source, and the controller manages pump speed from there.

This controller suits naturally aspirated builds running dual brushed-type fuel pumps that want reduced fuel heating and extended pump life compared to running both pumps at full duty cycle. Because it relies on manifold vacuum for its MAP reference, it's best suited to combinations that pull meaningful vacuum at idle rather than very high-vacuum-averse, radical cam profiles.
