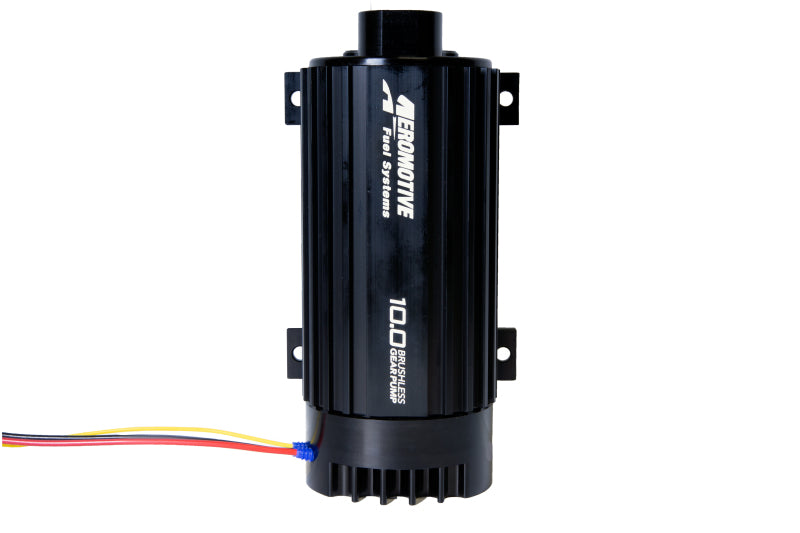

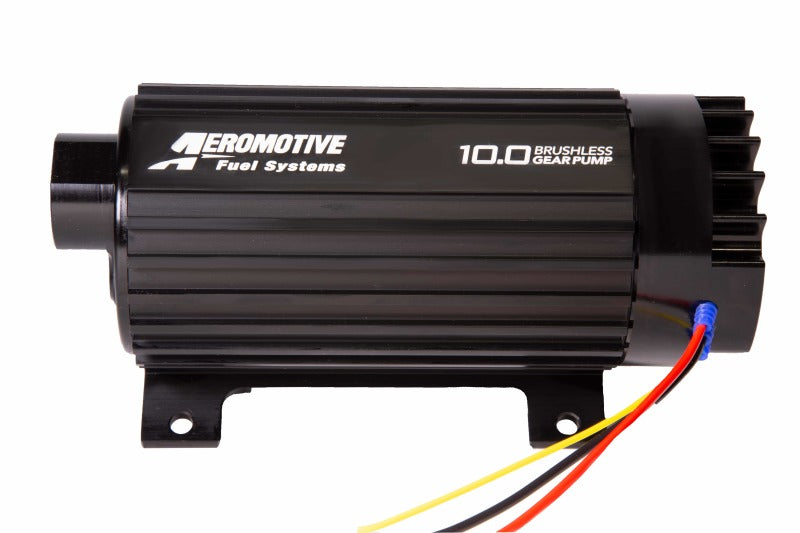

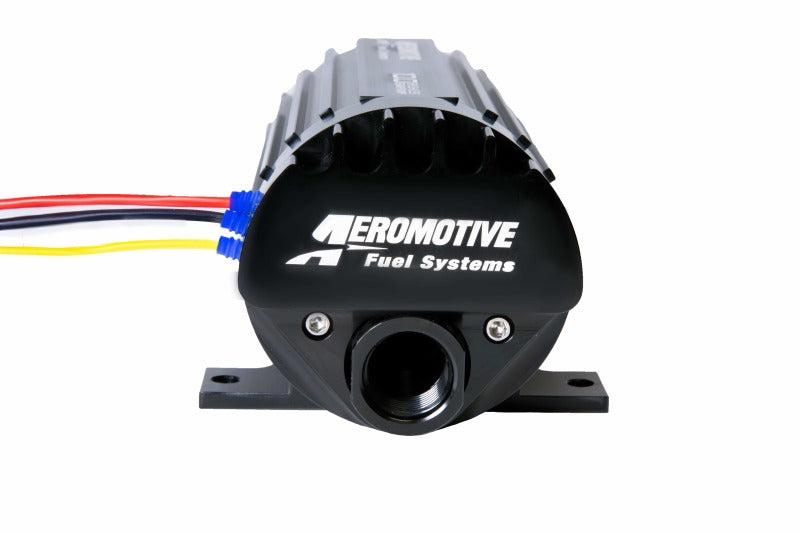

Aeromotive 11198 10.0GPM Brushless TVS Fuel Pump Universal Performance Inline

Vehicle Fitment

• Universal fit for high-performance fuel systems (EFI/Carbureted)

Features

• High-flow 10.0 GPM brushless in-line fuel pump with True Variable Speed controller
• Designed for extreme performance engines, up to 6,900 HP EFI and 7,600 HP carbureted applications
• Integral external controller reduces fuel flow during low demand for efficiency
• E85, methanol, and gasoline compatible
• Lighter, compact design for versatile installation
• ORB-12 inlet and ORB-10 outlet ports for universal plumbing
• Built-in spur gear pumping mechanism for durability and balanced flow
• Capability for high continuous operating pressure with strong peak output

Specifications

• Part Number: 11198
• Flow Rate: 10.0 GPM (~600 GPH) external in-line
• Controller: True Variable Speed (TVS) brushless
• Inlet/Outlet: ORB-12 / ORB-10 female ports
• Voltage: 12-16 VDC power supply required
• Compatible Fuels: Gasoline, E85, Methanol
• Continuous Pressure: ~90 PSI; Peak Pressure up to ~150 PSI
• Universal external mount (not pulse modulated systems)

Included Components

• 1x Aeromotive 10.0 GPM TVS Brushless In-Line Fuel Pump
• 1x Mounting bracket and hardware

Product Description

The Aeromotive 11198 10.0 GPM Brushless Fuel Pump with True Variable Speed (TVS) Controller is a high-performance fuel delivery solution engineered for extreme EFI and carbureted applications. Featuring a brushless spur gear design and an integrated external controller, this pump delivers up to 10 gallons per minute of fuel flow while adjusting delivery based on engine demand for efficiency and reduced heat.

Built for versatility, the Aeromotive 11198 supports high horsepower platforms - up to ~6,900 HP for naturally aspirated gas EFI and ~7,600 HP for carbureted engines - while maintaining reliable pressure and compatibility with gasoline, E85, and methanol fuels. The universal design with ORB-12 inlet and ORB-10 outlet ports makes it suitable for custom installations in a range of performance builds, fuel cells, or retrofit systems.

This external in-line pump is ideal for racers, high-performance enthusiasts, and custom project builders who require dependable, adjustable fuel delivery. The integrated True Variable Speed controller optimizes performance by reducing fuel flow at low engine demand, minimizing current draw, and enhancing overall pump life and reliability.
