Aeromotive 12604 100-Micron Stainless Replacement Filter Element ORB-10

Vehicle Fitment

• Universal - replacement service element for all Aeromotive 2-inch OD x 5-1/2-inch long ORB-10 billet in-line fuel filter housings
• Compatible with gasoline (pump gas, racing gas, av-gas, jet fuel), diesel, ethanol, and methanol fuel systems
• Suitable for naturally aspirated, turbocharged, supercharged, and nitrous applications on gasoline and alcohol fuels

Fitment Notes

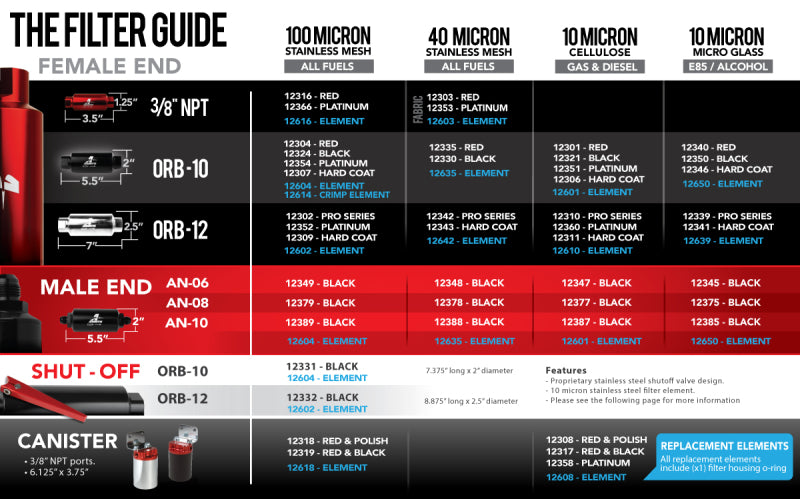

• The 12604 is a direct replacement service element for the following Aeromotive filter housings: PN 12304, 12307, 12324, 12331, 12349, 12354, 12379, and 12389. It fits any Aeromotive 2-inch OD x 5-1/2-inch long ORB-10 filter housing. Before ordering, confirm your filter housing part number is in this list.
• Includes new housing O-ring. The 12604 ships with a replacement housing O-ring for resealing the filter assembly during service - no need to source the O-ring separately when changing the element.
• Pre-pump use: Suitable as a pre-pump coarse filter for Aeromotive electric fuel pumps from the 11109 up through the A1000 and SS series (applications up to approximately 2.5 GPM) on gasoline, diesel, ethanol, and methanol. The 100-micron rating catches large particulates before they reach pump internals without creating significant pre-pump restriction.
• Post-pump use: Popular as a post-pump filter for Aeromotive 12-Series (belt and hex-driven) mechanical fuel pumps and Aeromotive Spur Gear pumps up to 21 GPM, where the high surface area and 100-micron mesh handle large-volume flow without pressure drop.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Features

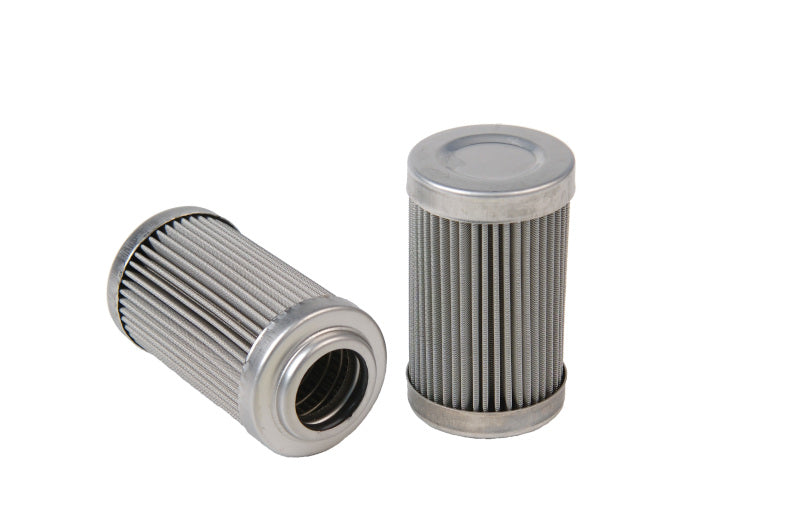

• 100-Micron Stainless Steel Mesh - Cleanable and Reusable: The 12604 uses a 100-micron stainless steel mesh element that captures fuel system particulates, rust, scale, and debris that can damage precision fuel injectors, pump internals, and carbureted metering circuits. Unlike paper or fabric elements, the stainless mesh can be cleaned with solvent and reused repeatedly - making it a long-life element well suited to high-mileage performance and competition applications.
• Over 60 Square Inches of Element Surface Area: The large 60+ square inch filter surface area delivers exceptional dirt-holding capacity and maintains low pressure drop even as the element accumulates contamination - extending service intervals and maintaining consistent fuel delivery between cleanings.
• 600+ GPH (10+ GPM) Flow Capacity - Less Than 1 PSI Pressure Drop: Flows over 600 gallons per hour with a pressure drop of less than 1 PSI at full flow - a negligible restriction for even the highest-volume fuel systems. This exceptional flow capacity supports fuel delivery for over 5,000 flywheel horsepower on gasoline under forced induction, and 4,000 flywheel horsepower on ethanol under forced induction.
• Broad Fuel Compatibility: The 100-micron stainless mesh is approved and rated for use with pump gasoline, racing gasoline, av-gas, jet fuel, diesel fuel, ethanol (including E85), and methanol - covering the full spectrum of performance and alternative fuel applications without requiring different elements for different fuel types.
• Fits All 2-Inch OD ORB-10 Aeromotive Filter Housings: The standardized 2-inch OD x 5-1/2-inch long element format fits all Aeromotive ORB-10 billet in-line filter housings - including the PN 12304, 12307, 12324, 12331, 12349, 12354, 12379, and 12389 assemblies. Housing O-ring included to ensure a proper reseal after element replacement.

Specifications

• Part Number: 12604
• Brand: Aeromotive
• Product Type: Replacement Fuel Filter Element
• Element Material: 100-Micron Stainless Steel Mesh
• Micron Rating: 100 microns
• Element Surface Area: Over 60 sq. in.
• Flow Capacity: 600+ GPH (10.00+ GPM)
• Pressure Drop at Full Flow: Less than 1 PSI
• HP Rating (Gasoline, Forced Induction): 5,000+ Flywheel HP
• HP Rating (Ethanol, Forced Induction): 4,000 Flywheel HP
• Compatible Filter Housings: PN 12304, 12307, 12324, 12331, 12349, 12354, 12379, 12389 (all 2-in OD x 5-1/2-in ORB-10 housings)

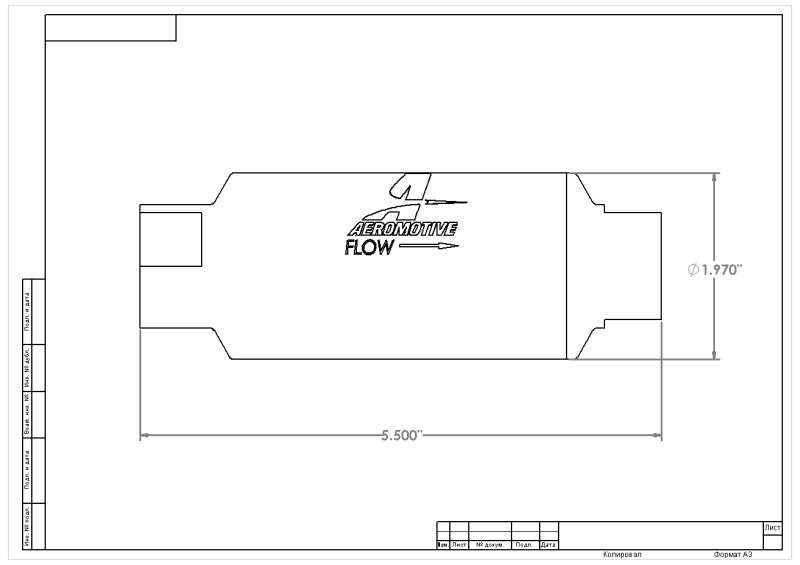

• Element Dimensions: 2-in OD x 5-1/2-in long
• Port Size: ORB-10 housing
• Fuel Compatibility: Gasoline (pump, race, av-gas, jet fuel), Diesel, Ethanol, Methanol
• Cleanable / Reusable: Yes
• Includes O-Ring: Yes (housing reseal O-ring included)
• UPC: 684980000252
• Fitment: Universal
• Emissions: Not legal for use on emission-controlled vehicles except as direct OEM replacement
• Warranty: 1 Year
• Quantity: 1 (sold individually)

Included Components

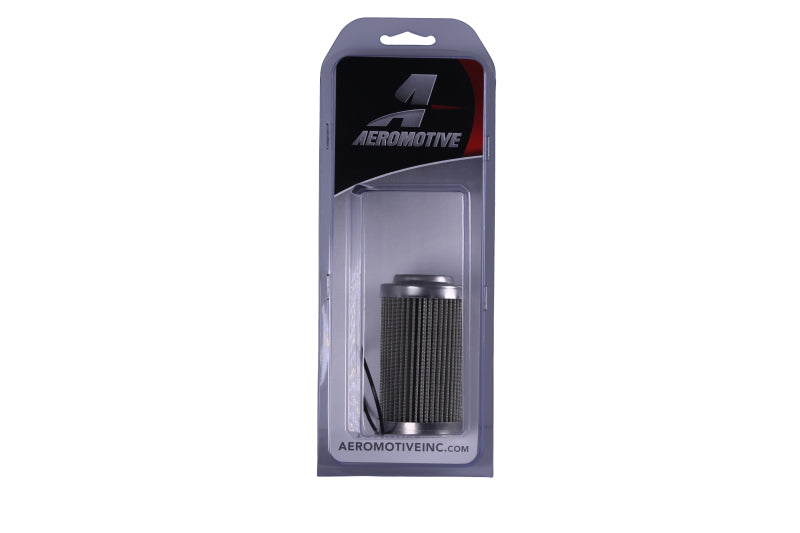

• 1x Aeromotive 100-Micron Stainless Steel Mesh Filter Element
• 1x Housing O-Ring (for resealing filter assembly)

Product Description

The Aeromotive 12604 is the 100-micron stainless steel mesh replacement service element for Aeromotive's full range of 2-inch OD ORB-10 billet in-line fuel filter housings - including PN 12304, 12307, 12324, 12331, 12349, 12354, 12379, and 12389. It is the standard routine maintenance element for these housings, delivering over 60 square inches of cleanable stainless mesh filtration area in a compact 2 x 5.5-inch body.

The 100-micron rating captures fuel system debris, rust, and scale while maintaining a flow capacity of 600+ GPH with less than 1 PSI of pressure drop - supporting over 5,000 flywheel horsepower on gasoline and 4,000 flywheel horsepower on ethanol under forced induction without becoming a restriction in the fuel system. The stainless mesh element is cleanable with solvent and reusable across multiple service intervals, unlike disposable paper elements. Compatible with gasoline, racing gas, av-gas, jet fuel, diesel, ethanol, and methanol. Includes a replacement housing O-ring for a complete reseal of the filter assembly. Universal. 1-year warranty.
