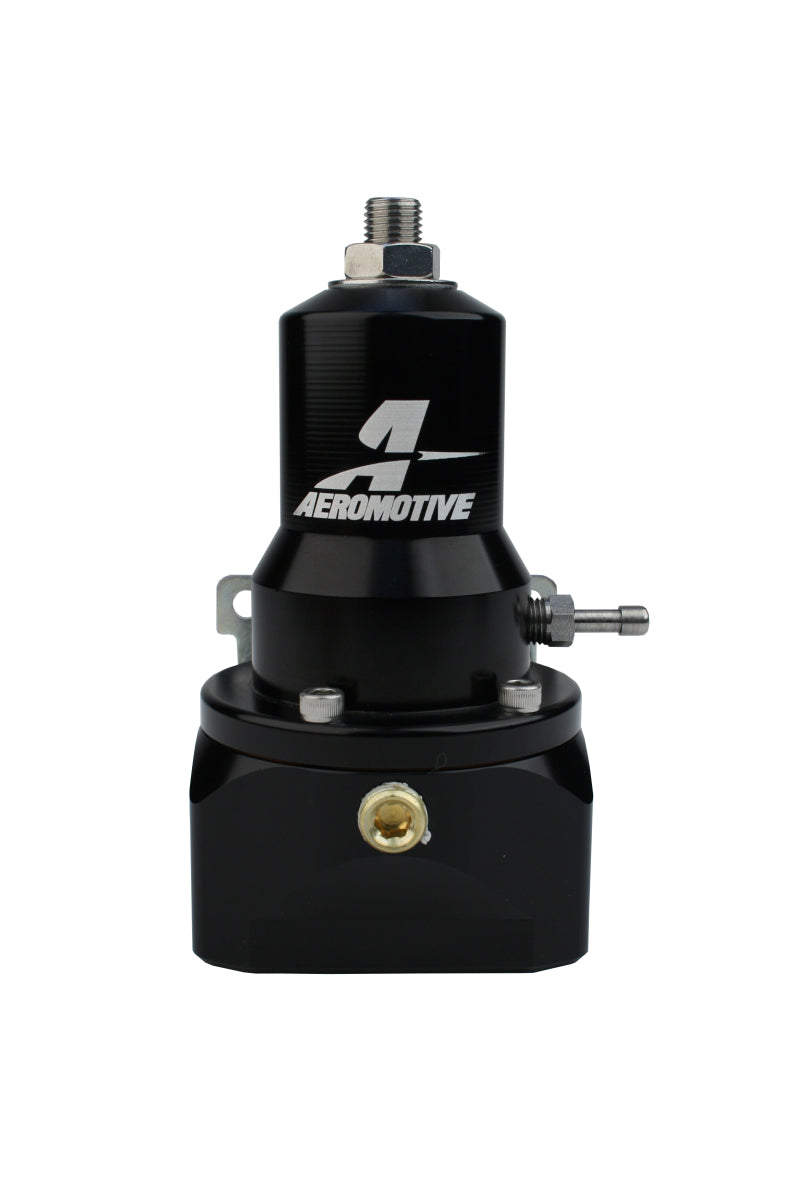

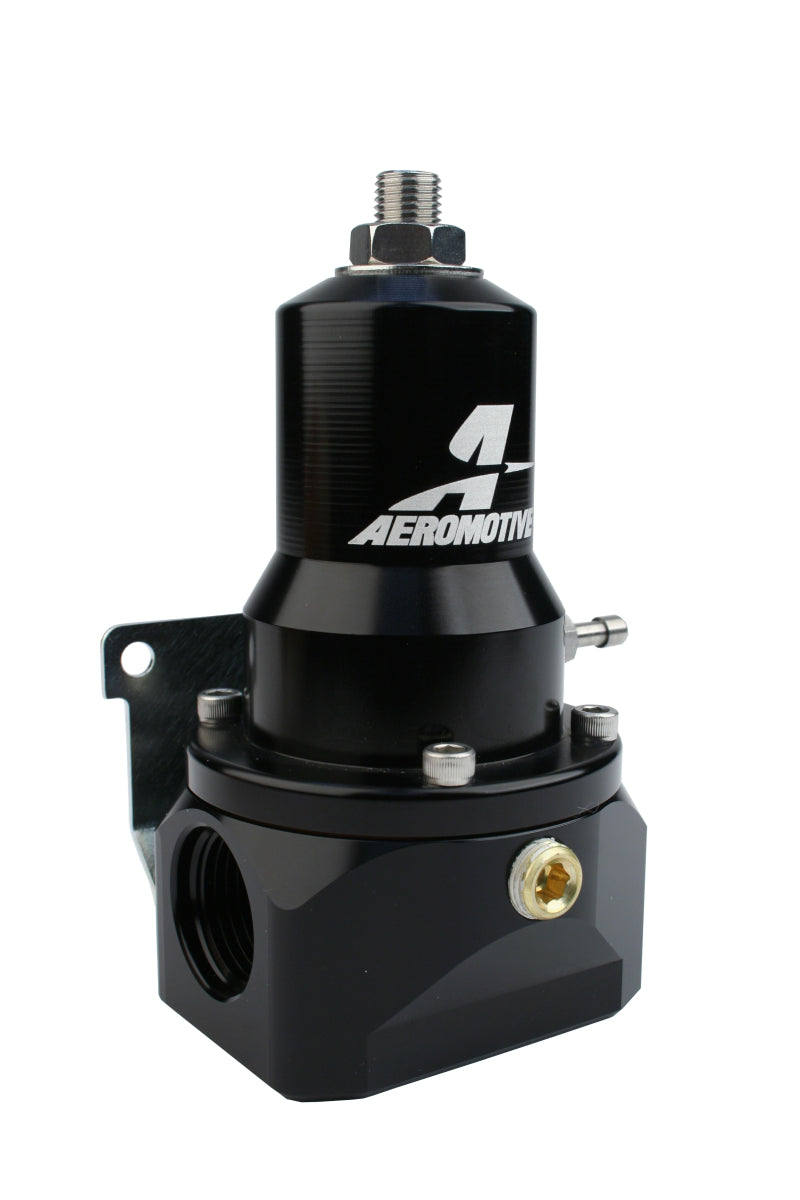

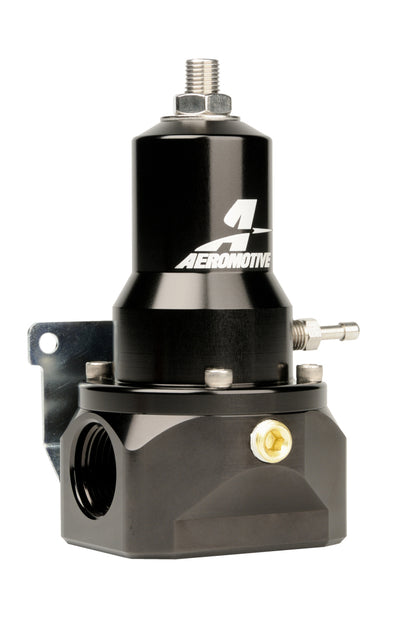

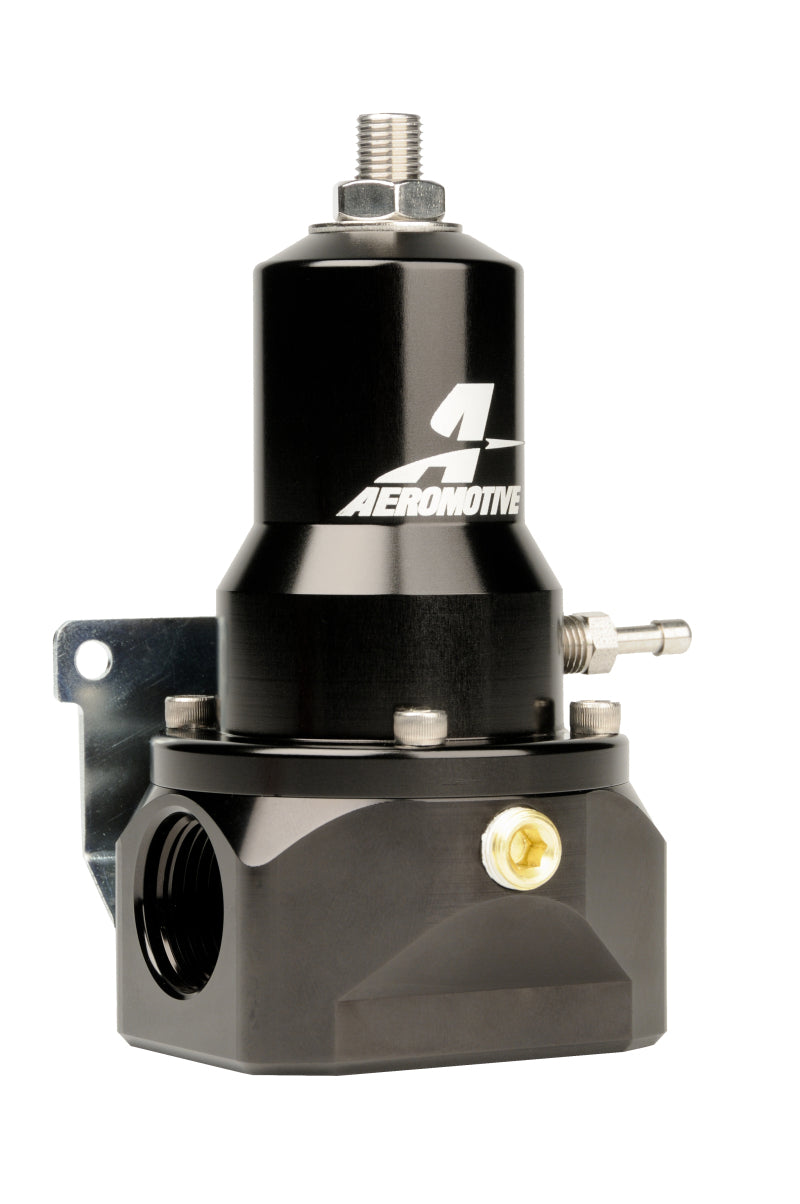

Aeromotive 13132 Extreme Flow EFI Regulator 30-120PSI Universal Performance

Vehicle Fitment

• Universal - designed for high-flow EFI fuel system applications

Features

• Extreme Flow EFI fuel pressure regulator for high-performance systems
• Adjustable pressure range from 30 PSI up to 120 PSI for tuning flexibility
• Dual springs included to expand operating range with standard and high pressure settings

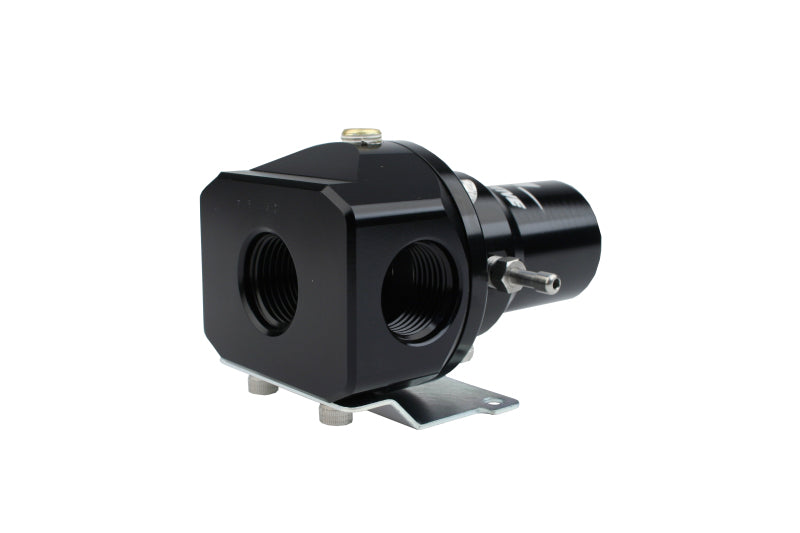

• Dual ORB-10 inlet/outlet ports and one ORB-10 return port for robust plumbing
• High-flow 0.500" valve and seat capable of supporting 7-26 GPM fuel pumps
• Supports vacuum and boost reference at a 1:1 ratio for dynamic pressure control
• Compact, lightweight design ideal where space is limited in performance builds

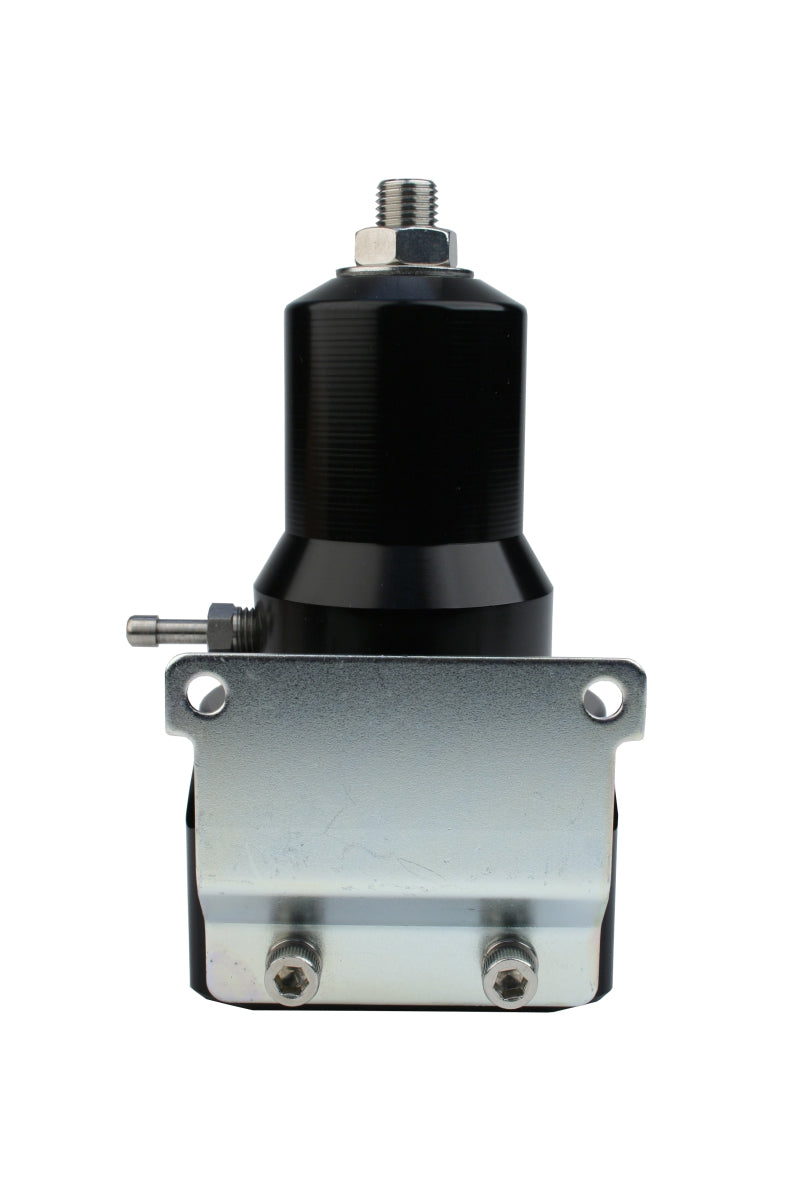

• Includes mounting bracket for secure installation

Specifications

• Brand: Aeromotive
• Part Number: 13132
• Regulator Type: Bypass/return style EFI regulator
• Pressure Range: Adjustable 30-120 PSI
• Inlet/Outlet Ports: Dual ORB-10
• Return Port: ORB-10
• Valve/Seat Diameter: 0.500" high-flow design
• Boost/Vacuum Reference: 1:1 rise ratio
• Mounting: Bracket included
• Finish: Black anodized aluminum

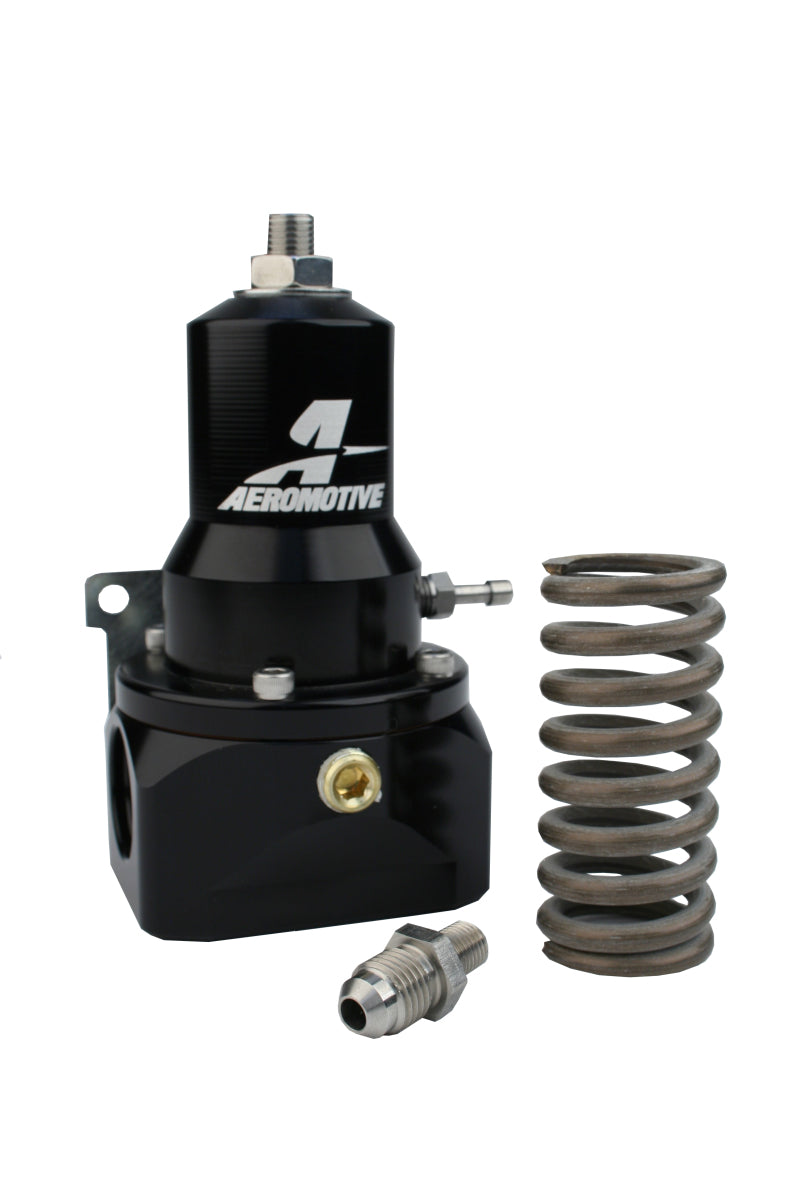

Included Components

• 1x Aeromotive 13132 Extreme Flow EFI Fuel Pressure Regulator
• 1x Mounting bracket and hardware
• Standard pressure spring installed
• High-pressure spring included

Product Description

The Aeromotive 13132 Extreme Flow EFI Fuel Pressure Regulator is a universal, adjustable return-style regulator built to control fuel pressure in high-flow electronic fuel injection systems. With a broad adjustment range from approximately 30 PSI up to 120 PSI using its dual spring setup, this regulator provides performance tuning flexibility for race applications and high-output engines. Its compact design and lightweight construction make it well-suited for installations where space is a constraint while still delivering robust performance.

Featuring dual ORB-10 inlet and outlet ports along with an ORB-10 return port, the 13132 regulator supports plumbing with high-flow pumps and fuel systems delivering 7-26 gallons per minute of flow. The 0.500" valve and seat assembly provides a high-capacity bypass path, and the vacuum/boost reference port ensures fuel pressure rises proportionally at a 1:1 ratio under boost conditions. The included standard and high-pressure springs expand tuning potential for a wide variety of performance EFI setups.

This regulator is ideal for custom fuel systems, drag racing, road course cars, and other high-performance builds that demand precise fuel pressure control. It includes a mounting bracket and both standard and high-pressure springs to support a broad range of operating conditions. Designed for competition and off-road use, this part is **not certified for emission-controlled on-road vehicles** when used outside of approved race environments.
