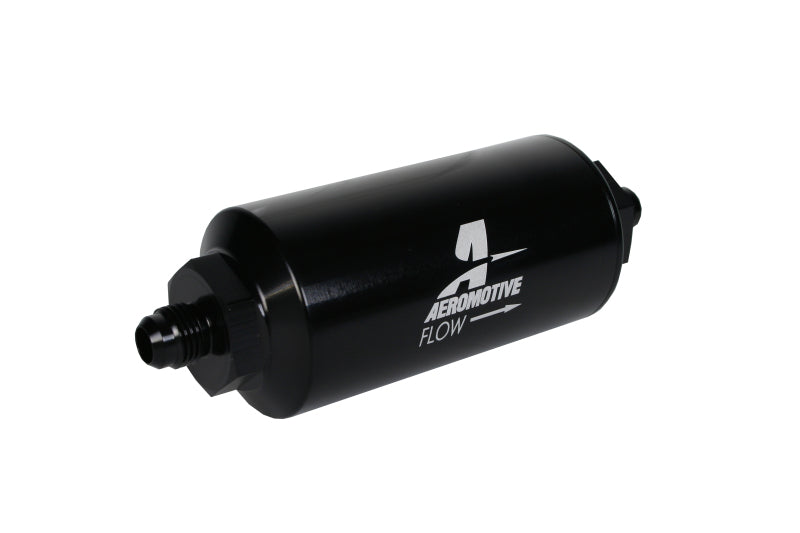

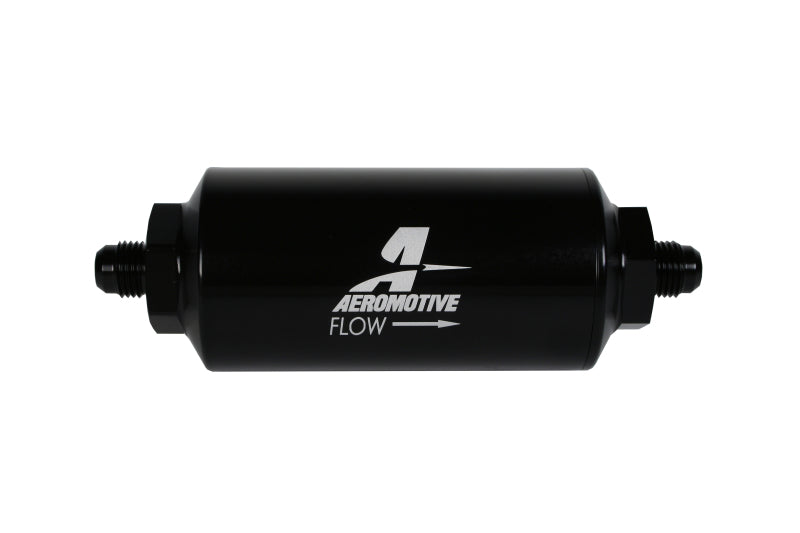

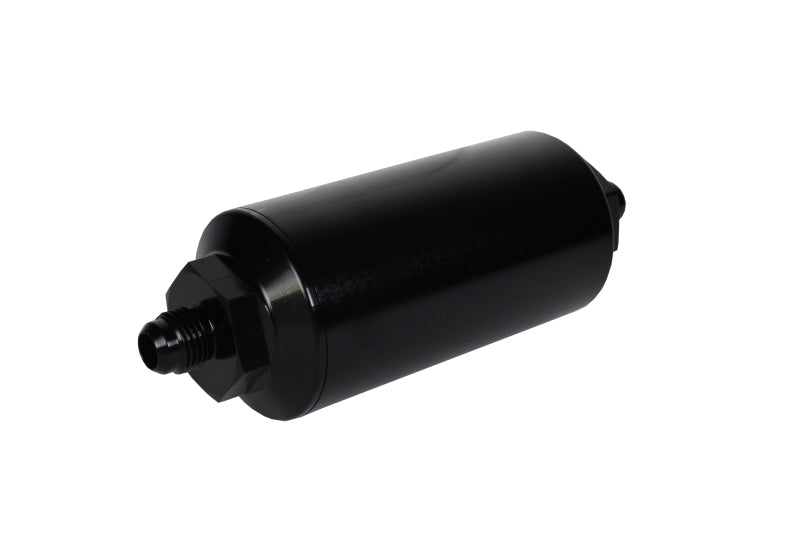

Aeromotive 12347 10-Micron Inline Fuel Filter with AN-06 Male Ports (Universal)

Vehicle Fitment

• Universal fitment for high-performance vehicles requiring enhanced fuel filtration
• Compatible with gasoline and diesel fuel systems utilizing AN-06 fittings
• Suitable for applications ranging from 200 to 3,000+ horsepower

Features

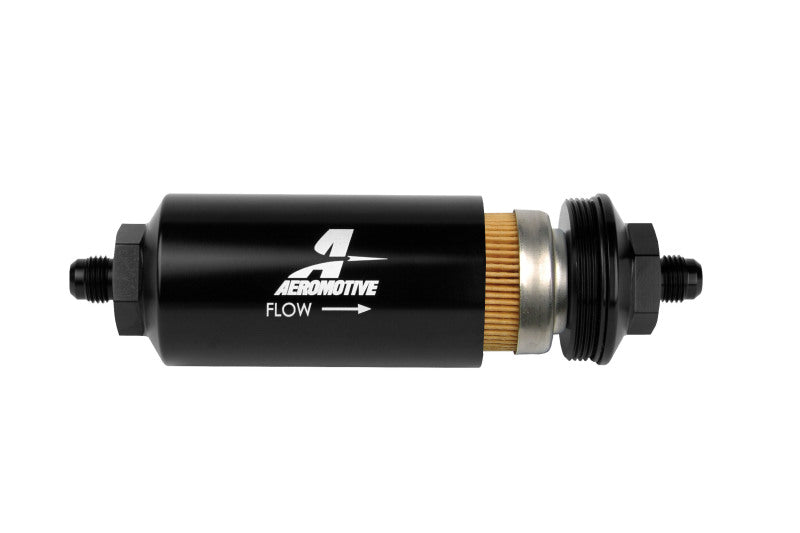

• High-flow, 10-micron cellulose replaceable filter element
• Flows up to 2,000 lb/hr with a pressure drop of less than 1 PSI
• Male AN-06 inlet and outlet ports for secure connections
• Includes O-ring for positive sealing in high-pressure applications
• CNC-machined from 6061-T6 aircraft aluminum for durability
• Bright dip black anodized finish for corrosion resistance and sleek appearance
• Compact design with 2.0" diameter and 5.5" length for versatile installation

Specifications

• Part Number: 12347
• Filter Style: Inline
• Fuel Compatibility: Gasoline, Diesel
• Inlet/Outlet Size: AN-06 Male
• Filter Element Material: Cellulose
• Micron Rating: 10
• Flow Rate: 2,000 lb/hr
• Maximum Fuel Pressure: 70 PSI
• Housing Material: 6061-T6 Aluminum
• Finish: Black Anodized
• Dimensions: 2.0" Diameter x 5.5" Length
• Mounting Type: External (bracket not included)

Included Components

• Aeromotive 12347 Inline Fuel Filter

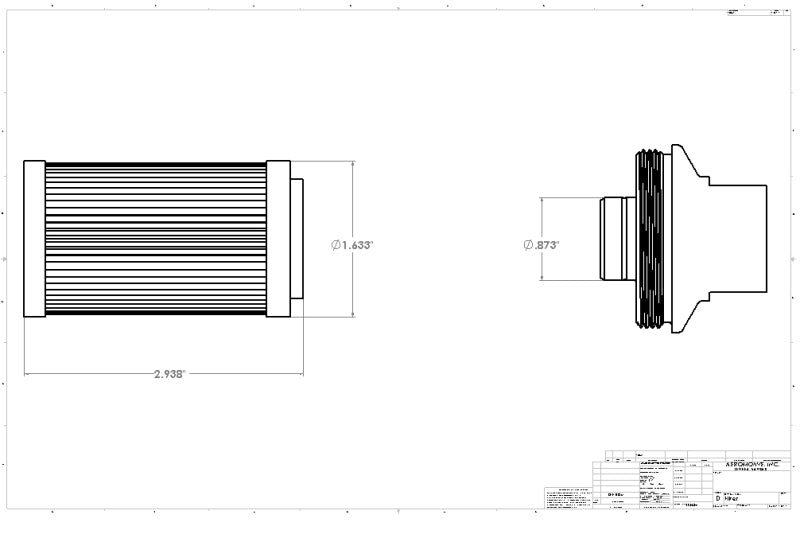

• 10-micron cellulose filter element (installed)
• O-ring for sealing
• Installation instructions

Product Description

The Aeromotive 12347 10-Micron Inline Fuel Filter is engineered to provide superior fuel filtration for high-performance applications. Designed with a high-flow, 10-micron cellulose replaceable element, this filter ensures optimal fuel cleanliness, protecting your engine from contaminants. The AN-06 male inlet and outlet ports offer secure and leak-free connections, while the CNC-machined 6061-T6 aluminum housing provides durability and a sleek appearance with its black anodized finish. Compact in size, the filter measures 2.0 inches in diameter and 5.5 inches in length, allowing for versatile installation options. Suitable for both gasoline and diesel fuel systems, the Aeromotive 12347 is an essential component for maintaining fuel system integrity in vehicles ranging from 200 to over 3,000 horsepower.
