Aeromotive 12635 40-Micron Stainless Replacement Filter Element ORB-10 Universal

Vehicle Fitment

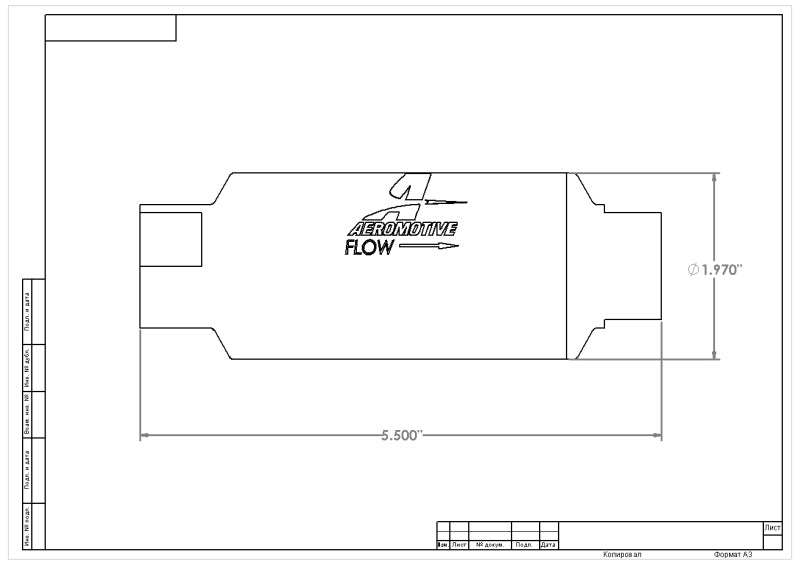

• Universal - replacement service element for all Aeromotive 2-inch OD x 5-1/2-inch long ORB-10 billet in-line fuel filter housings
• Compatible with gasoline (pump gas, racing gas, av-gas, jet fuel), diesel, ethanol, and methanol fuel systems
• Designed for post-pump use on naturally aspirated, turbocharged, supercharged, and nitrous applications on gasoline and alcohol fuels

Fitment Notes

• The 12635 is a direct replacement service element for the following Aeromotive filter housings: PN 12330, 12335, 12348, 12378, and 12388. It fits any Aeromotive 2-inch OD x 5-1/2-inch long ORB-10 filter housing. Before ordering, confirm your filter housing part number is in this list.
• Includes new housing O-ring. The 12635 ships with a replacement housing O-ring for resealing the filter assembly during service.
• Post-pump use (primary application): The 40-micron rating makes this element ideal as a post-pump filter - positioned downstream of the fuel pump to protect injectors, carburetors, and fuel rails from fine particulates, pump wear debris, and tank contamination. Suitable for electric fuel pumps and mechanical fuel pumps up to 16 GPM.

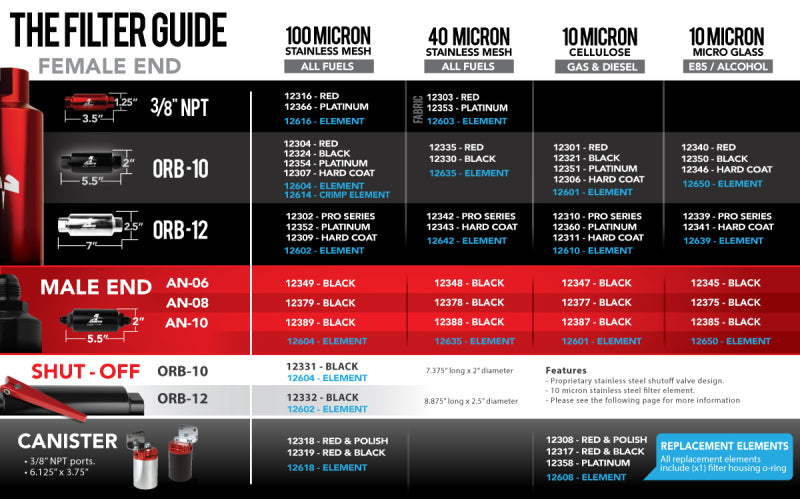

• Micron rating vs. 12604: The 12635 (40 micron) provides finer filtration than the 12604 (100 micron) and is designed for post-pump installation. The 12604 100-micron element is suited for pre-pump use; the 12635 40-micron element is for post-pump fine filtration. Do not install a 40-micron element as a pre-pump filter - the finer mesh will create excessive restriction that can starve the pump at high flow rates.

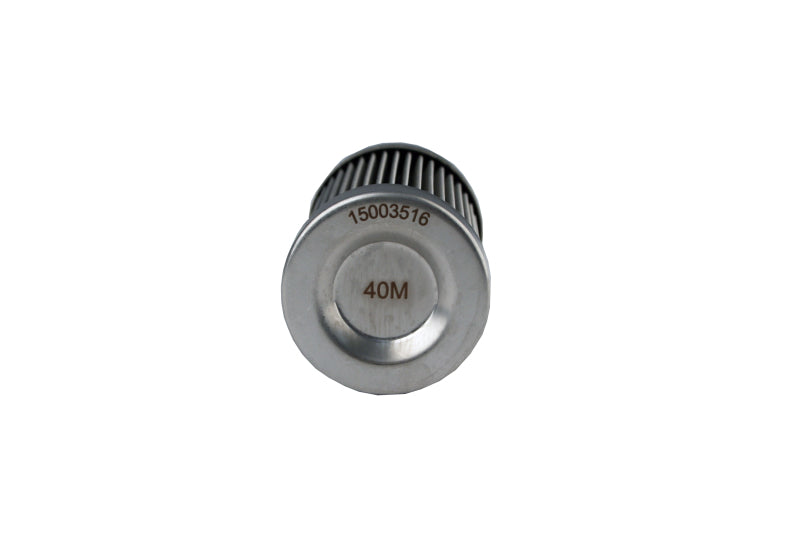

• Aeromotive recommends annual inspection and service of filter elements for normal applications. Severe-duty and newly-installed systems may require more frequent service. The micron rating is stamped on the top of the element and can be read by looking into the filter inlet to identify an existing element.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Features

• 40-Micron Stainless Steel Mesh - Fine Post-Pump Filtration: The 12635 uses a 40-micron stainless steel mesh element that provides finer filtration than the 100-micron pre-pump element - capturing smaller fuel system particulates, pump wear debris, and tank contamination that can clog precision fuel injector tips, needle valves, and carbureted metering circuits. The stainless mesh is cleanable with solvent and reusable, unlike fabric or paper elements.
• Over 60 Square Inches of Element Surface Area: The large 60+ square inch filter surface area delivers exceptional dirt-holding capacity in a compact 2 x 5.5-inch body - maintaining low pressure drop even as the element accumulates contamination and extending service intervals in high-demand applications.
• 900 GPH (15.0 GPM) Flow Capacity - Less Than 1 PSI Pressure Drop: Flows up to 900 gallons per hour with a pressure drop of less than 1 PSI at full flow - negligible restriction even for the highest-volume fuel systems. This exceptional flow capacity supports fuel delivery for over 8,300 flywheel horsepower on gasoline under forced induction, making it suitable for the most extreme competition fuel system builds.
• Suitable for Up to 16 GPM Post-Pump Applications: The 40-micron element is rated for post-pump use with both electric and mechanical fuel pumps up to 16 GPM - covering the full range of Aeromotive electric pumps (Stealth 340 through A3000) and mechanical 6-Series and 12-Series belt and hex-driven pumps.
• Broad Fuel Compatibility: Approved and rated for use with pump gasoline, racing gasoline, av-gas, jet fuel, diesel fuel, ethanol (including E85), and methanol - covering the full range of performance and alternative fuel applications with a single element.
• Fits All 2-Inch OD ORB-10 Aeromotive Filter Housings: The standardized 2-inch OD x 5-1/2-inch long element format fits all compatible Aeromotive ORB-10 billet in-line filter housings - including PN 12330, 12335, 12348, 12378, and 12388. Housing O-ring included for a complete reseal.

Specifications

• Part Number: 12635
• Brand: Aeromotive
• Product Type: Replacement Fuel Filter Element
• Element Material: 40-Micron Stainless Steel Mesh
• Micron Rating: 40 microns
• Element Surface Area: Over 60 sq. in.
• Flow Capacity: 900 GPH (15.0 GPM)
• Pressure Drop at Full Flow: Less than 1 PSI
• HP Rating (Gasoline, Forced Induction): 8,300+ Flywheel HP
• Suitable Post-Pump Flow Capacity: Up to 16 GPM
• Compatible Filter Housings: PN 12330, 12335, 12348, 12378, 12388 (all 2-in OD x 5-1/2-in ORB-10 housings)
• Element Dimensions: 2-in OD x 5-1/2-in long
• Port Size: ORB-10 housing
• Fuel Compatibility: Gasoline (pump, race, av-gas, jet fuel), Diesel, Ethanol, Methanol
• Cleanable / Reusable: Yes
• Includes O-Ring: Yes (housing reseal O-ring included)
• UPC: 00684980002829
• Fitment: Universal
• Emissions: Not legal for use on emission-controlled vehicles except as direct OEM replacement
• Warranty: 1 Year
• Quantity: 1 (sold individually)

Included Components

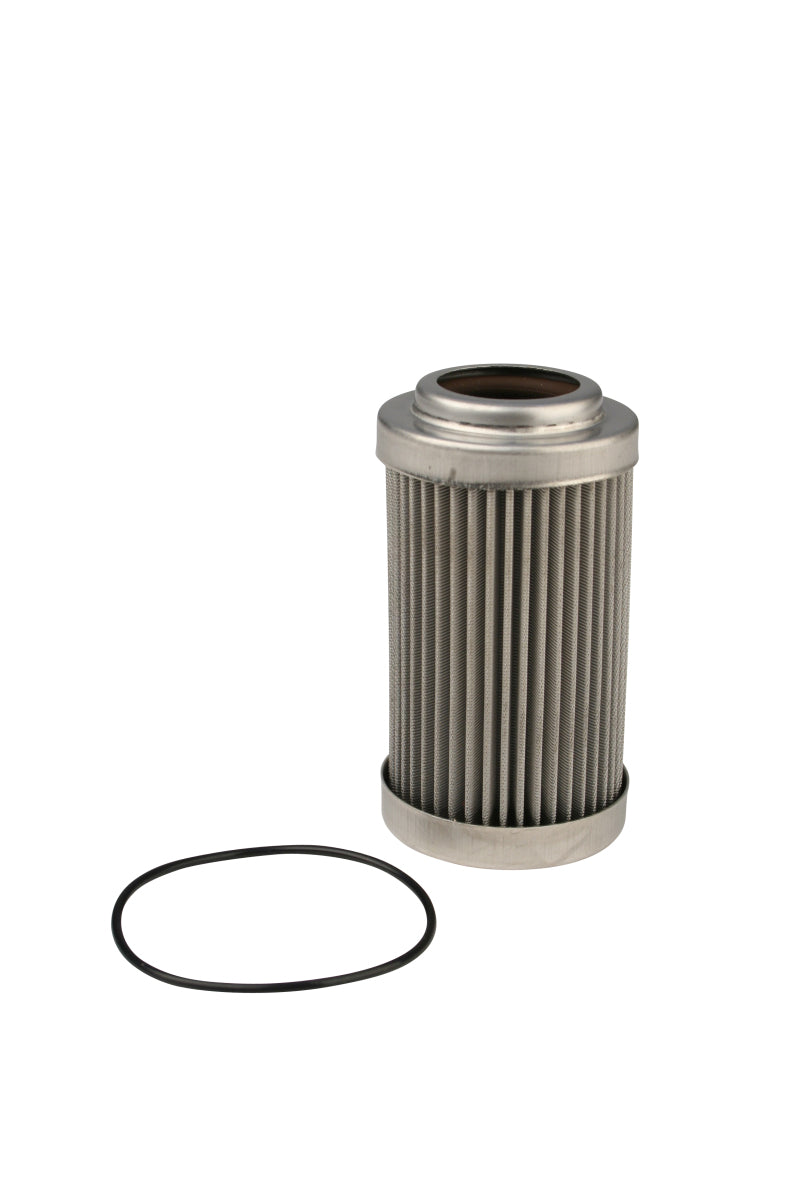

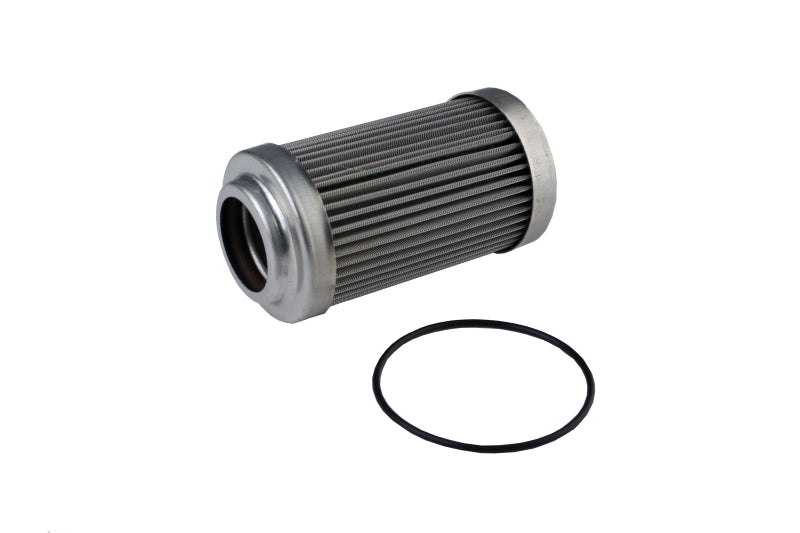

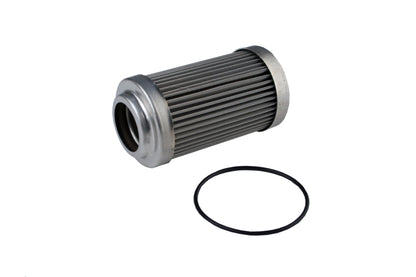

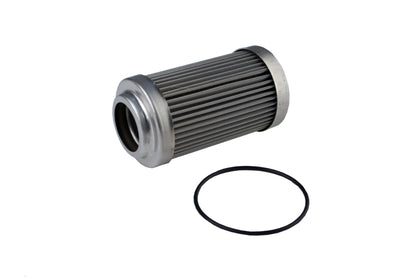

• 1x Aeromotive 40-Micron Stainless Steel Mesh Filter Element
• 1x Housing O-Ring (for resealing filter assembly)

Product Description

The Aeromotive 12635 is the 40-micron stainless steel mesh replacement service element for Aeromotive's ORB-10 billet in-line fuel filter housings - specifically PN 12330, 12335, 12348, 12378, and 12388. As a 40-micron element, the 12635 is designed for post-pump installation, providing fine filtration that protects fuel injectors, carburetors, and fuel rails from the fine particulates and pump wear debris that bypass coarser pre-pump filters.

Despite the finer 40-micron rating, the element's 60+ square inch surface area delivers 900 GPH (15 GPM) of flow capacity with less than 1 PSI of pressure drop - supporting over 8,300 flywheel horsepower on gasoline with forced induction and rated for post-pump use with electric and mechanical pumps up to 16 GPM. The stainless mesh is cleanable with solvent and reusable. Compatible with gasoline, racing gas, av-gas, jet fuel, diesel, ethanol, and methanol. Includes a replacement housing O-ring for a complete reseal. Universal. 1-year warranty.

Note: Do not use the 40-micron 12635 as a pre-pump element - the finer mesh will restrict flow to the pump at high flow rates. Use Aeromotive PN 12604 (100 micron) for pre-pump applications.
