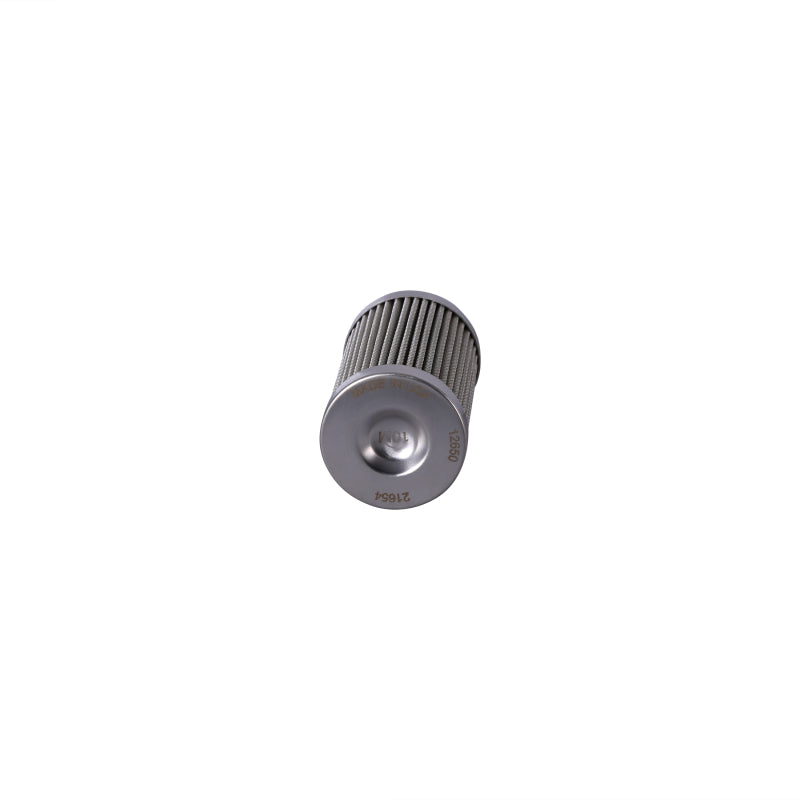

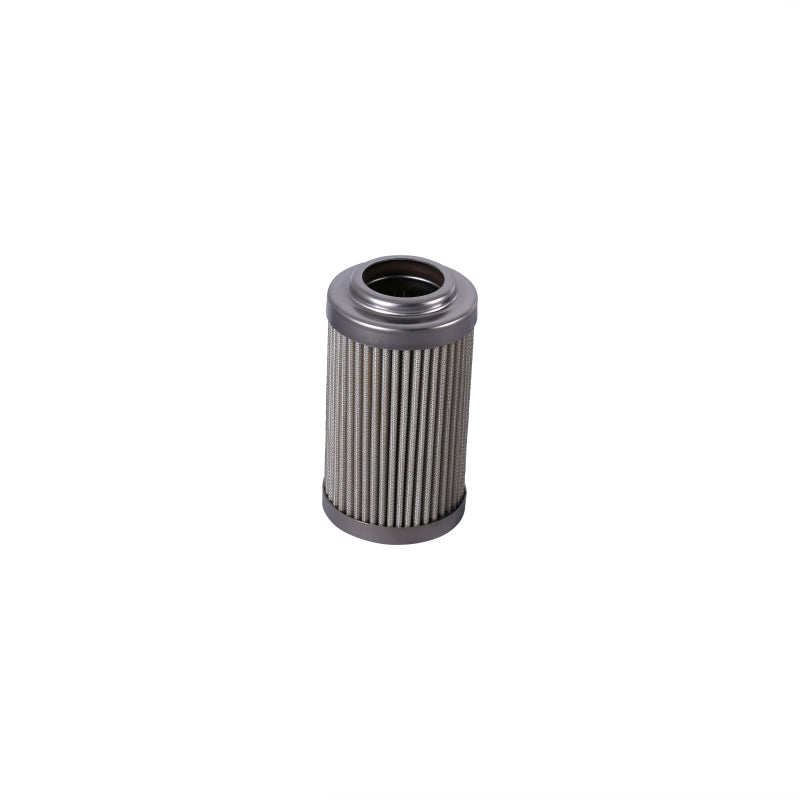

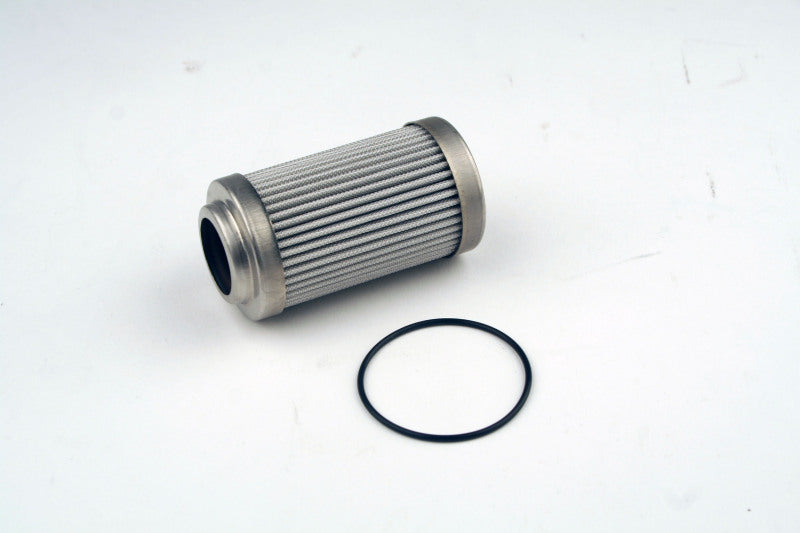

Aeromotive 12650 10-Micron Microglass Replacement Fuel Filter Element

Vehicle Fitment

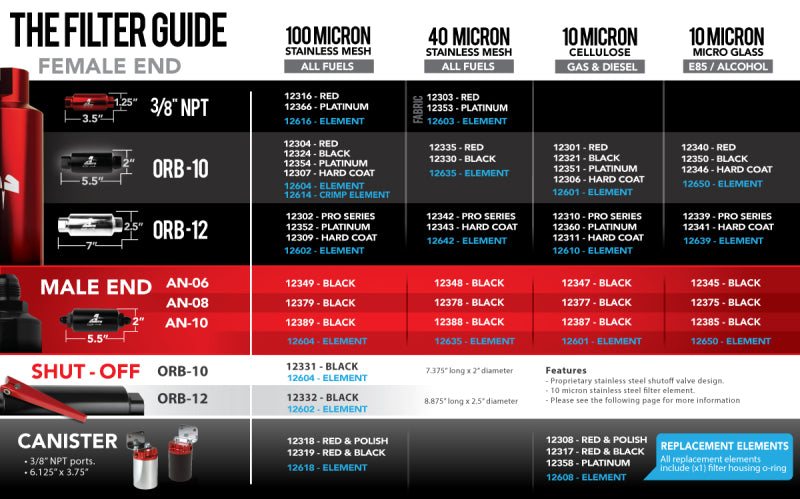

• Universal fitment; compatible with Aeromotive billet in-line filters featuring 2" OD x 5-1/2" long ORB-10 filter housings

Features

• High-performance 10-micron microglass filtration for superior particle capture
• Over 60 square inches of surface area for extended service life
• Flow capacity of up to 250 GPH (4.17 GPM) with less than 1 PSI pressure drop
• Supports up to 2,000 flywheel horsepower (FWHP) on gasoline with forced induction
• Supports up to 1,400 FWHP on E85 with forced induction
• Approved for use with gasoline, diesel, ethanol, and methanol fuels
• Includes a new housing O-ring for secure sealing
• Not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications

Specifications

• Material: Microglass
• Filtration: 10 microns
• Surface Area: Over 60 square inches
• Flow Capacity: Up to 250 GPH (4.17 GPM)
• Pressure Drop: Less than 1 PSI
• Maximum Supported HP: 2,000 FWHP (gasoline, forced induction)
• Maximum Supported HP: 1,400 FWHP (E85, forced induction)
• Compatibility: Gasoline, diesel, ethanol, methanol

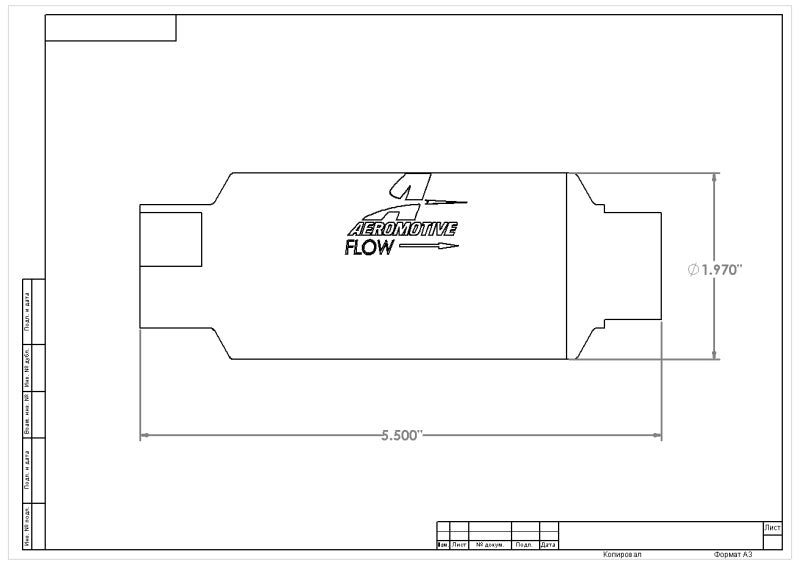

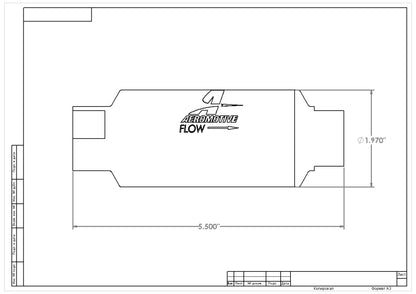

• Dimensions: 2" OD x 5-1/2" length
• O-Ring Included: Yes

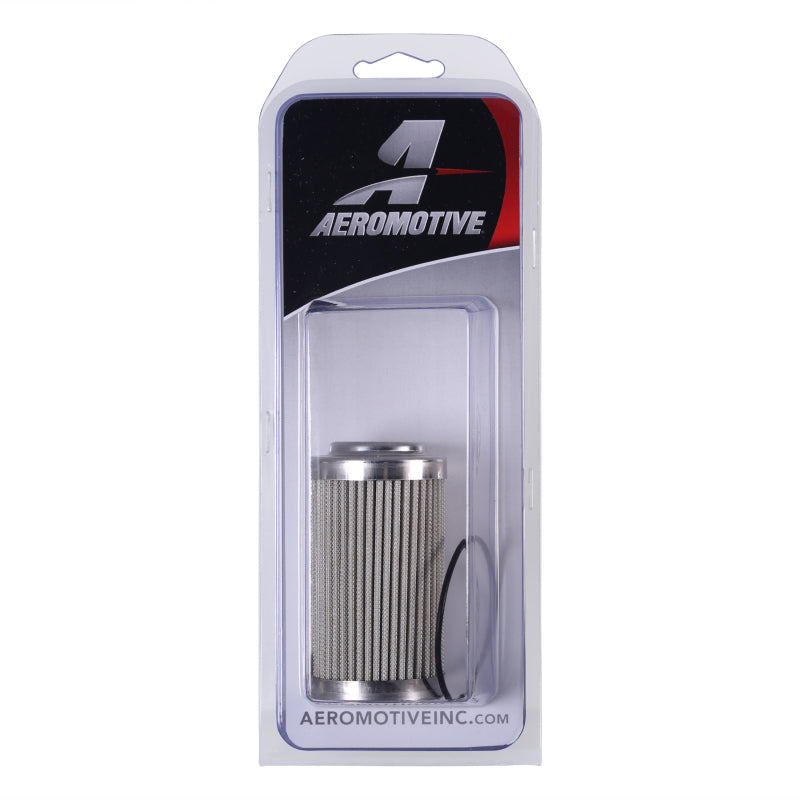

Included Components

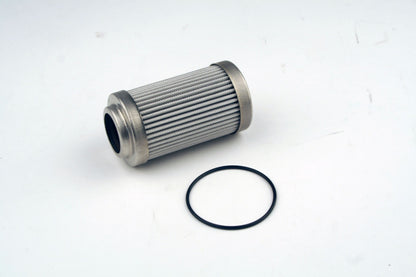

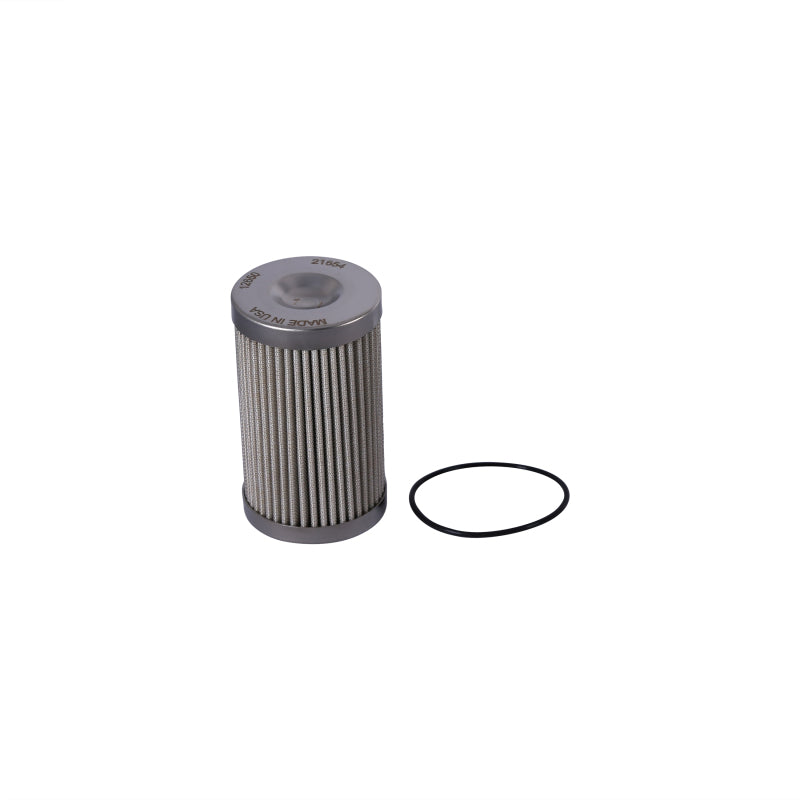

• 1x Aeromotive 12650 10-Micron Microglass Replacement Fuel Filter Element
• 1x Housing O-Ring

Product Description

The Aeromotive 12650 10-Micron Microglass Replacement Fuel Filter Element is engineered for high-performance fuel systems requiring efficient filtration. Its microglass construction offers superior particle capture, ensuring clean fuel delivery to your engine. With over 60 square inches of surface area, it provides extended service life and maintains high flow rates.

Capable of supporting up to 2,000 flywheel horsepower on gasoline with forced induction, and up to 1,400 FWHP on E85, this filter element is suitable for a wide range of performance applications. It is approved for use with gasoline, diesel, ethanol, and methanol fuels, making it versatile for various fuel types.

Installation is straightforward, and the included O-ring ensures a secure seal within compatible Aeromotive billet in-line filters. Please note that this product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
