Aeromotive 18385 10.0 GPM Brushless Variable Speed In-Tank Fuel Pump 12V

Vehicle Fitment

• Universal Fit - compatible with any custom or factory fuel tank requiring a high-output in-tank electric fuel pump with True Variable Speed control

Fitment Notes

• Universal fitment - not vehicle-specific. Customer must verify fuel tank dimensions and access opening for in-tank installation.
• For EFI applications: requires Aeromotive fuel pressure regulator P/N 13134 or P/N 13110 (sold separately).
• For carbureted applications: requires regulator P/N 13202 or P/N 13212 (sold separately).
• Requires a straight 12VDC to 16VDC power supply - not compatible with pulse modulated systems or fuel pump speed controllers.
• Not compatible with 16V racing charging systems (16-18V range). A voltage regulator or step-down converter is required.
• True Variable Speed (TVS) Controller operates via a dedicated 0-5V analog DC input signal - must be wired to a compatible ECU, TPS output, MAF sensor, boost sensor, or voltage divider.
• E85 compatible - reduce maximum supported horsepower figures by approximately 30%.
• Fully submersible - designed for in-tank installation only.
• Inlet: ORB-12 (-12 AN O-Ring Boss) / Outlet: ORB-10 (-10 AN O-Ring Boss) - no thread sealant on ports.
• Not legal for sale or use on emissions-controlled vehicles except on dedicated race vehicles.

Features

• 10.0 GPM flow rate - the highest-output universal in-tank brushless fuel pump available from Aeromotive
• True Variable Speed (TVS) Controller automatically reduces pump RPM during low engine demand, minimizing fuel recycling, motor heat, and current draw
• Integral spur-gear pumping mechanism sustains 90 PSI continuous pressure and up to 150 PSI peak with minimal flow drop
• Brushless motor technology delivers reduced current draw, lower heat, less noise, and extended service life
• Fully submersible in-tank design provides constant fuel cooling for enhanced long-term reliability
• Integral external brushless TVS motor controller included for clean installation and cooler fuel temperatures
• Compatible with gasoline, E85, methanol, and ethanol fuels
• Lighter than traditional external mount pumps with lower current draw at EFI pressures

Specifications

• Flow Rate: 10.0 GPM
• Continuous Operating Pressure: 90 PSI
• Peak Pressure: 150 PSI (base plus boost)
• Inlet Port: ORB-12 (-12 AN O-Ring Boss)
• Outlet Port: ORB-10 (-10 AN O-Ring Boss)
• Motor Type: Brushless with Integral External TVS Controller
• TVS Input Signal: 0-5V Analog DC
• Power Requirement: 12VDC-16VDC (straight supply only)
• Installation Type: In-Tank (Universal)
• HP Support - Gas EFI NA: Up to 6,900 FWHP
• HP Support - Gas EFI Forced Induction: Up to 4,900 FWHP
• HP Support - Gas Carb NA: Up to 7,600 FWHP
• HP Support - Gas Carb Forced Induction: Up to 5,500 FWHP
• HP Support - E85 EFI NA: Up to 4,830 FWHP
• HP Support - E85 EFI Forced Induction: Up to 3,430 FWHP
• HP Support - E85 Carb NA: Up to 5,300 FWHP
• HP Support - E85 Carb Forced Induction: Up to 3,850 FWHP
• HP Support - Methanol EFI NA: Up to 2,415 FWHP
• HP Support - Methanol EFI Forced Induction: Up to 1,715 FWHP
• HP Support - Methanol Carb NA: Up to 2,650 FWHP
• HP Support - Methanol Carb Forced Induction: Up to 1,925 FWHP
• UPC: 684980011814

Included Components

• 1x Aeromotive 10.0 GPM Brushless True Variable Speed In-Tank Fuel Pump (18385)
• 1x Integral External Brushless TVS Motor Controller

Product Description

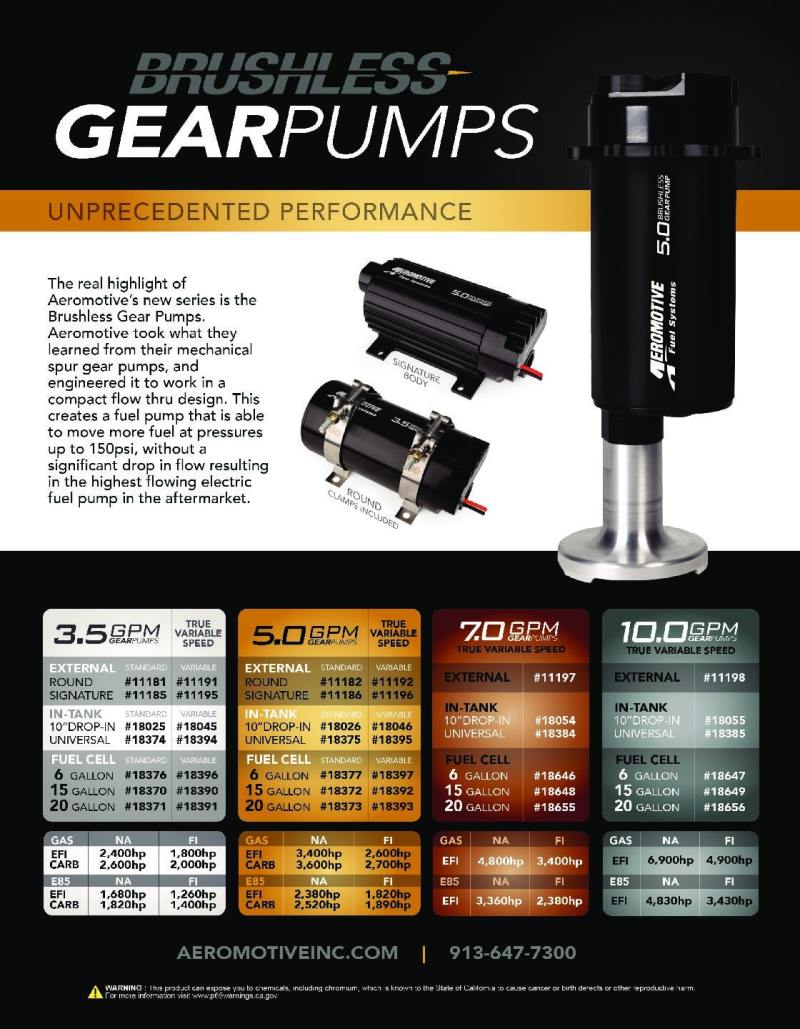

The Aeromotive 18385 is the universal in-tank variant of the 10.0 GPM True Variable Speed brushless spur-gear pump - delivering the same extreme flow capacity as the Stealth module (18055) but in a bare pump configuration for custom in-tank or fabricated fuel cell installations. At 10.0 GPM, it is the highest-output in-tank brushless electric fuel pump Aeromotive offers, capable of supporting up to 7,600 FWHP on gasoline carbureted builds and 6,900 FWHP on EFI across a wide range of naturally aspirated and forced induction applications.

The integrated True Variable Speed (TVS) Controller automatically modulates pump RPM via a 0-5V analog input, reducing fuel recycling and motor heat at idle and part-throttle while ramping to full flow on demand. The brushless spur-gear motor delivers a flatter flow curve as system pressure rises, significantly lower current draw than brushed alternatives, and a much longer service life in E85, methanol, and ethanol environments. Unlike the 18055 Stealth module, the 18385 does not include an integrated pickup tube - it is intended for custom fabricated tank installations where the builder provides their own pickup configuration. A compatible bypass-style fuel pressure regulator is required and sold separately.
