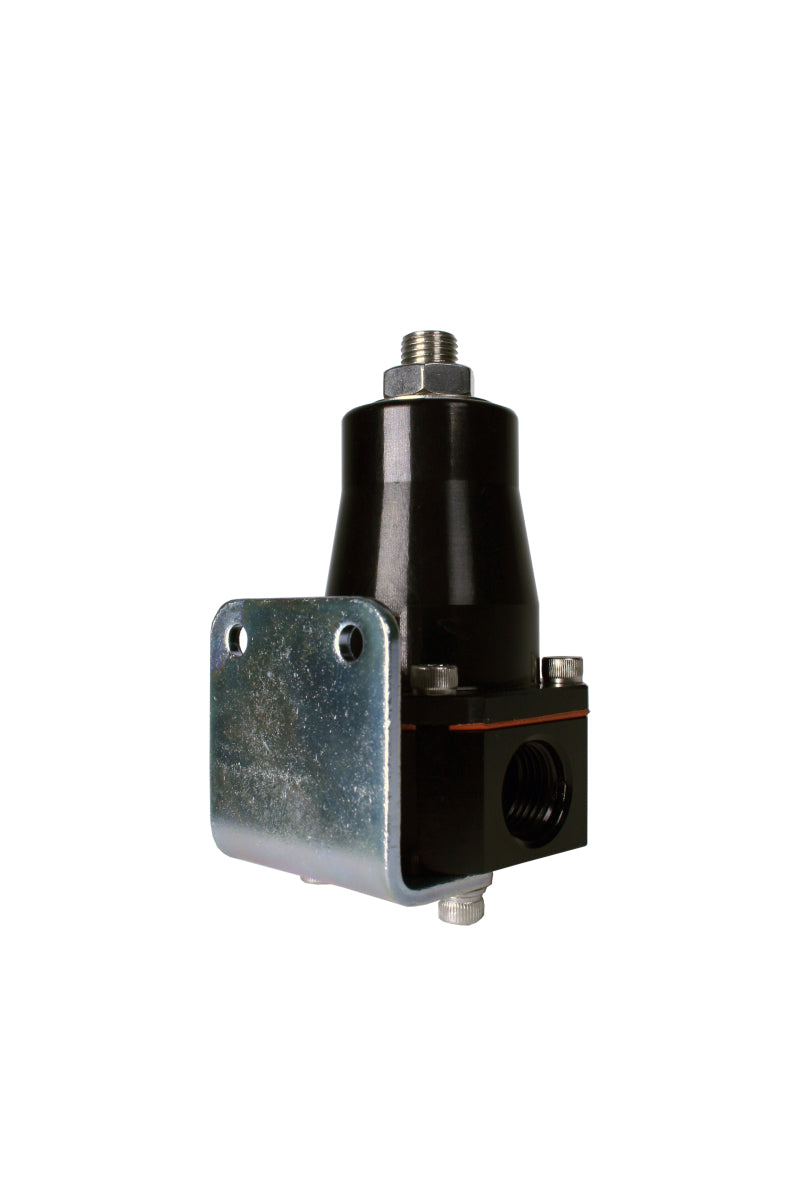

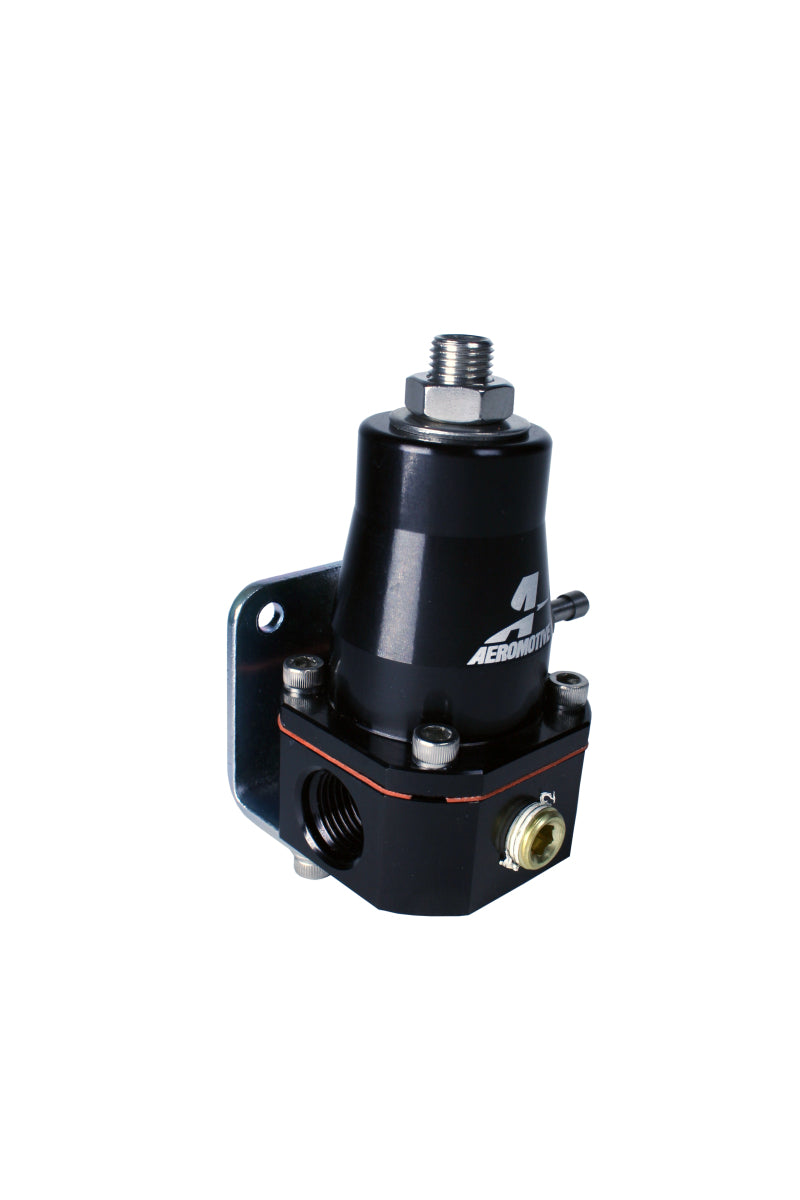

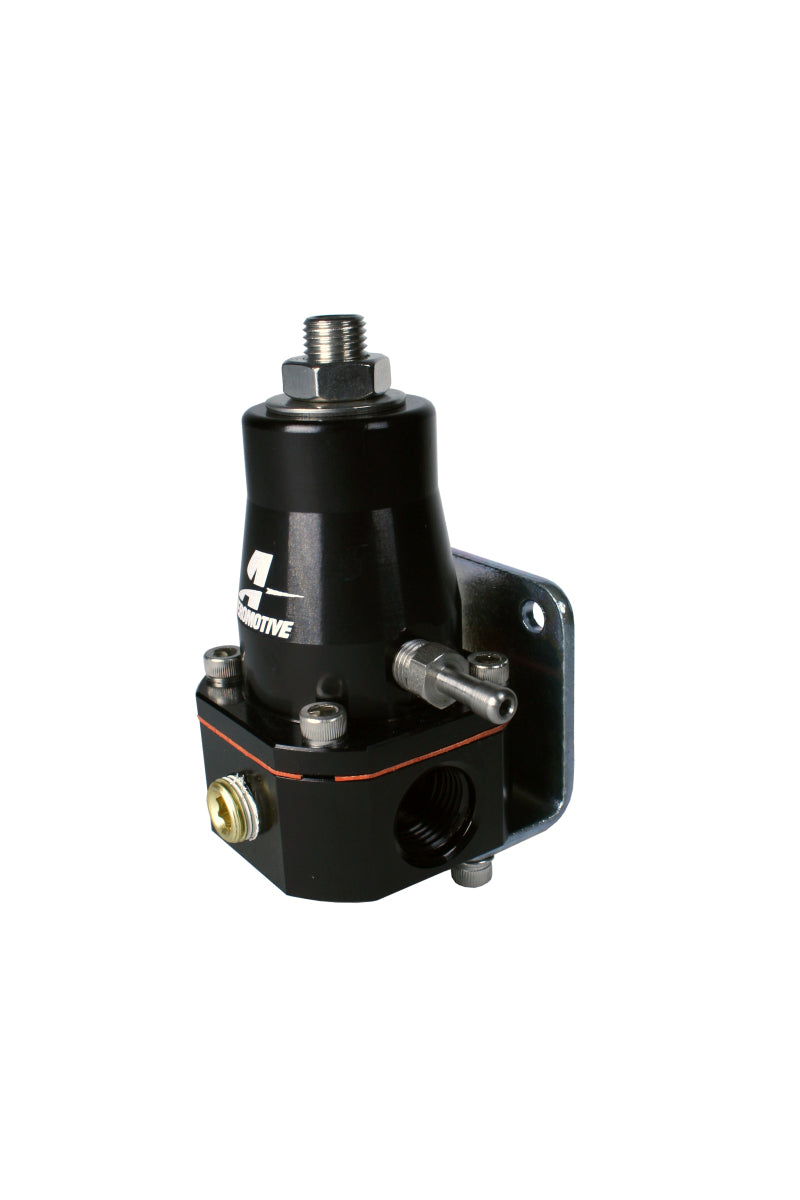

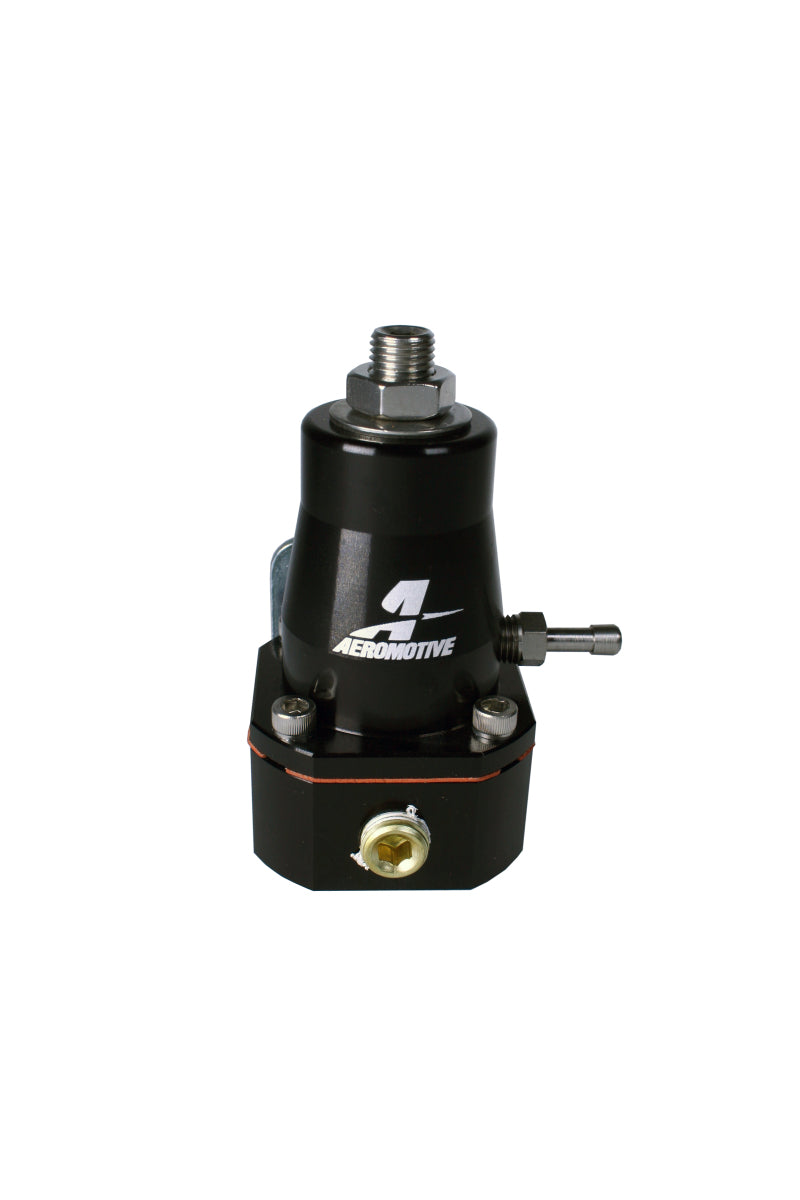

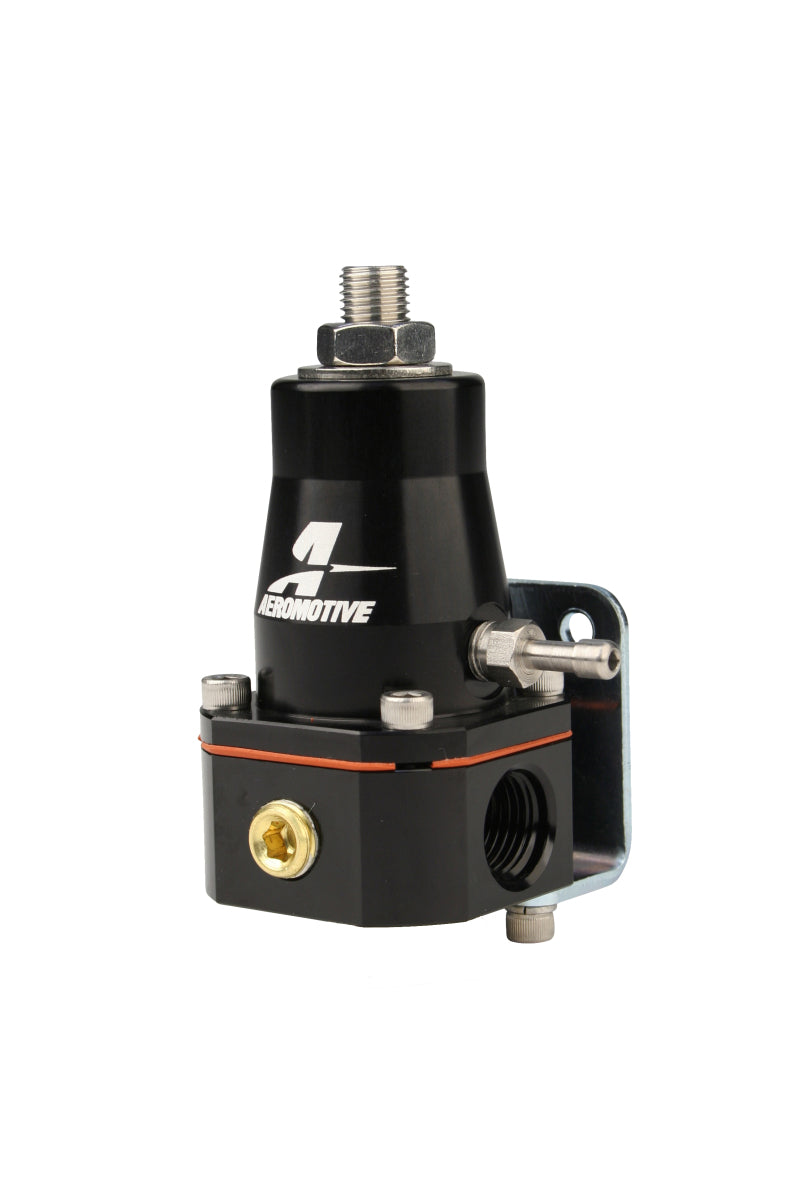

Aeromotive 13136 Compact EFI Fuel Pressure Regulator 40-75 PSI - Universal

Vehicle Fitment

• Universal fitment for EFI applications up to 1000 HP
• Compatible with gasoline, E85, alcohol, and diesel fuels
• Ideal for custom builds, LS swaps, and space-constrained installations

Features

• Adjustable base pressure from 40 to 75 PSI for precise fuel control
• 1:1 boost reference via vacuum port for consistent fuel pressure under boost
• Compact design suitable for high-performance street and racing applications
• Black anodized CNC-machined 6061-T6 billet aluminum construction for durability and corrosion resistance
• Includes stainless steel mounting bracket for secure installation
• 1/8" NPT gauge port for easy fuel pressure monitoring

Specifications

• Part Number: 13136
• Fuel Compatibility: Gasoline, E85, Alcohol, Diesel
• Pressure Range: 40-75 PSI (adjustable)
• Ports: (2) ORB-06 inlet/outlet, (1) ORB-06 return, (1) 1/8" NPT gauge port
• Boost Reference: 1:1 via vacuum port
• Material: CNC-machined 6061-T6 billet aluminum
• Finish: Black anodized
• Mounting Bracket: Included
• Warranty: 1-year limited warranty

Included Components

• (1) Aeromotive 13136 Compact EFI Fuel Pressure Regulator
• (1) Stainless steel mounting bracket
• Installation instructions

Product Description

The Aeromotive 13136 Compact EFI Fuel Pressure Regulator is engineered for high-performance EFI applications requiring precise fuel pressure control. Its compact design makes it an excellent choice for installations where space is limited, such as custom builds and engine swaps.

With an adjustable base pressure range of 40 to 75 PSI and a 1:1 boost reference capability, this regulator ensures consistent fuel delivery under varying engine loads. Constructed from CNC-machined 6061-T6 billet aluminum and finished with a black anodized coating, it offers both durability and corrosion resistance.

The regulator features (2) ORB-06 inlet/outlet ports, (1) ORB-06 return port, and a 1/8" NPT gauge port for easy monitoring. Compatible with gasoline, E85, alcohol, and diesel fuels, the Aeromotive 13136 is a versatile solution for a wide range of EFI setups.
