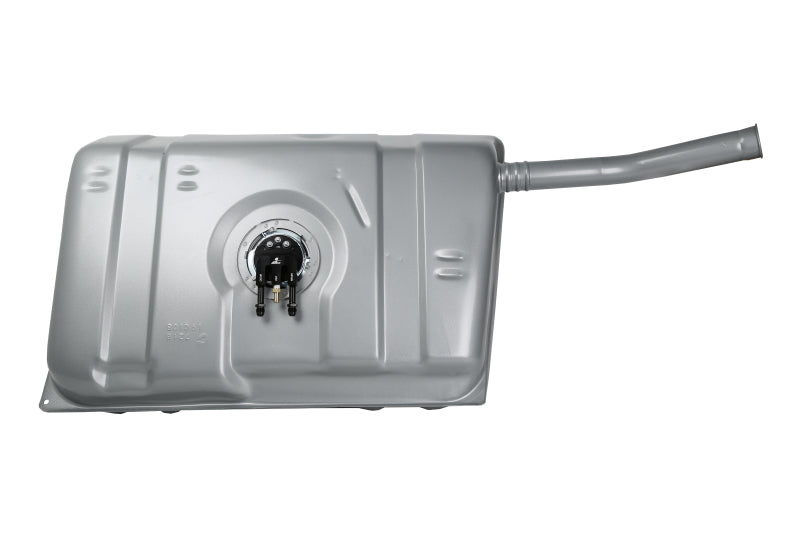

Aeromotive 18471 14Gal GenII Stealth Fuel Tank w/ 340LPH Pump 82-92 C

Vehicle Fitment

• 1982-1992 Chevrolet Camaro (All Trims)
• 1982-1992 Pontiac Firebird (All Trims)

Features

• Complete Gen II Stealth fuel tank assembly with pre-installed 340 LPH in-tank pump
• 14-gallon steel tank with internal Phantom baffle technology for stable fuel supply
• Calibrated 0-90 Ohm fuel level sending unit included
• Billet hat with AN-06/ORB-06 fuel outlet and return ports
• OEM-location fuel outlet, vent, and electrical terminals for flush installation
• Plug-and-play - arrives fully assembled and ready to install

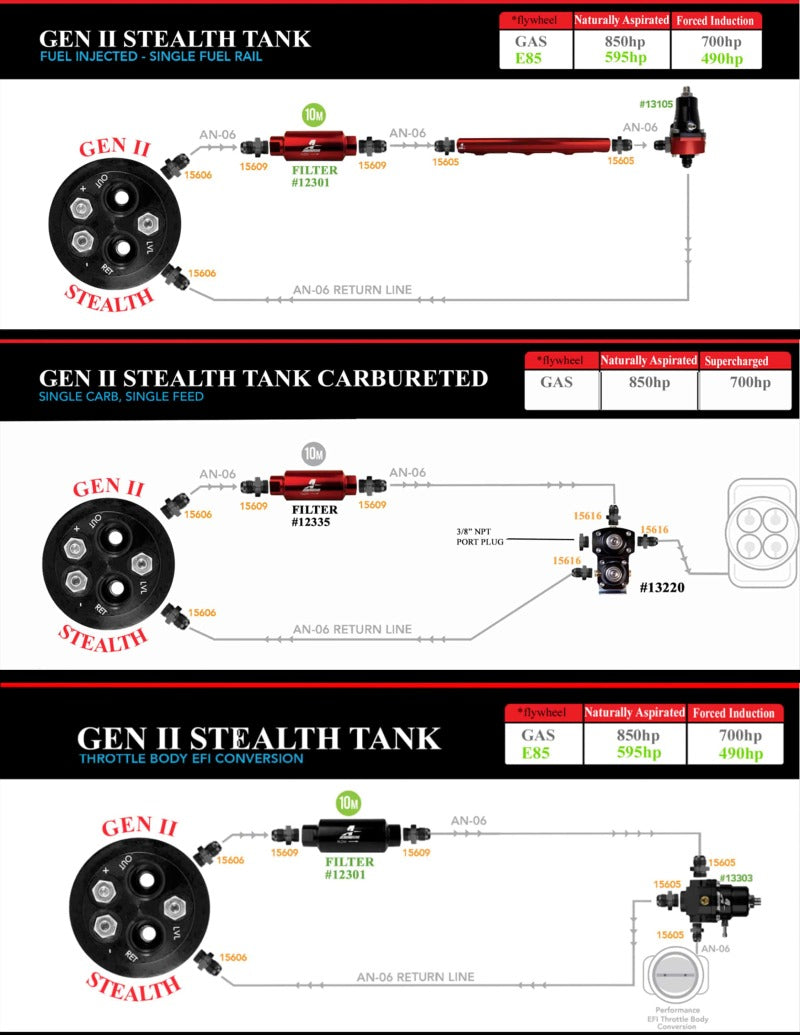

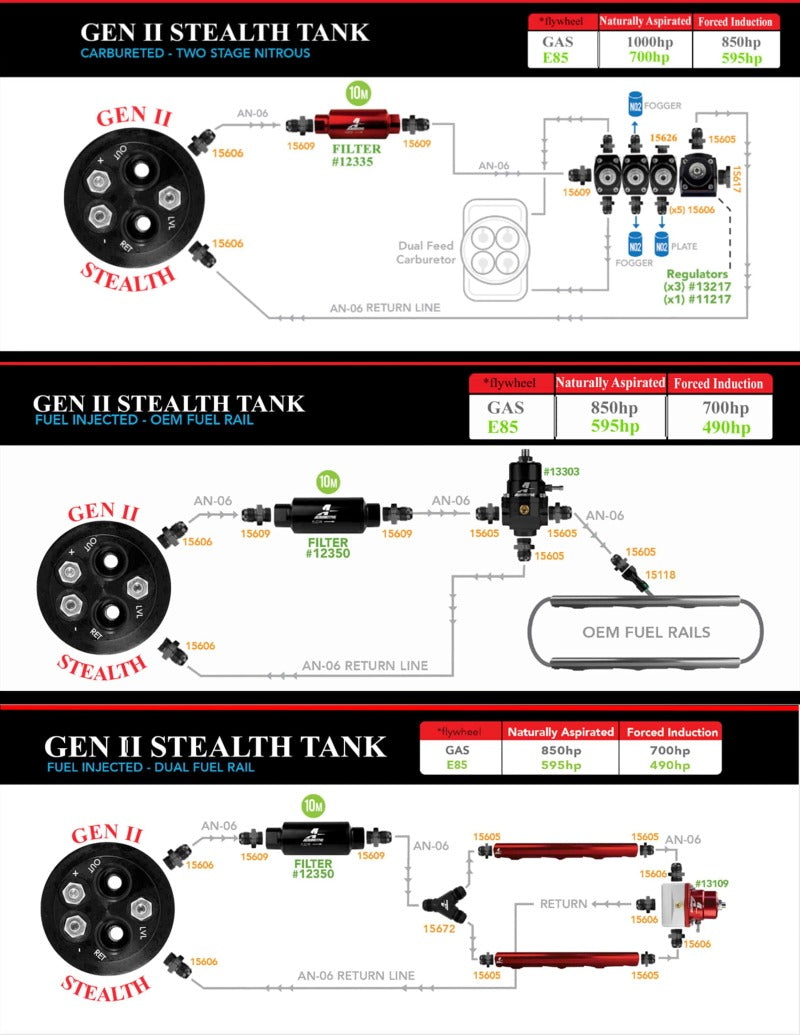

• Supports both EFI and carbureted engines with proper regulator plumbing
• Quiet Stealth pump operation with high-flow performance

Specifications

• Brand: Aeromotive
• Part Number: 18471
• Tank Capacity: 14 gallons
• Fuel Pump Flow: 340 LPH (approx. 90 GPH)
• Sending Unit: 0-90 Ohm calibrated
• Material: Steel tank with silver finish
• Outlet/Return Ports: AN-06/ORB-06
• Fuel Type: Gasoline; compatible with E85 when properly plumbed
• Installation: OEM-location plug-and-play

Included Components

• 1x Gen II Stealth steel fuel tank (14 Gal)
• 1x 340 LPH Stealth in-tank fuel pump (pre-installed)
• 1x Calibrated 0-90 Ohm fuel level sending unit
• 1x Billet hat with AN-06/ORB-06 outlet and return fittings

Product Description

The Aeromotive 18471 Gen II Stealth Fuel Tank with 340 LPH pump is a high-performance fuel delivery upgrade engineered specifically for **1982-1992 Chevrolet Camaro and Pontiac Firebird** applications. This complete assembly combines a 14-gallon steel tank with Aeromotive's internal Phantom baffling technology to maintain consistent fuel flow to the pump even during aggressive driving or cornering. The quiet, high-flow 340 LPH Stealth in-tank pump supports both EFI and carbureted systems when paired with appropriate regulators and plumbing.

Designed with OEM-location outlet, vent, and electrical connections, the 18471 offers a true plug-and-play installation that utilizes existing mounting straps, filler neck, and seals without requiring tank modification. A calibrated 0-90 Ohm fuel level sending unit is included to ensure accurate gauge readings, and the billet hat with AN-06/ORB-06 fittings simplifies integration with aftermarket fuel lines and components. This fuel tank assembly is an ideal choice for performance restorations, street builds, and race machines needing reliable high-flow fuel delivery in classic GM F-Body vehicles.

While engineered for performance and durability, this part **is not legal for sale or use on emission-controlled vehicles** except where it directly replaces an OEM-specification component in equivalent application. Always verify fitment compatibility and plumbing requirements before installation to ensure optimal performance and safety in your build.
