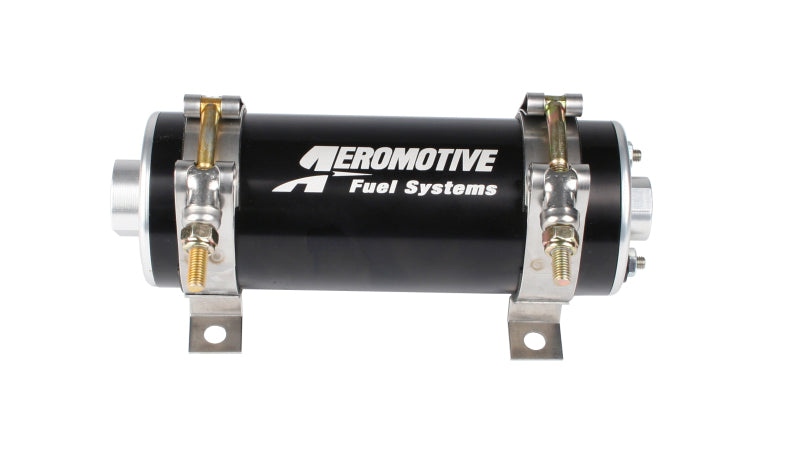

Aeromotive 11103 A750 High-Flow EFI/Carb Fuel Pump

Vehicle Fitment

• Universal application - compatible with a wide range of fuel system setups

Features

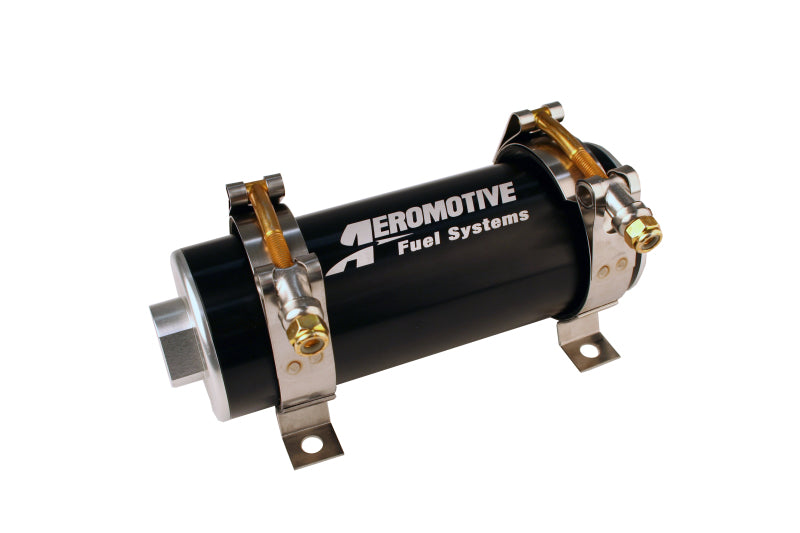

• Billet A750 series electric fuel pump for EFI and carbureted engines
• Compact, quiet and durable design for street rods, muscle cars, and performance builds
• Supports up to ~800 HP naturally aspirated and ~600 HP forced induction EFI applications
• Capable of up to ~1,000 HP naturally aspirated and ~800 HP forced induction carbureted use
• ORB-8 inlet and ORB-6 outlet ports for AN hose compatibility
• Fully submersible design allows in-tank or external mounting
• Pulse width modulation (PWM) compatible for advanced fuel control systems
• Ideal for custom fuel systems or high-flow upgrades

Specifications

• Part Number: 11103
• Series: A750 electric fuel pump

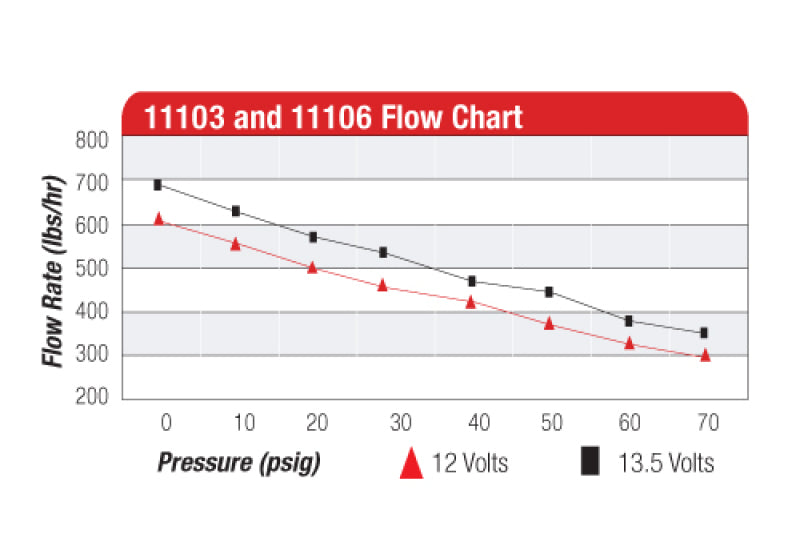

• Maximum Flow: ~750 lb/hr (~95 gph) fuel delivery capacity
• Fuel Type: Gasoline, E85 compatible
• Maximum Pressure: ~100 PSI (application dependent)

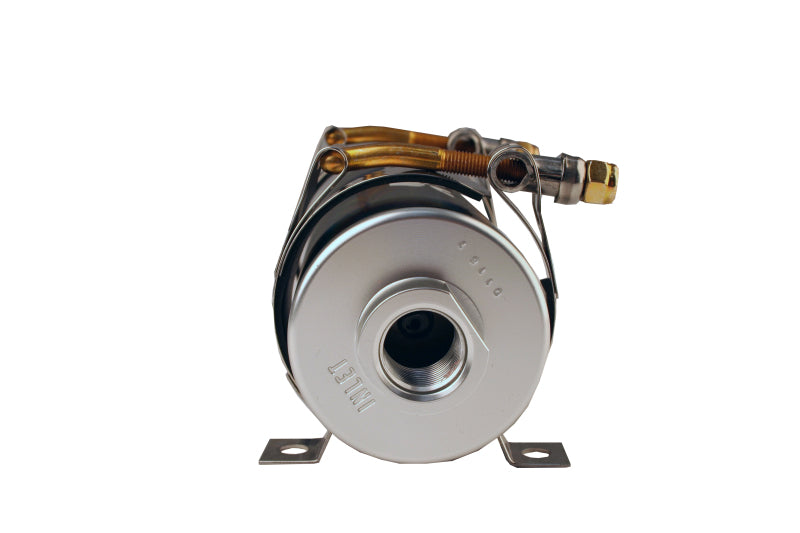

• Inlet Port: ORB-8 female

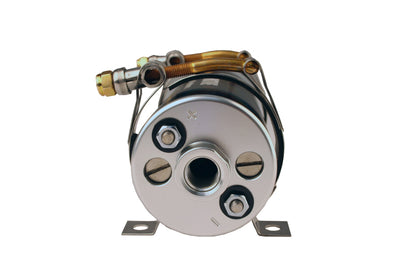

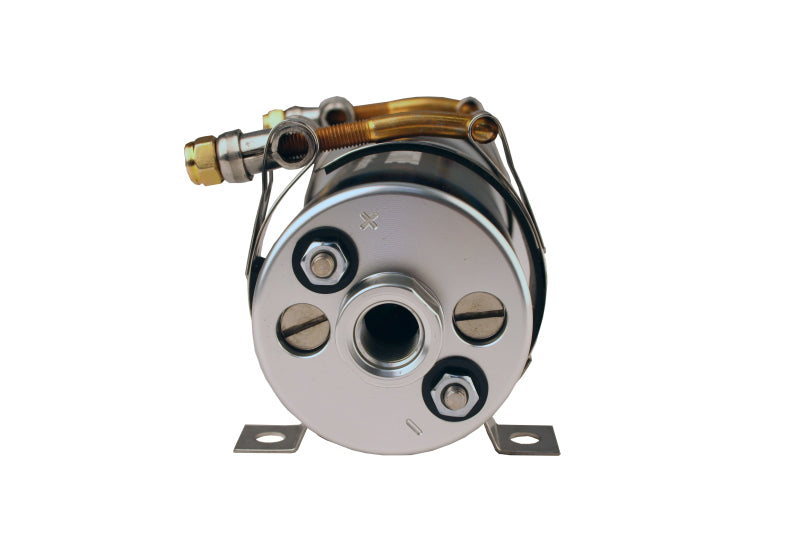

• Outlet Port: ORB-6 female
• Voltage: 12 V DC
• Installation: External or in-tank submersible capable

Included Components

• 1x Aeromotive A750 fuel pump (11103)
• 1x Mounting bracket
• Installation instructions

Product Description

The Aeromotive 11103 A750 High-Flow EFI/Carb Fuel Pump is a universal performance electric pump engineered for both electronic fuel injection and carbureted applications. Featuring a compact billet housing, this A750 series pump delivers robust fuel flow suitable for high-output engines - supporting up to approximately 800 HP in naturally aspirated EFI setups and up to ~600 HP with forced induction. For carbureted applications, it can support up to ~1,000 HP naturally aspirated and ~800 HP forced induction, making it a versatile choice for many performance builds.

With ORB-8 inlet and ORB-6 outlet ports, the pump easily integrates with AN-style fuel plumbing. Its durable, quiet operation and submersible design allow flexible mounting options - external mounting or in-tank submersion where the system design allows. The A750 pump is compatible with gasoline and ethanol-blended fuels like E85 and is pulse width modulation (PWM) capable for advanced fuel control systems.

Ideal for street rods, muscle cars, and custom fuel system applications, the Aeromotive 11103 provides dependable delivery and performance for a wide range of engine builds. Note that this universal part does not affect emissions compliance but should be matched to a suitable regulator and plumbing setup for reliable operation in your specific project.
