Aeromotive 18447 340LPH GenII Stealth Fuel Tank w/ Pump for 1969-1970 Mu

Vehicle Fitment

• 1969-1970 Ford Mustang (All Trims)

Features

• Complete Gen II Stealth fuel tank assembly with high-flow 340 LPH in-tank pump
• 20-gallon steel tank with internal Phantom baffle technology for stable fuel delivery
• Pre-installed calibrated 73-10 Ohm fuel level sending unit

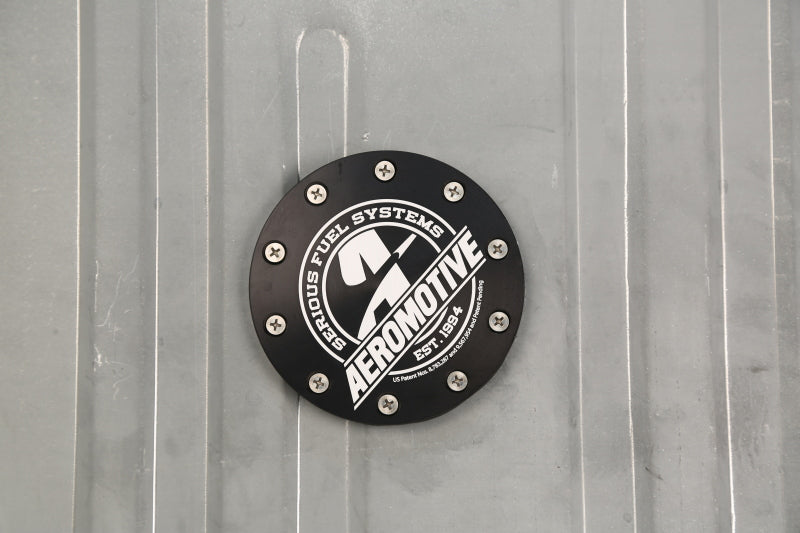

• Billet hat with ORB-06 fuel outlet and return ports
• Plug-and-play - fully assembled and ready for installation
• Compatible with EFI and carbureted engines with proper regulator plumbing
• Quiet Stealth pump operation with high-flow capability
• OEM fitment - uses stock outlet location, straps, filler, and vent

Specifications

• Brand: Aeromotive
• Part Number: 18447
• Tank Capacity: 20 gallons
• Fuel Pump: 340 LPH Stealth in-tank pump
• Sending Unit: 73-10 Ohm calibrated
• Material: Steel with silver finish
• Outlet/Return Ports: ORB-06
• Fuel Types: Gasoline and E85 compatible with proper plumbing
• Installation: OEM location plug-and-play

Included Components

• 1x 20-gallon steel Gen II Stealth fuel tank
• 1x High-flow 340 LPH Stealth in-tank fuel pump
• 1x Calibrated 73-10 Ohm fuel level sending unit
• 1x Billet hat with ORB-06 outlet and return fittings

Product Description

The Aeromotive 18447 Gen II Stealth Fuel Tank is a direct-replacement performance fuel delivery solution engineered specifically for **1969-1970 Ford Mustang** models. This fully assembled tank integrates a high-flow 340 LPH Stealth in-tank pump and a calibrated 73-10 Ohm sending unit within a baffled 20-gallon steel tank to deliver consistent fuel supply under hard acceleration and performance driving. The patented Phantom internal baffle ensures the pump remains submerged and fed even during cornering or low fuel situations.

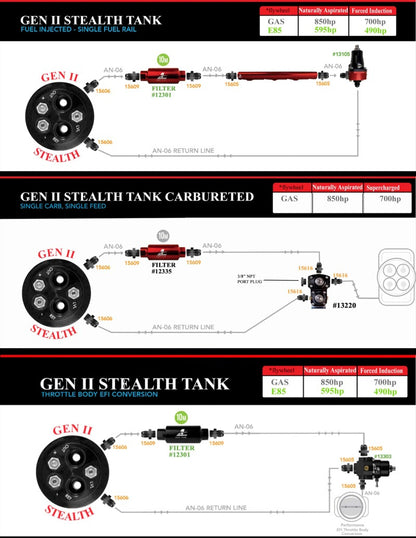

Built for both EFI and carbureted applications (with appropriate fuel pressure regulation and plumbing), the 18447 arrives ready for install with the fuel pump, sending unit, and fuel/electrical bulkhead fully assembled. A billet hat with ORB-06 outlet and return ports simplifies integration with aftermarket fuel system plumbing while OEM-location connections - including stock outlet position, mounting straps, filler, and vent - provide a plug-and-play installation.

Rated to support elevated horsepower levels with reliable flow, this fuel tank helps eliminate fuel starvation and improves overall fuel delivery system performance in classic Mustang restorations and performance upgrades. Note that this product **is not legal for sale or use on emission-controlled vehicles** except when used as a direct replacement matching OEM specifications. Always verify fitment and plumbing compatibility with your build before installation.
