Aeromotive 18859 Gen II Stealth Fuel Tank w/525 LPH Pump for 68-70 Dodge Charger

Vehicle Fitment

• 1968-1970 Dodge Charger

Fitment Notes

• Gen II Stealth in-tank EFI fuel system -- ideal for Hellcat engine swaps
• Outlet, return, and electrical ports positioned in OEM location for flush floor installation
• No tank strap modification or spacers required
• Fuel level sending unit uses 73-10 ohm resistance -- verify gauge compatibility
• Not legal for sale or use on emission-controlled vehicles except as a direct OEM-spec replacement
• 200 LPH version: Aeromotive 18159 (5.7L / 6.1L Hemi swaps)
• 340 LPH version: Aeromotive 18459 (6.1L / 6.4L Hemi swaps)

Features

• Patented Phantom in-tank baffle technology for consistent fuel delivery
• 525 LPH Stealth high-flow EFI fuel pump -- pre-installed
• Quiet in-tank pump operation
• Baffle maintains fuel supply around pump inlet even in low-fuel conditions
• AN-06 O-ring inlet and outlet ports in factory stock location
• Comes fully assembled -- true plug-and-play installation
• Fuel pump, sending unit, and fuel/electrical bulkhead pre-installed
• 19-gallon capacity

Specifications

• Part number: Aeromotive 18859
• Series: Gen II Stealth
• Pump flow rate: 525 LPH
• Tank capacity: 19 gallons
• Fuel level sending unit: 73-10 ohm
• Ports: AN-06 O-ring inlet and outlet
• EFI gasoline support: up to 1,200 HP naturally aspirated / 900 HP forced induction
• EFI E85 support: up to 810 HP naturally aspirated / 600 HP forced induction
• Carbureted gasoline support: up to 1,400 HP naturally aspirated / 1,100 HP forced induction
• Carbureted E85 support: up to 950 HP naturally aspirated / 740 HP forced induction
• UPC: 684980011654

Included Components

• Gen II Stealth 19-gallon fuel tank
• 525 LPH Stealth in-tank fuel pump -- pre-installed
• Phantom baffle assembly -- pre-installed
• 73-10 ohm fuel level sending unit -- pre-installed
• Fuel/electrical bulkhead -- pre-installed
• Fuel sock

Product Description

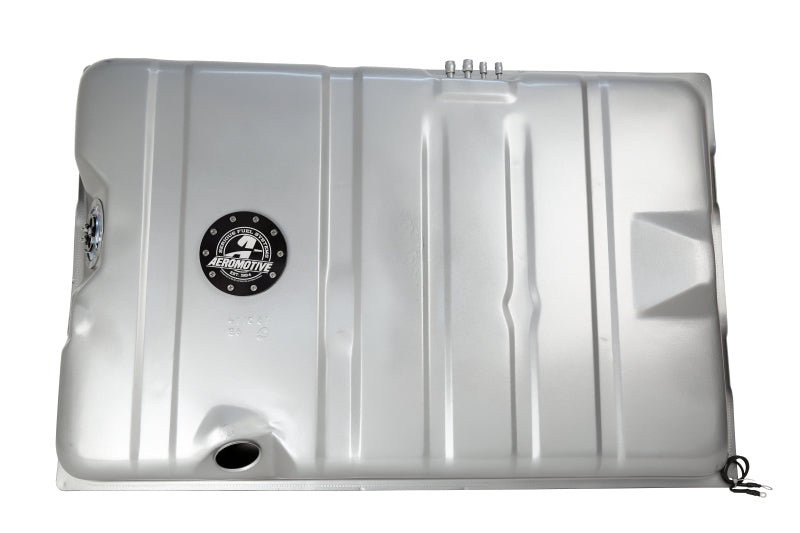

The Aeromotive 18859 is a Gen II Stealth fuel tank for the 1968-1970 Dodge Charger, designed specifically for high-horsepower Hellcat engine swaps. This 19-gallon tank comes fully assembled with a pre-installed 525 LPH Stealth high-flow EFI fuel pump, Phantom in-tank baffle assembly, 73-10 ohm fuel level sending unit, and fuel/electrical bulkhead for true plug-and-play installation. Aeromotive's patented Phantom in-tank technology maintains an ample fuel supply around the pump inlet, ensuring consistent fuel delivery and drivability even in low-fuel conditions while keeping pump operation quiet. The tank features AN-06 O-ring inlet and outlet ports positioned in the OEM location, enabling flush installation to the vehicle floor without tank strap modification or spacers. On gasoline with EFI, the 525 LPH pump supports up to 1,200 horsepower naturally aspirated or 900 horsepower with forced induction. E85-compatible applications are supported up to 810 HP naturally aspirated or 600 HP with forced induction. Lower-flow versions are available for milder builds: the 18159 with a 200 LPH pump for 5.7L and 6.1L Hemi swaps, and the 18459 with a 340 LPH pump for 6.1L and 6.4L Hemi swaps. Not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
