Aeromotive 18497 340LPH GenII Stealth Fuel Tank w/ Pump for 1964-1968 Mu

Vehicle Fitment

• 1964-1968 Ford Mustang (Base, GT, Shelby GT-350, GT-500, GT-500KR)

Features

• Gen II Stealth fuel tank assembly with pre-installed 340 LPH high-flow fuel pump

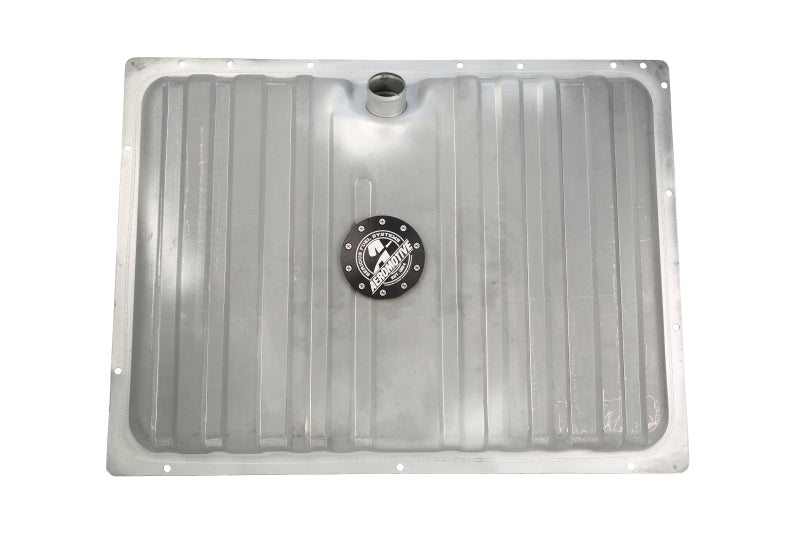

• OEM-style 16-gallon steel tank with internal Phantom baffling for stable fuel supply
• Calibrated 0-90 Ohm fuel level sending unit included

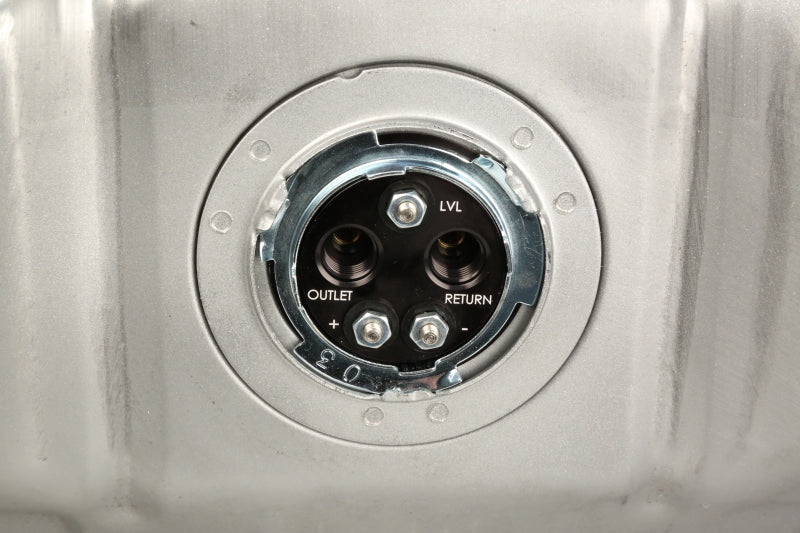

• Billet hat with ORB-06 outlet and return ports for modern plumbing
• Fuel outlet and electrical terminals positioned in OEM locations
• Plug-and-play - arrives fully assembled and ready to install
• Supports EFI and carbureted engines when paired with proper regulators
• Quiet operation with robust flow for higher horsepower builds

Specifications

• Brand: Aeromotive
• Part Number: 18497
• Tank Capacity: 16 gallons
• Fuel Pump Flow: 340 LPH (~90 GPH) at typical pressure
• Sending Unit: 0-90 Ohm calibrated
• Material: Steel with silver finish
• Outlet/Return Ports: ORB-06
• Fuel Type: Gasoline; E85 compatible with proper plumbing
• Installation: Direct OEM-location fitment

Included Components

• 1x Gen II Stealth 16-gallon steel fuel tank
• 1x 340 LPH Stealth in-tank fuel pump (pre-installed)
• 1x Calibrated 0-90 Ohm fuel level sending unit
• 1x Billet hat with ORB-06 outlet and return fittings

Product Description

The Aeromotive 18497 Gen II Stealth Fuel Tank is a premium performance fuel delivery upgrade engineered specifically for **1964-1968 Ford Mustang** models - including base, GT, and Shelby GT-350/GT-500 variants. Built around a robust 16-gallon steel tank with patented Phantom internal baffle technology, this assembly maintains a consistent fuel supply to the high-flow 340 LPH Stealth pump even during hard acceleration and cornering, reducing the risk of fuel starvation while enhancing drivability and performance.

Arriving fully assembled with the pump and a calibrated 0-90 Ohm sending unit already installed, the 18497 Gen II Stealth tank simplifies installation with OEM-location outlet, vent, and electrical connections for a true plug-and-play experience. The billet hat with ORB-06 outlet and return ports allows integration with modern EFI or carbureted fuel systems when used alongside an appropriate high-flow regulator and plumbing.

Designed to support performance goals - capable of feeding fuel systems in builds up to approximate high horsepower ranges depending on induction and fuel type - this fuel tank assembly is ideal for classic Mustang restorations and performance upgrades. While engineered for enhanced fuel delivery, it **is not legal for sale or use on emission-controlled vehicles** except where it directly replaces an OEM-spec component. Always verify fitment compatibility and plumbing requirements before installation.
