Aeromotive 11186 for External Fuel Pumps

Vehicle Fitment

• Universal Fit - compatible with any high-performance EFI, carbureted, E85, methanol, or ethanol fuel system requiring an external inline electric fuel pump

Fitment Notes

• Universal fitment - not vehicle-specific. Customer must verify mounting location, fuel line sizing, and regulator compatibility before installation.
• For EFI applications: requires Aeromotive fuel pressure regulator P/N 13134 or P/N 13110 (sold separately).
• For carbureted applications: requires regulator P/N 13202 or P/N 13212 (sold separately).
• Requires a straight 12VDC to 16VDC power supply - not compatible with pulse modulated systems or fuel pump speed controllers.
• Not compatible with 16V racing charging systems (16-18V range). A voltage regulator or step-down converter is required for 16V systems.
• Aeromotive recommends -12 AN fuel line from the tank to the pump for best performance.
• Upgradeable to True Variable Speed operation via Aeromotive retrofit kit P/N 18047 (sold separately).
• Also available as a drop-in Stealth Module and in complete Stealth Fuel Cell configurations.
• Not legal for sale or use on emissions-controlled vehicles except on dedicated race vehicles.

Features

• Signature housing with integrated mounting feet for simplified frame or bracket installation without additional hardware
• 5.0 GPM flow rate at 13.5V and 40 PSI - highest-flowing electric fuel pump available on the market
• Integral spur-gear pumping mechanism maintains flow at elevated pressures with minimal drop - flatter flow curve than traditional pumps
• Brushless motor technology delivers reduced current draw, lower heat, less noise, and extended service life
• 90 PSI continuous operating pressure with up to 150 PSI peak capability (base plus boost)
• Integral external brushless motor controller included for clean installation and cooler fuel temperatures
• Compatible with gasoline, E85, methanol, ethanol, and most race fuels
• Lighter than traditional external mount pumps with higher output and lower power consumption

Specifications

• Flow Rate: 5.0 GPM (free flow)
• EFI Rated Flow: 1,700 lbs/hr @ 40 PSI, 13.5V
• Carb Rated Flow: 1,850 lbs/hr @ 9 PSI, 13.5V
• Continuous Operating Pressure: 90 PSI
• Peak Pressure: 150 PSI (base plus boost)
• Inlet Port: ORB-12 (-12 AN O-Ring Boss)
• Outlet Port: ORB-10 (-10 AN O-Ring Boss)
• Motor Type: Brushless with Integral External Controller
• Power Requirement: 12VDC-16VDC (straight supply only)
• Housing Style: Signature - with Integrated Mounting Feet
• Body Material: Aluminum - Black Finish
• HP Support - Gas EFI: Up to 3,400 FWHP (NA) / 2,600 FWHP (forced induction)
• HP Support - Gas Carb: Up to 3,600 FWHP (NA) / 2,700 FWHP (forced induction)
• HP Support - E85 EFI: Up to 2,380 FWHP (NA) / 1,820 FWHP (forced induction)
• HP Support - E85 Carb: Up to 2,520 FWHP (NA) / 1,890 FWHP (forced induction)
• HP Support - Methanol EFI: Up to 1,190 FWHP (NA) / 910 FWHP (forced induction)
• HP Support - Methanol Carb: Up to 1,260 FWHP (NA) / 945 FWHP (forced induction)

Included Components

• 1x Aeromotive Pro-Series 5.0 GPM Brushless Gear Fuel Pump - Signature Housing (11186)
• 1x Integral External Brushless Motor Controller

Product Description

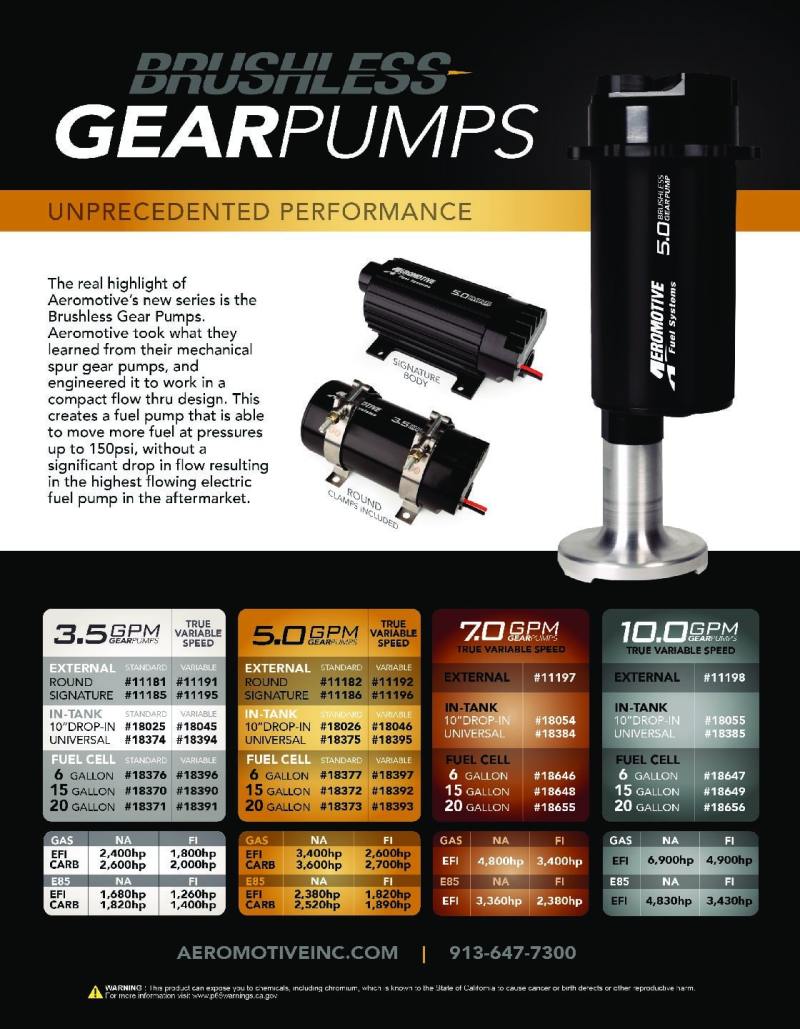

The Aeromotive 11186 is the Signature housing variant of the flagship Pro-Series 5.0 GPM Brushless Gear Pump, distinguished from the 11182 round-body version by its flat-sided Signature housing with integrated mounting feet - eliminating the need for a separate bracket and simplifying installation in chassis, frame rail, and custom fuel cell setups. Like all pumps in this series, the 11186 delivers 5.0 gallons per minute at 13.5V and 40 PSI, making it the single highest-flowing electric fuel pump on the market.

Its integral spur-gear mechanism sustains fuel flow at high pressure far more efficiently than vane or roller-style pumps, while the brushless motor provides precise RPM control as system pressure rises - resulting in a flatter flow curve, less current draw, reduced heat, and a dramatically longer service life. The pump is fully compatible with gasoline, E85, methanol, and ethanol, with fuel-specific horsepower ratings verified across all application types. A bypass-style fuel pressure regulator is required and sold separately, and the pump can be upgraded to True Variable Speed capability via Aeromotive's P/N 18047 retrofit kit.
