Aeromotive 11569 Stealth 340LPH In-Tank Fuel Pump Universal EFI Gas & E85

Regular price: $162.50
Regular price: ~~$162.50~~
Sale price: $162.50

Shipping calculated at checkout.

In Stock: 0

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:AER11569

MPN: 11569

UPC: 684980008173

Weight: 1.3 lb

Type: Fuel Pumps

Vehicle Fitment

Universal in-tank EFI fuel pump for gasoline and E85-compatible systems
Designed to retrofit most factory and aftermarket fuel tanks (39mm body size)

Features

Supports up to 700 HP naturally aspirated or 600 HP forced induction (EFI)
Fully compatible with E85 ethanol and gasoline fuels
High-efficiency turbine impeller design maintains flow at high pressures
Compact 39mm body fits most factory hanger assemblies
Pulse-width modulation (PWM) compatible for modern ECUs
Quiet, durable, and vibration-resistant operation
Includes universal install kit with filter sock, clamps, wiring pigtail, and hose
Backed by a 1-year limited manufacturer warranty

Specifications

Flow rate: 340 LPH @ 40 PSI / 13.5V
Fuel compatibility: E85 ethanol and pump gasoline
Max operating pressure: 90 PSI
Electrical connection: 2-pin pigtail (included)

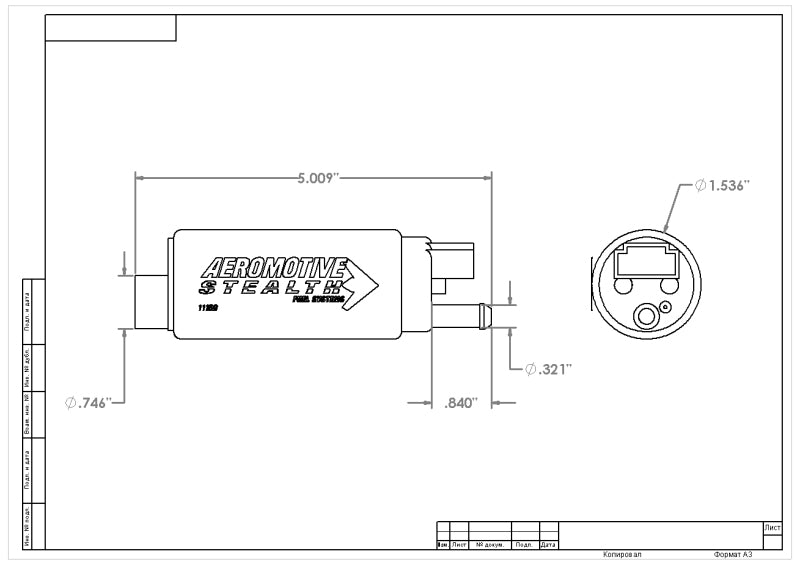

Body diameter: 39mm (OEM style)
Installation type: In-tank only (not for external use)
Position: Universal in-tank fuel pump

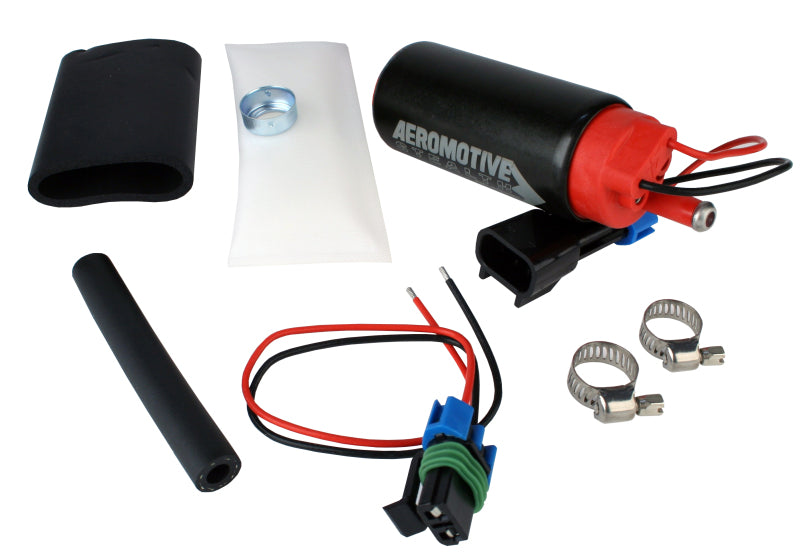

Included Components

1x Aeromotive 11569 Stealth 340LPH E85-compatible in-tank fuel pump
1x Installation kit (filter sock, wiring harness, clamps, hose, grommet)
1x Instruction manual

Product Description

The Aeromotive 11569 Stealth 340LPH in-tank fuel pump is a high-performance universal solution for EFI systems using gasoline or E85 ethanol. Engineered with a compact 39mm body, this pump drops directly into most OEM fuel hanger assemblies without modification. Its turbine-style impeller ensures quiet, efficient operation while maintaining high flow rates under pressure.

Designed for high-horsepower street and racing applications, this pump supports up to 700 HP naturally aspirated or 600 HP with forced induction on EFI systems. It is fully pulse-width modulation (PWM) compatible, making it ideal for late-model ECU-controlled fuel systems. The included installation kit provides everything needed for a clean retrofit. Backed by Aeromotive's 1-year limited warranty, the 11569 is the go-to choice for reliable, E85-compatible fuel delivery.
