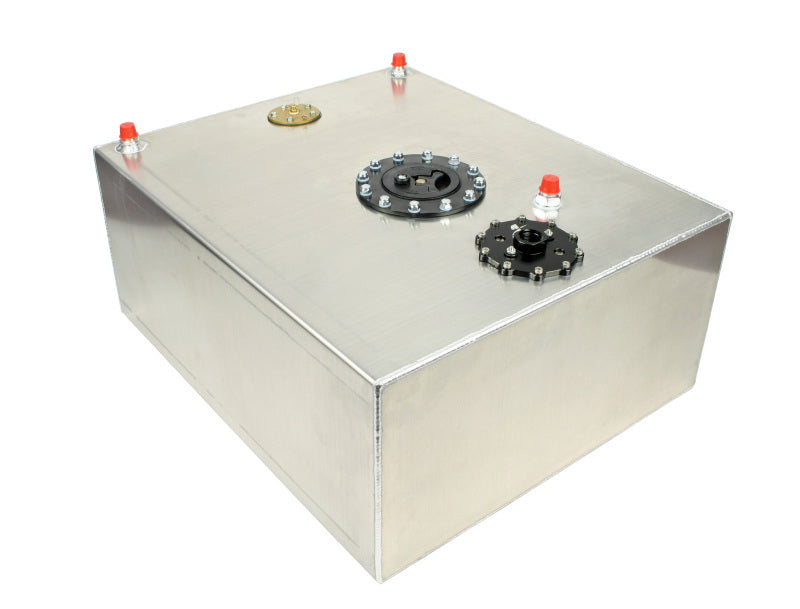

Aeromotive 18661 20Gal A1000 Stealth Fuel Cell w/ Pump Universal Performance

Vehicle Fitment

• Universal - designed for performance fuel delivery systems (not vehicle-specific)

Features

• 20-gallon aluminum fuel cell with integrated high-flow A1000 Stealth pump
• Baffled tank design minimizes fuel slosh and helps keep pump submerged
• Pre-pump 100-micron stainless steel filter for debris protection
• Two AN-08 rollover vents with check valves for proper venting
• -10 AN outlet and -08 AN return ports for modern fuel system plumbing
• Universal 0-90 Ohm fuel level sending unit included
• Standard 12-bolt flush mount lid assembly for secure installation
• Natural aluminum finish - durable and race-ready aesthetic

Specifications

• Brand: Aeromotive
• Part Number: 18661
• Fuel Cell Capacity: 20 gallons
• Tank Material: Aluminum
• Integrated Pump: A1000 Stealth electric fuel pump
• Pre-Pump Filter: 100-micron stainless steel
• Outlet Port: -10 AN
• Return Port: -08 AN
• Vent Ports: (2) -08 AN with check valves
• Fuel Level Sender: 0-90 Ohm universal
• Installation Style: Strap-in universal fuel cell system
• Compatible Fuels: Gasoline, E85, Methanol (as appropriate)

Included Components

• 1x Aeromotive 20-gallon aluminum fuel cell with integrated A1000 pump
• 1x 100-micron stainless pre-pump fuel filter
• 1x Universal 0-90 Ohm fuel level sending unit
• 1x Flush-mount 12-bolt lid assembly

Product Description

The Aeromotive 18661 20 Gallon A1000 Stealth Fuel Cell is a complete universal fuel delivery solution designed to support high-flow applications in racing, street performance, and custom builds where a traditional fuel tank won't suffice. Constructed from lightweight, baffled aluminum, the fuel cell minimizes fuel slosh and keeps the integrated A1000 Stealth pump consistently submerged for reliable performance under acceleration, cornering, and braking. The included 100-micron stainless steel pre-pump filter helps protect internal components from debris while maintaining high flow rates.

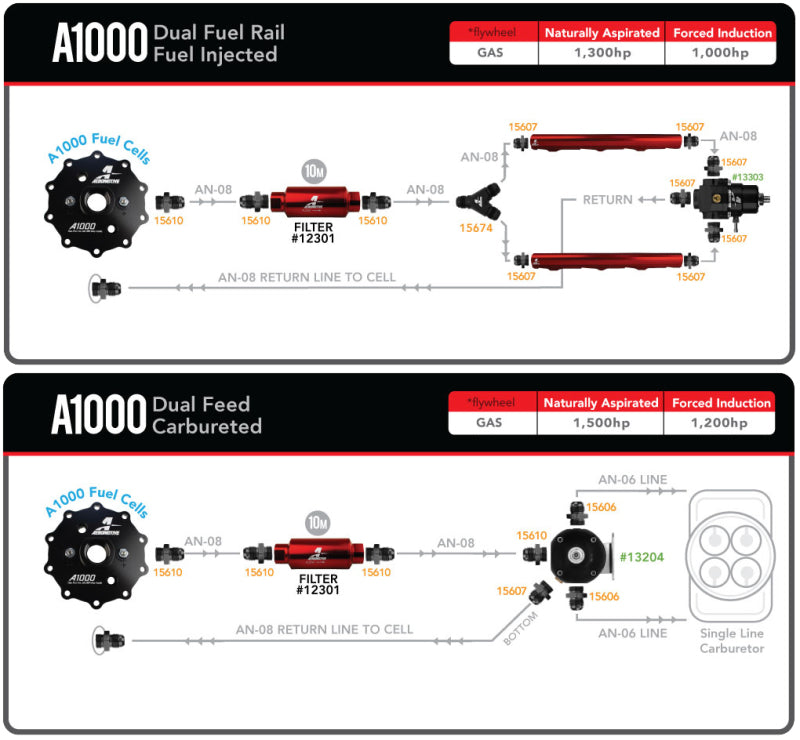

Featuring dual AN-08 rollover vents with check valves and -10 AN outlet with -08 AN return fittings, this fuel cell provides modern plumbing flexibility for both single and return-style systems. The universal 0-90 Ohm fuel level sending unit enables accurate fuel gauge function across many vehicle platforms. Designed for easy installation with the standard 12-bolt flush mount lid, the 18661 strap-in fuel cell integrates into custom chassis, roll cages, or modified fuel bays without extensive modification.

Capable of supporting high horsepower applications - including serious naturally aspirated and forced-induction builds - this fuel cell is ideal for performance EFI and carbureted systems when paired with appropriate regulators and plumbing. Always verify regulator requirements, plumbing compatibility, and pump output relative to your specific application. This product is intended for off-road, competition, or custom fuel system applications and is not legal for sale or use on emission-controlled vehicles except where allowed as a direct OEM replacement under applicable regulations.
