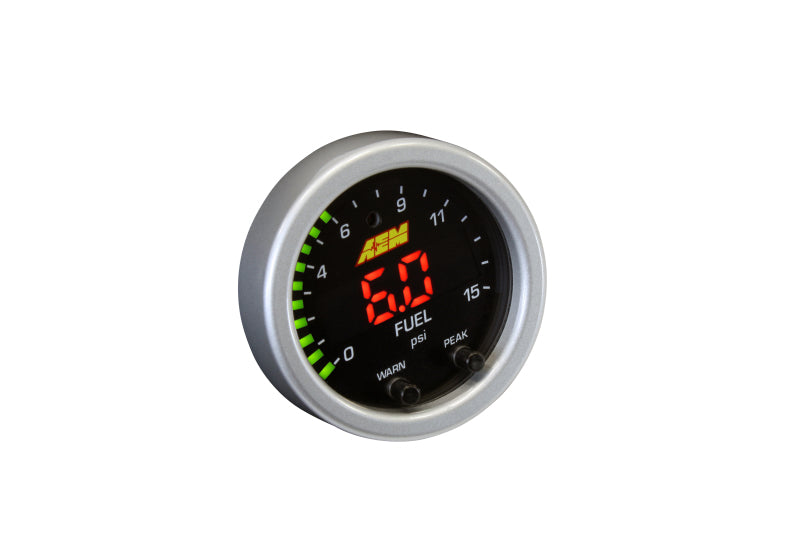

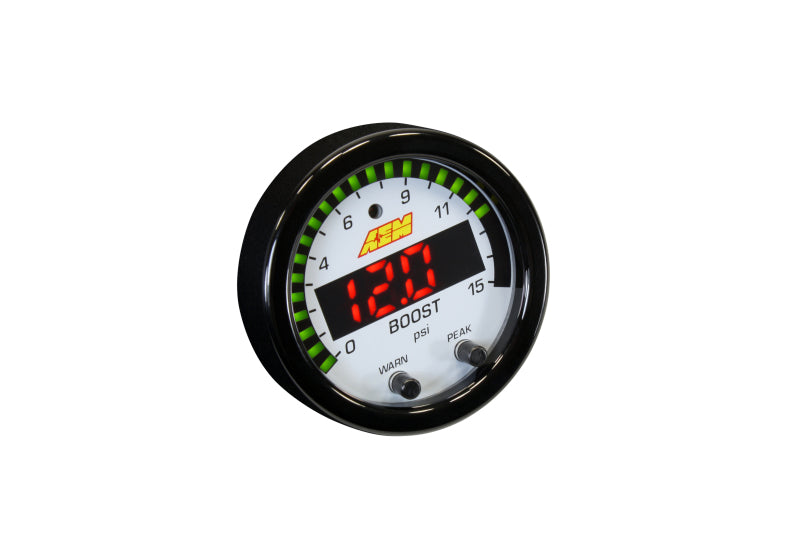

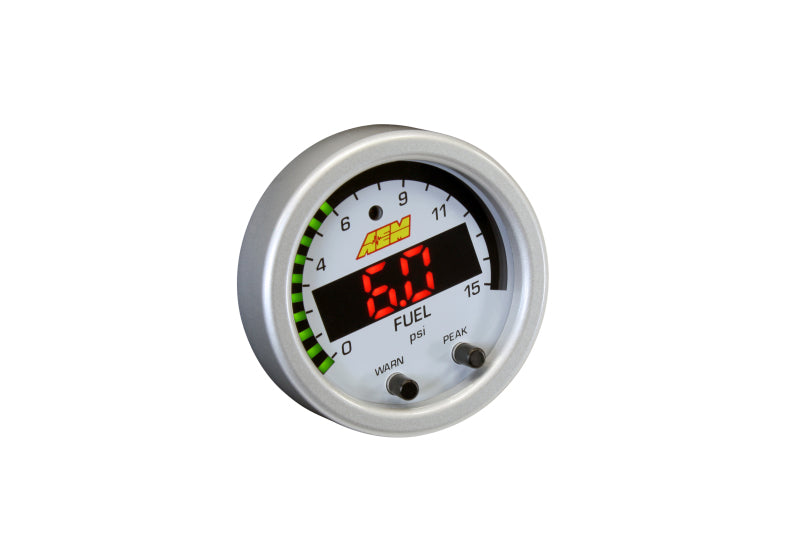

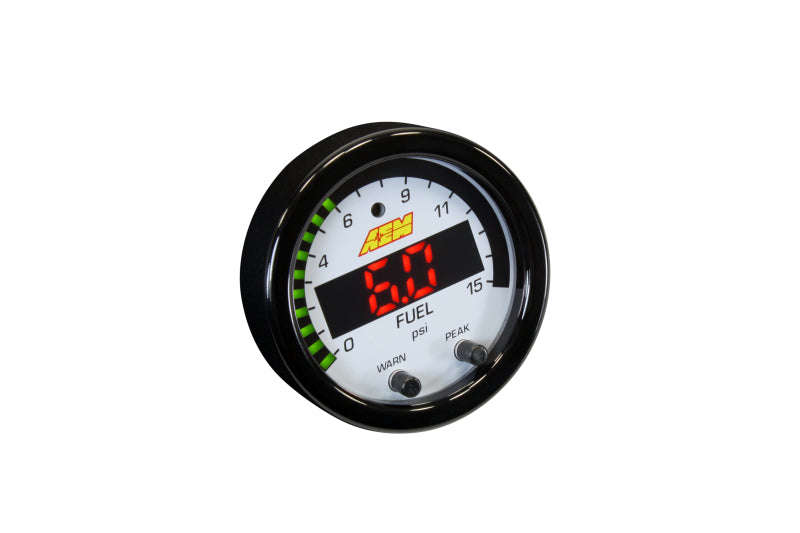

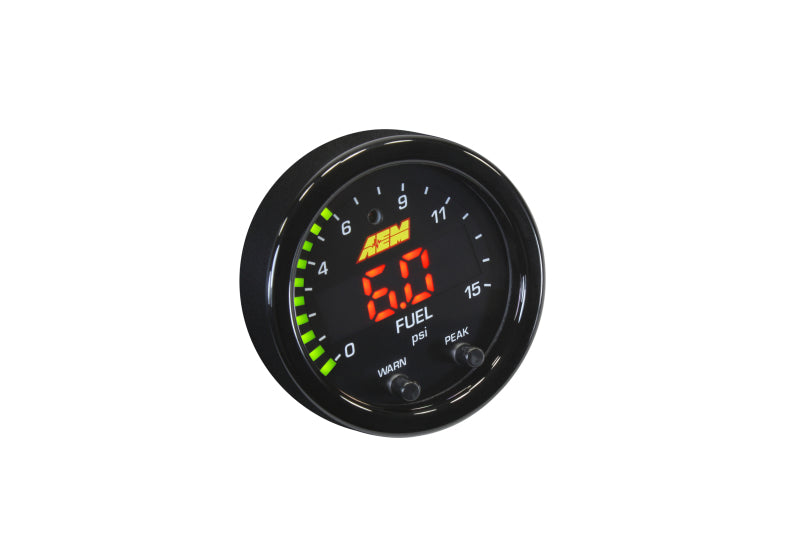

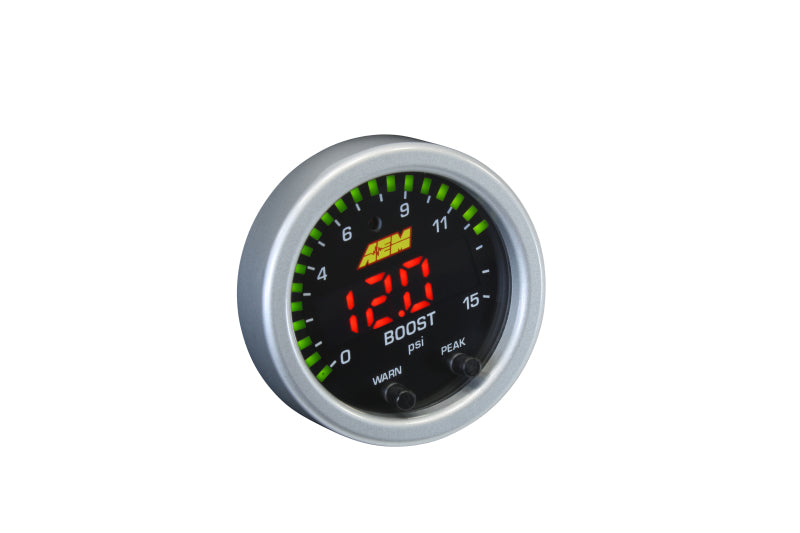

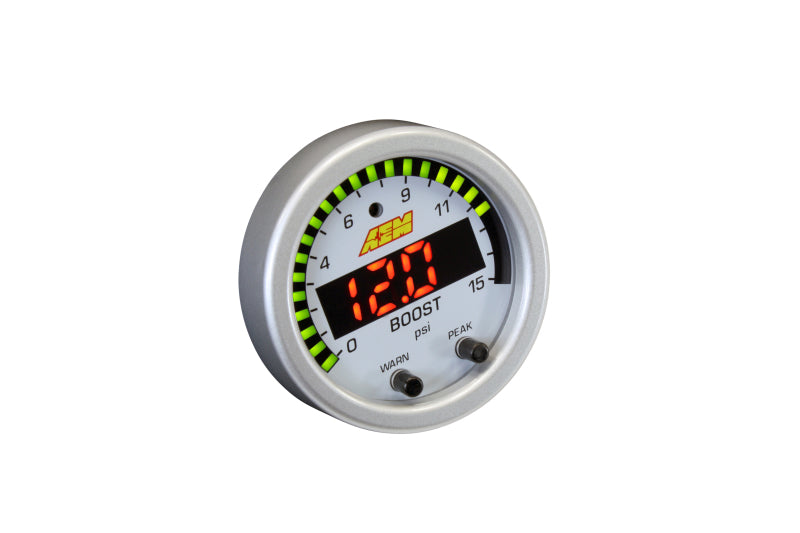

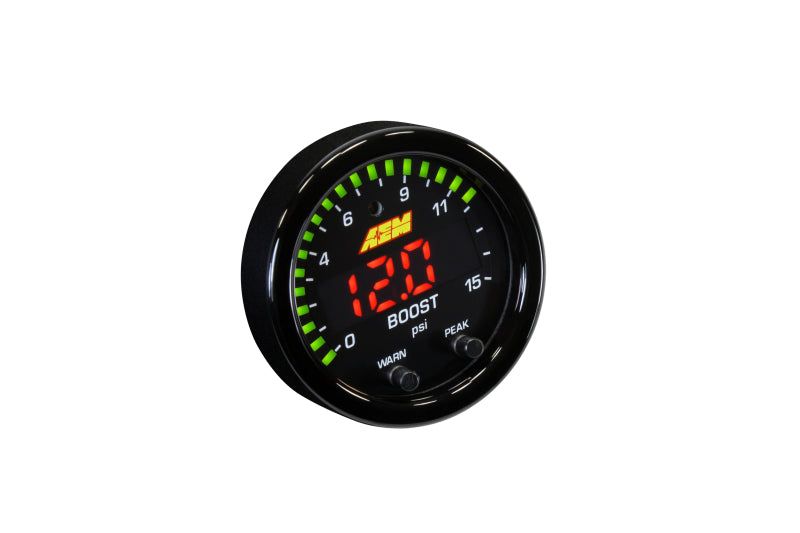

AEM 30-0309 X-Series 0-15 PSI Digital Boost/Fuel Pressure Gauge (52 mm)

Vehicle Fitment

• Universal -- works with any gas or forced-induction vehicle requiring 0-15 psi boost or fuel pressure monitoring

Fitment Notes

• Universal application -- not vehicle-specific.
• Requires connection to a pressure source and proper wiring for operation.
• Not recommended for use above 15 psi -- choose a higher-range gauge if needed.
• Emissions-legal in all 50 states -- does not affect vehicle emissions systems.

Features

• Measures boost or fuel pressure from 0 to 15 psi with high accuracy
• 52 mm (2-1/16") gauge size fits standard aftermarket gauge pods
• Ultra-slim depth (0.825") with shallow cup depth (0.200") for tight installations
• Large center LED display is 87% larger than previous generation for improved readability
• Sweeping green LED ring acts as a fast visual reference for pressure changes
• User-programmable warning and alarm thresholds for safety and tuning
• Analog 0-5V output and AEMnet CAN bus connectivity for logging or ECU integration
• Auto-dimming display adjusts brightness automatically for day or night driving
• Reversible faceplate lets you choose between "Boost" or "Fuel" labeling

Specifications

• Part Number: 30-0309
• Type: Digital pressure gauge (boost or fuel)
• Pressure Range: 0-15 psi
• Bezel Diameter: 52 mm (2-1/16")
• Total Depth: 0.825"
• Mounting Cup Depth: 0.200"
• Supply Voltage: 8-16V
• Outputs: 0-5V analog and AEMnet CAN bus

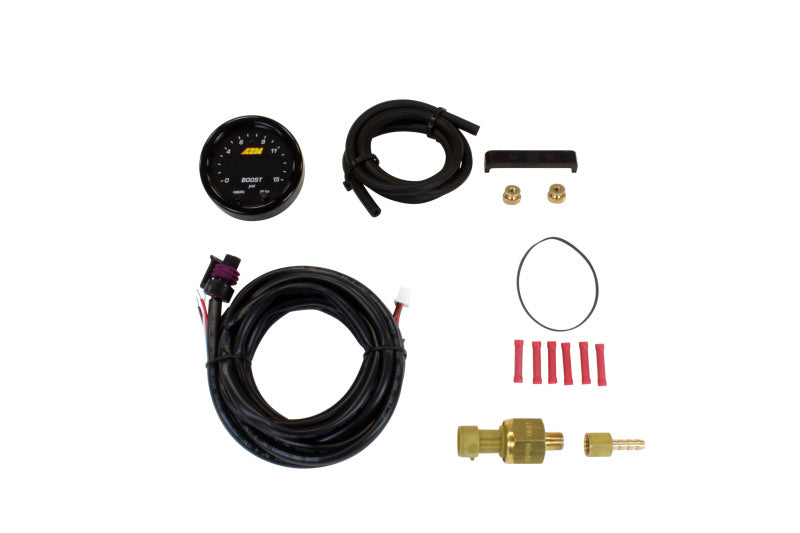

Included Components

• 1x AEM X-Series 0-15 psi digital gauge
• 1x Brass 15 psi pressure sensor (1/8" NPT)
• 1x Mounting bracket and M4 hardware
• 1x Rubber mounting band
• 4x Wiring connectors
• 1x Complete wiring harness
• 1x Installation instructions

Product Description

The AEM 30-0309 X-Series 0-15 PSI Digital Boost/Fuel Pressure Gauge is a universal, high-precision gauge designed to monitor boost or fuel pressure in forced-induction and performance vehicles. Its compact 52 mm size and ultra-slim profile make it ideal for custom installations, while the oversized digital readout and sweeping LED ring provide real-time visibility at a glance.

Engineered for tuners and enthusiasts, this gauge features user-configurable alarms, analog and CAN bus outputs for data logging, and a reversible faceplate for boost or fuel labeling. The included brass sensor and wiring harness ensure a complete installation package. Perfect for turbocharged builds, EFI systems, and custom fuel setups where accurate low-pressure monitoring is critical.
