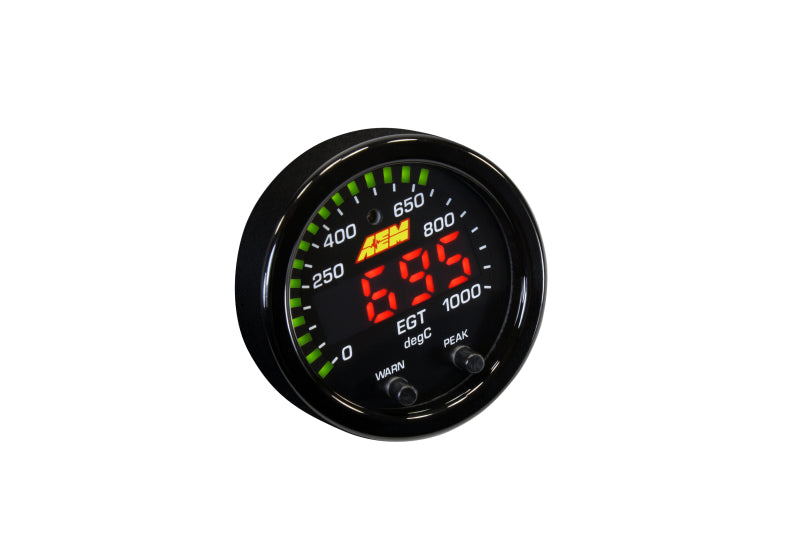

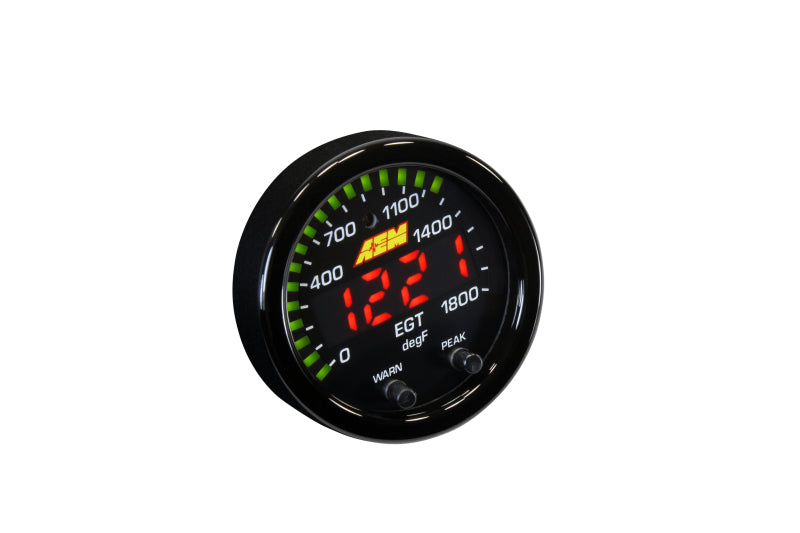

AEM 30-0305 X-Series EGT Gauge for Universal Fitment

Vehicle Fitment

• Universal fitment for performance vehicles

Features

• 0-1800°F / 0-1000°C temperature range
• 2-1/16" (52mm) gauge diameter
• 87% larger center LED display for improved readability
• 24 green outer LEDs for quick reference
• Programmable peak/recall function via gauge face buttons
• User-selectable threshold warnings (excluding volts)

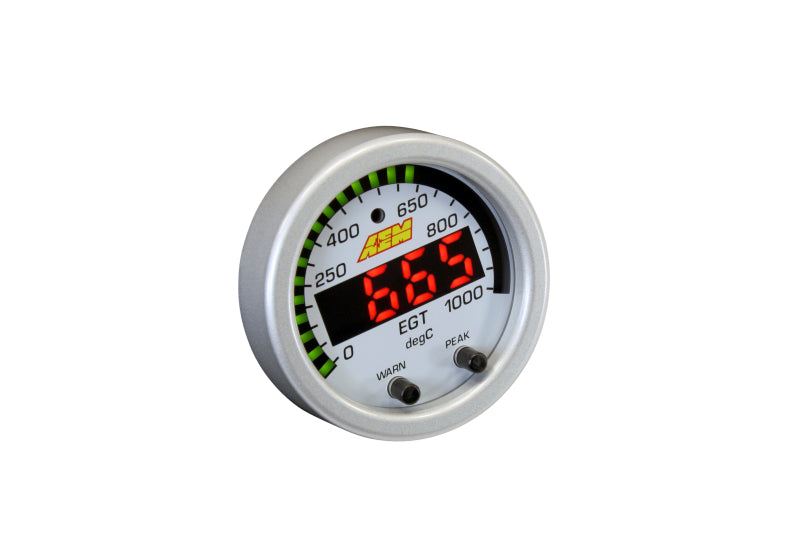

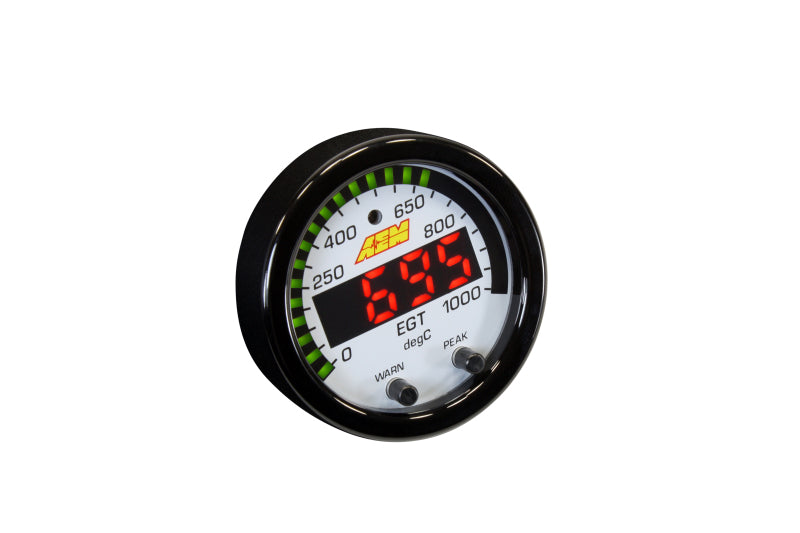

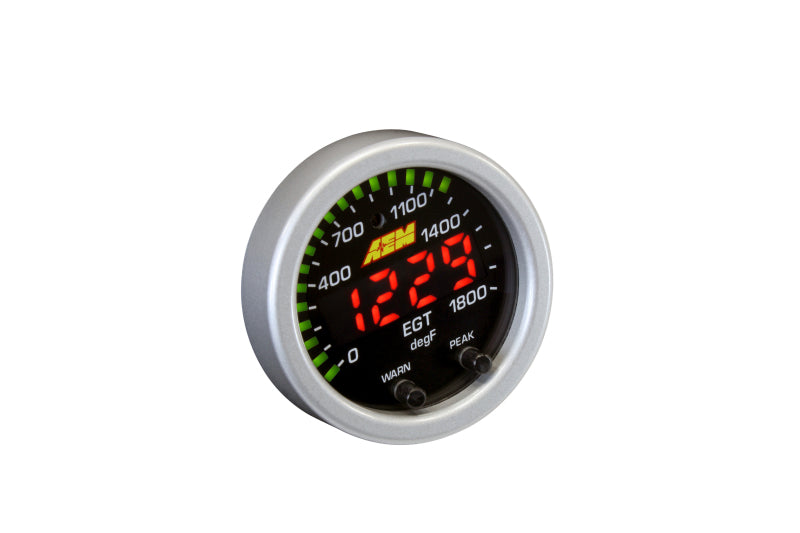

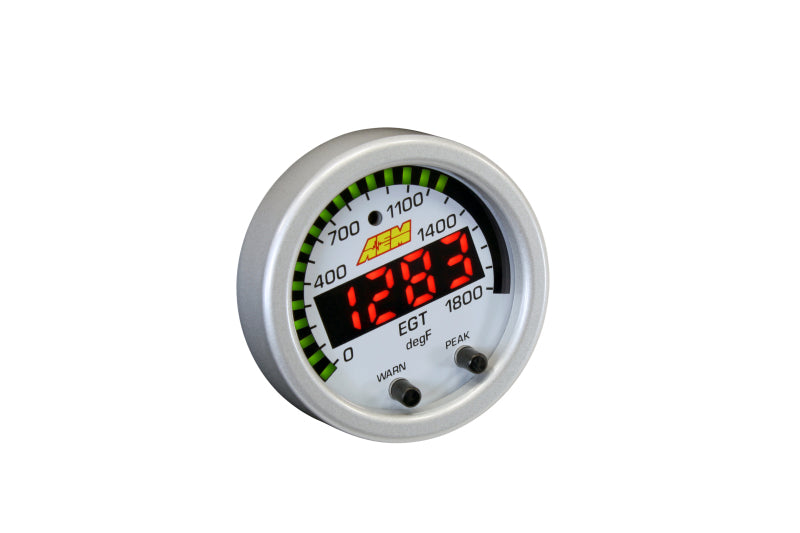

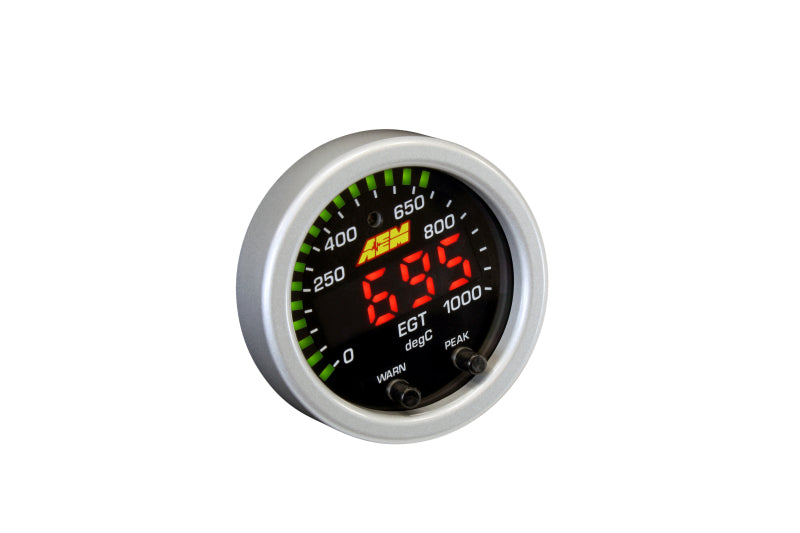

• Optional silver bezel and white faceplate accessory kit available (sold separately)
• AEMnet CAN-bus enabled for data transmission to EMS or data logger
• 0-5V analog output for data logging
• Slim 0.825" overall gauge depth and 0.200" cup depth for versatile mounting

Specifications

• Temperature Range: 0-1800°F / 0-1000°C
• Gauge Diameter: 2-1/16" (52mm)
• Overall Gauge Depth: 0.825"
• Cup Depth: 0.200"
• Center LED Display: 87% larger than original AEM gauges
• Outer LEDs: 24 green LEDs
• Output: 0-5V analog and AEMnet CAN-bus
• Optional Accessory Kit: 30-0305-ACC (sold separately)

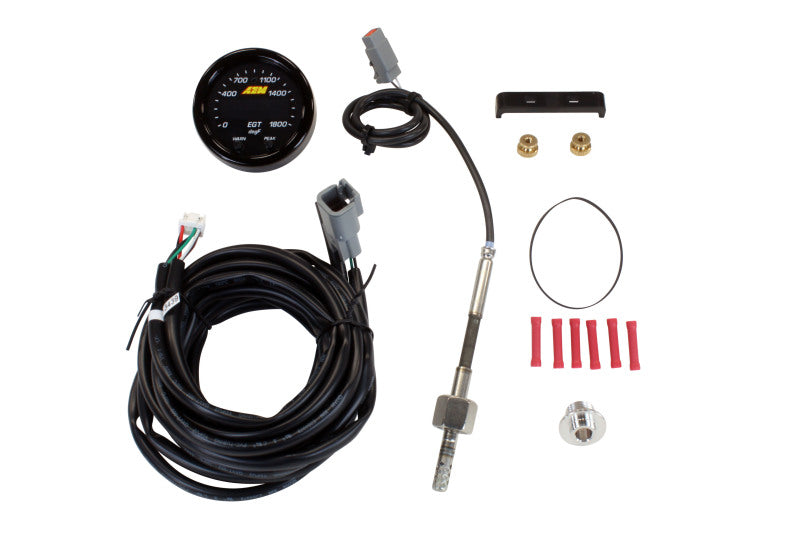

Included Components

• 1x AEM 30-0305 X-Series EGT Gauge
• 1x K-Type thermocouple sensor
• 1x Wiring harness
• 1x Mounting hardware
• 1x User manual

Product Description

The AEM 30-0305 X-Series Digital Exhaust Gas Temperature (EGT) Gauge is designed for performance enthusiasts seeking precise EGT monitoring. With a wide temperature range of 0-1800°F (0-1000°C), this gauge provides accurate readings to ensure optimal engine performance and prevent potential damage due to excessive exhaust temperatures.

Featuring a 2-1/16" (52mm) diameter, the gauge fits standard mounting locations, while its slim profile allows for versatile installation options. The 87% larger center LED display enhances readability, and the 24 green outer LEDs offer a quick visual reference to engine parameters. Programmable functions, including peak/recall and user-selectable threshold warnings, provide customizable monitoring to suit individual preferences.

For those desiring a different aesthetic, the optional 30-0305-ACC accessory kit includes a silver bezel and white faceplate, allowing users to switch between standard or metric units. AEMnet CAN-bus and 0-5V analog outputs enable seamless integration with Engine Management Systems (EMS) or data loggers, facilitating advanced data analysis and tuning.
