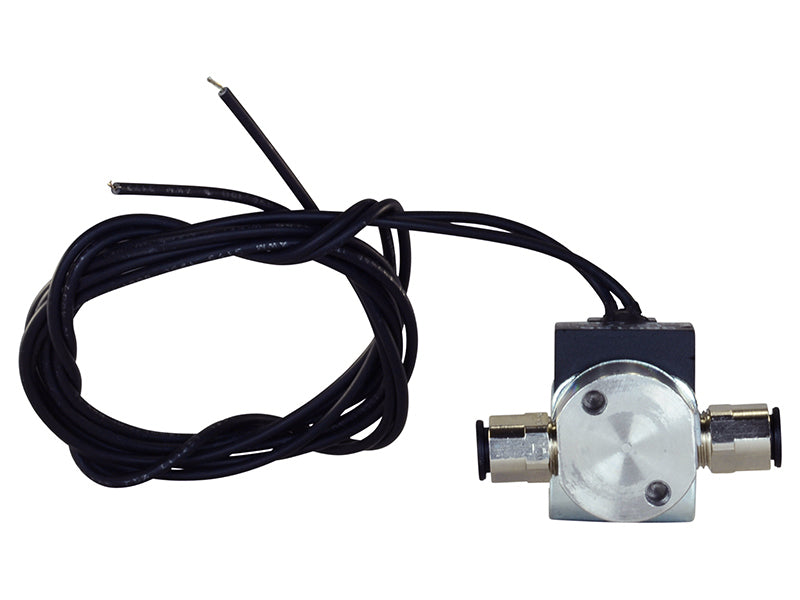

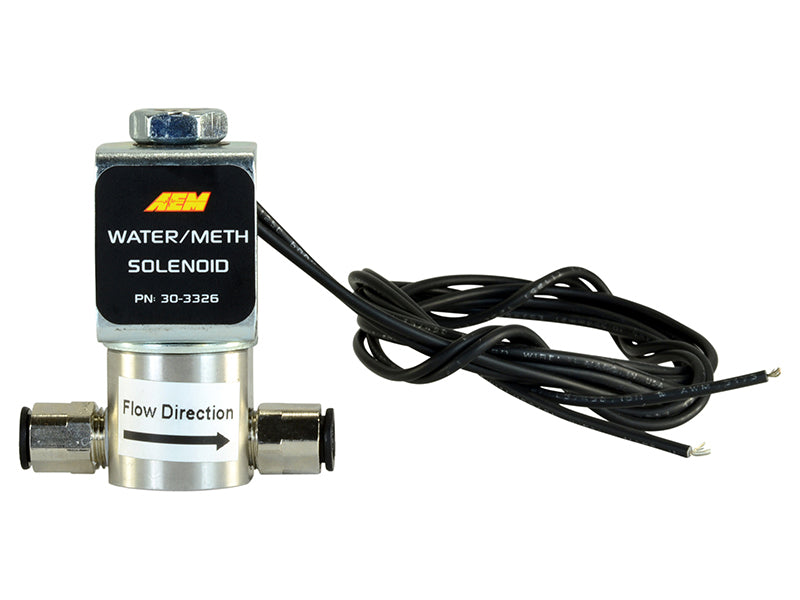

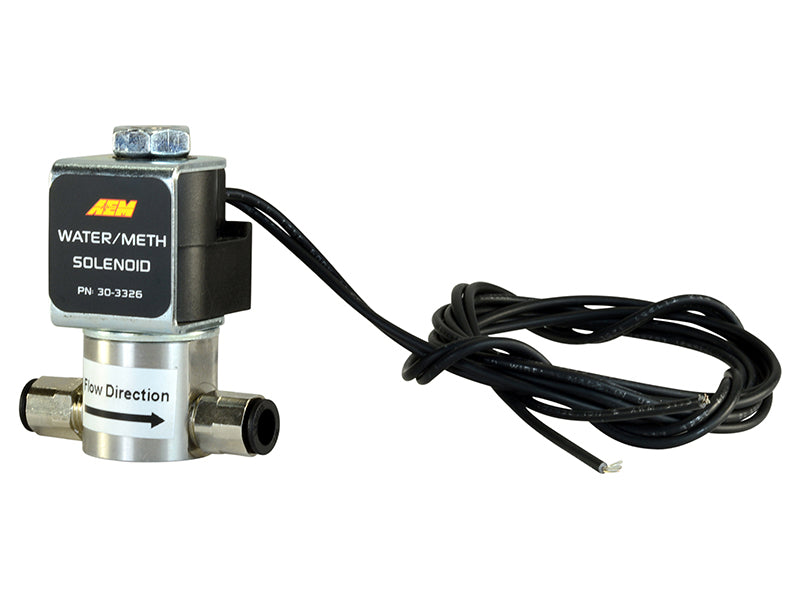

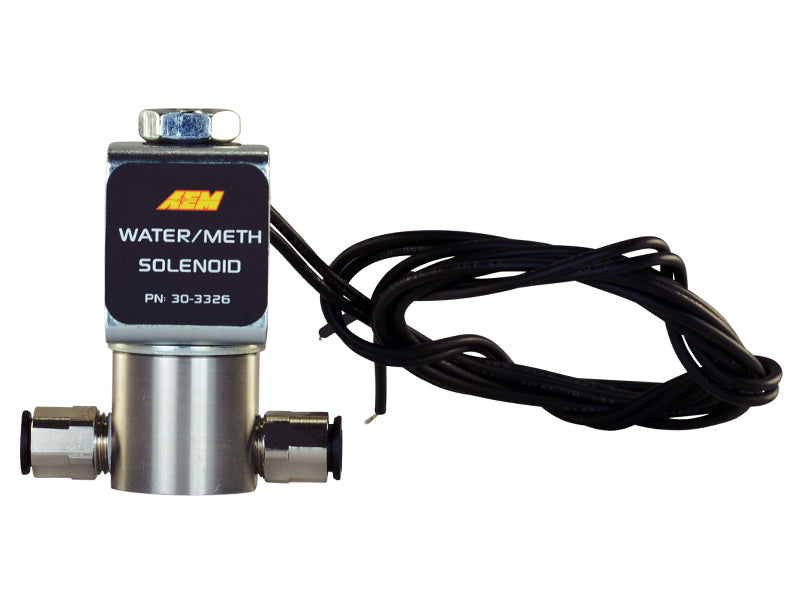

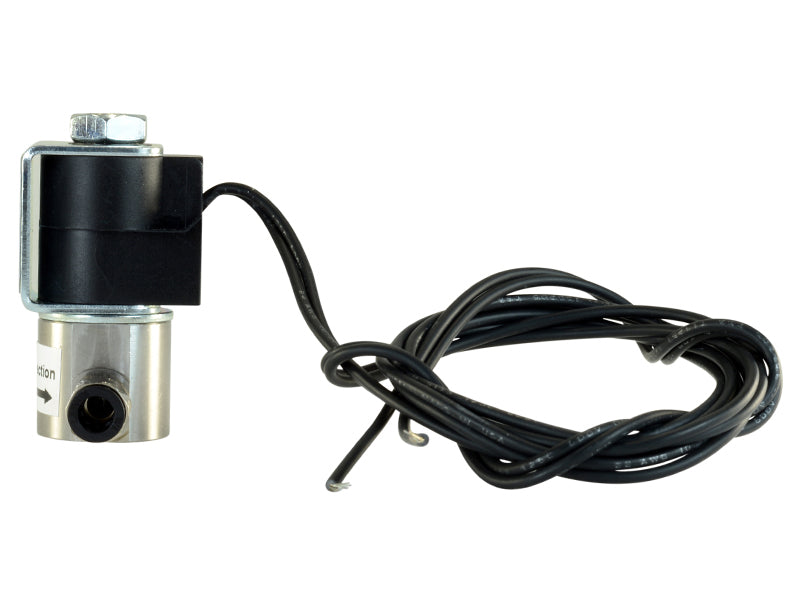

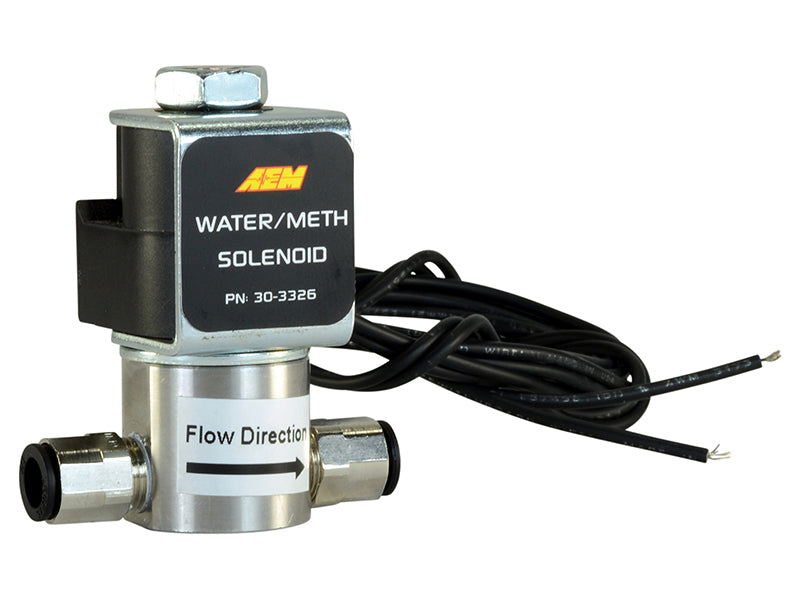

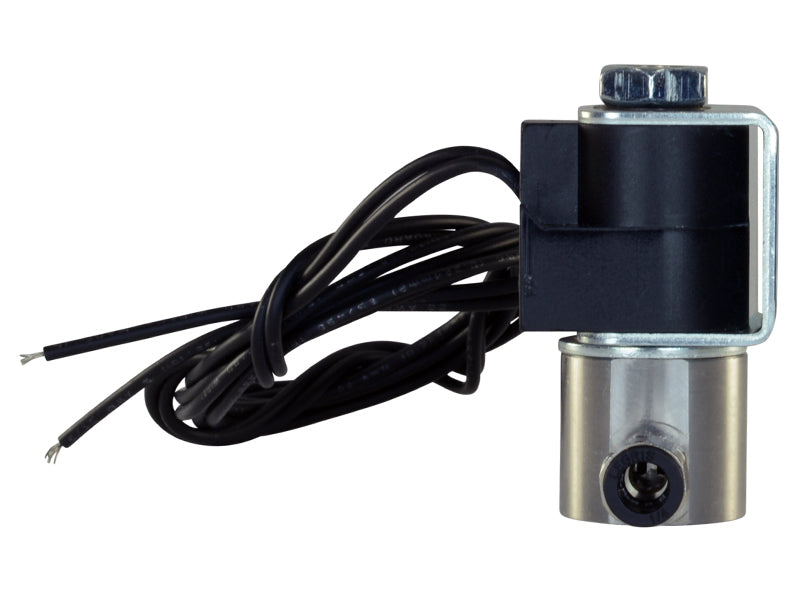

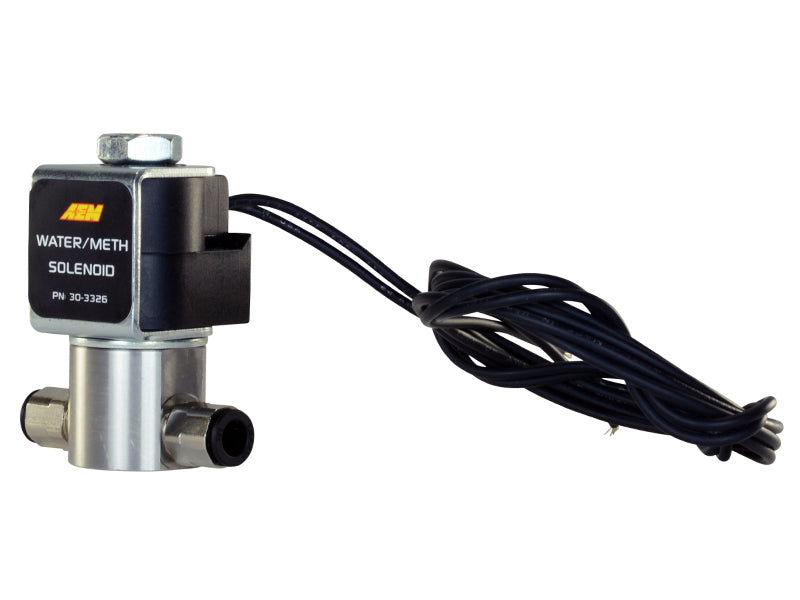

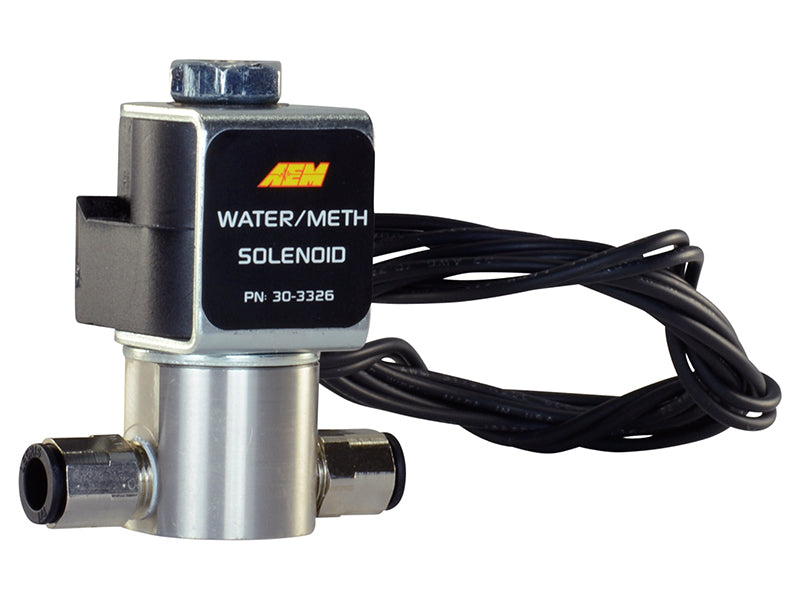

AEM 30-3326 High-Flow Water/Methanol Injection Solenoid Shut-Off Valve

Vehicle Fitment

• Universal Fit - Compatible with all water/methanol injection systems

Fitment Notes

• Universal fit - works with AEM and other brands of water/methanol injection systems
• Backwards compatible with AEM V2 and V3 Water/Methanol Controllers
• Installs inline between pump and injection nozzle
• Standard 1/8"-27 NPT inlet/outlet ports
• Includes 1/4" push-to-lock hose fittings for easy connection
• 2-wire connection with flying leads for simple wiring
• Low 0.75A current draw - no additional relay required

Features

• High-flow low-current WMI solenoid prevents unintended fluid flow
• 2-way normally closed 12V valve - opens only when system is actively spraying
• Provides accurate and consistent shut-off when system is not engaged
• Prevents siphoning under vacuum conditions
• High flow capacity of 3,600 cc/min at 150 PSI
• Ultra-low current draw of only 0.75A at 13.5V
• No additional relay required due to low current draw
• Fast response time for quick system activation
• Stainless steel body and internals for durability
• EPDM seals resist corrosion for years of reliable use
• Pressure tested to 200 PSI
• Flying leads simplify connection with user's desired connector
• Inexpensive insurance to protect your high-performance engine

Specifications

• Part Number: 30-3326
• Brand: AEM Electronics
• Product Type: Water/Methanol Injection Solenoid
• Valve Type: 2-Way Normally Closed
• Operating Voltage: 12V
• Current Draw: 0.75A at 13.5V
• Flow Rate: 3,600 cc/min at 150 PSI
• Pressure Rating: Tested to 200 PSI
• Inlet Port: 1/8"-27 NPT
• Outlet Port: 1/8"-27 NPT
• Fitting Size: 1/4" Push-to-Lock (Included)
• Body Material: Stainless Steel
• Seal Material: EPDM
• Finish: Natural Stainless
• Wiring: 2-Wire Flying Leads
• Relay Required: No
• Mounting Holes: 2
• Mounting Hardware Included: No
• Emissions Code: 5 (Legal for all vehicles)
• Warranty: 1 Year Limited
• Quantity: Each

Included Components

• (1) AEM High-Flow Water/Methanol Injection Solenoid
• (2) 1/4" Push-to-Lock Hose Fittings

Product Description

Protect your high-performance engine with the AEM 30-3326 High-Flow Low-Current Water/Methanol Injection Solenoid. This precision-engineered shut-off valve eliminates any chance of water/methanol flow entering your intake when the WMI system is not engaged. The 2-way normally closed design means the valve remains sealed until the system actively sprays, preventing unwanted siphoning under vacuum conditions that can cause engine damage. With an impressive flow capacity of 3,600 cc/min at 150 PSI, this solenoid won't restrict your WMI system's performance, while the ultra-low current draw of only 0.75A means no additional relay is required for installation. The stainless steel body and internals combined with EPDM seals provide excellent corrosion resistance for years of reliable service. Standard 1/8"-27 NPT ports with included 1/4" push-to-lock fittings make installation quick and easy, and the 2-wire flying leads simplify electrical connections. Pressure tested to 200 PSI for peace of mind. Whether you're running an AEM system or another brand of water/methanol injection, this solenoid is an inexpensive insurance policy for your engine investment. Backwards compatible with AEM V2 and V3 controllers. Backed by AEM's 1-year limited warranty.
