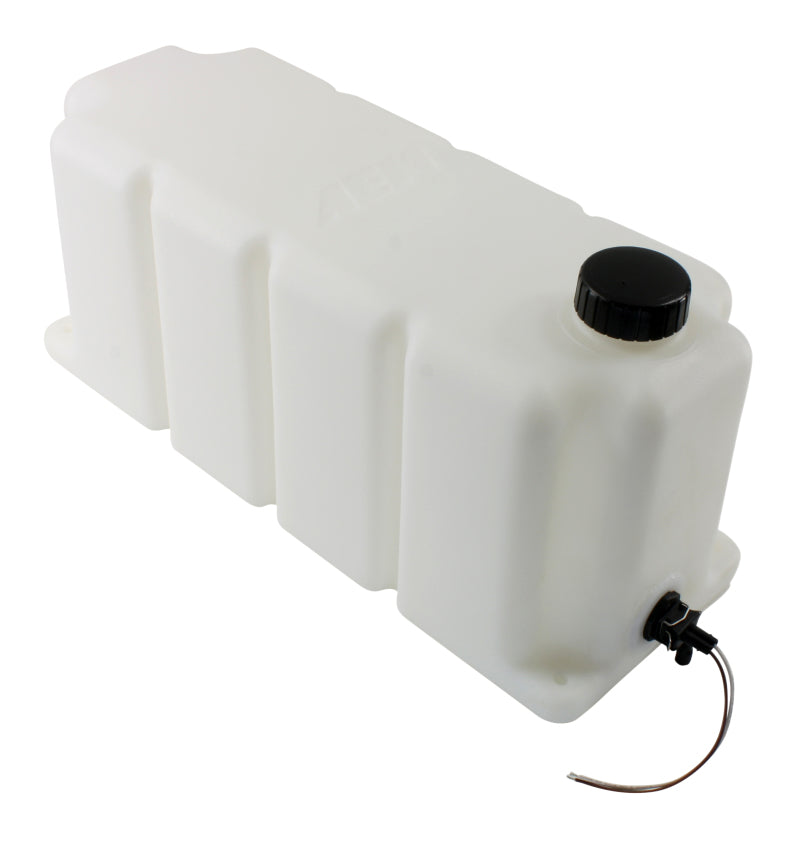

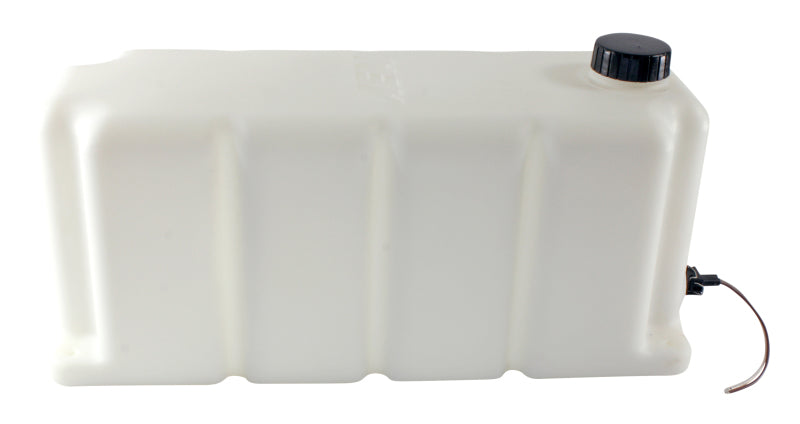

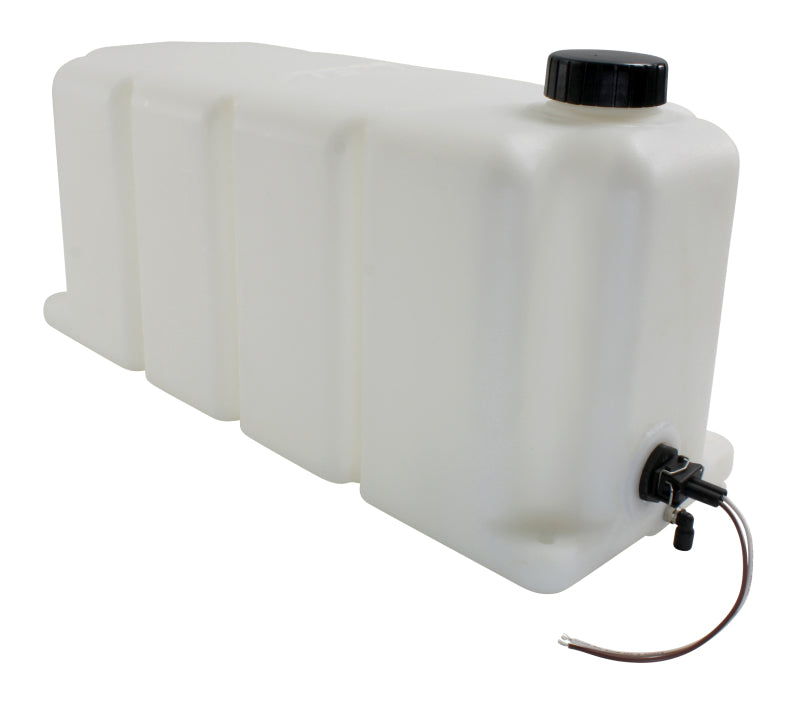

AEM 30-3320 V2 Water/Methanol Injection 5 Gallon Tank w/ Fluid Level Sensor

Vehicle Fitment

Universal - Fits all forced induction applications requiring water/methanol injection

Fitment Notes

• Universal fitment for turbocharged and supercharged vehicles
• Compatible with AEM V2 Water/Methanol Controllers (30-3304, 30-3306, 30-3305)
• NOT compatible with AEM V1 controllers - conductive sensor requires V2 system
• Works with most third-party water/methanol systems using 1/4" OD hose
• Can be used as upgrade from AEM 1.15 gallon reservoir or competitor tanks under 5 gallons
• For optimum results, use with AEM inline filter
• Maximum 50% methanol concentration recommended for safety
• Proper tuning required - improper installation/adjustment can cause engine damage

Features

• 5 gallon capacity for extended range between refills

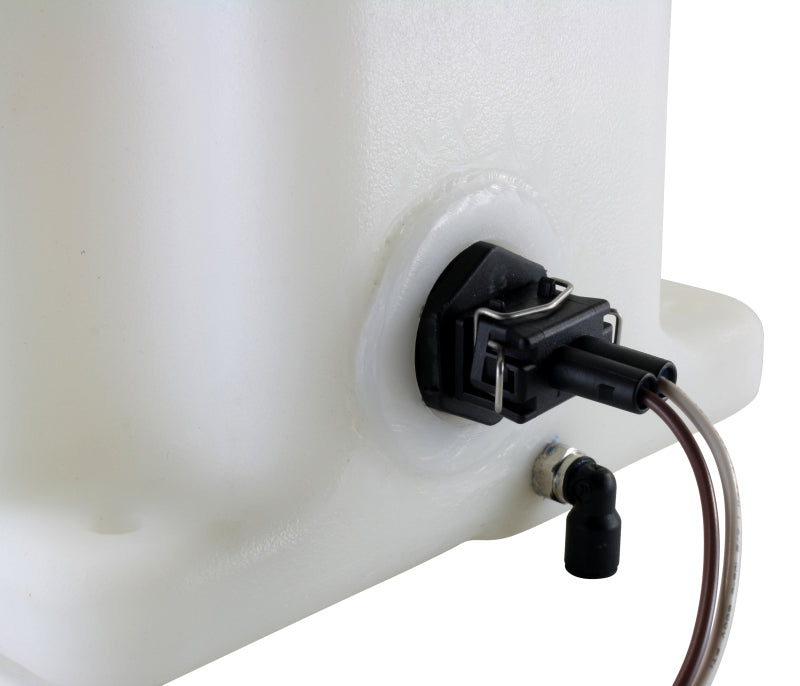

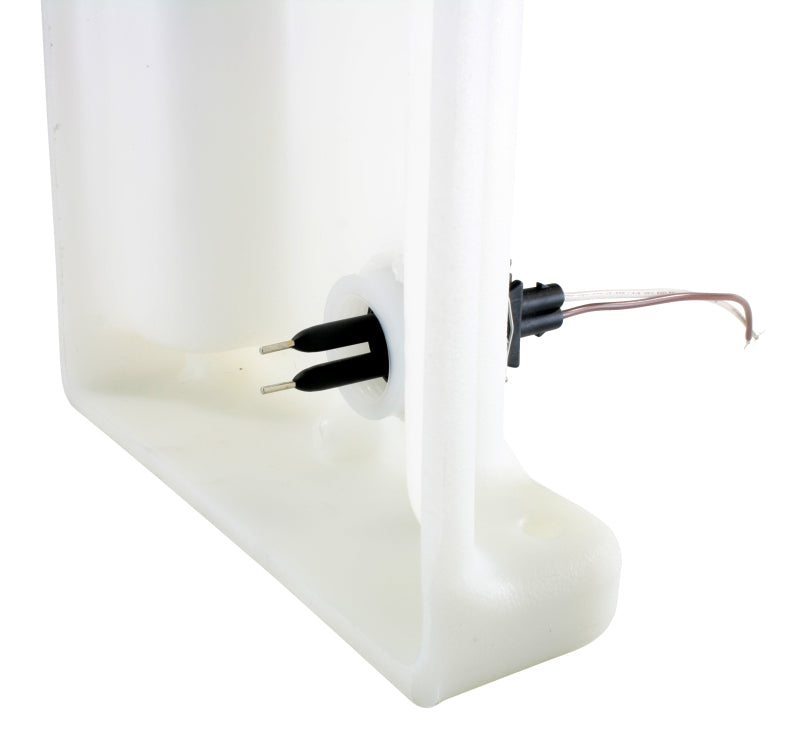

• Integrated conductive low fluid level sensor
• Real-time fluid level monitoring prevents running dry under boost

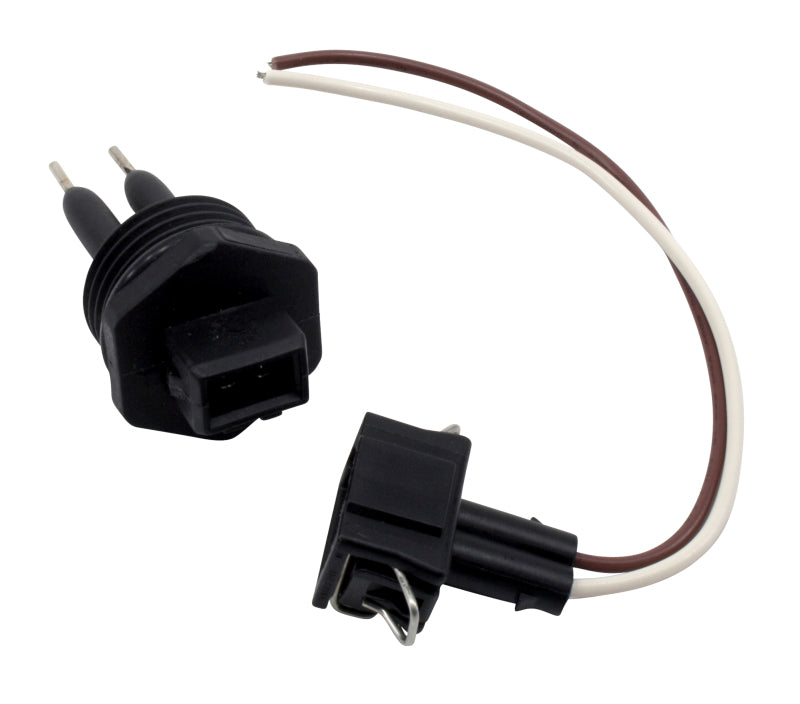

• Positive lock connector with color-matched wires
• Pre-installed 90° 1/4" push lock fitting
• 100% chemically compatible with methanol (all components)
• Universal mounting with comprehensive hardware included
• Direct replacement for AEM V2 system tanks
• Compatible with competitor water/methanol systems

Specifications

• Brand: AEM Electronics
• Part Number: 30-3320
• Product Type: Water/Methanol Injection Tank Kit
• System Compatibility: V2 Water/Methanol Injection
• Capacity: 5 Gallons
• Tank Material: Plastic
• Length: 21"
• Width: 8"
• Height (with cap): 10"
• Height (without cap): 9"
• Hose Fitting: 1/4" OD Push Lock (90° Pre-Installed)
• Sensor Type: Conductive Fluid Level
• Connector Type: Positive Lock with Color-Matched Wires
• Methanol Compatible: Yes (100%)
• Emissions Code: 5 (Does not affect vehicle emissions)
• Warranty: 12 Months
• Country of Origin: USA

Included Components

• 5 gallon water/methanol tank

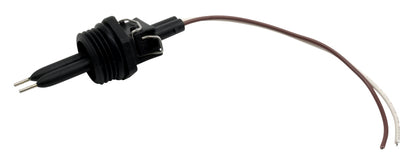

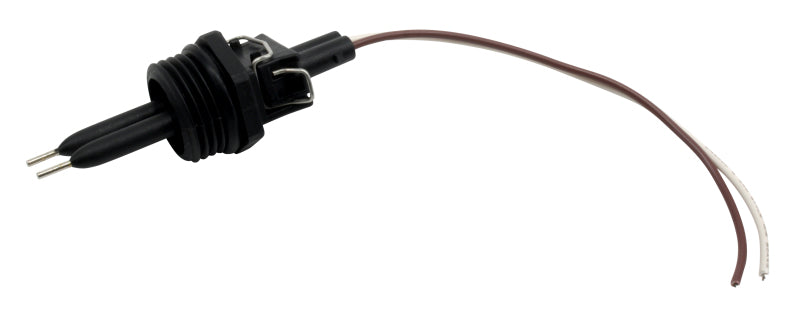

• Conductive fluid level sensor (pre-installed)
• Wiring harness with positive lock connector
• 90° 1/4" push lock fitting (pre-installed)
• Universal mounting hardware
• Installation instructions

Product Description

The AEM 30-3320 V2 Water/Methanol Injection 5 Gallon Tank Kit provides expanded fluid capacity for turbocharged and supercharged vehicles running water/methanol injection systems. Designed as a direct replacement for AEM V2 systems or as an upgrade from the standard 1.15 gallon reservoir, this 5 gallon tank significantly extends range between refills during aggressive driving or track sessions. The integrated conductive low fluid level sensor provides real-time monitoring through AEM V2 controllers, ensuring you never run dry when boost is needed most. The sensor features a positive lock connector with color-matched wires for clean, secure installation. All AEM water/methanol system components including the tank, pump, lines, fittings, filter, flow sensor, and nozzles are 100 percent chemically compatible with methanol, though AEM recommends never exceeding 50 percent methanol concentration for safety. The universal design works with most third-party water/methanol systems using 1/4 inch OD hose, making it an ideal upgrade for competitor systems with smaller tanks. Comprehensive mounting hardware is included for secure installation in any vehicle. Note that the conductive fluid level sensor is only compatible with AEM V2 controllers and will not function with V1 systems. Professional installation and proper tuning are required for optimal performance and engine safety.
