AEM 30-2012 Water Oil Coolant Temp Sensor Kit 1/8 in NPT -40 to 392 DegF Universal

Vehicle Fitment

• Universal - compatible with any vehicle, engine, or fluid circuit requiring fluid temperature monitoring with a 1/8" NPT sensor port
• Designed for use with AEM temperature gauges and displays (including the AEM X-Series Temperature Gauge and AEM digital dash products) as well as any aftermarket gauge, ECU, or data logger that accepts a 5V NTC thermistor input

Fitment Notes

• Requires a 1/8"-27 PTF (NPT) threaded port in the coolant passage, oil gallery, oil pan, intake manifold water port, transmission cooler line, or other fluid circuit. A brass or aluminum 1/8" NPT bung (not included) may need to be welded or plumbed into the circuit if no factory port exists.
• Install using a calibrated torque wrench - torque to 13.5 Nm / 10 ft-lbs. Use thread sealant on the NPT threads as needed.
• Wiring requires crimping pins onto 22AWG TXL wire with a Delphi 12039500 crimper or equivalent. Strip wire to 0.175"-0.200" before crimping. A 2.2kΩ pull-up resistor is required between the signal wire and the 5V supply - this is typically built into AEM gauges and ECU analog inputs.
• Polarity does not matter on this two-wire sensor - either wire can go to signal or ground.
• If a 3/8" NPT port is available, see AEM PN 30-2011 (includes aluminum bung). For applications requiring a high-performance DTM-style connector and aluminum bung, see PN 30-2013.

Features

• Wide Operating Range - -40°C to 200°C (-40°F to 392°F): The sensor tip is rated to a full 200°C - covering the complete range of water, engine coolant, oil, transmission fluid, and intake air temperatures found in street, track, and competition applications. The mating connector is rated to 150°C for installations near high-heat areas.
• High Accuracy - Better than ±2°C / ±3.6°F: NTC thermistor design delivers consistent, accurate temperature readings across the operating range with better than ±2°C accuracy - suitable for precision tuning and engine management applications.
• 1/8" NPT Male Thread - Industry Standard Fitment: The 1/8"-27 PTF thread is the most common NPT size for automotive sensor ports, fitting directly into the majority of aftermarket gauge bungs, OEM threaded coolant and oil ports, and custom fabricated fittings without requiring adapters.
• Brass Sensor Body: The 1/2" hex brass sensor body provides excellent corrosion resistance in both coolant and oil environments, and resists cross-threading during installation compared to aluminum-bodied alternatives.
• Fast Thermal Response: A 10-second thermal time constant (measured in silicone oil) means the sensor reaches 63.2% of a step-change temperature within 10 seconds - providing timely readings during warmup, thermal events, and transient conditions.
• Weatherproof Connector with Pins Included: The kit includes a weatherproof mating connector, connector pin lock, and three crimp terminal pins - allowing custom wire length and routing without having to source connector hardware separately. Multiple pins are included to allow for customization and error margin during assembly.
• 5V Supply Compatibility: Operates on the standard 5V reference voltage used by virtually all aftermarket ECUs, data loggers, and digital gauges - ensuring broad compatibility with AEM, Haltech, MoTeC, Link, Hondata, Cobb, and most other systems.

Specifications

• Part Number: 30-2012
• Brand: AEM Electronics (AEM Performance Electronics)
• Product: Fluid Temperature Sensor Kit (Water / Coolant / Oil)
• Thread Size: 1/8"-27 PTF (NPT) Male
• Hex Size: 1/2 in
• Sensor Body Material: Brass
• Sensor Type: NTC Thermistor
• Operating Temperature (Sensor Tip): -40°C to 200°C / -40°F to 392°F
• Operating Temperature (Connector): -40°C to 150°C
• Accuracy: Better than ±2°C / ±3.6°F
• Supply Voltage: 5V DC
• Typical Pull-Up Resistor: 2.2kΩ (2K2 Ohms)
• Wire Size: 22AWG TXL
• Wiring: Two-wire (polarity independent)
• Thermal Time Constant: 10 seconds (silicone oil test medium)
• Dissipation Constant: 12 mW/°C
• Installation Torque: 13.5 Nm / 10 ft-lbs
• Sensor Weight: 12.2 g
• Fitment: Universal
• Warranty: 12 Months from original purchase date

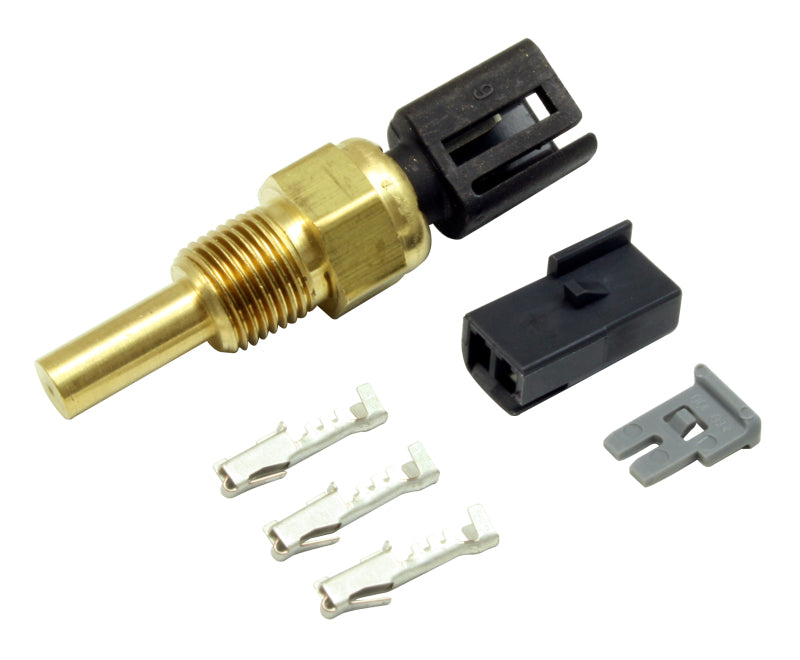

Included Components

• 1x Fluid Temperature Sensor (1/8" NPT, brass)
• 1x Mating Connector (weatherproof)
• 1x Connector Pin Lock
• 3x Crimp Terminal Pins
• Note: Wire, pull-up resistor, and NPT bung (if required) sold separately

Product Description

The AEM 30-2012 is a universal 1/8" NPT fluid temperature sensor kit for monitoring water, coolant, oil, or any other fluid circuit requiring temperature data in the -40°C to 200°C (-40°F to 392°F) range. It is the most commonly used sensor in AEM's temperature sensor family, designed to thread directly into the 1/8" NPT ports found on the majority of aftermarket gauge bungs, OEM sensor bosses, and custom fabricated fluid fittings.

The NTC thermistor design delivers better than ±2°C accuracy on a standard 5V reference supply - compatible with AEM's X-Series Temperature Gauge, AEM digital dash products, and virtually every aftermarket ECU and data logger that accepts a 5V analog thermistor input. The kit includes the sensor, weatherproof mating connector, connector lock, and three crimp pins for custom wiring, allowing installation without sourcing additional hardware. Wiring is polarity-independent. A 2.2kΩ pull-up resistor between the signal wire and 5V supply is required and is typically integrated into AEM and most OEM ECU analog inputs.

For applications with a 3/8" NPT port, see AEM 30-2011 (includes aluminum bung). For a DTM-style connector with aluminum bung, see AEM 30-2013. Universal fitment. 12-month warranty.
