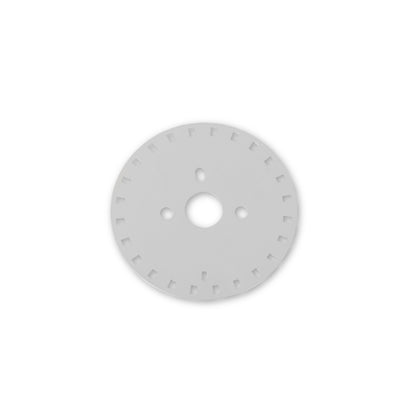

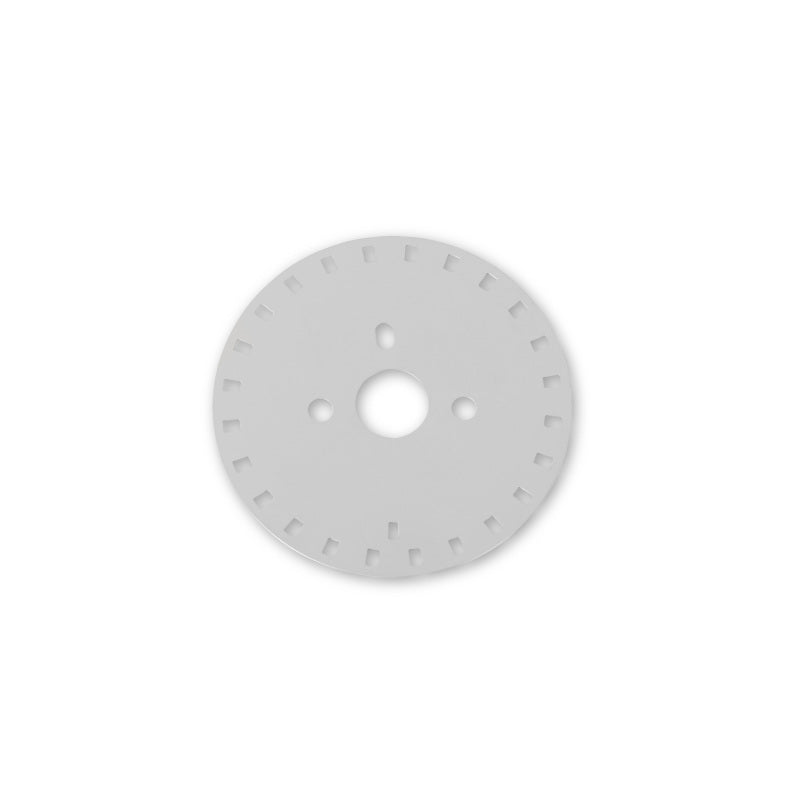

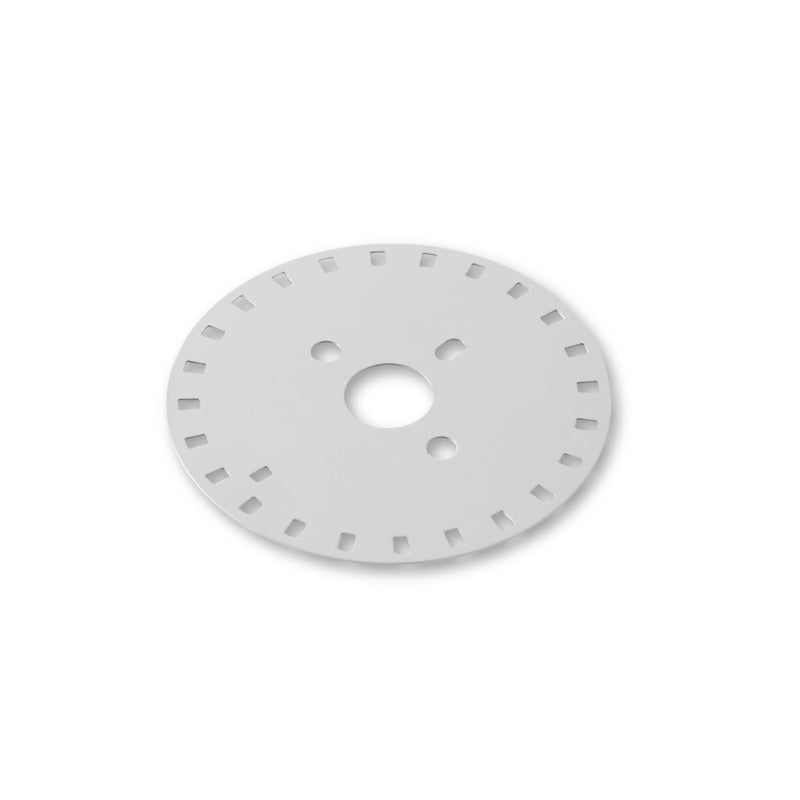

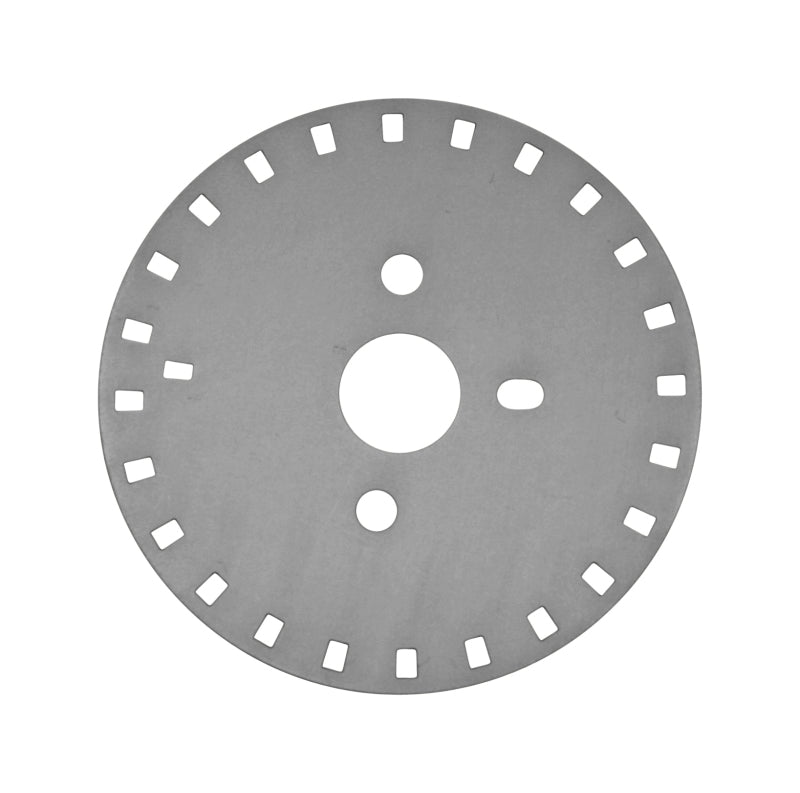

AEM 30-8761 CAS Trigger Disk 24+1 Tooth 50mm Nissan RB25DET RB26DETT VG30DETT

Vehicle Fitment

• Nissan Skyline R32 GTST - RB20DET
• Nissan Skyline R32 GTR - RB26DETT
• Nissan Skyline R33 GTST - RB25DET
• Nissan Skyline R33 GTR - RB26DETT
• Nissan Fairlady Z / 300ZX Z32 - VG30DETT
• Additional Nissan VG-series engine applications - confirm hub match before ordering

Fitment Notes

• Critical hub verification required before ordering. The 30-8761 uses a round shaft hub and a 50mm outer diameter. Before purchasing, remove the factory CAS disc from your distributor and visually confirm that the center hub profile of your stock disc is round - not "D" shaped. If your stock disc has a D-shaped shaft, see 30-8760 instead.
• Does NOT fit Nissan Skyline R34. R34 RB-series engines (RB25DET NEO, RB26DETT) use a D-shaped distributor shaft and require the 30-8760 disc, not the 30-8761. This is the most common ordering error for this product - verify your chassis and CAS disc hub before purchasing.
• For use with AEM programmable engine management systems (EMS) only. This disc is a component for AEM EMS installations and does not function as a standalone upgrade. It requires an AEM EMS or compatible aftermarket ECU configured for a 24+1 cam trigger pattern.
• AEM Series 2 EMS kits (PN 30-6610 and 30-6620) include this disc - it does not need to be purchased separately for those kits. If running a Series 1 AEM EMS or a second-hand AEM EMS and experiencing cam sync issues, this disc is the correct replacement.
• Related AEM CAS disc variants: 30-8760 (50mm OD, D-shaft - RWD SR20DET, KA24DE, most R34 RB engines); 30-8762 (54mm OD, D-shaft - FWD/AWD SR20DET, Pulsar GTI-R).
• Sold individually - one disc per package.

Features

• 24+1 Tooth Pattern - Eliminates CAS Sync Issues on RB and VG Engines: The 30-8761 uses a 24-tooth evenly spaced pattern plus one sync/reference tooth - the 24+1 trigger pattern. This resolves the cam angle synchronization problems that arise when running an AEM EMS on factory Nissan RB20DET, RB25DET, RB26DETT, and VG30DETT distributor setups, ensuring accurate sequential injection and ignition timing at all RPMs.
• Direct Replacement for the Factory CAS Disc: Installs directly into the existing factory distributor in place of the OEM Crank Angle Sensor disc - no distributor replacement, external trigger kit, or fabrication required. The factory CAS pickup sensor and distributor housing are retained.
• 50mm Outer Diameter - Factory Spec Dimensions: Machined to 50mm OD, matching the factory disc dimensions for correct sensor gap and clearance inside the R32/R33 Skyline and Z32 300ZX distributor housings.
• Round Shaft Hub - Correct for R32/R33 and VG Applications: The round shaft hub is the correct center profile for most RB-series distributors found in R32 and R33 Skylines and VG30DETT Z32 300ZX applications, providing positive, slip-free drive engagement inside the factory distributor.
• Compatible with Multiple Aftermarket ECU Platforms: While designed for AEM EMS, the 24+1 pattern is widely supported. Compatible with aftermarket ECUs (Haltech, Link, MoTeC, MaxxECU, and others) that support a 24+1 or 24-tooth with 1 sync cam trigger configuration - always confirm trigger settings with your ECU's documentation or tuner.

Specifications

• Part Number: 30-8761
• Brand: AEM Electronics (AEM Performance Electronics)
• Product: Nissan CAS Trigger Disk - 50mm OD, Round Shaft Hub
• Trigger Pattern: 24+1 (24 evenly spaced teeth + 1 sync/reference tooth)
• Outer Diameter (OD): 50mm
• Hub Type: Round shaft
• Primary Application: Nissan RB20DET, RB25DET, RB26DETT (R32/R33); VG30DETT (Z32)
• Does NOT fit: Nissan Skyline R34 (use 30-8760)
• Quantity: 1 (sold individually)
• Warranty: 12 Months

Included Components

• 1x AEM CAS Trigger Disk (30-8761) - 50mm OD, round shaft hub, 24+1 tooth pattern

Product Description

The AEM 30-8761 is a 24+1 tooth CAS (Crank Angle Sensor) trigger disk for Nissan RB and VG-series engine applications - specifically the RB20DET and RB26DETT in the R32 Skyline, the RB25DET and RB26DETT in the R33 Skyline, and the VG30DETT in the Z32 Fairlady Z / 300ZX. It is a direct internal replacement for the factory CAS disc inside the Nissan distributor, designed for use with AEM programmable engine management systems to resolve cam angle sync issues on these platforms.

The disc installs into the existing factory distributor without modification, replacing the OEM trigger disc with a 24+1 pattern that the AEM EMS (and other aftermarket ECUs supporting 24+1 cam triggers) can accurately read for sequential fuel injection and ignition control. It is machined to 50mm OD with a round shaft hub - the correct profile for R32 and R33 Skyline and Z32 VG distributor setups.

Important: The 30-8761 does not fit the Nissan Skyline R34 - R34 RB engines use a D-shaft hub and require the 30-8760 instead. Always remove and inspect the factory CAS disc before ordering to confirm hub shape and OD. AEM Series 2 EMS kits (30-6610, 30-6620) include this disc. 12-month warranty.
